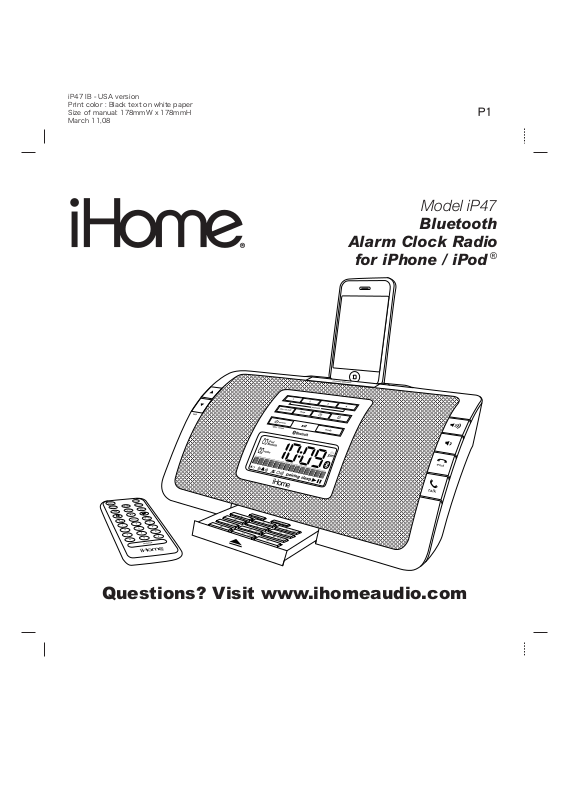

SDI Technologies IP47 User Manual
Model iP47
Bluetooth
Alarm Clock Radio
for iPhone / iPod
®
Questions? Visit www.ihomeaudio.com
iP47IB-USAversion
Printcolor:Blacktextonwhitepaper
Sizeofmanual:178mmWx178mmH
March11,08
P1
Table of Contents
Quick Start
Controls and Indicators
iP47 Display
Using the iP47
Using the Alarms
Listening to iPod
Listening to Radio
Listening to Bluetooth Music
Listening to other portable audio devices

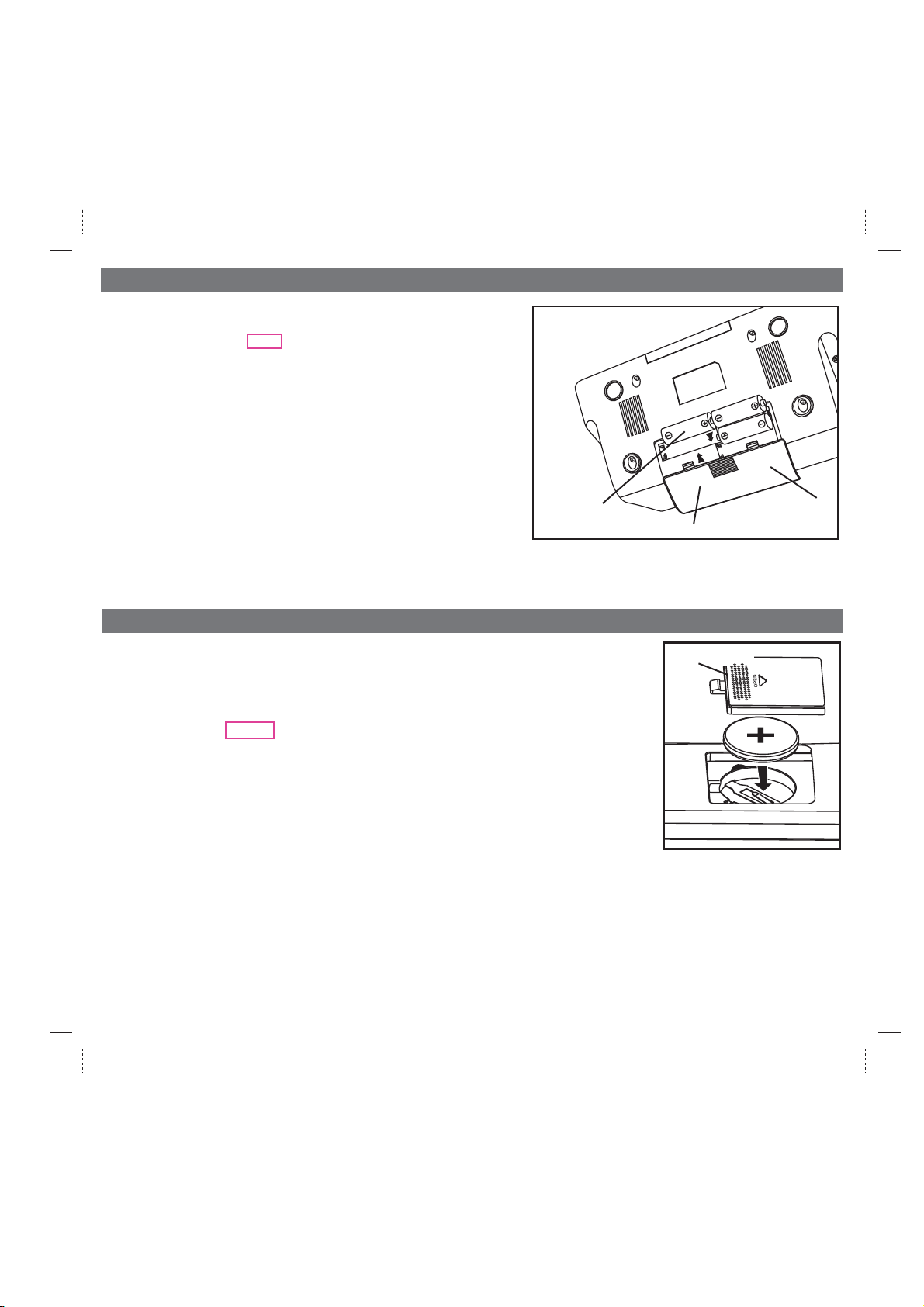

Install Clock Backup Battery
Replacing the Remote Control Battery
Sleep Operation
Dimmer Operation
Making Call with Bluetooth Mobile Phone
Remote Control
A Consumer Guide to Product Safety
Trouble Shooting
Warranty
Maintenance
• Place the unit on a level surface away from sources of direct sunlight or excessive heat.
• Protect your furniture when placing your unit on a natural wood and lacquered finish. A cloth or other
protective material should be placed between it and the furniture.
• Clean your unit with a soft cloth moistened only with mild soap and water. Stronger cleaning agents, such
as Benzine, thinner or similar materials can damage the surface of the unit.
NOTE : The iP47 is designed for use with Bluetooth wireless devices compatible with the HFP,
HSP, A2DP and AVRCP streaming audio profiles. Refer to your Bluetooth device’s user
manual or technical support to determine if your Bluetooth device supports these profiles.
P2
1-2
3
3
4
5
6
6
7
7
8
8
9
9
9
10
11
12-15
16
FCC Information
Getting Started
Thanks you for purchasing the iP47. Designed specifically to play music through Bluetooth from your
mobile phone or computer (through Bluetooth or line-in cord). This system provides high quality audio
performance that brings out the best in your music and lets you wake or sleep to it.
Please read this instruction carefully before the appliance is operated and keep it for future reference.
P3
Warning: Changes or modifications to this unit not expressly approved by the party responsible for compliance
could void the user’s authority to operate the equipment.
NOTE: This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant
to Part 15 of the FCC Rules. These limits are designed to provide resonable protection against harmful interference
in a residential installation. This equipment generates, uses and can radiate radio frequency energy and , if not
installed and used in accordance with the instructions, may cause harmful interference to radio communications.
However, there is no guarantee that interference will not occur in a particular installation. If this equipment does
cause harmful interference to radio or television reception, which can be determined by turning the equipment
off and on, the user is encouraged to try to correct the interference by one or more of the following measures:
• Reorient or relocate the receiving antenna.
• Increase the separation between the equipment and receiver.
• Connect the equipment into an outlet on a circuit different from that to which the receiver is connected.
• Consult the dealer or an experienced radio/TV technician for help.
This device complies with Part 15 of the FCC Rules. Operation is subject to the following two conditions: (1) This
device may not cause harmful interference, and (2) this device must accept any interference received, including
interference that may cause undesired operation.
RESET
RESET
TEST
TEST
1
Quick Start
Attach AC adaptor cable to jack
on back of the iP47 and plug the
other end into a wall socket
1: Power
2: Pair Your Bluetooth-enabled Phone With The iP47
iPod
mode
3: Making And
Answering Calls
h
e
l
l
o
o
o
o
10:09
Off
On
Select Back
10:09
Connectivity
Infrared
Packet data
Data transfer
Bluetooth
Select Back
B
4: Setting theTime
Zone and Clock
Press the Mode button as
needed to select iPod, Bluetooth,
FM1, FM2, AM or Line in. Press
UP or DOWN button to tune to
desired station. Press and hold a
preset button to set current
station as a preset.
Time is preset to Eastern Standard Time.
Press and hold
the Time Zone button until the
display flashes.
Press UP or DOWN buttons to set your Time zone.
Press and hold
the Time Zone button again to
confirm. To adjust clock, press Clock Adjust button
then UP or DOWN button to set.
Press
and hold for 2 sec.
time zone
5: Setting Alarms
6: iPod/Bluetooth/
Radio/Line in
P4
a) Select Bluetooth/discover mode on your phone (see your user manual)
b) Press and hold the Play/Pause button on the iP47. The unit will enter
Auto-pairing mode and begin searching for a device to pair with, indicated
by flashing Bluetooth and pairing icons.
c) When prompted, enter pass code for iP47 on your device: 1234
d) A screen (on phone) should confirm successful pairing.
A
Wake to iPod or Bluetooth: Press and hold
Alarm 1 Button until the hour flashes. Press
UP or DOWN button to set Hour. Press
Alarm 1 again then press UP or DOWN to
set minutes. Press Alarm 1 again then press
Mode Button to select iPod or Bluetooth
device to wake to.
Wake to radio: Press and hold Alarm 2
Button and adjust as above.
end
Once the iP47 is linked with
your phone:
a) To dial, open the keypad on
front of the unit. Dial the number
then press the Talk Button.
b) To answer the phone, press
the Talk Button. Press the End
Button to end the call.
NOTE: If you have call waiting,
press the Talk Button to answer
a second call and place the first
on hold.
7: inserts
2
Quick Start
P5
NOTE: If the insert for your iPod isn’t listed, please visit an Apple store or www.ihomeaudio.com
to purchase the proper insert.
iPod Touch
thin iPod with video (30 GB)
Insert 9
3rd Gen nano
insert 13
3rd Gen nano
iPod with video (60,80 GB)
Insert 10
thin (30 GB) iPod with video
thin (80GB) iPod classic
thick (60, 80 GB) iPod with video
thick (160 GB) iPod classic
iPod Touch
insert 14
For this iPod
Use this insert
Select the dock insert for your iPod
model from the table below and place
insert in dock.
Never dock an iPod without an insert in
place.
Please advise update chart for iPhone too
radio
iPod
3
Controls and Indicators
iP47 Display
Time Zone Button
Alarm 1, Alarm 2 Indicators
Daylight Saving Time Indicator
Battery Low Indicator
Ringer Indicator
Speaker Phone Indicator
Silence Indicator
Pairing Mode Indicator
Time Display
PM Indicator
Bluetooth Indicator
Sleep Display
Play/Pause Indicator
Alarm On/Off Button
Alarm Reset/Power Button
Snooze/Dimmer Button
Mode Button
(iPod, Bluetooth, FM1, FM2, AM
and line in)
Alarm 1 Button
Microphone
Alarm 2 Button
Play/Pause Button
(
for iPhone, iPod and
Bluetooth music
)
Alpha-Numeric Phone Keypad
Volume Up
Volume Down
Sleep Button
Radio Preset Button
AC Adaptor Jack
DST switch
Line in Jack
AM ant. Jack
FM ant. Wire
Talk Button
End Button
Down / Set Button
Up Button
P6
Clock Adjust Button
Ringer vol. Button
Universal dock for iPhone/iPod
Clear Button
for iPhone, iPod and Bluetooth music)".
has delete Number and text indicator
