iHC-5
User Manual
Bluetooth Cellphone Clock Radio Dock
line outline in
time zoneclock adj.
snooze/dimmer
-1 +1
1100mA
dst
1 2 3 4
presets
sleep radio
am fm1 fm2
power alm on/off
alm reset
radio
buzzer
1
4 5
7
PRS
alm 1 alm 2
2 3
ABC DEF
JKLGHI
8 9
TUV
0
OPER
6
#
MNO
WXYZ
vol.set
answer
on/off
1
time zone
clock adj.
line out
line in
1100mA
iHC-5
User Manual
radio
buzzer
Daylight Savings Time:
*default position is -1 position
Bluetooth Cellphone Clock Radio Dock
-1 +1
dst
Daylight Savings Time (also called DST, or Summer Time) is the portion of the year in which a region’s local time
is advance (usually) by one hour from its standard official tim e.
When slide is set to “+1” position, dst icon(SUN) will be displ ayed. Forward time by one hour.
When slide is set to “-1” position, Set time back one hour.
Forward / Reverse
Pressing FWD/REV while POWER is off does nothing.
Pressing FWD/REV in CLOCK ADJUST mode, changes time 1 minute per touch
Pressing and holding FWD/REV in CLOCK ADJUST mode, changes time 10 minutes per second.
Pressing FWD/REV in RADIO mode, tunes radio Xhz/Xmhz per touch.
Pressing and holding FWD/REV in RADIO mode scans radio forward/reverse.
Pressing FWD/REV in Bluetooth mode (with connected device using A2DP and AVRCP profile) when device is playing,
will go to the next/previous track.
Pressing and holding FWD/REV in Bluetooth mode (with connected device using A2DP and AVRCP profile) when
device is playing, will scan withing the currently playing track.
2
iHC-5
User Manual
Setting the Time
*this product is factory preset
Press
time zone
and hold for 2 sec.
Press or
Bluetooth Cellphone Clock Radio Dock
Zone 1 - “Atlantic”
Zone 2 - “Eastern”
Zone 3 - “Central”
Zone 4 - “Mountain”
Zone 5 - “Pacific”
Zone 6 - “Alaska”
Zone 7 - “Hawaii”
Defualt is Zone 2 (eastern)
Currently set time is
shown. Current Time
Zone is flashing.
Time Zone loops as Set
Buttons are pressed. Time
changes to reflect Time
Zone. If no button pressed
for 10 seconds, changes
are set and 2 BEEPS
Press
time zone
2 BEEPS
DST adjustment
*Default position is at -1.
-1 +1
dst
Time Zone Set mode exits.
When slide is at “+1” position, forward time by one hour.
Reverse by one hour when turned to “-1” position.
-1 +1
dst
3
iHC-5
User Manual
Bluetooth Cellphone Clock Radio Dock
Setting the Time
(Including Year, Date, Month): This step would onle be required when auto set time is lost.
Press
clock adj.
and hold for 2 sec.
Press or
Tap (momentary) to adjust
1 minute inc
rement at a time.
Currently Set TIme is
Flashing. Default is
12:00 PM
If no button pressed for
10 seconds, changes
are set and CLOCK ADJ
exits.
2 BEEPS
Press & hold 1 sec. to
adjust 10 minute inc
per 1 second.
Press
clock adj.
Press or
rements
Currently set year
appears, flashing.
Year loops from Y05 to
Y99. If no button/knob
is pressed for 10
seconds, changes are
set and CLOCK ADJUST
exits.
2 BEEPS
4
iHC-5
User Manual
Press
clock adj.
Press or
Bluetooth Cellphone Clock Radio Dock
Currently set date
appears, flashing.
Year loops from Y2005 to
Y2099. If no button/knob
is pressed for 10
seconds, changes are
set and CLOCK ADJUST
exits.
2 BEEPS
Press
clock adj.
2 BEEPS
CLOCK ADJUST mode exits
Setting Alarm 1 or 2
Press
alm 1
-or-
alm 2
and hold for 2 sec.
radio
buzzer
Currently set Alarm Time 1
and wake-to setting
appears, flashing.
ALM 1 will wake-to
Radio -or- connected
Bluetooth Device.
Default alm time is 6:00am
and preset 1 FM1.
Currently set Alarm Time 2
and wake-to setting
appears, flashing.
ALM 2 will wake-to Buzzer.
Default alm time is 7:00am.
4
5
iHC-5
User Manual
Press or
Press
2 BEEPS
alm 1
-or-
alm 2
radio
radio
Bluetooth Cellphone Clock Radio Dock
If no button pressed in
10 seconds, changes are
set and ALARM SET
mode exits.
Alarm Time is set and
Alarm mode exits.
Alarm will auto-arm.
Wake-to selection (at any point during ALM 1 set)
* Default is wake-to setting is RADIO
• Radio Station Selection (only in ALM 1 set)
Pressing will continuously cycle through AM, FM1, a nd FM2.
radio radio radio
Select desired wake-to station using presets
manually select wake-to station by pressing
radio
am fm1 fm2
1 2 3 4
- OR -
or
6
iHC-5
User Manual
• Bluetooth (ALM 1 only)
Press select wake-to connected Bluetooth Devi ce.
Press RADIO or any preset to switch wake-to selection from Blue tooth to RADIO.
IF, when Bluetooth Alarm is sounding, and no sound is detected after 20 sec. the
alarm will switch to buzzer.
Bluetooth Cellphone Clock Radio Dock
Turning Alarms on/off
Pressing repeatedly wil cycle through the foll owing states:
alm on/off
radio
buzzer
radio
buzzer
alarm 1 on.
alarm 2 on.
alarm 1 and alarm 2 on.
alarm 1 and alarm 2 off.
7
iHC-5
User Manual
To preview the alarm
Press
alm 1
-or-
alm 2
Alarm Time and icon stays for 5 seconds and reverts to normal d isplay
radio
When Alarm is sounding
radio
Bluetooth Cellphone Clock Radio Dock
radio
buzzer
When alarm is sounding, either the alarm 1 or alarm 2 icon will flasn. Alarm will sound for 60 minutes unless stopped.
When alarm is sounding, pressing ALARM ON/OFF will turn off Alarm.
When alarm is sounding, pressing ALARM RESET will turn off Alarm and reset for next day.
When alarm is sounding, pressing will activate Bluetoot h, pressing RADIO will activate radio.
Wake-to source sound (bluetooth, radio, piezo buzzer) will use gradual wake (valume ramping). Sound will gradually
increase over a duration of 30 seconds to the set volume level.
NOTE: If Alarm 1 in the wake-to bluetooth mode is the sounding alarm, and when alarm sounds, the product detects
no sound for 20 seconds, then last radio wake-to selection will sound instead and Bluetooth will power off.
Note: Piezo buzzer uses 100% piezo volume. Confirmation beep s use 30% piezo volume.
Adjusting Volume (only when in Bluetooth/Radio/Aux mode)
Press or
radio
-Pressing and holding vol. - or + will adjust volume 5 incremen ts per 1 second.
Volume is shown on
bottom right of screen
volume goes from 0 to
40. If Volume buttons are
not touched for 2 seconds,
display returns to previous
8
iHC-5
User Manual
Bluetooth Cellphone Clock Radio Dock
Radio
Pressing will continuously cycle through AM, FM1, a nd FM2.
• Selecting a station
Press
radio
am fm1 fm2
or
• Accessing a radio preset
While in any mode, pressing any Preset button will call up that Preset. Presets are numbered 1-4. There
are 4 presets for FM1, 4 presets for FM2, and 4 presets for AM.
Preset number will be displayed on LCD along with frequency.
1
2 3 4
• Setting a radio preset
Pressing and holding a preset (1-4) for 2 seconds will assign w hatever station was being accessed to that
specific Preset Key. 1 Confirm Beep
power
Power
alm reset
AUTO PAIRING
- Press POWER to turn on the unit, the unit is in pairing mode.
- Activate the bluetooth option on mobile phone according to th e owner's manual, entering the pass
key to establish a pairing connection.
- Bluetooth icon flicks to show the unit is in process of pairi ng.
- Once connected, the bluetooth icon will remain on (one beep c onfirm, pairing is successful)
- If the pairing can not be established within 60 seconds, the display returns to flick repeating pairing
procedure if a mobile phone is adjacent to the unit.
- If no mobile phone is put in the service range, the display w ill disappear and change operation to
be pairing standby mode.
9
iHC-5
User Manual
Bluetooth Cellphone Clock Radio Dock
Power continued...
-Pressing POWER when unit is off goes to either Radio or Blueto oth mode, whichever was last used.
-User can turn Radio off when in Radio mode by pressing POWER.
-User can turn Bluetooth off when in Bluetooth mode by pressing POWER.
Note: alm reset only functions when alarm is sounding.

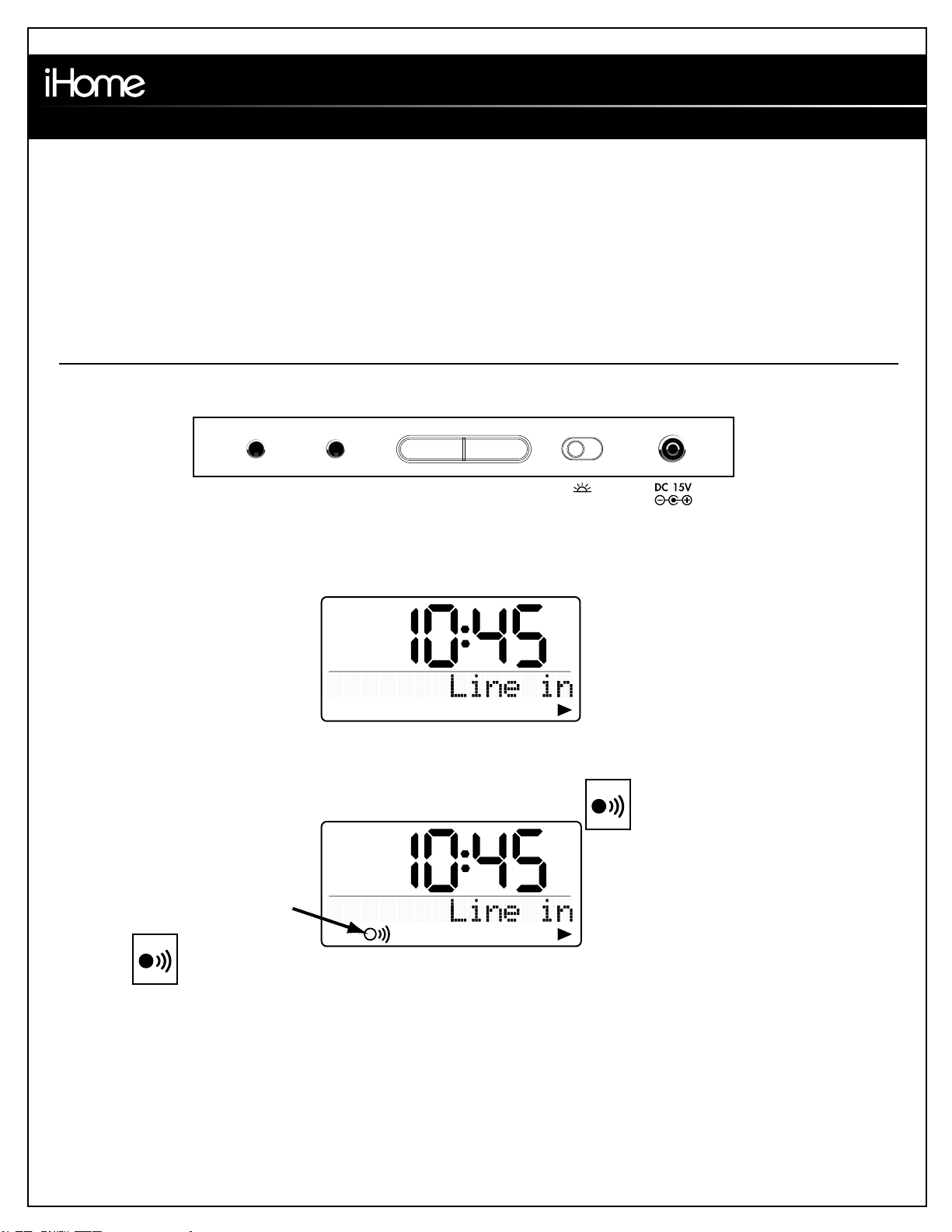

Line in (3.5mm jack)
-1 +1
line outline in
-Line in (Auxiliary) works when unit is in Bluetooth mode, in p aralell with both Connected Bluetooth
device. If the UNIT is in Bluetooth mode, and both an a Auxili ary audio device / phone is connected
and playing through the line-in and a Bluetooth Connected phone , BOTH will be heard.
time zoneclock adj.
dst
1100mA
-Certain Phones connected through the Mobile in can be used wit h the integrated speaker phone.
-When a compatible phone is connected correctly, pressing will answer incoming calls.
answer
on/off
Speaker phone icon will show
-Press again to END call. Speaker phone icon will tu rn off.
answer
on/off
NOTE: Include 2 Patch Cords. 1) Standard 3.5mm-3.5mm Auxiliary patch cord.
2) Custom 2.5mm-3.5mm mobile in patch cord.
(should enable stereo sound and microphone for speaker phone)
10
iHC-5
User Manual
Snooze
-Pressing SNOOZE bar while alarm is sounding will
stop the alarm from sounding for 9 minutes.
-While in snooze mode, alarm icon will flash. Can be
used several time during 1 hour alarm period.
Dimmer (when alarm is not sounding)
Pressing “snooze bar” repeatedly will cycle through:
1) High
2) Medium
3) Low
4) Off
Bluetooth Cellphone Clock Radio Dock
alarm icon will flash
radio
buzzer
Sure Alarm
When AC power is unavailable (blackout), alarm will automatically use piezo as wake to.
All Clock/Alarm settings will still work (with 2 AA batteries).
Line Out
The Line Out can be used in any mode, and provides and unamplif ied stereo signal throught the
rear 3.5 mm jack.
Sleep Function (sleep can work in any mode)
Press
-While unit is off: Pressing SLEEP while unit is off will acti vate sleep in either
Radio or Bluetooth mode (whichever was last used), sleep time w ill be
shown on display (i.ei: 120 minutes)
-While unit is already palying Radio or Bluetooth: Pressing SL EEP while unit is
already playing shows sleep time on display (i.ei: 120 minute s)
-While unit is already in SLEEP mode: Pressing SLEEP while unit is in sleep mode
will show the amount of sleep time remaining, pressing again wi ll change sleep time
to the next lower increment (if at 112 min, it will go to 90, 6 0, 30, 15 min, Power off).
NOTE: Changing volume while in sleep mode will not affect Norma l Volume or
Wake-to Volume. Next time sleep mode is used, last used sleep colume is maintained.
sleep
radio
Pressing SLEEP repeatedly cycles
between the following durations:
120, 90, 60, 30, 15 min, OFF.
During the last 15 seconds of
SLEEP mode, the volume will
gradually decrease.
If SLEEP button is not pressed
for 10 seconds display goes back
to showing current time.
11
iHC-5
User Manual
Bluetooth Cellphone Clock Radio Dock
Interfacing with a Mobile Phone
*Depends on capabilities of each individual handset
I. Hardwired
1. Listening to Music
line outline in
Auxilary Mode: (Line-in)
*Unit is powered ‘ON’ in ‘Bluetooth’ mode, Bluetooth device is NOT connected.
Connect Phone or MP3 player using the appropriate patch cord
Pressing repeatedly will switch between ‘Pla y’ and ‘Mute’.
time zoneclock adj.
-1 +1
dst
1100mA
PLAY MUTE
NOTE: MP3 phone or other Auxilary device must be manually acti vated. Both line in’s (‘mobile in’ and ‘AUX’)
will sound at the same time; It is up to the user to manually c ontrol the external devices.
Mobile In, AUX, and Bluetooth are connected in paralell.
2. Phone calls
Auxilary Mode: (mobile in)
*Depends on handset, may be necessary to manually answer call d irectly on phone.
Press to answer an incoming call and talk using int ergrated microphone.
answer
on/off
Press to end a phone call.
answer
on/off
Speaker Phone icon will show
when using speaker phone
12
iHC-5
User Manual
II. Bluetooth (1.2 class 2)
* Supports Headset, HFP, A2DP, and AVRCP profiles.
1. Pairing your Bluetooth devices
AUTO PAIRING
- Press to turn on the unit, the unit is in pairing mode.
- Activate the bluetooth option on mobile phone according to the owner's manual,
entering the pass key to establish a pairing connection.
- Bluetooth icon flicks to show the unit is in process of pairing.
- Once connected, the bluetooth icon will remain on (one beep confirm, pairing is successful)
- If the pairing can not be established within 60 seconds, the display returns to flick repeating
pairing procedure if a mobile phone is adjacent to the unit.
- If no mobile phone is put in the service range, the display will disappear and change
operation to be pairing standby mode.
power
alm reset
Bluetooth Cellphone Clock Radio Dock
2. Streaming Music
* Handset is connected, supports A2DP profile, and is in Media Player mode.
-Press to play/pause mobile phone’s integrated media player.
NOTE: Select “Silence” on phone to turn off integrated speakers on mobile phone.
3. Mobile Phone Operation
-Cellphone will always be the top priority, since and incoming/outgoing has been progressed, interrupts actively and
the on-going music will be muted and ring. As soon as the call has been ended, the music will rebound afterward.
Press to answer an incoming call and talk using intergrated microphone.
answer
on/off
incoming call
Press to end a phone call.
answer
on/off
13
iHC-5
User Manual
-Dial/Voice Dialing
Press to activate Dial/Voice Dialing on connected h andset.
Say preprogramed voice command OR, Dial number using integrated keypad.
Press to place call.
answer
on/off
answer
on/off
Bluetooth Cellphone Clock Radio Dock
*tone will sound for each number
on keypad.
Press to end call.
answer
on/off
* POWER is on in Bluetooth mode
Pairing
During Communication
Playing Music
Playing Music (paused)
Bluetooth Connected
and Standby
Standby without
Connected (AUX)
Bluetooth Connected
(RADIO Mode)
* POWER is on in RADIO mode
RADIO
(Bluetooth Connected)
* POWER is OFF
Power OFF
(Bluetooth Connected)
(play)
Power OFF
(without Connected)
14
iHC-5
User Manual
Bluetooth Cellphone Clock Radio Dock
Feature Button Operation Conditions
Auto Pairing Standby
Cancel Pairing During Pairing
power
power
Answer Call Incoming Call (ringing)
End Call During Communication
Dialing/Voice Dialing Standby
Refuse Dialing Incomming Call (ringing)
Last Call Redial Standby
Switch to Handset During Communication
Cancel Voice Dialing During Voice Dialing
Volume Up During Communication
Volume Down During Communication
Connect to Handset Disconnected
Play Stop or Pause
Pause Playing
Stop Playing
Track Forward Playing
Track Backward Playing
press
(less than 1 sec)
press + hold
6 seconds
press
(less than 1 sec)
press
(less than 1 sec)
press
(less than 1 sec)
press + hold
2 seconds
press twice
(within .5 sec)
press + hold
2 seconds
press
(less than 1 sec)
press
(less than 1 sec)
press
(less than 1 sec)
press
(less than 1 sec)
press
(less than 1 sec)
press
(less than 1 sec)
press + hold
2 seconds
press
(less than 1 sec)
press
(less than 1 sec)
15
iHC-5
User Manual
Remote
mute
mute
Bluetooth Cellphone Clock Radio Dock
Pressing POWER/alm reset will function same as on main unit.
Pressing PLAY/PAUSE will function same as on main unit.
Pressing VOL. - / + will funcion same as on main unit.
Pressing MUTE will toggle the sound on & off.
“Mute” will appear on display. Press any key to exit MUTE.
snooze
radio
modepresets
Pressing FWD/REV will function same as on main unit.
presets
radio
Pressing PRESETS bubtton when unit is in either Bluetooth
or Radio mode will automatically go to the last accessed
Preset Radio Station on last used BAND (AM, FM1, or FM2).
Pressing PRESETS again while already listening to a station in
Preset memory will go to the next Preset station programmed.
Note: cannot program presets from the remote.
Pressing SPKR PHONE will function same as on main unit.
Pressing RADIO will function same as on main unit.
snooze
Pressing SNOOZE will function same as on main unit.
16
Loading...
