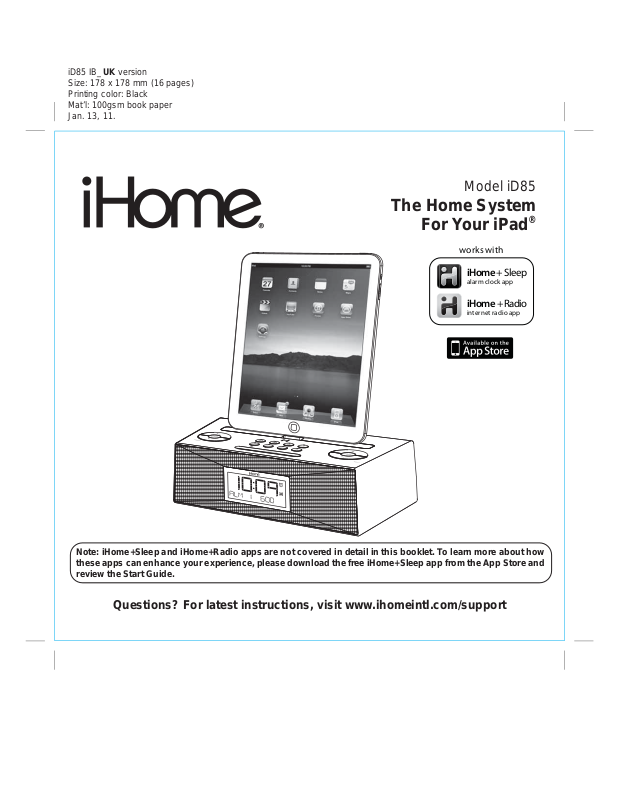

SDI Technologies ID85 User Manual

Model iD85
The Home System
For Your iPad®
works with
iHome + Sleep
alarm clock app
iHome + Radio
internet radio app
Note: iHome+Sleep and iHome+Radio apps are not covered in detail in this booklet. To learn more about how these apps can enhance your experience, please download the free iHome+Sleep app from the App Store and review the Start Guide.
Questions? For latest instructions, visit www.ihomeintl.com/support
Table of Contents
Quick Start........................................................................................................................................................................1
Controls and Indicators / iD85 Display..........................................................................................................................3
Setting Up the iD85 ..........................................................................................................................................................4
Using the iD85 ..................................................................................................................................................................5
Installing/Replacing Clock Back-up Batteries / Battery Warning ................................................................................8
A Consumer Guide to Product Safety...........................................................................................................................9
Troubleshooting.............................................................................................................................................................10
Warranty Information.....................................................................................................................................................12
This product bears the selective sorting symbol for waste electrical and electronic equipment (WEEE).
This means that this product must be handled pursuant to European Directive 2002/96/EC in order to be recycled or dismantled to minimize its impact on the environment.
For further information, please contact your local or regional authorities.
Electronic products not included in the selective sorting process are potentially dangerous for the environment and human health due to the presence of hazardous substances.
Maintenance
• Place the unit on a level surface away from sources of direct sunlight or excessive heat. Protect your furniture when placing your unit on a natural wood and lacquered finish. A cloth or other protective material should
• be placed between it and the furniture.
Clean your unit with a soft cloth moistened only with mild soap and water. Stronger cleaning agents, such as Benzene, thinner or similar materials can damage the surface of the unit.
quick start
DC 7.5V
line-in
am antenna
time zone
time set
DST
-1 +1
time sync
set +/-
dtime
wakeup
eq
snooze/dimmer
DC 7.5V
line-in
am antenna
time zone
time set
DST
-1 +1
time sync
set +/-
wakeup
eq
snooze/dimmer
Push plug head in to change plugs
Push button to release plug head
1: power
Attach AC adaptor cable to DC jack on back of the iD85 and plug the other end into a wall socket.
3: docking your iPad/iPhone/iPod
remove the rubber dock pad
2: antennas
Snap MW antenna into provided stand, then plug antenna cable into socket on back of iD85. Move antenna 12” away. Extend FM antenna.
iPad with cover
Gently dock your iPad, iPhone or iPod into the 30 pin dock. If using an iPad with a cover or “skin”, first remove the rubber dock pad on the iD85. The iPad, iPhone or iPod will charge while docked. Press the Button on the iD85 to play your iPad, iPhone or iPod.
1
quick start
set +/-
wakeup
mode presets
eq
nap
snooze/dimmer
4: time sync
Dock your iPad, iPhone or iPod (see step 3). Press and release the Time Sync Button located on back of the iD85. “TIME SYNC” will appear on the display, followed by “TIME UPDATED” upon successful syncing.
5: radio
Press the Mode Button as needed to select MW/FM band. Press the + or - Button to tune in a station. See page 7 for programming presets.
2
Top Panel
Controls and Indicators
Flexible 30 pin connector for iPad/iPhone/iPod
Rubberized device rest
Alarm 2 Button
Alarm 1 Button
Volume + Button Bedtime Button
Volume - Button
volume
Alarm Reset/Power/App Settings Button
Rear Panel
AC Adaptor Jack
bedtime
ST switch
DC 7.5V 3.5A
-1 +1
mode presets
snooze/dimmer
Snooze/Dimmer Button
Time Sync ButtonTime Set Button
time sync
time set
ST
MW Loop Antenna socket
iD85 Display
Time Display
nap
eq
Time Zone Button
am antenna
time zone
line-in
Alarm 1 Indicator
Play/Pause Button Nap Button
wakeup
set +/-
EQ Button
Presets Button
Mode Button
Line-in Jack
Set + Button
Wakeup Button
Set - Button
FM Antenna
PM Indicator AM Indicator
NOTE: AM/PM indicators will not appear when clock is set to 24 hour display mode
Alarm 2 Indicator iHome App Indicator Battery Low Indicator
Radio / Alarm Time / iPod Display
3
