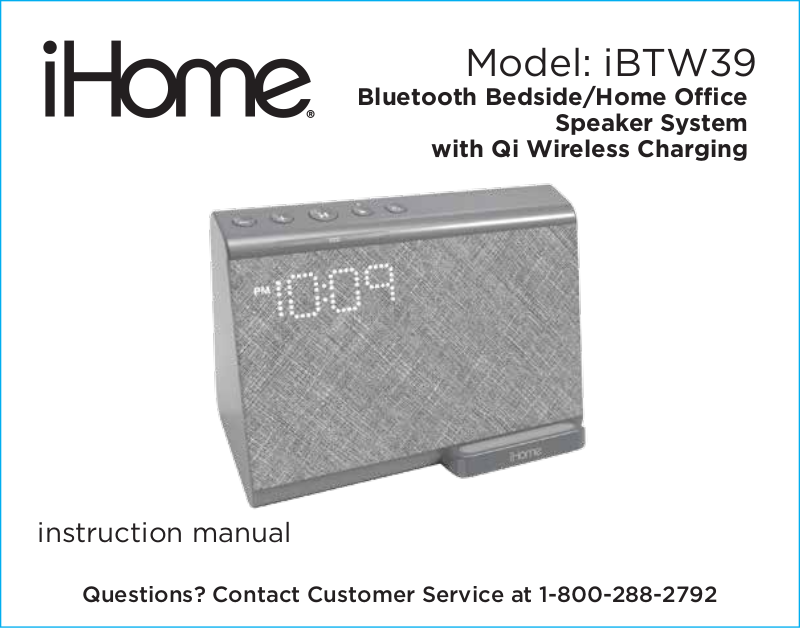

SDI Technologies IBTW39 Users Manual
Model: iBTW39
Bluetooth Bedside/Home Oce
Speaker System
with Qi Wireless Charging
instruction manual
Questions? Contact Customer Service at 1-800-288-2792
iBTW39
Introduction
Thank you for purchasing the iHome iBTW39. This product is designed to provide high
quality wireless sound for your Bluetooth audio device. It will also wirelessly charge
compatible devices. For more features, download the iHome Enhance app to extend the
possibilities of this product.
This instruction booklet explains the basic operation and care of the unit. Please read it
carefully and keep for future reference.
Maintenance
• Place the unit on a level surface away from sources of direct sunlight or excessive heat.
• Protect your furniture when placing your unit on a natural wood and lacquered finish.
A cloth or other protective material should be placed between it and the furniture.
• Clean your unit with a soft cloth moistened only with mild soap and water. Stronger
cleaning agents, such as benzene, thinner or similar materials can damage the surface
of the unit.
1
Included
• iBTW39 system
• 100V-240V universal AC adapter
iBTW39
iBTW39
power adapter
2
Meet Your iBTW39
iBTW39
Top
+/– Settings/Volume
Buttons
Snooze/Display
Dimmer Button
Microphone
Bottom
Backup Battery Compartment
Smart Button
DC Jack
USB Charging Port
Play/Pause/Voice Control Button
Power Button
Wireless Charging Pad
Device Charging Rest
Wireless Charging Indicator
(below charging rest)
Back
9V, 3A
Time Set Button
3
(under fabric)
Bluetooth
Pairing Button
Speaker
Alarm 1 Button
Alarm 2 Button
The Display
Using the iBTW39
Time Display
PM Time Indicator
Bluetooth
Pairing
Indicator
Setting Up the Unit
Connect the included AC adapter to the DC jack
located on the back of the unit and connect the
other end to a working wall outlet not controlled by
a light switch.
CR2450 3V battery is included for battery backup.
Install it in the backup battery compartment
located on the bottom of the unit before using the
unit. See page 11 for more on installing and
replacing backup batteries.
4
Alarm 1 Active Indicator
Low Backup Battery Indicator
Alarm 2 Active Indicator
RESET
RESET
TEST
9V, 3A
TEST
Using the iHome Enhance App
Using the iBTW39
Download the free iHome Enhance App from the App Store or Google Play to enjoy
wireless interaction with the iBTW39 from your Bluetooth device.
The app must be paired to the iBTW39 (the is separate from audio Bluetooth pairing (see
page 9 for audio Bluetooth pairing).
• To pair the App to iBTW39 and use Auto Time Sync:
a. Plug the unit into a working outlet.
b. Turn on Bluetooth on your device.
c. Download and launch the iHome Enhance app.
d. Select “Setup your device” on the app.
e. Select iHome iBTW39 app on the app’s device menu.
f.
The app will update the time on the iBTW39.
• To turn off time sync capability on the iBTW39, press and hold the Time Set Button for
10 seconds until “SYNC ON” appears on the display, then press the – or + Button to
toggle to SYNC OFF.
To set clock manually, follow instructions on next page (6).
If pairing request appears, select Pair.
5
