SDI Technologies IBT75 User Manual

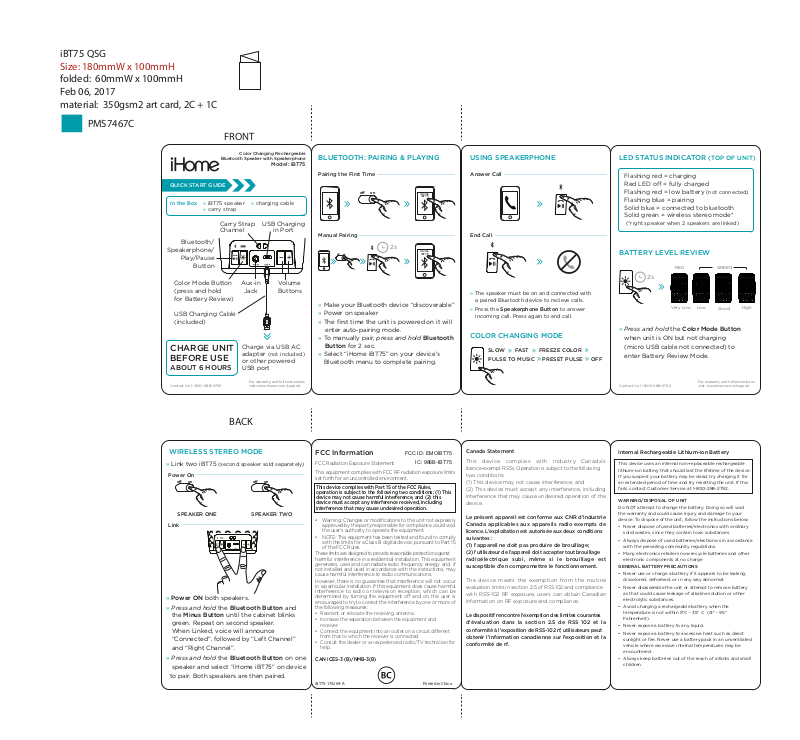

iBT75 QSG

Size: 180mmW x 100mmH

folded: 60mmW x 100mmH Feb 06, 2017 material: 350gsm2 art card, 2C + 1C

PMS7467C

QUICK START GUIDE

In the Box

Speakerphone/

CHARGE UNIT BEFORE USE

ABOUT 6 HOURS

» iBT75 speaker » charging cable » carry strap

Bluetooth/

Play/Pause

Button

Color Mode Button (press and hold for Battery Review)

USB Charging Cable (included)

FRONT

Color Changing Rechargeable

Bluetooth Speaker with Speakerphone

Carry Strap Channel

Aux-in

Jack

Charge via USB AC adapter or other powered USB port

Model: iBT75

USB Charging

in Port

Volume Buttons

(not included)

For warranty and full instructions visit: www.ihome.com/support

BLUETOOTH: PAIRING & PLAYING USING SPEAKERPHONE

Pairing the First Time

Manual Pairing

oﬀ on

iHome iBT75

» Make your Bluetooth device “discoverable” » Power on speaker

» The ﬁrst time the unit is powered on it will

enter auto-pairing mode.

» To manually pair, press and hold Bluetooth

Button for 2 sec.

» Select “iHome iBT75” on your device’s

Bluetooth menu to complete pairing.

Answer Call

End Call

» The speaker must be on and connected with

a paired Bluetooth device to recieve calls.

» Press the Speakerphone Button to answer

incoming call. Press again to end call.

COLOR CHANGING MODE

SLOW PULSE TO MUSIC

FAS T

FREEZE COLOR

PRESET PULSE OFF

LED STATUS INDICATOR (TOP OF UNIT)

Flashing red = charging Red LED o = fully charged Flashing red = low battery

(not connected)

Flashing blue = pairing Solid blue = connected to bluetooth Solid green = wireless stereo mode*

(*right speaker when 2 speakers are linked)

BATTERY LEVEL REVIEW

RED GREEN

LowVery Low

» Press and hold the Color Mode Button

when unit is ON but not charging (micro USB cable not connected) to enter Battery Review Mode.

For warranty and full instructions visit: www.ihome.com/support

Good

High

BACK

WIRELESS STEREO MODE

» Link two iBT75 (second speaker sold separately)

Power On

SPEAKER ONE SPEAKER TWO

Link

» Power ON both speakers. » Press and hold the Bluetooth Button and

the Minus Button until the cabinet blinks green. Repeat on second speaker. When Linked, voice will announce “Connected”, followed by “Left Channel”

and “Right Channel”.

» Press and hold the Bluetooth Button on one

speaker and select “iHome iBT75” on device to pair. Both speakers are then paired.

oﬀ onoﬀ on

FCC Information

FCC Radiation Exposure Statement

This equipment complies with FCC RF radiation exposure limits set forth for an uncontrolled environment.

This device complies with Part 15 of the FCC Rules, operation is subject to the following two conditions: (1) This device may not cause harmful interference, and (2) this device must accept any interference received, including interference that may cause undesired operation.

• Warning: Changes or modiﬁcations to this unit not expressly approved by the party responsible for compliance could void the user’s authority to operate the equipment.

• NOTE: This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to Part 15 of the FCC Rules.

These limits are designed to provide reasonable protection against harmful interference in a residential installation. This equipment generates, uses and can radiate radio frequency energy and, if not installed and used in accordance with the instructions, may cause harmful interference to radio communications.

However, there is no guarantee that interference will not occur in a particular installation. If this equipment does cause harmful interference to radio or television reception, which can be determined by turning the equipment o and on, the user is encouraged to try to correct the interference by one or more of the following measures:

• Reorient or relocate the receiving antenna.

• Increase the separation between the equipment and

receiver.

• Connect the equipment into an outlet on a circuit dierent

from that to which the receiver is connected.

• Consult the dealer or an experienced radio/TV technician for

help.

CAN ICES-3 (B)/NMB-3(B)

iBT75-170209-A Printed in China

FCC ID: EMOIBT75

IC: 986B-IBT75

Canada Statement

This device complies with Industry Canada’s licence-exempt RSSs. Operation is subject to the following two conditions: (1) This device may not cause interference; and (2) This device must accept any interference, including interference that may cause undesired operation of the device.

Le présent appareil est conforme aux CNR d’Industrie Canada applicables aux appareils radio exempts de licence. L’exploitation est autorisée aux deux conditions suivantes : (1) l’appareil ne doit pas produire de brouillage; (2) l’utilisateur de l’appareil doit accepter tout brouillage radioélectrique subi, même si le brouillage est susceptible d’en compromettre le fonctionnement.

The device meets the exemption from the routine evaluation limits in section 2.5 of RSS 102 and compliance with RSS-102 RF exposure, users can obtain Canadian information on RF exposure and compliance.

Le dispositif rencontre l'exemption des limites courantes d'évaluation dans la section 2.5 de RSS 102 et la conformité à l'exposition de RSS-102 rf, utilisateurs peut obtenir l'information canadienne sur l'exposition et la conformité de rf.

Internal Rechargeable Lithium-ion Battery

This device uses an internal non-replaceable rechargeable lithium-ion battery that should last the lifetime of the device. If you suspect your battery may be dead, try charging it for an extended period of time and try resetting the unit. If this fails, contact Customer Service at 1-800-288-2792.

WARNING/DISPOSAL OF UNIT

Do NOT attempt to change the battery. Doing so will void the warranty and could cause injury and damage to your device. To dispose of the unit, follow the instructions below:

• Never dispose of used batteries/electronics with ordinary solid wastes, since they contain toxic substances.

• Always dispose of used batteries/electronics in accordance with the prevailing community regulations.

• Many electronics retailers now recycle batteries and other electronic components at no charge

GENERAL BATTERY PRECAUTIONS

• Never use or charge a battery if it appears to be leaking, discolored, deformed, or in any way abnormal.

• Never disassemble the unit or attempt to remove battery as that could cause leakage of alkaline solution or other electrolytic substances.

• Avoid charging a rechargeable battery when the temperature is not within 5°C - 35° C (41° - 95° Fahrenheit).

• Never expose a battery to any liquid.

• Never expose a battery to excessive heat such as direct sunlight or ﬁre. Never use a battery pack in an unventilated vehicle where excessive internal temperatures may be encountered.

• Always keep batteries out of the reach of infants and small

children.
