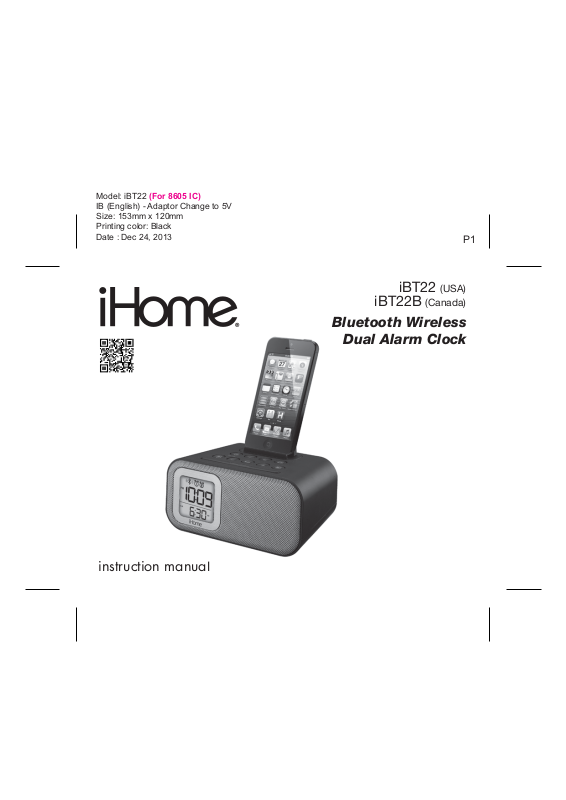

SDI Technologies IBT21 Users Manual
Model: iBT22 (For 8605 IC)
IB (English) - Adaptor Change to 5V
Size: 153mm x 120mm
Printing color: Black
Date : Dec 24, 2013
P1
iBT22 (USA)
iBT22B (Canada)
Bluetooth Wireless
Dual Alarm Clock
instruction manual
Introduction
Thank you for purchasing the iHome iBT22. This product is designed to provide high quality wireless
sound for your iPad, iPhone, iPod, computer, PDA or other Bluetooth audio device.
Along with the included Quick Bluetooth Connection Guide this instruction booklet explains the basic
operation and care of the unit. Please read them carefully and keep for future reference.
Maintenance
• Place the unit on a level surface away from sources of direct sunlight or excessive heat.
• Protect your furniture when placing your unit on a natural wood and lacquered finish. A cloth or other
protective material should be placed between it and the furniture.
• Clean your unit with a soft cloth moistened only with mild soap and water. Stronger cleaning agents,
such as benzene, thinner or similar materials can damage the surface of the unit.
P2
P3
FCC Information
FCC Radiation Exposure Statement
FCC ID: EMOIBT21
IC: 986B-IBT21
This equipment complies with FCC RF radiation exposure limits set forth for an uncontrolled environment.
This transmitter must not be co-located or operating in conjunction with any other antenna or transmitter.
This Device complies with RSS-210 of the IC Rules; Operation is subject to the following two conditions:
(1) This device may not cause interference and
(2) This device must accept any interference received, including interference that may cause undesired operation
This device complies with Part 15 of the FCC Rules, operation is subject to the following two conditions: (1) This device may not cause harmful
interference, and (2) this device must accept any interference received, including interference that may cause undesired operation.
• Warning: Changes or modifications to this unit not expressly approved by the party responsible for compliance could void the user’s authority to operate
the equipment.
• NOTE: This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to Part 15 of the FCC Rules.
These limits are designed to provide reasonable protection against harmful interference in a residential installation. This equipment generates, uses and can
radiate radio frequency energy and, if not installed and used in accordance with the instructions, may cause harmful interference to radio communications.
However, there is no guarantee that interference will not occur in a particular installation. If this equipment does cause harmful interference to radio or television
reception, which can be determined by turning the equipment off and on, the user is encouraged to try to correct the interference by one or more of the following
measures:
• Reorient or relocate the receiving antenna.
• Increase the separation between the equipment and receiver.
• Connect the equipment into an outlet on a circuit different from that to which the receiver is connected.
• Consult the dealer or an experienced radio/TV technician for help.
CAN ICES-3 (B)/NMB-3(B)
IC Statement
This device complies with Industry Canada licence-exempt RSS standard(s). Operation is subject to the following two conditions: (1) this device may
not cause interference, and (2) this device must accept any interference, including interference that may cause undesired operation of the device.
The device meets the exemption from the routine evaluation limits in section 2.5 of RSS 102 and compliance with RSS-102 RF exposure, users can
obtain Canadian information on RF exposure and compliance.
Le dispositif rencontre l'exemption des limites courantes d'évaluation dans la section 2.5 de RSS 102 et la conformité à l'exposition de RSS-102
rf, utilisateurs peut obtenir l'information canadienne sur l'exposition et la conformité de rf.
QDID:B021180
Table of Contents
Included/ Meet Your iBT22............................................................................................. 1-2
Installing Clock Backup Batteries .........................................................................................3
The Display/ Setting Up the Unit/ Turning the Unit ON and OFF..............................................4
Setting the Time/ Daylight Saving Time ................................................................................5
Setting the Alarms/ Reviewing, Arming and Disarming Alarms .................................................6
Resetting the Alarm to Come on the Next Day .......................................................................6
Snooze Operation/ Sure Alarm ......................................................................................... 7
Using Bluetooth: Pairing Your Device ....................................................................................8
Pairing with a Different Device/ Playing Audio Via Bluetooth/Remote Power On Via Bluetooth .......9
Playing Audio via Aux In.................................................................................................. 10
Sleep Operation/ Dimmer Operation/ USB Charging .......................................................... 11
Consumer Product Safety Guide................................................................................... 12-13
Troubleshooting..............................................................................................................14
Warranty......................................................................................................................15
P4
Included
• iBT22 Alarm Clock
• 100V-240V universal AC adaptor*
• Backrest
• 3 AAA batteries
• 12” patch cord
*Note: There are two versions of this product. One uses a
7.5V 2A adaptor, and the other a 5V 2A one. Only use the
correct adaptor. If ordering a replacement, identify the correct
adaptor by checking the DC jack rating on the back of unit.
alm. reset
sleep
snooze
dimmer
Installing the Backrest
1
2
Once inserted, the backrest is a permanent part of the
unit and offers enhanced stability for your devices.
Test your device in the backrest to make sure it is stable.
A tablet may not be suitable for use with the backrest.
1) Insert the front tabs
of the included backrest at
a slight angle into the slots
on top of the unit (behind
the buttons).
2) Grip the unit in both hands
from front to back as shown
and squeeze the unit
slightly towards you while
pressing down firmly on the
backrest until it clicks
into place.
P5
power
adaptor
audio cable
alarm clock
backrest
1
Meet Your iBT22
Top
P6
Back Rest
Sleep Button
Alarm Reset/Power Button
Alarm 1 Button
Rev/– Setting Button
Snooze Dimmer Button
Aux-in Jack
Bluetooth/Pairing Button
Clock Adj. Button
Lower Volume Button
Raise Volume Button
Fwd/+ Setting Button
Alarm 2 Button
Play/Pause Button
Back
DC Jack
USB Charging Port
DST Switch
2
