SDI Technologies IBN97 User Manual

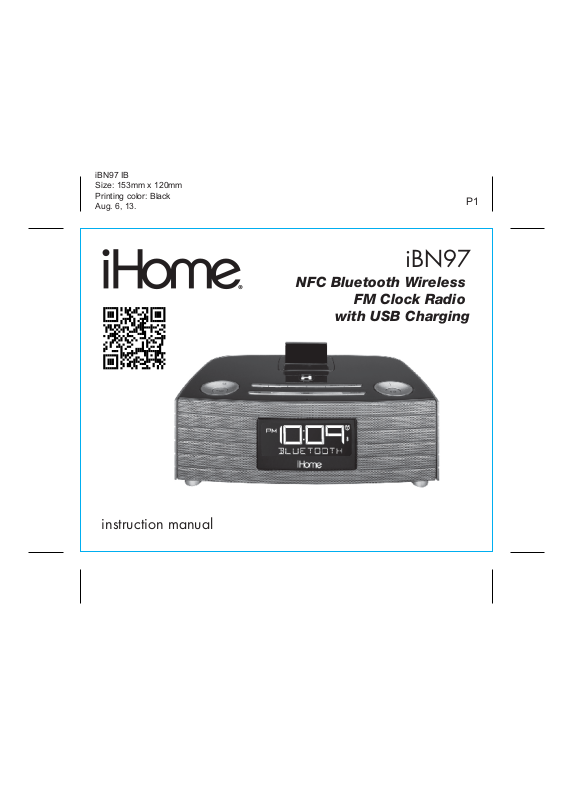

iBN97 IB Size: 153mm x 120mm Printing color: Black Aug. 6, 13.

iBN97

NFC Bluetooth Wireless

FM Clock Radio

with USB Charging

instruction manual

Introduction

Thank you for purchasing the iHome iBN97. This product is designed to provide high quality wireless sound for your iPad, iPhone, iPod, computer, or other Bluetooth audio device.

The dual alarms on this iHome clock radio can be set and used independently, so you can program each alarm to wake you up to a paired Bluetooth device, 4 separate alarm tones, the FM stereo radio, or a buzzer alarm. You may set each alarm for weekday, weekend, or everyday operation, and even adjust the alarm volume separately from your normal listening volume. And best of all, even if the power is out at your selected wake up time, the SureAlarm battery backup system will still activate the electronic buzzer alarm to get you up on time.

Along with the included Quick Bluetooth Connection Guide this instruction booklet explains the basic operation and care of the unit. Please read them carefully and keep for future reference.

This unit features NFC (near field communication) technology which allows you to wirelessly connect your NFC–enabled device to instantly ‘pair and play’. See your device’s user manual for details on how to interact with NFC devices.

If your Bluetooth device does not support NFC, you can pair it manually with this unit.

iBN97

Maintenance

• Place the unit on a level surface away from sources of direct sunlight or excessive heat.

• Protect your furniture when placing your unit on a natural wood and lacquered finish. A cloth or other

protective material should be placed between it and the furniture.

• Clean your unit with a soft cloth moistened only with mild soap and water. Stronger cleaning agents,

such as benzene, thinner or similar materials can damage the surface of the unit.

iBN97

FCC Information

FCC Radiation Exposure Statement

This equipment complies with FCC RF radiation exposure limits set forth for an uncontrolled environment. This transmitter

must not be co-located or operating in conjunction with any other antenna or transmitter.

This device complies with Industry Canada licence-exempt RSS standard(s). Operation is subject to the following two conditions: (1) This device may not cause interference, and (2) This device must accept any interference, including interference that may cause undesired operation of the device.

This device complies with Part 15 of the FCC Rules, operation is subject to the following two conditions: (1) This device may not cause harmful interference, and (2) this device must accept any interference received, including interference that may cause undesired operation.

• Warning: Changes or modifications to this unit not expressly approved by the party responsible for compliance could

void the user’s authority to operate the equipment.

• NOTE: This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to

Part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference in a residential installation. This equipment generates, uses and can radiate radio frequency energy and, if not installed and used in accordance with the instructions, may cause harmful interference to radio communications. However, there is no guarantee that interference will not occur in a particular installation. If this equipment does cause harmful interference to radio or television reception, which can be determined by turning the equipment off and on, the

user is encouraged to try to correct the interference by one or more of the following measures:

• Reorient or relocate the receiving antenna.

• Increase the separation between the equipment and receiver.

• Connect the equipment into an outlet on a circuit different from that to which the receiver is connected.

• Consult the dealer or an experienced radio/TV technician for help. This Class B digital apparatus complies with Canadian ICES-003.

Cet appareil numérique de la classe B est conforme à la norme NMB-003 du Canada.

FCC ID: EMOIBN97

IC: 986B-IBN97

Table of Contents

Meet Your iBN97.......................................................................................................... 1-3

The Display/Setting Up the Unit ..........................................................................................4

Setting the Clock/ FM Radio..............................................................................................5

Setting and Using FM Presets..............................................................................................6

Setting and Using the Alarm ............................................................................................ 7-8

Previewing and Turning Alarm Off/Setting Gentle Wake Timer ................................................8

Snooze/Dimmer Button/Sleep and Nap Modes ..................................................................9

Using Bluetooth: Pairing & Playing Your Device Using NFC ....................................................10

Pairing Your Device Using Standard Bluetooth.......................................................................11

Playing Audio Via Bluetooth/Using the Speakerphone...........................................................12

Playing Audio Via Aux-in/Charging Devices via USB Port .....................................................13

Using FM Radio in Other Countries....................................................................................14

Replacing and Installing Clock Backup Battery ....................................................................15

Troubleshooting..............................................................................................................16

Consumer Product Safety Guide................................................................................... 17-18

Warranty......................................................................................................................19

iBN97

Included

• iBN97 system

• 100V-240V universal AC adaptor

• 3.5mm audio cable

• Backrest

iBN97

1 2

iBN97

power adaptor

A removable backrest is included with the unit for best stability when resting a device on top of the unit in either portrait or landscape orientation.

1. To remove the flat rubberized rest, press down on the front of the rest and remove it.

2. To place the backrest, gently slide the front

tabs into place.

audio cable backrest

Meet Your iBN97

Top

Power Button

Nap/Clock

Set Button

EQ/Pairing Button

Volume Up Button

Mode Button

Volume Down Button

Backrest/Landscape insert

iBN97

Talk/End Buttons

Alarm 1 & Alarm 2

Buttons

NFC Area

Plus/Minus

Settings Buttons

Play/Pause and

Presets Button

Sleep Button

Snooze/Dimmer

Button

Microphone

Wakeup/Alarm Skip

Button

Meet Your iBN97

Back

Bottom

Pull Tab

Remove the pull tab before initial use to activate the SureAlarm battery backup system.

DC Jack

USB Charging Port

DC 12V

usb

charging

2.5A

Remove before use

iBN97

Aux-in Jack

FM Antenna

Backup Battery Compartment

The Display

Time Display

PM/AM

Indicators

Date, Alarm time, Mode Indicator: Radio, Bluetooth, Aux-in

Setting Up the Unit

Connect the included AC adaptor to the DC jack located on the back of the unit and connect the other end to a working wall outlet.

Using the

RESET

TEST

iBN97

Alarm Active Indicator

Bluetooth Indicator

Low Backup

Battery Indicator

DC 12V

usb

charging

2.5A

Setting the Clock

1. Press and hold the Nap/Clock Set Button for 2 seconds until the clock display flashes and unit beeps.

2. Press the – or + Buttons to adjust the clock to the current time (hold for rapid setting). Make sure you set the correct AM/PM time. The AM and PM indicators appear to the left of the

display. To toggle the clock display between standard 12 hour time and 24 hour (“military”) time display, press the Alarm 1 or Alarm 2 Button during time setting.

3. Press the Nap/Clock Set Button again to confirm the time. The year will flash. Press the – or + Buttons to adjust the display to the current year (hold for rapid setting).

4. Press the Nap/Clock Set Button to confirm the year. The date will flash. Press the – or + Buttons

to adjust the display to the current month and date (hold for rapid setting).

5. Press the Nap/Clock Set Button to confirm the time and exit clock setting mode. 2 beeps will confirm clock setting is complete.

Using the

iBN97

FM Radio

1. Press and release the Mode Button as needed until the current FM radio station appears on the display.

2. Press the – or + Buttons to tune the radio to the desired station (hold for 2 seconds to search for the next clear station). Extend the FM antenna for best reception.

(Continued on next page)

P10

FM Radio (cont’d)

3. Press the or Buttons to adjust the volume on the unit. To adjust the tone, press and release the EQ Button as needed to cycle to Treble, Bass or Balance, then press the – or + Buttons to adjust

for best sound.

4. When you are through listening, press the Button to turn the unit off.

Using the

iBN97

Setting and Using FM Presets

The unit allows you to store up to 6 FM radio station presets

1. Press and release the Mode Button as needed until the current FM radio station appears on the

display.

2. Press and release the /Presets Button as needed until the preset number (P1- P6) you wish to sets is displayed, then press and hold the /Presets Button to enter setting mode. One beep will sound.

3. Press the – or + Buttons to tune the radio to the desired station (hold to scan for the next clear station).

4. Press and release the /Presets Button to confirm. 2 beeps will sound to confirm the preset has been assigned. Repeat steps 2 - 4 until you have set up to 6 preset stations.

5. To listen to a preset FM station at any time, press and release the Mode Button as needed to turn on FM radio mode then press and release the /Presets Button as needed to cycle to the desired preset.

P11

Setting and Using the Alarms

This unit has 2 separate alarms, each set the same way. Below we explain how to set alarm 1.

To set alarm 2, follow the same steps using the Alarm 2 Button.

1. Press and hold the Alarm 1 Button for 2 seconds until the alarm time flashes at the bottom of the display.

2. Press the – or + Buttons to adjust the display to the desired alarm time (hold for rapid setting). Make sure you set the correct AM/PM alarm time. The AM and PM indicators appear to the right of

the alarm time display.

3. Press the Alarm 1 Button to confirm the alarm time setting. The alarm schedule display will flash.

4. Press the – or + Buttons to select the desired wake schedule: wake 7 days = every day of the week,

wake weekdays = Monday through Friday, wake weekends = Saturday and Sunday.

5. Press the Alarm 1 Button to confirm the alarm schedule setting. The wake-to source display will flash.

6. Press the – or + Buttons to select the desired wake to alarm source: Bluetooth (BT), radio, tone or

buzzer.

Wake to Bluetooth (BT): You will wake to the currently linked Bluetooth device. If no device is

detected, the alarm will default to current Tone.

Wake to Radio: Press the Alarm 1 Button to confirm radio mode selection. Press the /Presets Button

to select an FM preset to wake to, or press the – or + Buttons to tune in a desired wake to station.

Wake to Tone: Press the Alarm 1 Button to confirm tone mode selection. Press the – or + Buttons to

select one of four built in tones (Tone 1 - Tone 4).

Wake to Buzzer: You will wake to the buzzer alarm.

7. Press the Alarm 1 Button to confirm the wake-to source setting. The alarm volume display will flash.

(Continued on next page)

Using the

iBN97

P12

Setting and Using the Alarms (cont’d)

8. Press the – or + Buttons to adjust the alarm volume on the unit. Note that the alarm volume setting

is stored separately from other volume settings.

9. Press the Alarm 1 Button to confirm the alarm settings and exit alarm setting mode. 2 beeps will

confirm alarm setting is complete. The alarm icon will remain on the display, indicating the alarm is armed.

Using the

iBN97

Previewing the Alarm and Turning the Alarm On/Off

1. Press and release the Alarm Button to view the current alarm time and wake-to source.

2. While preview is active (within 5 seconds), press and release the Alarm Button as needed to toggle

the alarm ON and OFF, indicated by the alarm icon and a beep.

Alarm Skip

If Alarm 1 or Alarm 2 is active, press and release the Wakeup/Alarm Skip Button to skip the next pending

alarm time. The display will show “ALM 1 SKIP” or “ALM 2 SKIP” until the specified alarm time is passed,

then alarm skip is deactivated and the unit returns to normal alarm function.

Setting the Gentle Wake Timer

The unit has an adjustable Gentle Wake feature that gradually increases the volume of the alarm from 05 up to the set wake volume over time (the default duration is 15 seconds). You can adjust the duration of the gradual volume increase from 15, 30, 45, 60, 90, or 120 seconds or to OFF. Setting the duration to OFF will turn off Gentle Wake: the alarm will sound at the set alarm volume without a gradual volume increase.

1. To set the Gentle Wake duration, press and hold the Wakeup/Alarm Skip Button for 2 seconds until

the Gentle Wake duration time flashes on the display.

2. Press the – or + Button to adjust the Gentle Wake time from 15 seconds up to 120 seconds (or off).

3. Press and release the Wakeup/Alarm Skip Button. 2 beeps will confirm Gentle Wake duration

setting.

NOTE: The Gentle Wake duration does not affect the overall alarm cycle, which lasts for 1 hour.

P13

Using the

iBN97

Snooze/Dimmer Button

1. To program Snooze, press and hold the Snooze/Dimmer Button during normal operation (when no

alarm is sounding).

2. Press the – or + Buttons to select the desired snooze time (between 1 and 29 minutes).

3. Press and release the Snooze/Dimmer Button to confirm Snooze setting.

4. While the alarm is sounding, press and release the Snooze/Dimmer Button to temporarily silence the

alarm for the set duration (9 minutes is the default). Snooze can be used several times during alarm.

5. To adjust the brightness of the display, press and release the Snooze/Dimmer Button during normal

operation (when no alarm is sounding) to cycle through the display brightness settings.

Sleep and Nap Modes

This unit allows you to sleep or nap to the current sound source.

1. To set Sleep time, press and release the Sleep Button as needed to cycle to the desired sleep

duration:

120, 90, 60, 30 or 15 minutes or OFF (turns the unit off).

2. Press the or Buttons to adjust the sleep volume on the unit. Note that the sleep volume setting

is stored separately from other volume settings.

3. To set Nap time, press and release the Nap Button as needed to cycle to the desired nap duration: 5, 10, 15, 20, 30, 45, 60, 90 or 120 minutes or OFF (turns the nap alarm off).

P14

Using the

iBN97

Using Bluetooth: Pairing and Playing Your Device Using NFC

This unit features wireless NFC pairing, which allows playing NFC–enabled devices to pair and play

instantly. For pairing non-NFC devices, please see the following section “Pairing Your Device Using Standard Bluetooth”.

1. Turn on your Bluetooth–enabled/NFC–enabled device and turn on Bluetooth and NFC capability as

described in the device’s user manual.

2. Place your NFC–enabled device in play mode.

3. Touch the NFC area of your playing device against the NFC

area on top of the unit. The unit will turn on and enter automatic pairing mode. The Bluetooth icon will flash on the

display, indicating pairing attempt. “iHome iBN97” should appear on your device’s menu. the

Bluetooth indicator on the iBN97 display will stop

flashing then the Bluetooth icon will remain.

Use the controls on your device to play or pause audio and navigate tracks.

5. Press the or Buttons to adjust the volume on the unit. You can also adjust volume on your device.

6. When done listening, press the Button to turn the unit OFF. Remember to turn off your audio

device, too.

NOTE: To disconnect your device, simply touch it again on the NFC area of the unit. To pair a device manually, please see the following “Pairing Your Device Using Standard Bluetooth” section.

Once paired with a device,
