HW4

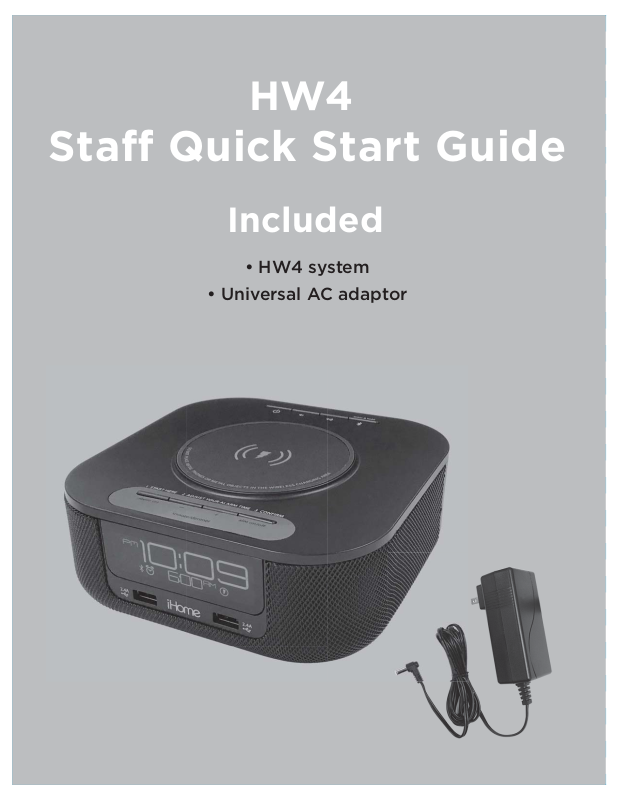

Sta Quick Start Guide
Included
• HW4 system
• Universal AC adaptor
Set Up
Connect the universal voltage AC
adaptor to the DC jack on the bottom
panel of the unit and plug into a wall
outlet that is not controlled by a light
switch and is within easy
reach of the unit.
outlet
Charging Devices
Connect USB cable
(not included) to
USB port and the
other end to your
device to charge.
Bluetooth Pairing
Press and hold the Bluetooth Button on the top of
the unit. The unit displays ‘PAIR’ while in pairing mode.
Select “iHome HW4” on your device’s Bluetooth menu.
The unit will display ‘BT’ when a device is connected.
Bluetooth is a registered trademarks of Bluetooth SIG Inc. Bluetooth technology is
incorporated under license from Bluetooth SIG Inc.
Setting the Time Zone and Clock
(Factory Preset Clock)
The first time you connect your new preset clock to the
AC outlet, the unit will automatically show the correct
Eastern Standard time, which is the default setting. If
you are not in the Eastern time zone, you must change
the default setting to match your time zone (see Time
Zone Setting below). Once the correct time zone is set,
if the time displayed is not correct, follow steps under
Manual Clock Setting to set the correct hour, minute,
year and date.
Time Zone Setting
Press and hold the time zone button located on the
bottom of the unit. The default EASTERN time zone
will flash in the bottom of the display.
time set
time adjusttime zone
Press and release the – or + button as needed until
your time zone is displayed. The time display will also
change according to zone selected.
Press and release the time zone button to confirm
time zone setting.
time set
time adjusttime zone
Daylight Saving Time
dst
-1 +1 auto
time set
time adjusttime zone
volume limiter
hi low
The unit ships with the Daylight Saving Time (DST)
switch located on the bottom of the unit in Auto
position, and will automatically adjust when the time
changes in March and November. To switch manually,
slide switch to +1 to add an hour or to -1 to subtract an
hour.
Volume Limiter
dst
-1 +1 auto
time set
time adjusttime zone
volume limiter
hi low
The unit ships with the Volume Limit switch in HI
position, and the maximum volume output will be at
100%. For smaller rooms, slide the switch to the LO
position to limit/lower the maximum volume by 25%.
