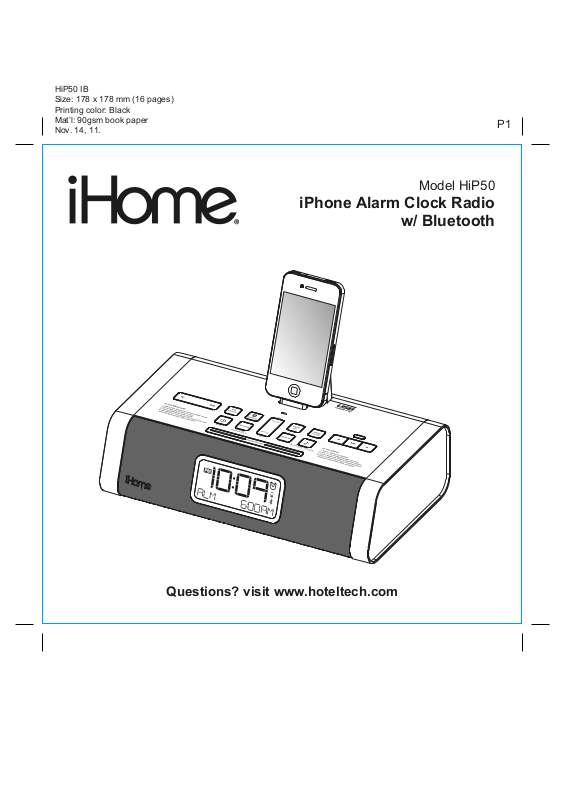

Model HiP50

iPhone Alarm Clock Radio

w/ Bluetooth

Questions? visit www.hoteltech.com

Table of Contents

Controls and Indicators / Display........................................................................................................................................1

Quick Staff Setup................................................................................................................................................................2

Setting Up the Unit .............................................................................................................................................................4

Using the Unit.....................................................................................................................................................................5

Using the Unit in other Countries / Listening to Bluetooth Music .......................................................................................7

Making Calls with Bluetooth Mobile Phone / Replacing Clock Backup Battery.................................................................. 8

A Consumer Guide to Product Safety ................................................................................................................................9

Troubleshooting................................................................................................................................................................ 10

Warranty Information........................................................................................................................................................12

is a registered trademark of SRS Labs, Inc. TruBass technology is incorporated under license from SRS Labs, Inc.

SRS WOW®, which features TruBass®, significantly improves the playback quality of audio, delivering a dynamic 3D entertainment experience with deep, rich bass and high frequency clarity for crisp detail.

NOTE : The HiP50 is designed for use with Bluetooth wireless devices compatible with the HFP, HSP, A2DP and AVRCP streaming audio profiles. Refer to your Bluetooth device’s user

manual or technical support to determine if your Bluetooth device supports these profiles.

Maintenance

• Place the unit on a level surface away from sources of direct sunlight or excessive heat.

• Protect your furniture when placing your unit on a natural wood and lacquered finish. A cloth or other protective

material should be placed between it and the furniture.

• Clean your unit with a soft cloth moistened only with mild soap and water. Stronger cleaning agents, such as Benzene,

thinner or similar materials can damage the surface of the unit.

FCC and IC Information

This device complies with Part 15 of the FCC Rules and RSS-210 of the IC Rules. Operation is subject to the following two conditions: (1) This device may not cause harmful interference, and (2) this device must accept any interference received, including interference that may cause undesired operation.

Warning: Changes or modifications to this unit not expressly approved by the party responsible for compliance could void the

user’s authority to operate the equipment. NOTE: This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to Part 15 of

the FCC Rules. These limits are designed to provide reasonable protection against harmful interference in a residential installation.

This equipment generates, uses and can radiate radio frequency energy and , if not installed and used in accordance with the

instructions, may cause harmful interference to radio communications.

However, there is no guarantee that interference will not occur in a particular installation. If this equipment does cause harmful interference to radio or television reception, which can be determined by turning the equipment off and on, the user is encouraged

to try to correct the interference by one or more of the following measures:

• Reorient or relocate the receiving antenna.

• Increase the separation between the equipment and receiver.

• Connect the equipment into an outlet on a circuit different from that to which the receiver is connected.

• Consult the dealer or an experienced radio/TV technician for help.

FCC & IC Radiation Exposure Statement

This equipment complies with FCC radiation exposure limits set forth for an uncontrolled environment and meets the exemption

from the routine evaluation limits in section 2.5 of RSS 102.

1. This Transmitter must not be co-located or operating in conjunction with any other antenna or transmitter.

2. This equipment complies with FCC RF radiation exposure limits set forth for an uncontrolled environment. This equipment

should be installed and operated with a minimum distance of 20 centimeters from user and bystanders. The device meets the exemption from the routine evaluation limits in section 2.5 of RSS 102 and users can obtain Canadian

information on RF exposure and compliance from the Canadian Representative Burnport Holdings Ltd. 72MT Belcher Pls, East, Calgary, Alberta，T2Z 2G1, CANADA. Tel:403-257-4961

Le présent appareil est conforme aux CNR d'Industrie Canada applicables aux appareils radio exempts de licence. L'exploitation est autorisée aux deux conditions suivantes : (1) l'appareil ne doit pas produire de brouillage, et (2) l'utilisateur de l'appareil doit

accepter tout brouillage radioélectrique subi, même si le brouillage est susceptible d'en compromettre le fonctionnement.

Le dispositif rencontre l'exemption des limites courantes d'évaluation dans la section 2.5 de RSS 102 et la conformité à l'exposition de RSS-102 rf, utilisateurs peut obtenir l'information canadienne sur l'exposition et la conformité de rf.

Getting Started

Thank you for purchasing the iHome HiP50, the app-friendly alarm clock radio for iPhone or iPod. Designed to play music through Bluetooth from your mobile phone or computer (through Bluetooth or Line in), the HiP50 features SRS WOW audio enhancement. This instruction booklet explains the basic operation and care of the unit. There are many exciting performance enhancements available by downloading the free iHome+Sleep app from the iTunes App Store. In addition, the iHome Radio app (available as a paid app at the iTunes App Store) gives you access to thousands of internet radio stations around the globe. For information on the iHome Sleep app and iHome Radio internet radio app and how they work with your unit, please use these resources: web: www.ihomeaudio.com/apps email: apps@ihomeaudio.com Note: app is for iPad, iPhone and iPod touch only.

Please read this instruction book carefully before the appliance is operated and keep it for future reference.

QDID:B018643

Controls and Indicators

Top Panel

Switch charging circuit

Flexible 30 pin connector for iPhone/iPod

Pairing Button

FM Presets Button

Lower/raise volume Button

Power Button

Rear Panel

Rear Cover

Audio Cable Plug Holder

presets

power iPod/radio

AC Adaptor Jack

Line-in cord

talk

pairing

function

Bluetooth/line-in

end

snooze/dimmer

Snooze/Dimmer Button

Microphone

alarm

on/o

set

wake-to

End Button

DST

-1 +1 auto

time set time zonetime sync high low

USB Charge port

Device rest

Talk Button

Alarm Set Button

Alarm On/Off Button

Forward Set Button

Play/Pause Button

Reverse Set Button

Bedtime Beats Button

Wake-to ButtonFunction Button

Time Sync ButtonTime Set Button Volume Level Button

Time Zone Button DST switch

FM Antenna

volume levelDC 12V 3.5A

PM Indicator

AM Indicator

NOTE: AM/PM indicators will not appear when clock is set to 24 hour display mode

Display

Time Display

Alarm Indicator

Battery Low Indicator

Bluetooth Indicator

Radio / Alarm Time / iPod Display

Quick staff setup

-1 +1 auto

DST

time set time zonetime sync high low

volume levelDC 12V 3.5A

RESET

TEST

Staff can access DST (Daylight Saving Time),Time

Set,Time Sync, Time Zone, High/Low Volume settings

and power supply jack on the rear of the unit. Turn the thumbscrew to remove the Rear Cover. Replace Rear Cover after adjusting settings.

2: Power1: Rear cover

Attach AC adaptor cable to DC jack on back of the unit and plug the other end into a wall socket

3: Docking your

4: Room volume

iPhone/iPod

DST

time set time zonetime sync high low

Gently dock your iPhone or iPod into the 30 pin dock. The iPhone or iPod will charge while docked. Press the Button on the unit to play your iPhone or iPod.

-1 +1 auto

The unit has a High/Low Volume setting switch on

the back. Move the switch to the desired position for the room size.

volume level
