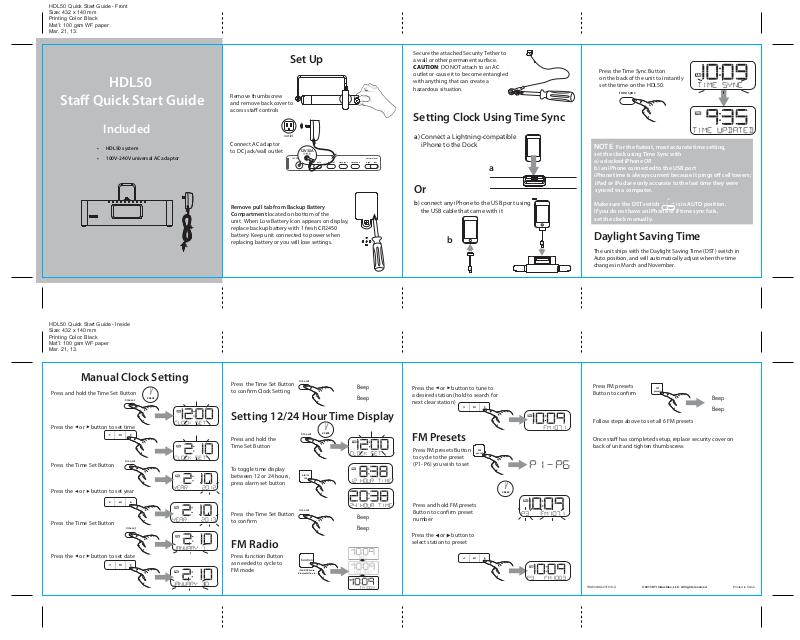

HDL50 Quick Start Guide - Front
Size: 432 x 140 mm
Printing Color: Black
Mat’l: 100 gsm WF paper
Mar. 21, 13.
HDL50
Sta Quick Start Guide
Remove thumbscrew
and remove back cover to
access sta controls
Set Up
Secure the attached Security Tether to
a wall or other permanent surface.
CAUTION: DO NOT attach to an AC
outlet or cause it to become entangled
with anything that can create a
hazardous situation.
Setting Clock Using Time Sync
Press the Time Sync Button
on the back of the unit to instantly
set the time on the HDL50.
time sync
Included
• HDL50 system
• 100V-240V universal AC adaptor
outlet
Connect AC adaptor
to DC jack/wall outlet
12V 3.5A
-1 +1 auto
DST
time set time zonetime sync high low
Remove pull tab from Backup Battery
Compartment located on bottom of the
unit. When Low Battery Icon appears on display,
replace backup battery with 1 fresh CR2450
battery. Keep unit connected to power when
replacing battery or you will lose settings.
a) Connect a Lightning-compatible
iPhone to the Dock
volume level12VDC 35000mA
a
Or
b) connect any iPhone to the USB port using
the USB cable that came with it
b
NOTE: For the fastest, most accurate time setting,
set the clock using Time Sync with
a) a docked iPhone OR
b) an iPhone connected to the USB port
iPhone time is always current because it pings off cell towers;
iPad or iPod are only accurate to the last time they were
synced to a computer.
Make sure the DST switch is in AUTO position.
DST
-1 +1 auto
If you do not have an iPhone or if time sync fails,
set the clock manually.
Daylight Saving Time
The unit ships with the Daylight Saving Time (DST) switch in
Auto position, and will automatically adjust when the time
changes in March and November.
HDL50 Quick Start Guide - Inside
Size: 432 x 140 mm
Printing Color: Black
Mat’l: 100 gsm WF paper
Mar. 21, 13.
Manual Clock Setting
Press and hold the Time Set Button
time set
Press the or button to set time
time set
Press the Time Set Button
Press the or button to set year
2 SECS
Press the Time Set Button
to conrm Clock Setting
time set
Beep
Beep
Setting 12/24 Hour Time Display
2 SECS
Press and hold the
Time Set Button
To toggle time display
between 12 or 24 hours,
press alarm set button
time set
alarm
set
Press the or button to tune to
a desired station (hold to search for
next clear station)
FM Presets
Press FM presets Button
to cycle to the preset
(P1- P6) you wish to set
FM
presets
2 SECS
Press FM presets
Button to conrm
FM
presets
Beep
Beep
Follow steps above to set all 6 FM presets
Once sta has completed setup, replace security cover on
back of unit and tighten thumbscrew.
Press the Time Set Button
time set
Press the or button to set date
Press the Time Set Button
to conrm
FM Radio
Press function Button
as needed to cycle to
FM mode
time set
function
iPod/USB/radio
Bluetooth/line-in
Beep
Beep
Press and hold FM presets
Button to conrm preset
number
Press the or button to
select station to preset
HDL50QSG-031913-A © 2013 HTI Industries, LLC. All rights reserved Printed in China
