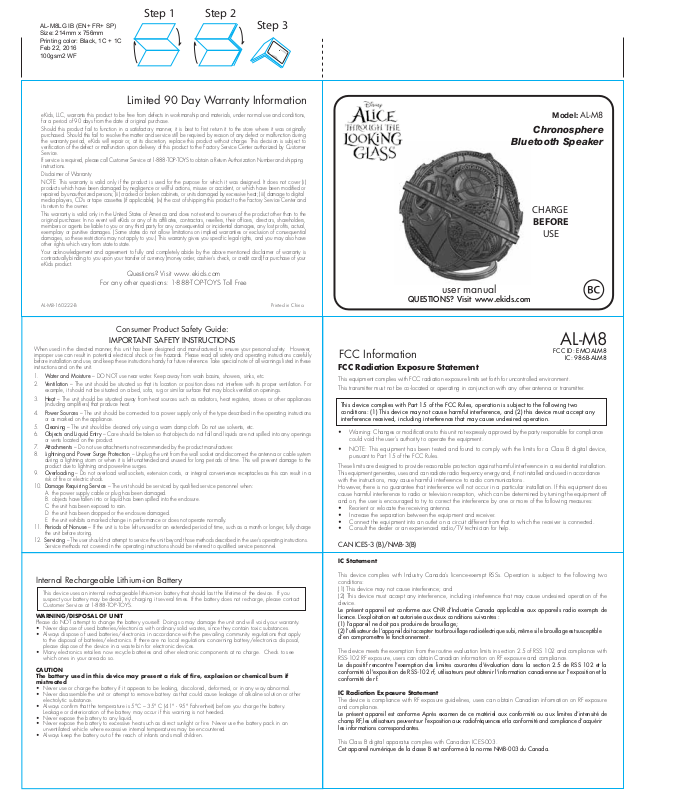

Step 1 Step 2

AL-M8LG IB (EN+ FR+ SP) Size: 214mm x 756mm Printing color: Black, 1C + 1C Feb 22, 2016 100gsm2 WF

Limited 90 Day Warranty Information

eKids, LLC, warrants this product to be free from defects in workmanship and materials, under normal use and conditions, for a period of 90 days from the date of original purchase.

Should this product fail to function in a satisfactory manner, it is best to first return it to the store where it was originally purchased. Should this fail to resolve the matter and service still be required by reason of any defect or malfunction during the warranty period, eKids will repair or, at its discretion, replace this product without charge. This decision is subject to verification of the defect or malfunction upon delivery of this product to the Factory Service Center authorized by Customer Service.

If service is required, please call Customer Service at 1-888-TOP-TOYS to obtain a Return Authorization Number and shipping instructions.

Disclaimer of Warranty NOTE: This warranty is valid only if the product is used for the purpose for which it was designed. It does not cover (i)

products which have been damaged by negligence or willful actions, misuse or accident, or which have been modified or repaired by unauthorized persons; (ii) cracked or broken cabinets, or units damaged by excessive heat; (iii) damage to digital media players, CD’s or tape cassettes (if applicable); (iv) the cost of shipping this product to the Factory Service Center and its return to the owner.

This warranty is valid only in the United States of America and does not extend to owners of the product other than to the original purchaser. In no event will eKids or any of its affiliates, contractors, resellers, their officers, directors, shareholders, members or agents be liable to you or any third party for any consequential or incidental damages, any lost profits, actual, exemplary or punitive damages. (Some states do not allow limitations on implied warranties or exclusion of consequential damages, so these restrictions may not apply to you.) This warranty gives you specific legal rights, and you may also have other rights which vary from state to state.

Your acknowledgement and agreement to fully and completely abide by the above mentioned disclaimer of warranty is contractually binding to you upon your transfer of currency (money order, cashier's check, or credit card) for purchase of your eKids product.

Questions? Visit www.ekids.com

For any other questions: 1-888-TOP-TOYS Toll Free

AL-M8-160222-B Printed in China

Step 3

Bluetooth Speaker

user manual

QUESTIONS? Visit www.ekids.com

AL-M8

Model:

Chronosphere

CHARGE

BEFORE

USE

Consumer Product Safety Guide:

When used in the directed manner, this unit has been designed and manufactured to ensure your personal safety. However, improper use can result in potential electrical shock or fire hazards. Please read all safety and operating instructions carefully before installation and use, and keep these instructions handy for future reference. Take special note of all warnings listed in these instructions and on the unit.

1. Water and Moisture – DO NOT use near water. Keep away from wash basins, showers, sinks, etc.

2. Ventilation – The unit should be situated so that its location or position does not interfere with its proper ventilation. For example, it should not be situated on a bed, sofa, rug or similar surface that may block ventilation openings.

3. Heat – The unit should be situated away from heat sources such as radiators, heat registers, stoves or other appliances (including amplifiers) that produce heat.

4. Power Sources – The unit should be connected to a power supply only of the type described in the operating instructions or as marked on the appliance.

5. Cleaning – The unit should be cleaned only using a warm damp cloth. Do not use solvents, etc.

6. Objects and Liquid Entry – Care should be taken so that objects do not fall and liquids are not spilled into any openings or vents located on the product.

7. Attachments – Do not use attachments not recommended by the product manufacturer.

8. Lightning and Power Surge Protection – Unplug the unit from the wall socket and disconnect the antenna or cable system during a lightning storm or when it is left unattended and unused for long periods of time. This will prevent damage to the product due to lightning and power-line surges.

9. Overloading – Do not overload wall sockets, extension cords, or integral convenience receptacles as this can result in a risk of fire or electric shock.

10. Damage Requiring Service – The unit should be serviced by qualified service personnel when:

A. the power supply cable or plug has been damaged. B. objects have fallen into or liquid has been spilled into the enclosure. C. the unit has been exposed to rain. D. the unit has been dropped or the enclosure damaged. E. the unit exhibits a marked change in performance or does not operate normally.

11. Periods of Nonuse – If the unit is to be left unused for an extended period of time, such as a month or longer, fully charge the unit before storing.

12. Servicing – The user should not attempt to service the unit beyond those methods described in the user’s operating instructions. Service methods not covered in the operating instructions should be referred to qualified service personnel.

IMPORTANT SAFETY INSTRUCTIONS

Internal Rechargeable Lithium-ion Battery

This device uses an internal rechargeable lithium-ion battery that should last the lifetime of the device. If you

suspect your battery may be dead, try charging it several times. If the battery does not recharge, please contact Customer Service at 1-888-TOP-TOYS.

WARNING/DISPOSAL OF UNIT

Please do NOT attempt to change the battery yourself. Doing so may damage the unit and will void your warranty.

• Never dispose of used batteries/electronics with ordinary solid wastes, since they contain toxic substances.

• Always dispose of used batteries/electronics in accordance with the prevailing community regulations that apply to the disposal of batteries/electronics. If there are no local regulations concerning battery/electronics disposal, please dispose of the device in a waste bin for electronic devices.

• Many electronics retailers now recycle batteries and other electronic components at no charge. Check to see which ones in your area do so.

CAUTION The battery used in this device may present a risk of fire, explosion or chemical burn if mistreated

• Never use or charge the battery if it appears to be leaking, discolored, deformed, or in any way abnormal.

• Never disassemble the unit or attempt to remove battery as that could cause leakage of alkaline solution or other electrolytic substance.

• Always confirm that the temperature is 5°C – 35° C (41° - 95° Fahrenheit) before you charge the battery. Leakage or deterioration of the battery may occur if this warning is not heeded.

• Never expose the battery to any liquid.

• Never expose the battery to excessive heat such as direct sunlight or fire. Never use the batter y pack in an unventilated vehicle where excessive internal temperatures may be encountered.

• Always keep the battery out of the reach of infants and small children.

AL-M8

FCC Information

FCC Radiation Exposure Statement

This equipment complies with FCC radiation exposure limits set forth for uncontrolled environment . This transmitter must not be co-located or operating in conjunction with any other antenna or transmitter.

This device complies with Part 15 of the FCC Rules, operation is subject to the following two conditions: (1) This device may not cause harmful interference, and (2) this device must accept any interference received, including interference that may cause undesired operation.

• Warning: Changes or modifications to this unit not expressly approved by the party responsible for compliance could void the user’s authority to operate the equipment.

• NOTE: This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to Part 15 of the FCC Rules.

These limits are designed to provide reasonable protection against harmful interference in a residential installation. This equipment generates, uses and can radiate radio frequency energy and, if not installed and used in accordance with the instructions, may cause harmful interference to radio communications. However, there is no guarantee that interference will not occur in a particular installation. If this equipment does cause harmful interference to radio or television reception, which can be determined by turning the equipment off and on, the user is encouraged to try to correct the interference by one or more of the following measures:

• Reorient or relocate the receiving antenna.

• Increase the separation between the equipment and receiver.

• Connect the equipment into an outlet on a circuit different from that to which the receiver is connected.

• Consult the dealer or an experienced radio/TV technician for help.

CAN ICES-3 (B)/NMB-3(B)

IC Statement

This device complies with Industry Canada’s licence-exempt RSSs. Operation is subject to the following two conditions: (1) This device may not cause interference; and (2) This device must accept any interference, including interference that may cause undesired operation of the device.

Le présent appareil est conforme aux CNR d’Industrie Canada applicables aux appareils radio exempts de licence. L’exploitation est autorisée aux deux conditions suivantes : (1) l’appareil ne doit pas produire de brouillage; (2) l’utilisateur de l’appareil doit accepter tout brouillage radioélectrique subi, même si le brouillage est susceptible d’en compromettre le fonctionnement.

The device meets the exemption from the routine evaluation limits in section 2.5 of RSS 102 and compliance with RSS-102 RF exposure, users can obtain Canadian information on RF exposure and compliance.

Le dispositif rencontre l'exemption des limites courantes d'évaluation dans la section 2.5 de RSS 102 et la conformité à l'exposition de RSS-102 rf, utilisateurs peut obtenir l'information canadienne sur l'exposition et la conformité de rf.

IC Radiation Exposure Statement

The device is compliance with RF exposure guidelines, users can obtain Canadian information on RF exposure and compliance.

Le présent appareil est conforme Après examen de ce matériel aux conformité ou aux limites d’intensité de champ RF, les utilisateurs peuvent sur l’exposition aux radiofréquences et la conformité and compliance d’acquérir les informations correspondantes.

This Class B digital apparatus complies with Canadian ICES-003.

Cet appareil numérique de la classe B est conforme à la norme NMB-003 du Canada.

FCC ID: EMOALM8

IC: 986B-ALM8

Declaration ID D0XXXXX

AL-M8 IB (English) Size: 214mm x 336mm Printing color: Black Feb 22, 2016 100gsm2 WF

IMPORTANT

Read before proceeding If you have any question regarding the operation or use of this product, please visit www.ekids.com to view answers to frequently asked questions.

AL-M8

Introduction

Thank you for purchasing the AL-M8. This product is designed to provide high quality wireless sound for your iPad, iPhone, iPod, computer, PDA or other Bluetooth audio device. This instruction booklet explains the basic operation and care of the unit. Please read them carefully and keep for future reference.

Maintenance

• Place the unit on a level surface away from sources of direct sunlight or excessive heat.

• Protect your furniture when placing your unit on a natural wood and lacquered finish. A cloth or other protective material should be placed between it and the furniture.

• Clean your unit with a soft cloth moistened only with mild soap and water. Stronger cleaning agents, such as benzene, thinner or similar materials can damage the surface of the unit.

Front Back

Power/Charging/Pairing indicator LED

When not in use, slide Power Switch to the OFF position

mic

to save battery power.

What’s Included

• AL-M8 speaker

• USB charging cable

Power ON/OFF

Bluetooth Pairing/

Speakerphone Button

USB charging cable

AL-M8

charge input jack (micro USB Connection)

Pairing Your Device

Pairing is the set-up process to introduce your Bluetooth-capable device to the AL-M8. Once your device is paired, the AL-M8 can recognize it and you can play your audio through it.

Make sure your Bluetooth device is fully charged. Turn on your Bluetooth device and make

it “discoverable” by turning on Bluetooth mode (check in Options or Settings).

2. Slide the Power ON/OFF Switch to ON to turn on the AL-M8. The first time the unit is powered

on, it will enter auto-pairing mode and attempt to connect to a Bluetooth device (if so, skip to step 4). Otherwise, follow step 3 to begin pairing

Press and hold the Bluetooth Pairing/Speakerphone Button for 3 seconds. The

3. AL-M8 will beep and the Bluetooth status indicator light on top of the unit will flash quickly.

4. “eKids AL-M8” should appear in your device’s Bluetooth menu. If “Not Paired”, “Not Connected” or similar message appears, select “eKids AL-M8” to connect it. If prompted for a passcode, enter “1234” on your device’s keypad.

eKids AL-M8 eKids AL-M8

For iPhone

5. If pairing is successful, a tone will sound and the Bluetooth indicator light will glow solid, indicating the AL-M8 is ready to play music. There should also be an indication on your device. If no device is successfully paired within 3 minutes the AL-M8 will default to previous mode. Once the AL-M8 is paired to a device, it will attempt to autolink when the device is within range (about 30 feet).

Using the AL-M8

For other

eKids AL-M8

Using the AL-M8

Pairing with a Different Device

When the speaker is ON, it will automatically link with the previously paired Bluetooth device as long as that device is still within range (approx. 30 feet). So to pair with a different device you must press and hold the Bluetooth Pairing/Speakerphone Button for 3 seconds to re-enter pairing mode.

Playing Audio Via Bluetooth

1. Move the ON/OFF Switch to the ON position to listen to audio streamed wirelessly from your

paired iPad, iPhone, iPod or other Bluetooth device.

The Power/Charging/Pairing Indicator Light on the unit will flash blue and a tone will sound as

the unit searches for a previously paired device, and then turn solid blue once a previously paired device is detected.

2. Use the controls on your device to play or pause audio, navigate tracks and control volume from

your Bluetooth device.

3. When done listening, move the ON/OFF Switch to the OFF position to turn the unit off.

Speakerphone Operation

NOTE: The unit must be powered on and linked to a Bluetooth phone to receive a call.

1. When a call is received, playing music is muted to hear the ring tone. The Power/Charging/Pairing

Indicator Light will flash quickly, then turn solid, then repeats the pattern until you answer the call. Press the Speakerphone Button to answer the call. For call waiting function, press the button again to answer the second call, and once more to return to the original call.

2. When a call is completed, press the Speakerphone Button to end the call and resume previous

function.

Using the AL-M8

Charging the Unit

CHARGE UNIT BEFORE USE

1. Connect the micro USB plug to the micro USB charging port on the back of the unit.

Charge via USB AC adaptor, computer USB port, or other powered USB port

USB Adaptor

(not included)

Computer connected to working outlet

NOTE: When the unit is on and not connected to a power source, the Power/Charging/Pairing Indicator Light flashing red means the battery needs charging.

2. Connect the standard USB plug end of the cable to a power USB port on a computer or other USB charging device. For first time use, charge unit for about 5 hours.

3. The Power/Charging/Pairing Indicator Light on the top of the unit glows red steadily while the unit is charging and turns OFF once the unit is fully charged. If unit is not powered on when micro USB plug is connected, the red light glows steadily to indicate unit is charging.

Computer USB port

AL-M8 USB port

Unit doesn’t respond (no power)

• Make sure unit is completely charged.

• Check that all connections are correct and properly plugged in.

• Make sure your device is properly paired with the AL-M8.

• Make sure the ON/OFF Switch is not in the OFF position.

• The rechargeable battery in your speaker can be replaced only by eKids Consumer Repair Department.

Troubleshooting

Unit doesn’t respond (locked up/ “frozen”)

If the unit does not respond, try resetting the unit. Press and hold the Bluetooth Pairing/ Speakerphone button for 9 seconds. Note that doing so will clear settings, and any Bluetooth devices

will need to be re-paired.

Trouble pairing device with AL-M8

Bluetooth implementation varies depending on your device’s hardware and operating system. Please see our website for updates on pairing.

• When you power ON the speaker, it will automatically link with the last previously paired Bluetooth

device if the device is still within range (approx. 30 feet). To pair with a different device you must turn off Bluetooth capability on the already paired device, or take it out of range.

• If your device does not auto-link when within range, re-pair the device. To do so, first delete the AL-M8

from your Bluetooth devices menu.

• Make sure your device is working properly. Check your device’s manual for details on Bluetooth pairing

and linking.

For further information and to see the latest instructions, visit www.ekids.com
