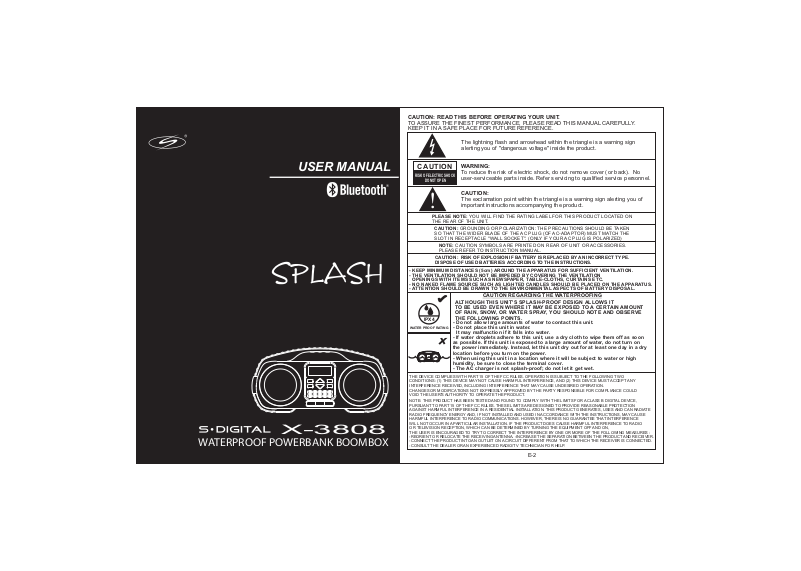

S Digital X-3808 User Manual

CAUTION: READ THIS BEFORE OPERATING YOUR UNIT.

TO ASSURE THE FINEST PERFORMANCE, PLEASE READ THIS MANUAL CAREFULLY.
KEEP IT IN A SAFE PLACE FOR FUTURE REFERENCE.

The lightning flash and arrowhead within the triangle is a warning sign
alerting you of "dangerous voltage" inside the product.

USER MANUAL

SPLASH

X-3808

WATERPROOF POWERBANK BOOMBOX

CAUT ION

RISK O F ELEC TRIC S HOCK

DO NOT OPEN

PLEAS E NOTE : YOU W ILL FIND THE RATIN G LABEL FOR THI S PRODUCT LOC ATED ON

THE RE AR OF TH E UNIT.

- KEE P MINI MUM DISTANCES (5cm) AROU ND THE APPARATUS FOR SUFFIC IENT VENTI LATION .

- THE VENTILATION SHOULD NOT BE IMPEDE D BY COVERI NG THE VEN TILATION
OPE NINGS WITH ITEM S SUC H AS NE WSPAPER, TABLE- CLOTHS, CU RTAINS ETC.

- NO NAKED FLAME SOU RCE S UCH AS LIGHTED CA NDLES SHOU LD BE PLAC ED ON THE A PPARATUS.

- ATTENTI ON SH OULD BE DR AWN TO T HE ENVIRON MENTAL ASPECTS OF BATTERY DIS POSAL .

IPX4

WATER PROOF RATING

THE DEVICE COMPLIES WITH PART 15 OF THE FCC RULES. OPERATION IS SUBJECT TO THE FOLLOWING TWO
CONDITIONS: (1) THIS DEVICE MAY NOT CAUSE HARMFUL INTERFERENCE, AND (2) THIS DEVICE MUST ACCEPT ANY
INTERFERENCE RECEIVED, INCLUDING INTERFERENCE THAT MAY CAUSE UNDESIRED OPERATION.
CHANGES OR MODIFICATIONS NOT EXPRESSLY APPROVED BY THE PARTY RESPONSIBLE FOR COMPLIANCE COULD
VOID THE USER'S AUTHORITY TO OPERATE THE PRODUCT.

NOTE: THIS PRODUCT HAS BEEN TESTED AND FOUND TO COMPLY WITH THE LIMITS FOR A CLASS B DIGITAL DEVICE,
PURSUANT TO PART 15 OF THE FCC RULES. THESE LIMITS ARE DESIGNED TO PROVIDE REASONABLE PROTECTION
AGAINST HARMFUL INTERFERENCE IN A RESIDENTIAL INSTALLATION. THIS PRODUCT GENERATES, USES AND CAN RADIATE
RADIO FREQUENCY ENERGY AND, IF NOT INSTALLED AND USED IN ACCORDANCE WITH THE INSTRUCTIONS, MAY CAUSE
HARMFUL INTERFERENCE TO RADIO COMMUNICATIONS. HOWEVER, THERE IS NO GUARANTEE THAT INTERFERENCE
WILL NOT OCCUR IN A PARTICULAR INSTALLATION. IF THE PRODUCT DOES CAUSE HARMFUL INTERFERENCE TO RADIO
OR TELEVISION RECEPTION, WHICH CAN BE DETERMINED BY TURNING THE EQUIPMENT OFF AND ON,
THE USER IS ENCOURAGED TO TRY TO CORRECT THE INTERFERENCE BY ONE OR MORE OF THE FOLLOWING MEASURES :

-REORIENT OR RELOCATE THE RECEIVING ANTENNA. -INCREASE THE SEPARATION BETWEEN THE PRODUCT AND RECEIVER.

-CONNECT THE PRODUCT INTO AN OUTLET ON A CIRCUIT DIFFERENT FROM THAT TO WHICH THE RECEIVER IS CONNECTED.

-CONSULT THE DEALER OR AN EXPERIENCED RADIO/TV TECHNICIAN FOR HELP.

WARNING:

To reduce the risk of electric shock, d o not r emove cover ( or back). N o
user-serviceable parts inside. Refer servicing t o qualified s ervice personnel.

CAUTION:

The exclamation point within the triangle is a warning sign alerting you of
important instructions accompanying the product.

CAUTI ON: GR OUNDI NG OR P OLARI ZATION: TH E PRECAUTIO NS SHOULD BE TAKEN
SO THAT THE W IDER BLADE O F THE AC PLUG (OF AC -ADAPTOR) M UST MATCH T HE
SLOT IN RECEPTACLE "WAL L SOCK ET". ( ONLY IF YOU R AC PLUG IS POL ARIZE D)

NOTE: CAUTION S YMBOL S ARE P RINTE D ON REAR OF UN IT OR AC CESSORIES.
PLEAS E REF ER TO I NSTRUCTION MANUAL.

CAUTION : RISK OF EXPLOSION IF BATTERY IS REPLACED BY AN INCORRECT TY PE.
DISPOSE OF USED BATTERIES ACCORDING TO THE INSTRUCTIONS.

CAUTI ON R EGARD ING THE WATERP ROOF ING
ALTHOUGH THIS UNIT 'S S PLASH -PRO OF DE SIGN A LLOW S IT
TO BE USED EVEN WHER E IT MAY BE E XPOSE D TO A CERTAIN A MOUN T
OF RA IN, SNOW, O R WATER S PRAY, YOU SHO ULD NOTE A ND O BSERVE
THE F OLLO WING POIN TS.

- Do not a llow large amou nts of wa ter t o con tact this unit .

- Do not p lace this unit in w ater.
It ma y mal funct ion if it fall s int o wat er.

- If water droplets adher e to this unit , use a dry clo th to wipe them off as so on
as po ssibl e. If this unit is expose d to a large am ount of wa ter, do not turn on
the p ower immed iately. Inst ead, let t his u nit dry ou t fo r at least one day i n a d ry
locat ion b efore you turn on t he po wer.

- Whe n usi ng th is unit in a locatio n whe re it will be subjec t to water or high
humid ity, be sure to cl ose the te rminal cov er.

- The A C charger is not spl ash-proof; do not le t it get wet.

E-2

LOCATION OF CONTROLS

1 2

6 7

3

5

8

4

Enlarge view of the

9

Function key panel:

12

10

11

13

16 17 18 19 20
21 22 23 24 25

26

27

Rechargeable battery:

- This unit operates on an internal rechargeable Lithium-ion battery.

- It can be recharged from any standard USB port (eg. PC USB port.)

- It can be also recharged with the provided Micro-USB AC charger.
(Note: AC Charger is NOT waterproof)

- Please ensure your country’s AC-voltage is within the charger’s voltage range.

- Insert the micro USB plug of the AC charger into the Micro USB Socket at the back of the unit.

- Plug the AC charger into an AC wall outlet. (CAUTION: Never expose unit to water during charging)

- The CHARGE indicator light will be ON while charging is in process.

- Once the unit has been charged, it can simply be unplugged and taken anywhere to be used.

- Total play time when fully charged is upto 10 hours, depending on the type of music played
and the loudness level.

NOTE:

- DURING RADIO MODE, THE UNIT WILL NOT CHARGE, AS THIS CAUSES INTERFERENCE TO
THE RADIO SIGNAL.

- NEVER RECHARGE THE UNIT WHILE IT IS WET, MAY CAUSE FIRE OR DAMAGE DUE TO ELECTRIC SHOCK
OR SHORT-CIRCUIT.

IF THE BATTERY IS FULLY DRAINED, PLEASE ALLOW IT TO RECHARGE FOR A FEW HOURS BEFORE USE.

- THE RECHARGEABLE BATTERY HAS A LIMITED LIFESPAN. ITS CAPACITY DECREASES GRADUALLY
WITH THE FREQUENCY OF USE AND THE PASSAGE OF TIME.

- THE LIFESPAN OF THE RECHARGEABLE BATTERY VARIES ACCORDING TO HOW IT IS STORED,
USAGE CONDITIONS AND USAGE ENVIRONMENT.

! IMPORTANT: PLEASE FULLY CHARGE THE UNIT BEFORE FIRST USE !

FOR BEST RESULTS, ALWAYS RECHARGE THE UNIT FULLY BEFORE USING IT.

1. Water Proof Speakers

1

2. CHARGING indicator LED

3. Liquid Crystal Display

4. PAIRING indicator LED

5. Rubber Terminal Cover

6. USB Charging Port

7. Auxillary (AUX) Input socket

8. USB Socket for MP3 Playback

9.Function Key panel

10. Bass (up) Key

11. Bass (down) Key

12. Volume (up) Key

14

13. Volume (down) Key

14. Treble (up) Key

15

15. Treble (down) Key

16. Power Key (On/ Standby)

17. Back/ Tune Key

18. Play/ Pause/ Pair Key

19. Next/ Tune Key

20. Function Key

21. 10 Key (skip ahead 10 songs)

22. P-Mode (Play Mode)/ FM Mode Key

23. Stop/ Program Key

24. MEM / Folder Key

25. MEM / Folder Key

26. Telescopic antenna

27. DC Input socket (Micro USB)

E-3

OPERATION

SOUND CONTROL:

- Us e t he V OLUME + ( up) and - ( do wn) key s t o adju st l ou dne ss to t he des ire d l eve l.

- On Bl uet oot h® and A UX mod es, lo udn ess ca n so metim es AL SO be a dju st ed u sin g
th e v olu me con tro ls of t he ext ern all y c onn ected dev ice (e g. Tab let or Sma rtp hone) .
It 's adv isa ble to set th at to 9 0% (ab out 10 % less tha n m axi mum ) a nd the n to us e
th e v olu me con tro ls on t he boo mbo x o nly.

- If so und is dis tor ted, r edu ce the vo lum e leve l of th e exte rna l devi ce u nt il i t i s no rm al.

IMPORTANT: If there is NO sound, ensure the volume on both devices is not set to 0.

- So met imes t her e m ay be a sl igh t clic kin g soun d co mi ng t hroug h th e s pea ker s w hen
ad jus ting t he vol ume co ntr ol, es pec ial ly whe n l ist eni ng to t he FM Rad io. Thi s i s a nor mal
co ndi tion, and te mpo rary.

- Us e t he B ASS an d TR EBLE c ont rols ( +/- ) t o adju st t o t he L OW and HI GH f reque nci es
to yo ur t aste.

FUNCTION KEY

Pressing the FUNCTION Key repeatedly will allow you to select one of the different source modes,
as follows :

Bluetooth® WIRELESS PLAYBACK (A2DP Audio Streaming)

- This unit can wirelessly playback audio from any device with Bluetooth A2DP function.

- The wireless range is approximately within 10m (30Ft.)

- Simply pair your device (eg. Smartphone) to this unit to enjoy Wireless Audio Streaming.

- In order to avoid interferences, please de-activate Wi-Fi on your device (smartphone, tablet, etc.)
when playing music using Bluetooth®.

- Make sure Bluetooth is switch ON in your Device (Smartphone/ Tablet).

- Switch on the boombox, and press “FUNCTION” key repeatedly until display shows BT symbol.

- The PAIRING LED light will indicate the Bluetooth Status of the unit:

BT FM

Bluetooth Radio MP3

How to pair your device to this unit:

USB

player

STATUS PAIRING LED LIGHT

Searching LED flashes slowly

Pairing

- To force the unit to go into "SEARCHING" mode, Press and Hold the "PAIR" key for 2 seconds
until the "BLUE PAIRING LED" begins flashing slowly.

- Once the PAIRING LED Indicator begins flashing, you will find the unit listed in the Bluetooth
connection list of your device (eg. In your Smartphone or Tablet).

- Make connection on your device (eg. Press “CONNECT”).

- If asked for a pass code, enter “0000”.

- This is one-time event per device. To pair your unit with another device, please repeat the
above steps. The unit remembers up to 6 devices.

- There is no need to repeat this pairing procedure for up to 6 devices, even if unit is
powered off.

- The unit will also automatically pair with the LAST paired device if it is found when the unit
is powered ON and switched to Bluetooth® mode.

- Note that only one device can be paired at any given time, but the unit will remember up to
6 devices in memory.

Connected

LED blinks faster
LED stays on

E-4

AUX

Input
Jack
