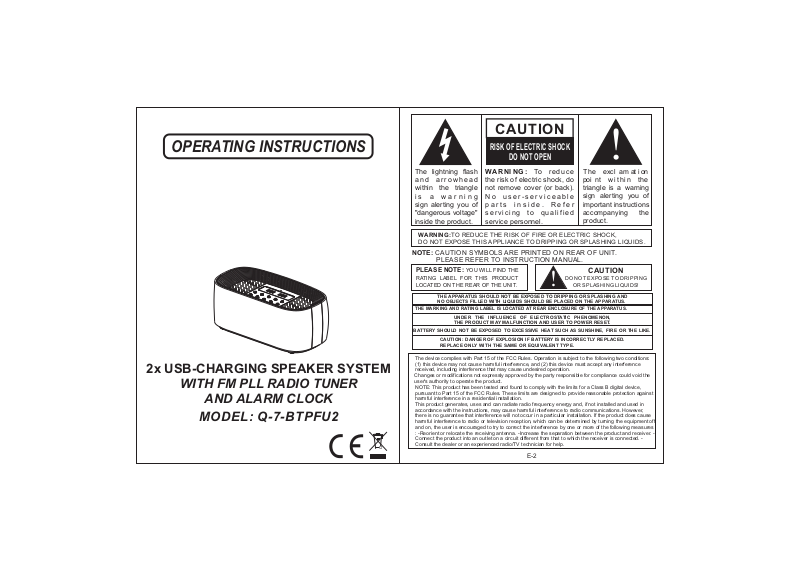

S Digital Q-7-BTPFU2 User Manual
CAUTION
OPERATING INSTRUCTIONS
2x USB-CHARGING SPEAKER SYSTEM
WITH FM PLL RADIO TUNER
AND ALARM CLOCK
MODEL: Q-7-BTPFU2
RISK OF ELECTRIC SHOCK
DO NOT OPEN
The lightning flash
a n d a rr o w h e a d
within the triangle
i s a w a r n i n g
sign alerting you of
"dangerous voltage"
inside the product.
WARNING:TO REDUCE THE RISK OF FIRE OR EL ECTRIC SHOCK,
DO NOT EXPOSE THIS APPLIANC E TO DRIPPING OR SPLASHING LIQUIDS.
NOTE: CAUTION SY MBOLS ARE PRINTED ON REAR OF UNIT.
PLEASE REFER TO INSTRUCTION MANUAL.
PLEASE NOTE: YOU WIL L FIND THE
RATING LABEL FOR THIS PRODUCT
LOCATED ON THE REA R OF THE UNIT.
THE APPAR ATU S SHOULD NOT BE EXP OSED TO DRIPP ING OR S PLASHING AN D
NO OB JECTS FIL LED WITH LIQ UIDS SHO ULD BE PLA CED ON THE A PPARATUS.
THE M ARKING AND RATING LABEL IS LOCATED AT RE AR ENCLOSU RE OF THE A PPARATUS.
BATTERY SHOULD NOT BE EXPOSED TO EXCESSIVE HEAT SUCH AS SUNSHINE, FIRE OR THE LIKE.
The device complies with Part 15 of the FCC Rules. Operation is subject to the following two conditions:
(1) this device may not cause harmful interference, and (2) this device must accept any interference
received, including interference that may cause undesired operation.
Changes or modifications not expressly approved by the party responsible for compliance could void the
user's authority to operate the product.
NOTE: This product has been tested and found to comply with the limits for a Class B digital device,
pursuant to Part 15 of the FCC Rules. These limits are designed to provide reasonable protection against
harmful interference in a residential installation.
This product generates, uses and can radiate radio frequency energy and, if not installed and used in
accordance with the instructions, may cause harmful interference to radio communications. However,
there is no guarantee that interference will not occur in a particular installation. If the product does cause
harmful interference to radio or television reception, which can be determined by turning the equipment off
and on, the user is encouraged to try to correct the interference by one or more of the following measures
: -Reorient or relocate the receiving antenna. -Increase the separation between the product and receiver. Connect the product into an outlet on a circuit different from that to which the receiver is connected. Consult the dealer or an experienced radio/TV technician for help.
UNDER THE INFL UENCE OF ELECTROSTATIC PHENO MENON,
THE P RODUCT MAY MA LFUNCTION A ND USER TO POWER RESE T.
CAUTI ON: DANGE R OF EXPLO SION IF BATT ERY IS INCO RRECTLY REPLAC ED.
REPLA CE ONLY WITH THE SAME O R EQUIVALENT TYPE.
WAR NI NG : To red u ce
the risk of electric shock, d o
not remove cover (or back).
N o u s e r - s er v i ce a b le
p a r t s i n s i d e . R e f e r
s erv ic i n g to q ual if i e d
service personnel.
E-2
T he excl am at i on
poi nt w i thi n t he
triangle is a warning
sign alerting you of
important instructions
accompanying the
product.
CAUTION
DO NO T EXPOSE TO DRIPP ING
OR SP LASHING LIQUIDS !
FRONT VIEW:
1
2
3
BACK VIEW:
LOCATION OF CONTROLS
1 . SPEAKER
2 . LED DISPL AY
3 . BACK-UP BATTERY
CO MPARTME NT (BO TTOM OF UN IT)
4 . USB-1 SO CKET
( DC CH ARGE R: 5 V/1000mA)
5 . USB-2 SO CKET
( DC CH ARGE R: 5 V/500mA)
6 . VOLUME DOWN ( ) KEY
7 . VOLUME UP ( ) KE Y
8 . MEMORY KEY
9 . SLEEP KE Y
5
4
TOP VIEW:
678 9 10
11 121314
17
18
19
10. ON/ OFF KEY
11. SK IP ( ) / SE ARCH ( ) KE Y
12. SKIP ( ) / SE ARCH ( ) KE Y
13. A L-SE T/ AL-MODE KEY
14. FUNCTION / CL -SET KEY
15. PLAY/ PAUSE / PAIR KEY
16. SNOO ZE/ DIMM ER KE Y
17. A UX I NPUT SOCK ET
18. DC JACK (DC 5V )
19. FM AN TENNA WIRE
16
- - -
15
POWER SUPPLY
AC OPERATION (EX TERN AL AC-DC POW ER ADAPTOR)
- THIS SET IS E QUIPPED WITH A "DC-JA CK" CAPABL E OF ACCEP TING
AC-AD APTORS WI TH A RATING OF D C = 5V, 2A, AN D WITH A PLUG
WIT H THE FOL LOWING P OLARITIES AS SHOWN (CENTER POSITIV E) :
- PLE ASE USE O NLY THE SUPP LIED AC-AD APTOR TO O PERATE THE U NIT.
USE OF OTHER AD APTORS M AY DAMAGE T HE UNIT O R CAUSE IT TO MALFU NCTION.
- PLU G THE TAIL END OF THE AC-A DAPTOR I NTO THE DC -JACK (S OCKET)
ON T HE REAR O F THE UNI T.
- INS ERT THE PLU G OF THE AC -ADAPTOR INTO A WALL OUTL ET WITH AC- POWER.
- PRE SS THE "O N/ OFF" K EY TO SWIT CH ON THE UNIT.
- THIS UNIT IS DESIGNED TO OPERATE W ITHOUT E VER BEIN G TOTALLY POWERE D "OFF".
IT W ILL EITHER BE "ON" OR IN "S TANDBY MODE ".
- IN S TANDBY MODE , THE BAC K-LIGHT OF THE DI GITAL DISPLAY WI LL BE DIMM ED
BUT T HE DISPL AY WILL SHOW THE CURR ENT TIME ( CLOCK FU NCTION) .
- ANYTI ME DURIN G STANDBY MO DE, YOU C AN SWITC H "ON" TH E UNIT BY PRESSIN G
THE "ON/ OFF " KEY.
- SAVE E NERGY BY S WITCHIN G THE SYS TEM TO "STAND BY" MODE WHEN NO T IN USE.
BACK UP BATTERIES
- OPEN T HE BATTERY DOOR AT THE BOTTOM OF UNIT.
- INSERT 2 PCS "AAA-CELL" (UM-4/LR03 TYPE) BATTERIES IN THE BATTERY COMPARTMENT.
THESE 2 BATTERIES ARE FOR BACKUP OF THE "CLOCK" DURING BRIEF POWER OUTAGES.
DIMMER FUNCTION
THIS SET HAS A DIM MER FUNC TION TO ADJ UST THE B RIGHTNE SS LEVEL
OF THE DISPLAY BA CKLIGHT. SIMPLY ADJUST IT AS DESIRED BY PRESS ING
THE S NOOZE/ D IMMER K EY REPEATED LY (HI-BRI GHTNESS / LOW-BRIGHTNESS / OFF)
THE D ISPLAY BACK LIGHT WI LL ALWAYS RETURN TO HI-BRIGHTNESS AS THE DEFAULT,
AFTER THE UNI T BEEN RE SET.
DIGITAL CLOCK FUNCTION
- THE SET HAS A BUILT-I N DIGITAL CL OCK.
(TH E DISPLAY WILL CONTI NUOUSLY SHO W THE CUR RENT TIME).
HOW TO SET CORR ECT TIM E:
SWITCH UNIT TO "S TAND-BY" MODE
1.
PRESS & HOLD FUNC. / CL-SET KEY FOR 3 SECOND S DISPLAY SHOWS
2.
HOUR OR HOUR (FLAS HING)
12H
PRESS SKIP- / SEAR CH- OR SKIP+ / SEARCH+ KEY TO SEL ECT 12-HOUR OR
3.
24-HOUR CLOCK DI SPLAY SYSTEM & PRES S FUNC./C L-SET KEY T O CONFI RM YOUR
SELECTI ON.
PRESS REPEATEDLY TO SET
4.
THE CORREC T HOUR IN THE DISPLAY & PRESS TO CONFI RM.
PRESS REPEATEDLY TO SET
5.
THE CORREC T MIN UTE IN THE DISPLAY & PRES S TO CONFIRM
CORREC T TIME IS NOW SET & WILL BE SHOWN IN THE DISPLAY.
6.
24H
SKIP- / SEARCH- OR SKIP+ /SEARCH+ KEY
SKIP- / SEARCH- OR SKIP+ /SEARCH+ KEY
FUNC. / CL-SET KEY
FUNC. / CL-SET KEY
-
+
E-3
E-4
