Model 930 EntryCheck
™

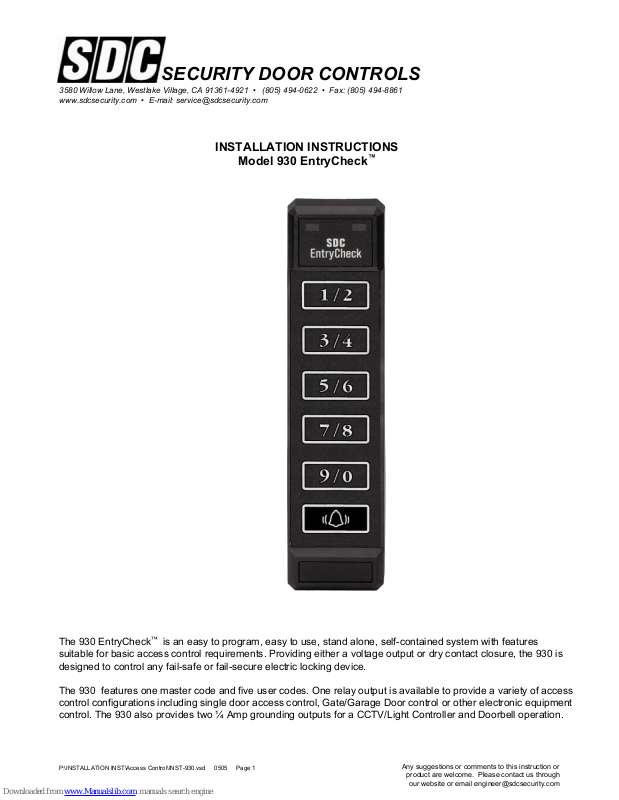

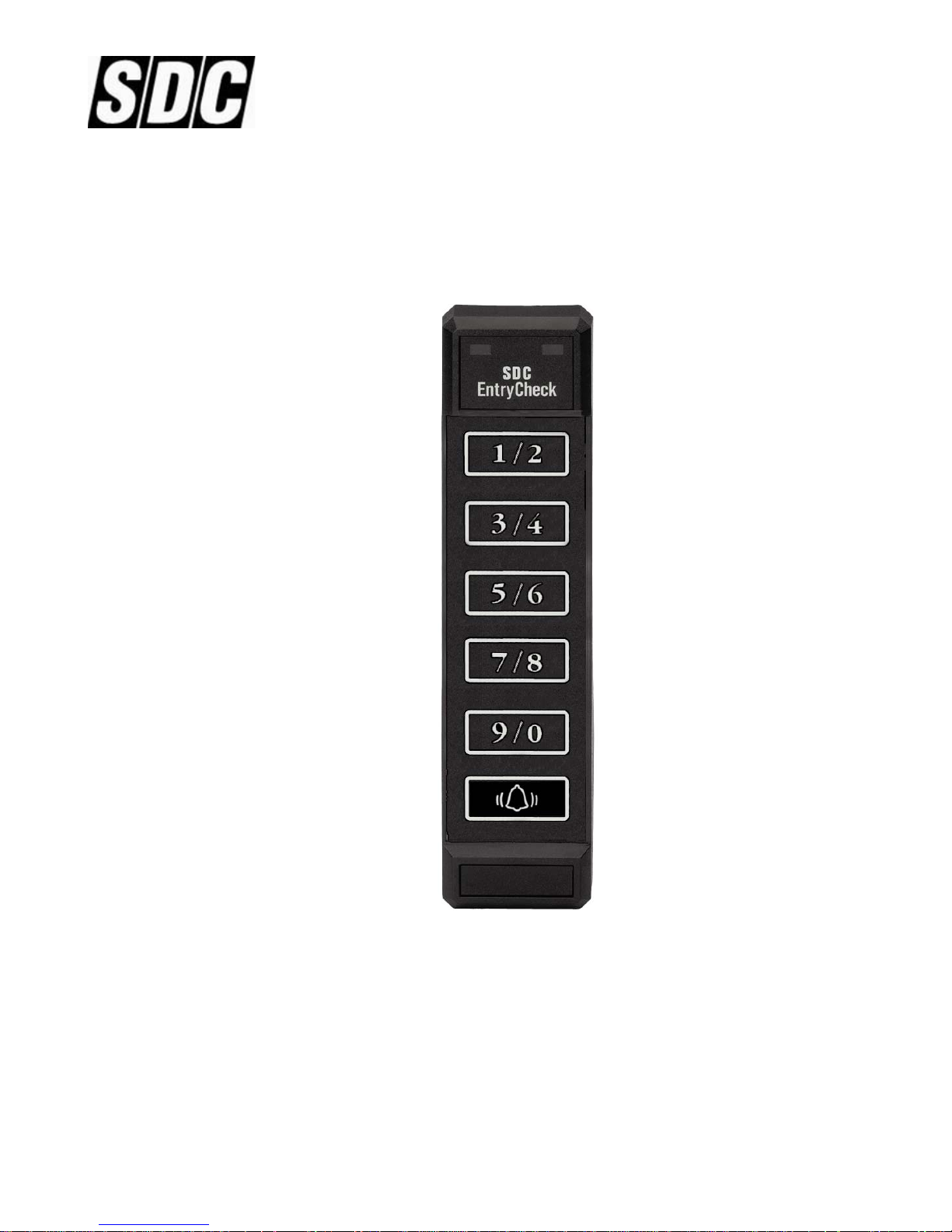

The 930 EntryCheck™ is an easy to program, easy to use, stand alone, self-contained system with features
suitable for basic access control requirements. Providing either a voltage output or dry contact closure, the 930 is
designed to control any fail-safe or fail-secure electric locking device.
The 930 features one master code and five user codes. One relay output is available to provide a variety of access
control configurations including single door access control, Gate/Garage Door control or other electronic equipment
control. The 930 also provides two ¼ Amp grounding outputs for a CCTV/Light Controller and Doorbell operation.
P:\INSTALLATION INST\Access Control\INST-930.vsd 0505 Page 1
Any suggestions or comments to this instruction or
product are welcome. Please contact us through
our website or email engineer@sdcsecurity.com
Table of Contents
SYSTEM SPECIFICATIONS 3
INPUT REQUIREMENTS 4
OUTPUT CAPABILITIES 4
OPERATING TEMPERATURES 4
PREPARING FOR INSTALLATION 5
SYSTEM COMPONENTS 5
THE INSTALLATION PROCEDURE 5
REQUIRED TOOLS 5
PREPARE THE KEYPAD FOR INSTALLATION 5
INSTALL THE WIRING CABLE 6
CONNECT THE 930 EntryCheck 6
PREPARE THE DOOR FOR THE ELECTRIC STRIKE 6
CONNECTING THE LOCKING DEVICE 6
SYSTEM HARDWARE SETUP 6
REMOTE BY-PASS 6
ANTI-TAILGATING 7
SETTING RELAY OPTIONS 7
TAMPER ALARM LOCKOUT 7
SYSTEM PROGRAMMING 8
OVERVIEW OF SYSTEM CODE PROGRAMMING 8
OVERVIEW OF THE MASTER CODE 8
PROGRAMMING THE MASTER CODE 8
OVERVIEW OF USER CODES 9
PROGRAMMING USER CODES 9
DELETING A USER 9
PROGRAMMING THE DOOR OPEN TIME 9
TROUBLESHOOTING 10
APPENDIX A – CIRCUIT BOARD LAYOUT 11
APPENDIX B – TYPICAL WIRING DIAGRAMS 12
P:\INSTALLATION INST\Access Control\INST-930.vsd 0505 Page 2
SYSTEM SPECIFICATIONS
Input Requirements: 12 to 24V AC/DC
Standby Current Draw: < 10 mA
Main Output:
CCTV/Light Output:
Doorbell Output:
100 mA (Using keypad illumination)Maximum Current Draw:
One SPDT Relay (2 Amps at 24V max)
• Voltage or Dry Contact
• Fail Safe or Fail Secure Lock
Two ¼ A Grounding Outputs
• First key press: 10 sec Output
• Press the : 1 sec Output
Programmable Output
(Door Open Time)
Latching:
Keypad Operating
Environment:
1 to 120 seconds
Default 5 seconds
Manual (Toggle On/Off)
6 Codes (1 Master, 5 User)# of User Codes:
3 to 8 DigitsCode Length:
1-3-5-7-9Default Master Code:
25 Incorrect Key PressesTamper Alarm:
Non-Volatile MemoryCode Protection:
-40° C to + 70° C (-40° F to + 160° F)
100 % Relative Humidity
P:\INSTALLATION INST\Access Control\INST-930.vsd 0505 Page 3
7 ⅛” x 1 ¾” x ¾”Keypad Dimensions:
INPUT REQUIREMENTS
The 930 EntryCheck™ accepts 12 to 24 Volts AC/DC. System current draw (maximum):
Standby: 10mA at 12/24 Volts
During Operation: 100 mA max
IMPORTANT: The maximum output current allowed is ½ Amp. Check the specifications of your locking
device. Make sure that the locking device draws less than ½ Amp. For locking devices that draw more
current, a separate power supply is required. (See Appendix B)
Note: If connecting DC, make the connections to the Red and Black wires instead of the Gray and
White wires (see Appendix A – Page 11). Make sure the polarity is correct.
OUTPUT CAPABILITIES
The 930 EntryCheck™ provides one SPDT dry contact relay (rated at 2 Amps at 24 VAC). The relay can
be configured for one of the following options:
• Voltage Output – Fail Safe or Fail Secure Locking Device
• Dry Contact Output – Control a Gate Operator/Garage Door
Two auxiliary ¼ A grounding outputs are available to drive external relays. These can be configured for:
• CCTV/Light Controller or other – First key press triggers a 10 second output.
• Doorbell or other – Press the symbol to trigger a 1 second output.
OPERATING TEMPATURES
Operating temperatures can range from -40°C to +70°C (-40°F to 160°F).
P:\INSTALLATION INST\Access Control\INST-930.vsd 0505 Page 4
SYSTEM COMPONENTS
PREPARING FOR INSTALLATION
There are four primary components to be installed:

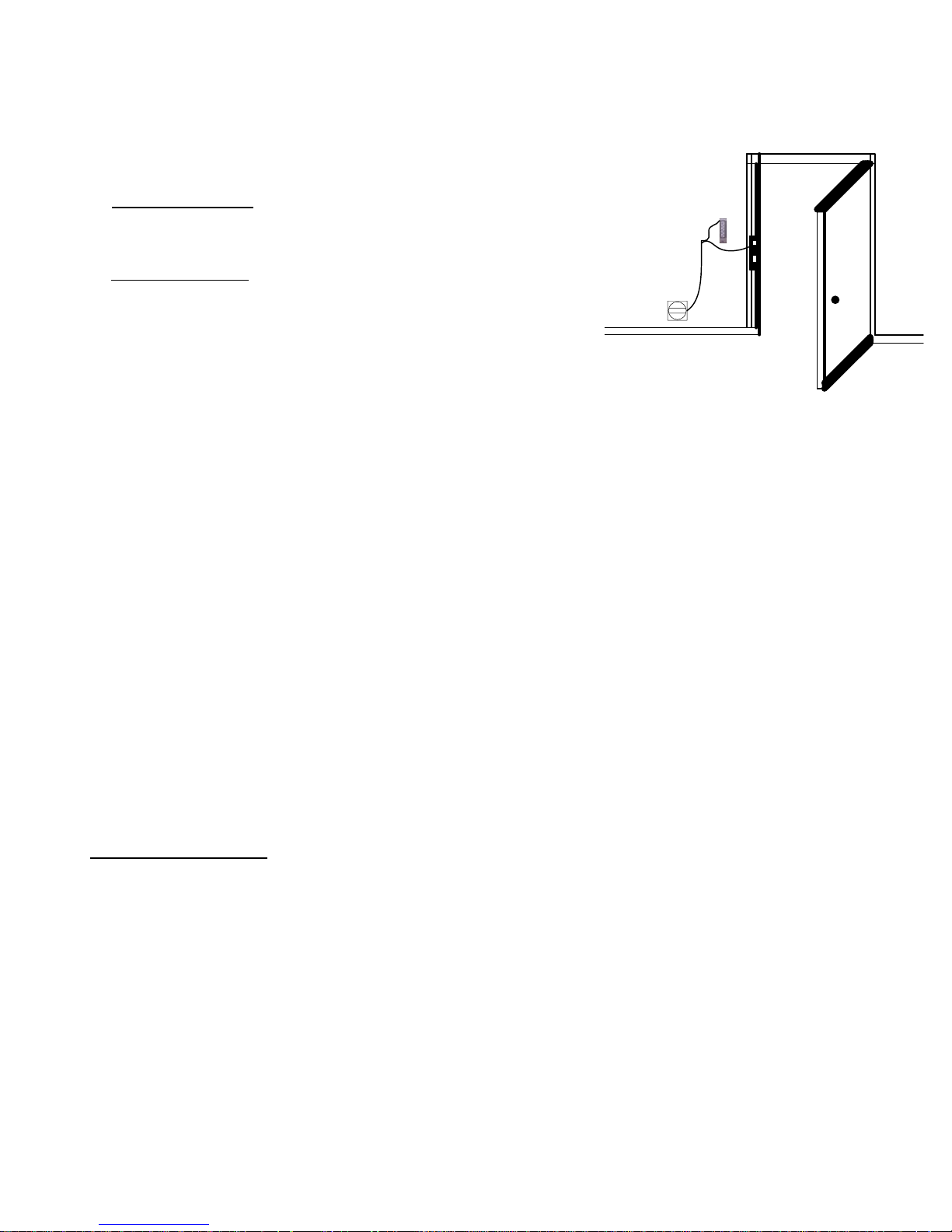

1. The 930 EntryCheck
to the door. It should be on the same side as the door strike
and about 4 feet above the floor.
2. The Wiring Harness
locking device and auxiliary relays. Included with the system is
a 12 inch wiring harness. Splice additional wire to this harness
to connect to the power supply, locking device, etc. (See
Appendix A – Typical System Wiring.)
3. The Electric Strike/Other Locking Device (not included)
connects to the 930’s Relay output via the strike wires. (See
Appendix A - Typical System Wiring)
4. The Power Supply (not included) should meet the following
specifications:
• 12 to 24 Volts AC/DC
• 100 mA min. (250 mA min. preferred)
™
should be mounted on the wall adjacent
connects the keypad to a power supply,
THE INSTALLATION PROCEDURE
REQUIRED TOOLS
1
2
3
Strike
4
Cable
Typical Installation
You will need the following tools:
• Medium Phillips screwdriver
• Drill
• ⅞” or 1” (25mm) drill bit
3
•
/16” (6mm) drill bit
PREPARE FOR INSTALLATION
There are different procedures for mounting the 930 SERIES depending on the type of composition of the
mounting surface. A template is included to assist with installation.
Mounting Instructions
The 930 SERIES is designed for mullion mount applications. It can also be mounted on a wall, pedestal or
any flat surface of at least 1 ¾” by 7”. The composition of the mounting surface will determine the fastening
method required:
1. Select a flat surface (1 ¾ ” by 7”) near the door where you wish to install the keypad.
2. Using the template, mark location of holes. Typical Installation
3. Drill the large hole using the ⅞” or 1” (25mm) drill bit.
4. Place the connector on the back of the keypad in the large hole to verify that the mounting holes are
aligned. Make adjustments if necessary.
5. Drill mounting holes in accordance with fastening method used. If mounting to wood, drill small pilot holes
and use #8 flat head wood screws provided. Do NOT mount the keypad at this time.
6. Proceed to Install the Wiring Cable.
P:\INSTALLATION INST\Access Control\INST-930.vsd 0505 Page 5
INSTALL THE WIRING CABLE
1. Drill a hole in the inside wall or ceiling where you want the cable to come through.
2. Splice added cable length to the wires you will be using (Power, locking device, etc. - See Typical System
Wiring). Then pull the cable through the hole so the connector end goes to the keypad. Route it so there is
minimal cable at the keypad.
CONNECT THE 930 EntryCheck
1. Attach the wiring connector to the Keypad.
2. Do NOT mount the Keypad until the system is programmed and tested.
™
PREPARE THE DOOR FOR THE ELECTRIC STRIKE
Follow these instructions only if you are using an electric strike to unlock the door. If you are using the relay to
activate a garage door, automatic gate, etc., skip this section. The new electric strike should be checked to
verify compatibility with existing door hardware prior to installation.
1. Remove existing strike.
2. Follow directions included with the strike for preparing the doorjamb.
3. Do NOT mount the strike at this time.
CONNECTING THE LOCKING DEVICE

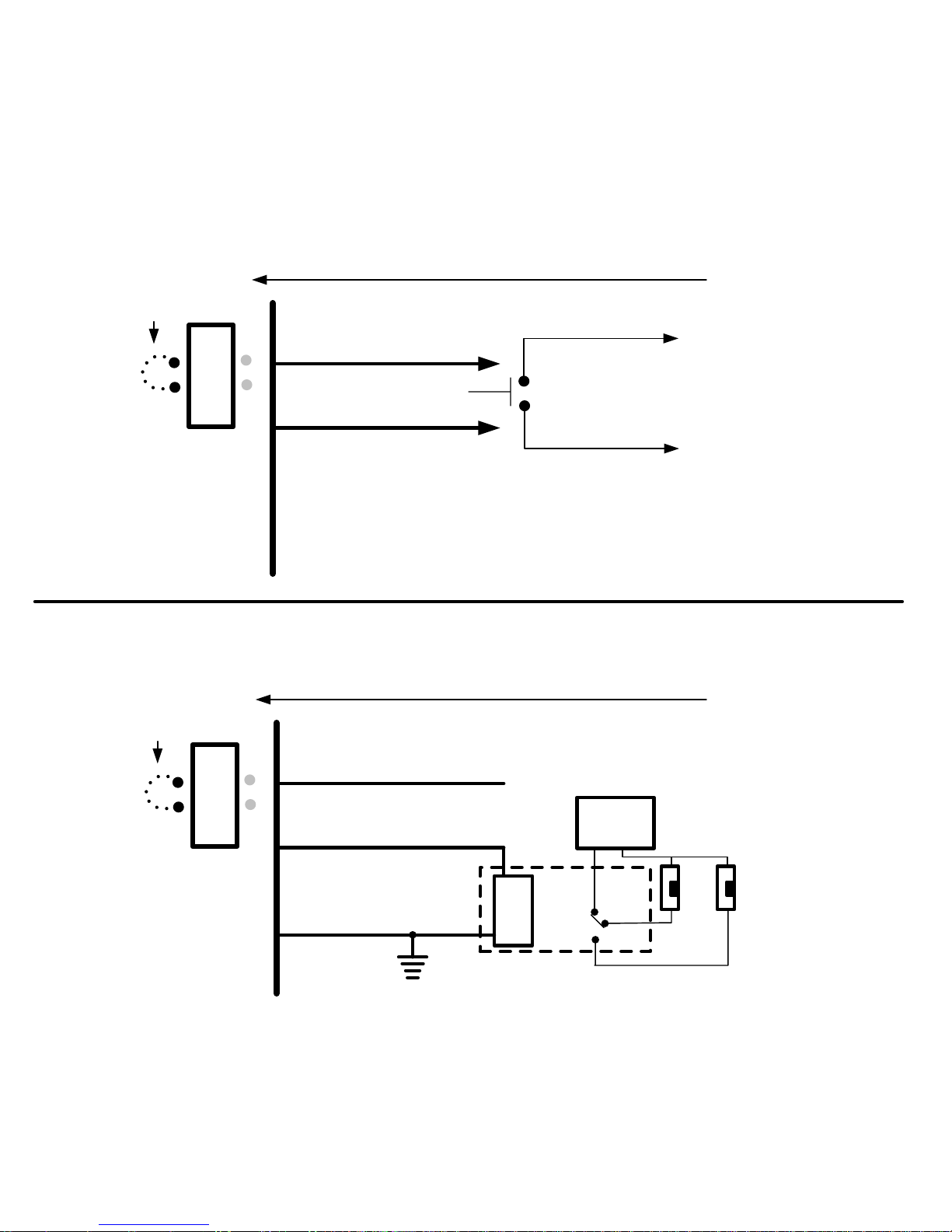

Connect the electric locking device to the wire harness as outlined in the Typical System Wiring (Appendix A –
Page 11) and Typical Output Wiring (Appendix B – Page 13). Any 2 conductor, 22 gauge wire can be used to
connect the Keypad to the Locking Device. Included in the spare parts kit is a MOV (Metal Oxide Varistor). The
function of the MOV is to absorb any inductive kickback from the locking device, protecting the Keypad circuit
board.
* IMPORTANT: If switching voltages higher than 24V, you must use an external relay. The 930’s built-in relay is
capable of switching up to 24V.
SYSTEM HARDWARE SETUP
REMOTE BY-PASS
In some cases, it may be necessary to control the door from a remote area such as a security station or
reception desk. The 930 EntryCheck
can be accomplished by connecting a normally open switch from the VIOLET “Remote Bypass” wire to the
BLACK wire (See Appendix A – Page 11). When the Remote By-Pass switch is depressed, the contact
bypasses the Keypad and activates the relay for the same time length as the programmed Door Open Time
(See Programming Door Open Time – Page 10).
P:\INSTALLATION INST\Access Control\INST-930.vsd 0505 Page 6
™
provides for a Remote By-Pass (Exit Switch) or Keypad override. This
ANTI-TAILGATING
Some security applications require stricter door monitoring. Anti-tailgating can be controlled by installing a
normally closed door monitor switch to the BROWN “Door Monitor” wire and the BLACK wire on the wire harness
(See Appendix A – Page 11). This switch may be the output of a latch monitor switch, a monitor maglock or an
alarm switch that senses door movement. When this switch opens, it relocks the door immediately.
* IMPORTANT: If you wish to use door monitor switch, you must also cut the BROWN “Door Monitor” wire loop
on the back of the Keypad. (See Appendix A – Page 11).
KEYPAD ILLUMINATION
Designed for areas will low ambient lighting, the 930 EntryCheck™ provides nighttime illumination. Keypad
illumination is “ON” by default. This option can be turned “OFF” by cutting the BLUE “Illum” wire loop on the
back of the Keypad.
* IMPORTANT: If switching voltages higher than 24V, you must use an external relay. The 930’s built-in relay is
capable of switching up to 24V. (See Appendix A – Page 11)
SETTING OUTPUT OPTIONS
The 930 EntryCheck™ provides options for configuring the relay output as well as the ¼ Amp grounding outputs.
These options include Voltage vs. Dry Contact Output
and Latching Authorization for the main output.
Voltage vs. Dry Contact
– The 930’s relay can provide either a voltage or dry contact output. By default, the
“DC+” Jumper on the back of the Keypad is configured for voltage output of up to 24V max. (See Appendix A –
Page 11) This jumper feeds the +DC out directly to the relay COM contact. (This is the same as connecting the
RED wire to the GREEN wire). For a dry contact output (garage door/gate operator), remove the DC+ jumper.
Latching
– Latching provides manual control of the locking device. On the 930, only User Codes 1 & 2 have the
ability to latch. By default, latching is “ENABLED” for these users. To disable Latching, cut the “GREEN Latch”
wire loop on the back of the Keypad. (Appendix A – Page 11). When Latching is ENABLED, User Code 1 or
User Code 2 followed by “7” will latch the relay “ON”. Either code followed by “7” will latch the relay back “OFF”.
Note: The Master Code and User Codes 3,4 and 5 do NOT have the ability to Latch.
¼ Amp Grounding Output Options:
1. CCTV/Light Output (10 sec. output):
By connecting an external relay to the 930's BLUE “CCTV” wire (See
Appendix A – Page 11), any key press on the Keypad triggers a 10 second output.
2. Doorbell Operation (1 sec output):
By connecting an external relay to the 930’s ¼ Amp grounding output –
“TAN Doorbell” wire (See Appendix A – Page 11), pressing at the Keypad triggers a 1 second output.
Note: If using either option, an MOV (Metal Oxide Varistor) should be installed to prevent inductive kickback.
TAMPER ALARM LOCKOUT
A person attempting to gain entry by guessing the code and pushing 25 wrong digits will cause the 930
EntryCheck
™
to go into tamper alarm mode. The Keypad will beep constantly for 30 seconds during which time
the door will remain locked and no keypad functions can be performed.
P:\INSTALLATION INST\Access Control\INST-930.vsd 0505 Page 7
SYSTEM PROGRAMMING
OVERVIEW OF SYSTEM CODE PROGRAMMING
There are TWO levels of codes for the 930 EntryCheck™ system.
1. The Master Code (used by owner/management to open the door and to program User Codes)
2. User Codes (used by guests/personnel to open the door)
IMPORTANT: Notes to remember before programming:
1. All codes must be 3 to 8 digits.
2. All codes must be different from each other.
Note: The 930 has two digits on each pad.
The system reads these numbers as the same. For example: 1-3-5-7-9 is the same as 2-4-6-8-0.
3. Do not program codes, which are part of other codes.
Example: User Code 1 1-2-3-4 and User Code 2 1-2-3
4. During programming, the system resets after 5 seconds if a number is not entered. Do not let more
than 5 seconds elapse between entries or the system will reset and you will have to start over.
1 / 2
OVERVIEW OF THE MASTER CODE
Knowledge of the Master Code is the highest privilege granted to a user of the 930 EntryCheck™ system.
There is only one master code, which is used to program each of the 5 User Codes. The factory default
Master Code, “1-3-5-7-9”, can be used for initial programming but should be changed to a unique code.
PROGRAMMING THE MASTER CODE
To Program/Change the Master Code:
1. Select a 3 to 8 digit code that will be used for the Master Code. ___ ___ ___ ___ ___ ___ ___ ___
2. Enter the old Master Code (default is 1-3-5-7-9) followed by the symbol on the keypad. (The
Keypad will beep rapidly 4 times *) Proceed to step 5.
3. If you do NOT know the Master Code, locate the PINK Program wire on the harness. (As an alternative,
you can momentarily short the two “PGM” pins on the back of the Keypad. This will take you to step 5)
4. Touch the PINK Program wire to the BLACK wire for one second (The Keypad will beep rapidly 4 times)*
5. At the Keypad, enter 1-1-1-9 to open the memory (you will hear three rapid beeps) and immediately
enter your new Master code.
(Do NOT let more than five seconds elapse between entries or the system will reset and you will have to
start over.)
6. After entering your new Master Code, wait five seconds for the 3 reset beeps.
*Once in Programming Mode, you have 2 minutes to begin programming. After 2 minutes, the system
resets to Normal operation.
P:\INSTALLATION INST\Access Control\INST-930.vsd 0505 Page 8
OVERVIEW OF USER CODES
There are a total of 5 User codes that can be programmed into the 930 EntryCheck™. User Codes can vary in
length from 3 to 8 digits. Each User Code is programmed into one of 5 User Locations.
These Locations are as follows:
User #
User Location
User Code 1 1-1-1
User Code 2 1-1-3
User Code 3 1-1-5
User Code 4 1-1-7
User Code 5 1-1-9
Once a User Code has been programmed into a User Location, the User Code can be easily changed or deleted
from the system (see Programming User Codes).
PROGRAMMING USER CODES
To Program a New User Code/Change an Existing User Code:
1. Choose a new 3 to 8 digit code that will be used for this User Code. ___ ___ ___ ___ ___ ___ ___ ___
2. Decide which User Location to place this User Code (see Overview of User Codes)
3. Enter the Master Code, followed by the User Location (you will hear three rapid beeps) and immediately
enter the new User Code. (Do not let more than five seconds elapse between entries or the system will reset!!!)
Example: (Master Code: 1-3-5-7-9) (User Location: 1-1-1) (User Code: 1-3-3-5)
This programs the code 1-3-3-5 into User Location #1.
4. After entering your new code, wait five seconds for the 3 reset beeps.
To Delete a User Code
1. Enter Master Code, followed by the User Location of the User Code you want to delete (you will hear 3 rapid beeps).
Example: (Master Code: 1-3-5-7-9) (User Location: 1-1-5)
This deletes the User Location #3 programmed code.
2. Wait five seconds for the 3 reset beeps (Do NOT enter any digits until you hear 3 reset beeps)
PROGRAMMING THE DOOR OPEN TIME Default is 5 seconds
1. First determine the length of time you wish to program as the Door Open Time. This is the length of time the
door will remain open after a valid Code has been entered.
Note: For controlling a garage door or electric gate, you will need to set the door open time to 1 second and
remove the “DC +” Jumper on back of keypad.
2. Enter the Master Code (default is 1-3-5-7-9) followed by the symbol on the keypad. (The Keypad will
beep rapidly 4 times*). Proceed to step 5.
3. If you do NOT know the Master Code, locate the PINK Program wire on the harness. (As an alternative, you can
momentarily short the two “PGM” pins on the back of the Keypad. This will take you to step 5)
4. Touch the PINK Program wire to the BLACK wire for one second (The Keypad will beep rapidly 4 times)*
5. At the Keypad, enter 1-1-1-7 to open the memory (you will hear three rapid beeps) and enter a combination of
“5’s” (for every five second increment) and “1’s” (for every one second increment) that equal your desired Door
Open Time. Each valid key press (a “1” or a “5”) will generate a double beep.
Example: (User Location: 1-1-1-7) (Time: 5-5-5-1-1) 17 seconds
6. After entering your Door Open Time, wait five seconds for the 3 reset beeps.
Notes: * Once in Programming Mode, you have 2 minutes to begin programming. You will hear a double beep with
each valid key press. Once you begin entering the combination of 1’s and 5’s do not let more than five
seconds elapse between entries or the system will reset. Maximum Door Open Time is 120 seconds.
P:\INSTALLATION INST\Access Control\INST-930.vsd 0505 Page 9
TROUBLESHOOTING
These are a few troubleshooting suggestions to help assist with any problems you may experience. If the problem
continues or is not answered here, please call Security Door Controls (SDC) technical support at 1-800- 413-8783.
You may visit SDC on the web at sdcsecurity.com or send question via email: service@sdcsecurity.com.
CHANGED OR DELETED A CODE AND THE OLD CODE STILL WORKS
Remember the 930 EntryCheck™ has a total of 6 User Codes. Make sure you’ve changed the desired code. If you
changed the Master Code, the other User Codes will still work. If in doubt, it is recommended you reprogram the
master code and delete all 5 user codes. Then program any new user codes.
KEYPAD BEEPS BUT THE DOOR DOES NOT UNLOCK
If the Keypad beeps but an authorized code does not open/unlock the door, there is an easy test to check
the wiring hookup to the locking device. Locate the VIOLET “Remote” wire and momentarily short to the
BLACK wire. This will activate the output (same as if you enter a valid programmed code at the Keypad). If
this test does not activate the lock, you may have wired the lock incorrectly to the 930 (See Appendix A –
Typical System Wiring.) If this test does activate the output (you should hear the relay click and the locking
device should unlock), then the problem may be:
• Programming - If the unit has just been installed, the problem is most likely with programming the system
codes. Review Overview and Programming of User Codes again remembering that all six codes have to be
different from each. It is also important not to let more than 5 seconds elapse between button presses or the
system will reset and you will have to start over.
• Code Loss - (Existing installations) There are typically two reasons for code loss: static or inductive
kickback. There is no way to determine if the system has been affected by either of these, however, you can
reprogram the system codes as described in User Code Programming. It is very important the system is
properly grounded otherwise static and code loss may be an ongoing problem.
KEYPAD IS COMPLETELY DEAD
Interrupted Power - First check your power supply to see that power has not been cut off. Using a voltmeter,
check the incoming voltage on the GRAY and WHITE wires (12-24V AC/DC IN). If the voltage reads low, the
electric locking device may be drawing too much current. To test, remove the wires to the device and
recheck the voltage. If the voltage now reads normal, check the current draw of the locking device and make
sure it falls within the system specifications (see Input Requirements).
KEYPAD BEEPS ALL BY ITSELF
Random Beeping – Possible low voltage or bad power supply. Also check EARTH ground.
P:\INSTALLATION INST\Access Control\INST-930.vsd 0505 Page 10

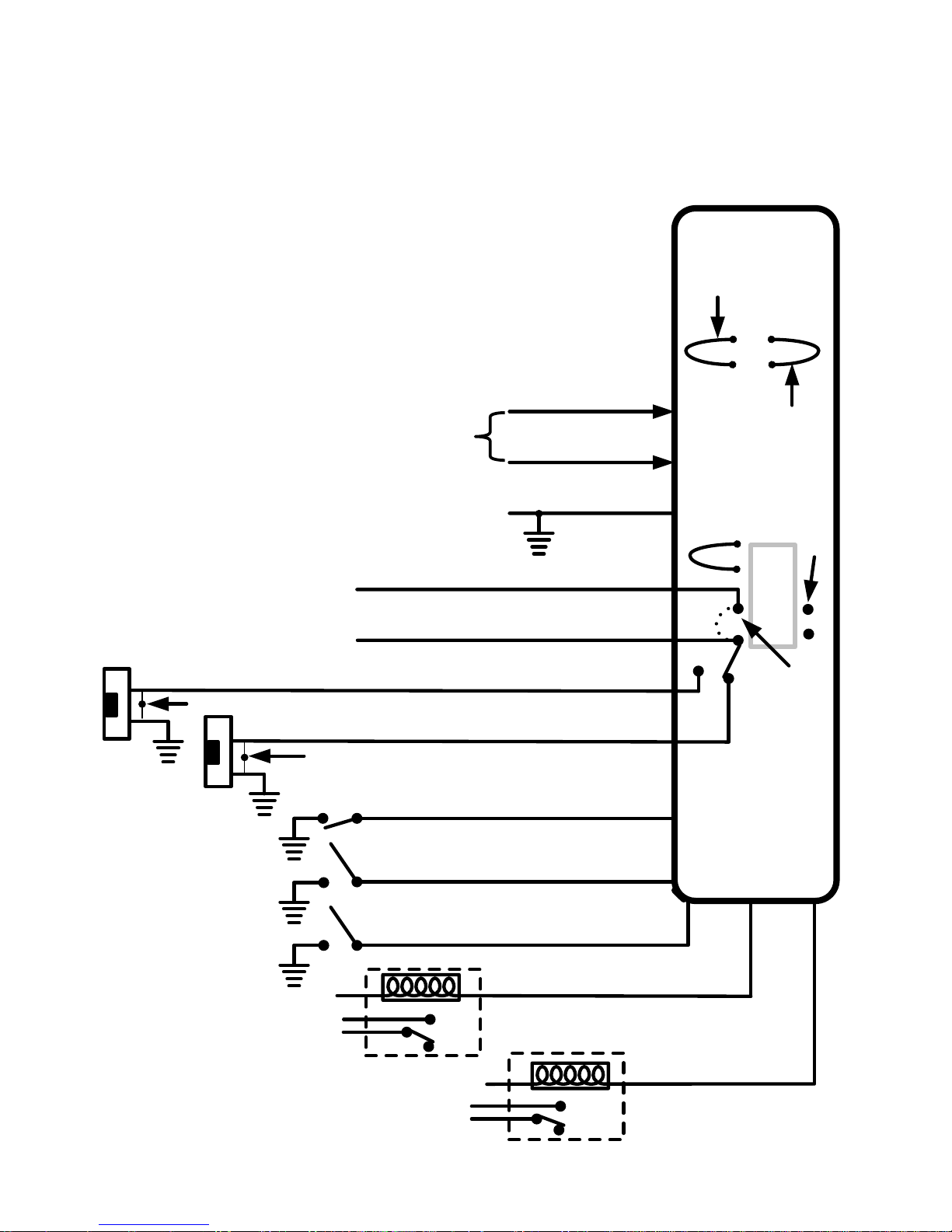

APPENDIX A – TYPICAL SYSTEM WIRING
Wiring notes:
1) The 930 EntryCheck
™
is designed to control a 12 to 24V locking
device. To control any voltage higher than 24V, you must switch an
external relay.
2) To disable Latching Capability, cut the Green wire loop.
3) To disable Illumination, cut the Blue wire loop.
4) If connecting a Door Monitor switch, cut the BROWN wire loop.
5) For garage/gate operator, remove DC+ Jumper and set Door Open
Time to 1 second.
6) To initiate programming, momentarily short the PGM pins or short
PINK wire to BLACK wire.
7) To prevent inductive kickback, install factory supplied MOV across
wires to locking device (install as close to the lock as possible).
12-24V AC/DC Input Power
Circuit Ground
GRAY
WHITE
BLACK
Illumination
(Blue)
Latching
(Green)
Door Monitor
(Brown)
PGM
Black
Wire
MOV
Black
Wire
MOV
+DC
To Doorbell
Button
+DC Out (1/2A max.)
Common (24V max.)
Fail Secure Lock
Fail Safe Lock
Door Monitor
Program
N.C. Switch
N.O. Switch
Remote Bypass
GREEN (COM)
ORANGE (N.O.)
YELLOW (N.C.)
N.O. Switch
Doorbell
RED
DC+
Jumper
BROWN*
PINK*
VIOLET*
TAN*
P:\INSTALLATION INST\Access Control\INST-930.vsd 0505 Page 11
+DC
To CCTV
or Light
CCTV/Light
BLUE*
* Optional
DC+
Jumper
APPENDIX B – TYPICAL OUTPUT WIRING
Garage Door/Gate Operator
Controlled by 930 EntryCheck
Remove Factory
Installed DC+ Jumper
(COM) GREEN
Connect Across
Existing Pushbutton
(N.O.) ORANGE
Set Door Open Time
To 1 Second
DC+
Jumper
Fail Safe or Fail Secure Lock Controlled by
930 Series and Powered by External Power Supply
(COM) GREEN
Power
(N.O.) ORANGE
BLACK
Circuit
Ground
Supply
N.C.
N.O.
Verify Installation
of DC+ Jumper
P:\INSTALLATION INST\Access Control\INST-930.vsd 0505 Page 12
Loading...
