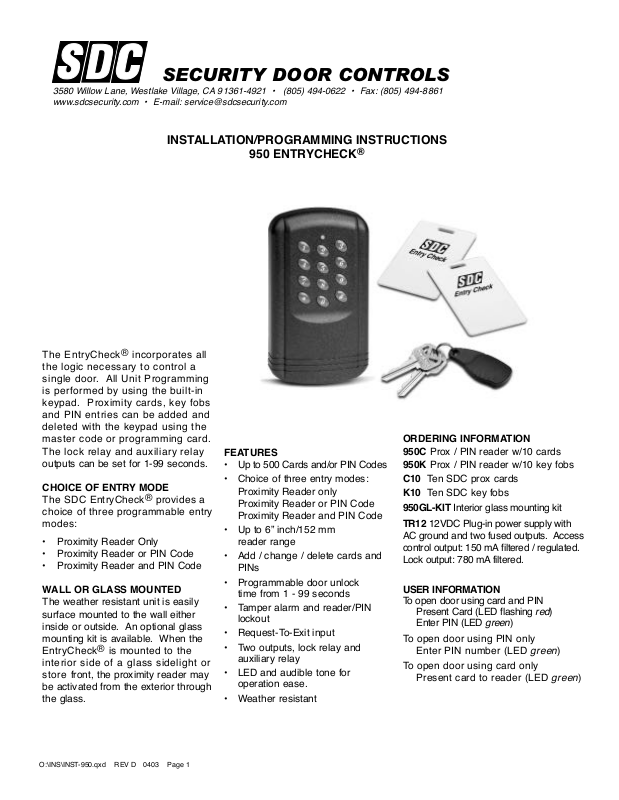

SDC 950 ENTRYCHECK Installation & Programming Instructions

SECURITY DOOR CONTROLS
3580 Willow Lane, Westlake Village, CA 91361-4921 • (805) 494-0622 • Fax: (805) 494-8861 www.sdcsecurity.com • E-mail: service@sdcsecurity.com
INSTALLATION/PROGRAMMING INSTRUCTIONS
950 ENTRYCHECK
®
The EntryCheck®incorporates all the logic necessary to control a single door. All Unit Programming is performed by using the built-in keypad. Proximity cards, key fobs and PIN entries can be added and deleted with the keypad using the master code or programming card. The lock relay and auxiliary relay outputs can be set for 1-99 seconds.
CHOICE OF ENTRY MODE
The SDC EntryCheck®provides a choice of three programmable entry modes:
Proximity Reader Only
Proximity Reader or PIN Code
•Proximity Reader and PIN Code
WALL OR GLASS MOUNTED
The weather resistant unit is easily surface mounted to the wall either inside or outside. An optional glass mounting kit is available. When the EntryCheck®is mounted to the interior side of a glass sidelight or store front, the proximity reader may be activated from the exterior through the glass.
O:\INS\INST-950.qxd REV D 0403 Page 1
FEATURES
Up to 500 Cards and/or PIN Codes
Choice of three entry modes: Proximity Reader only Proximity Reader or PIN Code Proximity Reader and PIN Code
Up to 6” inch/152 mm reader range
Add / change / delete cards and PINs
•Programmable door unlock time from 1 - 99 seconds
•Tamper alarm and reader/PIN lockout
Request-To-Exit input
Two outputs, lock relay and auxiliary relay
•LED and audible tone for operation ease.
Weather resistant
ORDERING INFORMATION 950C Prox / PIN reader w/10 cards
950K Prox / PIN reader w/10 key fobs C10 Ten SDC prox cards K10 Ten SDC key fobs 950GL-KIT Interior glass mounting kit
TR12 12VDC Plug-in power supply with
AC ground and two fused outputs. Access control output: 150 mA filtered / regulated. Lock output: 780 mA filtered.
USER INFORMATION
To open door using card and PIN
Present Card (LED flashing red) Enter PIN (LED green)
To op en d oo r us in g PI N o nl y
Enter PIN number (LED green)
To op en d oo r us in g ca rd on ly
Present card to reader (LED green)
PROGRAM MASTER CARD
Apply power.(LED flashing yellow) Enter
*
000000
*
Enter
2
*
(LED flashing green). Present Master card to reader and Remove (1 beep). Enter
# (6 beeps).
PROGRAM UNLOCK TIME (Default is 1 sec)
Enter *. Present Master card to reader and Enter *Remove (6 beeps).
Enter
4
*
(LED flashing green). Enter delay on relock time (i.e. 03 = 3 sec.). Default is 1 sec. Enter *(1 beep, green LED). Enter #(6 beeps). Note: 00 = Toggle
PROGRAMMING ENTR
Y MODE
Choose the mode of entry you require. 0 = CARD and PIN (Default) 1 = CARD Only 2 = CARD or PIN
------------------­Enter
*
.Present Master card to reader
Enter *Remove (6 beeps). Enter
5
*
(LED flashing green). Enter 0, 1 or 2. Enter
*
#
(6 beeps).
PROGRAMMING ONE CARD & PIN
Enter * (1 beep, green LED). Present Master card to reader and Enter
*
Remove.(6 beeps) Enter
*1*
(LED flashing green).
Enter 01
*
001
*
(delayed 1 beep). Present new card to reader and remove (1 beep). Key in any 4 digit PIN for new card. Enter
#
(6 beeps).
Repeat above for every card to be entered.
CARD BATCH PROGRAMMING
Note: PIN will be the same for all cards programmed in the batch mode.
Enter *(1 beep, green LED). Present Master card to reader and Enter
*
Remove (6 beeps, red & green flashing). Enter
1
*
(1 beep, LED flashing green). Enter number of cards to be programmed (01-99) Enter * (1 beep, green LED).
Enter starting user number (001-499) Enter * (1 beep, green LED). Present first sequential card. Enter 4 digit PIN number (1 beep, red & green flashing LED) Enter #to exit. (6 beeps and Flashing Yell ow LED )
Caution: Master card must be programmed prior to any other programming.
ADMINISTRATIVE LOG (sample)
ENTRY MODE SET FOR Master Card Number
CARD and PIN
CARD Only
CARD or PIN
CARD NUMBER PIN NUMBER USER I.D. DATE ISSUED DATE DELETED
DELETE CARD
Enter *. Present Master card to reader and Enter
*
Remove (6 beeps, red & green flash­ing).
Enter
7
*
(LED flashing green). Present card to be deleted to reader and remove (1 beep). Enter
#
(6 beeps).
OR
Enter *Present Master card to reader and Enter *Remove (6 beeps).
Enter
7
*
(LED flashing green). Key in last six numbers located on card to be deleted.
Enter *(1 beep). Enter #(6 beeps).
RESET TO FACTORY DEFAULTS & DELETE MASTER CARD
Disconnect power. While depressing both the * &
#
keys, apply power. The LED will flash green and then after a few seconds will turn red. This resets the master code to the default ‘000000’. To erase all user cards and settings as well as the master code, continue depressing the *& #keys until the red LED goes out. Remove power Release the *&
#
keys Wait 5 seconds Reapply power.
0 1
2
NOTE:
• When programming a new card you must enter
*
first to enter the
programming mode and present the Master Card.
• PIN needs to be programmed for each new card even if CARD only entry mode is chosen.
•Yellow LED flashing may also be viewed as an alternating red and green LED.
• The
#
key exits the programming mode (LED flashing Yellow).
•Keep a log of each card issued. See sample log below.
O:\INS\INST-950.qxd REV D 04103 Page 2
O:\INS\INST-950.qxd REV D 0403 Page 3

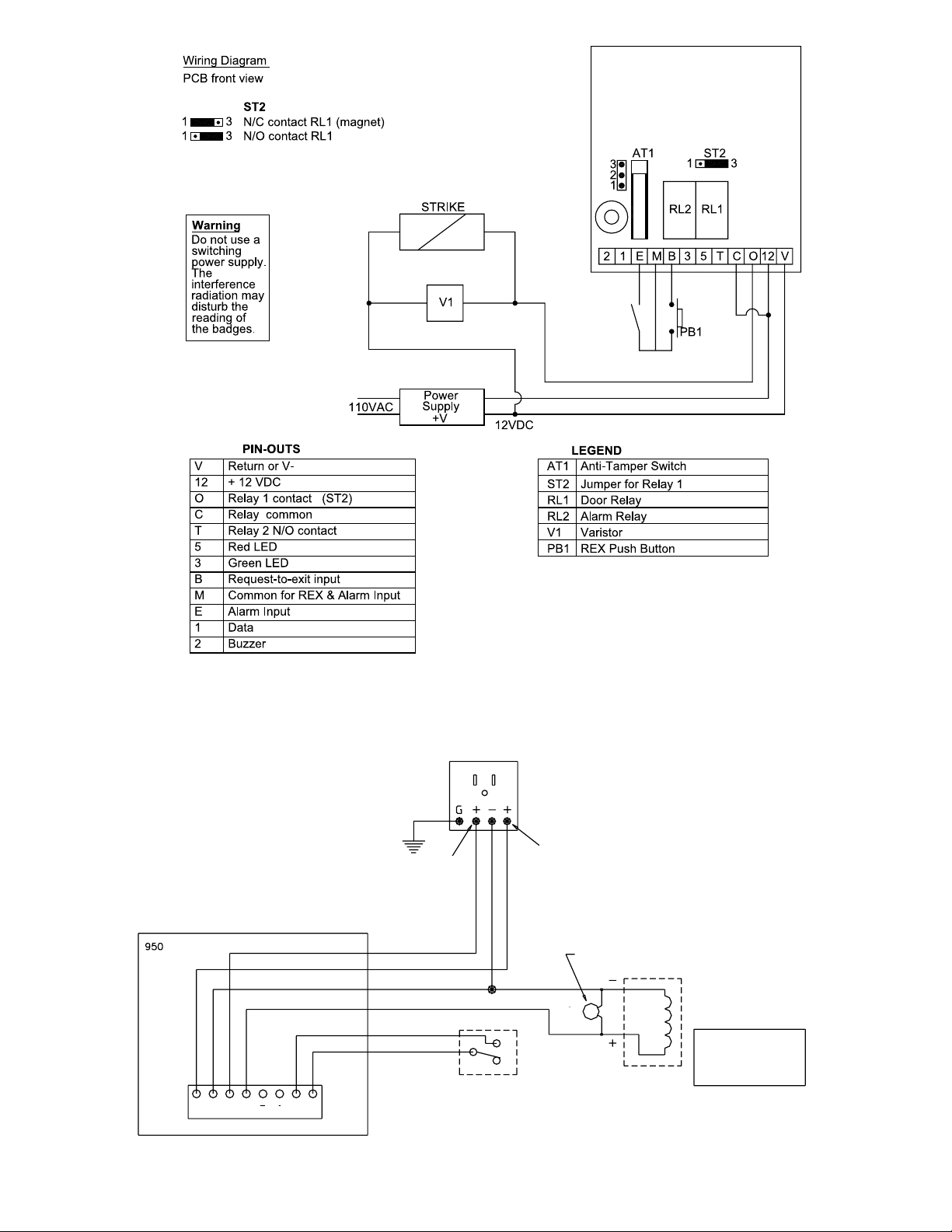

Installation Settings
Typic al Wirin g (S ingle D oor)
TR12 POWER SUPPLY
12 VDC 150 mA REGULATED OUTPUT
12 VDC
780 mA MAX
ELECTRIC LOCK
(750 mA MAX)
SET JUMPER ST2 FOR LOCK TYPE FAIL SAFE (N/C) FAIL SECURE (N/O)
REQUEST TO EXIT REX (N/O)
(USE WITH NON-SDC LOCKS)
MOV
12
V
C O
M
B
950 ENTRYCHECK
®
MASTER CARD ENROLLMENT TROUBLESHOOTING
GUIDE
WHA
T IS A MASTER CARD
The master card is the one card used to access the programming mode of the 950. Once enrolled, it can be used in place of the master code at time of programming. Although the card is the same physical type of card as a user card, the 950 treats it in a different way. When you enroll a card as the master card, the 950 not only reads the serial number of the card (like it does when it enrolls a user card) but also programs a special code into a memory chip located on the card itself. When the card is presented to the 950, both the serial number and the special code are read for validation.
MASTER CARD ENROLLMENT PROBLEMS
If programmed, the program card will no longer function as a user card or as a master card for another unit without first erasing the card's internal memory chip.They usually come from the manufacturer fully erased and ready to enroll as either a master or user card. Occasionally a card may need to be erased again before it will be accepted as a master card at time of enrollment. This is the procedure:
RESET THE 950 TO FACTORY DEFAULT SETTINGS
Disconnect Power. While depressing both the * & # keys, apply power. The LED will flash green and then after a few seconds will turn red. This resets the master code to the default ' 000000'. To erase all user cards and settings as well as the master code, continue depressing the * & # keys until the red LED goes out. Remove power Release the * & # keys Wait 5 seconds Reapply power.
ERASE THE CARD
Apply Power. Enter * 000000 * (the unit is now in programming mode) Enter 7*.(LED flashes green) Present the card to be erased and remove (1 beep). Enter #. (6 beeps and the unit is now out of programming mode again). The card is now erased and ready to be enrolled as a master card.
O:\INS\INST-950.qxd REV D 0403 Page 4
