GALAXY 2000RS
SERIES
VEHICLE REMOTE START
SYSTEM
WWITH SEPERAATE LOCK/UNLOCK BUTTONS
PRODUCT MANUAL
Limited Lifetime Warranty
This Vehicle Starter System is warranted to the original purchaser, to be free from defects in
material and workmanship. The manufacturer will repair or replace at its option, and free of
charge for the first twelve (12) months, any part that proves defective in material or workmanship
under normal installation, use, and service, provided the product is returned to the manufacturer
freight prepaid. After the first 12 month warranty period there will be a maximum service charge
of $25.00 per calendar year (if required) for repair and/or replacement of any defective parts.
A copy of the original purchase and installation receipt must accompany any products
returned for warranty service. Warranty is limited to defective parts and/or replacement parts
only and excludes any incidental, and consequential damages connected therewith.
The manufacturer of this theft deterrent system makes no warranty against the theft of the vehicle
or its contents. This warranty is not to be construed as an insurance policy against loss.
WARRANTY OF INSTALLATION LABOR, REMOVAL AND RE-INSTALLATION CHARGES ARE
NOT THE RESPONSIBILITY OF THE MANUFACTURER.
Note: This Warranty is voided if the product was not installed by an
Authorized ScyTek Dealer.
1. About Your System . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .Page 1
2. Remote Transmitters . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .Page 2
Remote Transmitter Description . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .Page 3
Adding/Replacing Transmitters . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .Page 3
Two Car Operation . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .Page 3
Battery Replacement . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .Page 3
2-way LCD Remote Transmitter Description . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .Page 4
Adding/Replacing 2-way Transmitters, Programable features and descriptions. . . . . . . .Page 4
LCD Transmitter Battery Replacement . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .Page 5
3. System Operation . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .Page 9
Remote /Locking . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .Page 9
Remote Unlocking . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .Page 9
Silent /Locking /Unlocking . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .Page 9
Panic Mode . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .Page 10
Emergency Override . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .Page 10
Valet Mode . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .Page 10
Driver Calling Feature . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .Page 11
4. Remote Start Features . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .Page 12
Remote Starting . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .Page 12
Shut Down . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .Page 12
Quick Stop . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .Page 12
Automatic Start Mode . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .Page 13
Turbo Timer Feature . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .Page 13
Manual Transmission Remote Starting . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .Page 14
5. Extended Features . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .Page 15
Ignition Door Locking . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .Page 15
Ignition Door Unlocking . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .Page 15
Dome Light Activation . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .Page 15
Auxiliary Function Outputs . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .Page 15
Unlock with Auxiliary Function . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .Page 15
6. System Installation . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .Page 16
Mounting the Control unit . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .Page 17
7. System Wiring . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .Page 18
6-Pin Starter Harness . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .Page 18
20-Pin Main Harness . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .Page 18
Plug-in Connectors . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .Page 19
8. Jumper Settings . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .Page 20
Jumper Selection . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .Page 20
9. System Programming . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .Page 21
Entering System Programming . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .Page 21
Default Reset . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .Page 21
Programmable System Options . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .Page 22
10. Relay Diagrams . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .Page 25
11. Door Lock Diagrams . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .Page 26
12. Two Stage Door Lock Diagrams . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . Page 26
13. Technical Information . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .Page 29
14. System Diagnostics . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .Page 30
15. Wiring Diagram . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .Back Page
Table of Contents
The ScyTek Galaxy 2000RS Series is a
Vehicle Remote Starting System only
. This series feature a
built-in "ScyNet Network Port" that allows direct connection of optional accessory modules and a PC
interface offering expanded system operation. With proper installation this system will provide superior
performance for many years to come.
The Galaxy’s 2000RS Series built-in remote starter is designed to offer maximum convenience by remote
starting your vehicle’s engine, turning on the heater/air conditioner, and then running for a pre-determined
time to provide a comfortable environment once you enter your vehicle.
To ensure the safety and security of the system while it is remote started, the Galaxy 2000RS Series
employs several safeguards. The system is equipped with a hood pin input to prevent access to the engine
compartment while the vehicle is remotely running. The Valet Mode prev ents the remote start feature from
operating in the event the vehicle is to be serviced. Finally, the brake pedal also acts as a safety by shut ting
down the remote start when pressed.
System Contents:
•
Main Unit with built-in ScyNet Network Interface Port
•
One 5-Button 2-Way LCD Remote and One 1-Way 5-Button Remote Transmitter(
RS-2W models
)
• Two 5-Button Random Code Remote Transmitters (
RS & SP models
)
•
Status LED
•
Coded Emergency Override / Valet Switch/ Call button - built into the antenna (See Page 29)
Optional ScyNet Network Interface Accessories:
•
ScyNet Network Interface Software
Options and Convenience Features
**
This ScyTek system includes several optional inputs and outputs allowing the creation of a completely
personalized security and convenience system by offering many optional features such as:
**May require additional parts and/or labor, see store for details.
· Second Car Operation
· Keyless Entry
· Two Stage Door Unlocking
· * Starter Defeat
· Horn Honk
· Illuminated Entry
· Turbo Timer
· Remote Window Control
· Power Trunk / Hatch Release
· Remote Head Lamp Control
· * Back-up Battery
· * Siren
About Your System
Some of the features described in this manual may require additional parts and/or labor, and may not be
included as part of the standard installation of this unit. Additionally, many features of these systems
have selectable options that must be activated or programmed during the system’s installation. These
items will be identified in the following sections. Please discuss these features and any questions you
may have regarding the installation of this product with Your Authorized Dealer.
Galaxy 2000RS - Page 1
Standard Remote Transmitter Description
Depending on the model chosen, the Galaxy 2000RS Series will be supplied with one or two
T5 or T5-SP
5-button Remote Transmitters that are used to control the system’s operations.
Note: Using the optional PC or Pocket PC interface with the network software, it is possible to reconfigure
the functionality of the transmitter buttons. The standard (default) setting for operation of the transmitters
is described below.
Button 1: Locks the system and when held for 5 seconds, activates the system’s Panic feature. Button 1
also locks the doors when the system is in Valet Mode.
Button 2: Unlocks the system. Pressing Button 2 again operates the Passenger Unlock feature (if
installed).
Button
2 also unlocks the doors when the system is in Valet Mode.
Button 3: Activates the Auxiliary 1 output. This output will remain on for as long as the button is pressed.
Button 4: Activates the Remote Start feature.
Button 5: is the Page Shift button. Each time the Shift Button is pressed, the LED on the transmitter will
illuminate and the transmitter functions will shift to the next page, allowing access to another set of
features. Once shifted to another page (there are 4 pages total), the transmitter will remain on that page
for 10 seconds or until a button is pressed, then it will return to page 1. Under normal operation, only
pages 1 and 2 are used. Pages 3 and 4 are usually used for Two Car Operation (see page 3) or optional
expansion modules.
Shift then Button 1: Locks the system silently.
Shift then Button 2: Unlocks the system silently.
Shift then Button 3: Activates the Auxiliary 2 output. This output will remain on for as long as the
button is pressed.
Shift then Button 4: Activates the Auxiliary 3/Factory rearm output.
Remote Transmitters
Button 2
Button 5
Button 3 Button 4
Page 2 - Galaxy 2000RS
LED
LED
Button 2
Button 4
Button 5
Button 1
Button 1
Button 3
T5-SP
T5
Adding/Replacing Standard Remote Transmitters
To replace lost or stolen transmitters or to add additional transmitters into the system, have all desired
transmitters ready and follow the steps below.
Note: Up to 4 one-way transmitters can be programmed to operate the system. Any previously stored
transmitter will be erased if it is not programed within the following sequence
To program the transmitter(s):
1. Turn the ignition key On, Off, On, Off, and back On. (Key On 3 times)
· 3 seconds later The siren*/horn will chirp/honk 3 times.
2. Press and hold the Override switch for 5 seconds.
· The siren*/horn will chirp/honk 5 times.
· The LED will illuminate.
3. Press Button 1 on the first transmitter.
· The siren*/horn will chirp/honk once.
4. Press Button 1 on the first transmitter again.
· The siren*/horn will chirp/honk twice to indicate it has learned the code.
5. Repeat steps 3 and 4 for each transmitter (up to 4).
6. Turn off the ignition key.
Two Car Operation
If two vehicles are equipped with the Galaxy 2000RS Series systems, for convenience both can be operated
using the same remote transmitter. If all four transmitters are to be used with both cars, program
transmitters A and B into the first vehicle in the manner described above. Program transmitters C and D
by pressing the Shift button twice before performing steps 3 and 4 above.
When finished programming the first vehicle, program transmitters C and D into the second vehicle as
normal, then program transmitters A and B by pressing the Shift button twice before performing steps 3
and 4 above.
When programmed in this manner, the driver of the first car can also operate the second vehicle by pressing
the Shift button twice and the desired function button.
Battery Replacement
The
T5-SP
Remote Transmitter uses two 3 volt lithium batteries (type CR2016)
The
T5
Remote Transmitter uses a 12 Volt lithium battery (type GP23A) which will require
replacement in time. Depending on the amount of use, the batteries may last up to six months
or more before they need replacement.
In order to change the battery, first remove the screw from the back of the transmitter and separate the
top and bottom halves of the case. While replacing the battery make sure that the positive and negative
terminals are positioned correctly, then carefully reassemble the transmitter case.
Galaxy 2000RS - Page 3
2-way LCD Remote Transmitter Description
Depending on the model chosen, the Galaxy 2000RS-2W Series will be supplied with one or two 2-way
LCD Remote Transmitters, offering increased range and confirmation of any activated features.
Page 1
Button 1: Locks the system and when held for 5 seconds, activates the system’s Panic feature. Button 1
also locks the doors when the system is in Valet Mode.
Button 2: Unlocks the system. Pressing Button 2 again operates the Passenger Unlock feature (
if
installed
). Button 2 also unlocks the doors when the system is in Valet Mode.
Button 3: Activates the Auxiliary 1 output normally used for trunk release (
note trunk icon on button
).
Button 4: Activates the Remote Start feature.
Button 5: is the Confirmation, Programming and the Page Shift button. Quickly pressing button 5 will
activate
the Page 2 function. Pressing button 5 for 2 seconds activates the system’s confirmation feature which will
then display the current status of the system (
armed, disarmed, engine running, etc
.).
Page 2
Button 1: Locks the system.
Button 2: Unlocks the system.
Button 3: Activates the Auxiliary 2 output.
Button 4: Aux 3 or Factory Rearm output.
Button 5: Not Implemented.
Page 3 & 4 are used as Page 1 & 2 for second car operation
Adding/Replacing 2-way LCD Transmitters
When adding a 2-way LCD transmitter to the system ( maximun of two LCD Transmitters total) Any
previously stored transmitter will be erased if it is not programed within the following sequence.
Follow these steps:
1. Turn the ignition key On Off, On Off, On Off, and back On. (Key On 4 times)
· 3 seconds Later the siren*/horn will chirp/honk 4 times.
2. Press and hold the Override switch for 5 seconds .
· The siren*/horn will chirp/honk 4 times.
Button 1 Button 2
Button 3
Button 4
Button 5
Page 4 - Galaxy 2000RS
· The LED will illuminate.
3. Press and release Button 1 on the first transmitter then on the second transmitter.
· The siren*/horn will chirp/honk once for every transmitter learned.
4. Turn off the ignition key.
5. The siren*/horn will chirp/honk 3 times to indicate the system has exited programming mode.
LCD Transmitter Battery Replacement
Y our Galaxy Remote Transmitter uses a 1.5 volt AAA alkaline battery , which will require replacement in time.
Depending on the amount of use, the battery may last up to 3 months before it needs replacement. When
the battery needs replacing, the system’s oper ating range will decrease, the LCD display will show only one
of three bars in the battery icon, or the display and sounds may suddenly stop and start as the battery
voltage drops below minimum.
In order to change the battery, first slide the battery door locking pin to the side. Carefully slide the battery
cover downward until it is free. While replacing the battery make sure that the positive and negative
terminals are positioned correctly, then carefully reassemble the transmitter case.
Setting The Time
The LCD display is equipped with a 12-hour clock that in addition to displaying the time, offers an alarm
clock function as well as a remote activation timer.
To set the time:
1. Press and hold Buttons 2 and 3 for three seconds.
· The remote will beep two times and three bars will be shown indicating time set mode is entered.
2. Press and release Button 2 until the correct hour is displayed. (hold button to scroll).
3. Press and release Button 3 until the desired minute is displayed. (hold button to scroll).
4. When the desired time is displayed, press Button 5 to store.
· The remote will beep 3 times to indicate the time has been set.
Setting The Alarm Clock
The alarm clock function can be set to play an alert melody at a specific time of day.
To set the alarm clock function:
1. Press and hold Buttons 2 and 3 until the remote beeps three times.
· The alarm clock bell and three bars will be shown indicating alarm clock set mode is entered.
2. Press Button 2 until the desired hour is displayed.
3. Press Button 3 until the desired minute is displayed. The button may be held down to scroll faster.
4. When the desired time is displayed, press Button 5 to store.
· The remote will beep 3 times to indicate the alarm clock has been set.
To disable the alarm clock function:
1. Press and hold Buttons 2 and 3 until the remote beeps three times.
· The alarm clock bell and three bars will be shown indicating alarm clock set mode is entered.
2. Press Button 1 to disable the alarm clock.
· The remote will beep 3 times and show OFF to indicate the alarm clock has been disabled.
Setting The Daily Start Function
( transmitter must be within 1500ft to reliably start)
The Daily Start Function provides a timer that allows the vehicle to automatically remote start at a preset
time of day , everyday until the feature is turned off.
Galaxy 2000RS - Page 5
To set the daily start feature:
1. Press and hold Buttons 2 and 3 until the remote beeps four times.
· The fan and clock will be shown indicating daily start mode is entered.
2. Press Button 2 until the desired hour is displayed.
3. Press Button 3 until the desired minute is displayed. The button may be held down to scroll faster.
4. When the desired time is displayed, press Button 5 to store.
· The remote will beep 3 times to indicate the daily start function has been set.
To disable the daily start feature:
1. Press and hold Buttons 2 and 3 until the remote beeps four times.
· The fan and clock will be shown indicating daily start mode is entered.
2. Press Button 1 to disable the daily start function.
· The remote will beep 3 times to indicate the daily start function has been disabled.
Setting The Automatic Cold Start Temperature
(
2 step procedure, for second step see page 7 under
c
o
)
The Automatic Cold Start setting sets the temperature threshold. If automatic start is set to cold temperature setting,the
starter will activate every 2 or 4 hours if the temperature drops bellow the set value.
1. Press and hold Buttons 2 and 3 until the remote beeps five times.
·
c
o
will be shown indicating automatic cold start temperature set mode is entered.
2. Press Button 2 to increase the temerature.
3. Press Button 3 to decrease the temperature.
4. When the desired temperature is displayed, press Button 1 to store the value.
· The remote will display the temperature and beep 3 times then 4 times to indicate the set temperature.
Setting The Automatic Hot Start Temperature
(
2 step procedure, for second step see page 7 under
h
o
)
The Automatic Hot Start setting sets the temperature threshold. If automatic start is set to hot temperature setting, the
starter will activate every 2 or 4 hours if the temperature rises above the set value.
1. Press and hold Buttons 2 and 3 until the remote beeps six times.
·
h
o
will be shown indicating automatic hot start temperature set mode is entered.
2. Press Button 2 to increase the temerature.
3. Press Button 3 to decrease the temperature.
4. When the desired temperature is displayed, press Button 1 to store the value.
· The remote will display the set temperature and beep 3 times then 4 times to indicate the set temperature.
LCD Backlight
Transmitter Button 5 is used for confirmation, transmitter programming, as well as activation of the LCD
backlighting for use in the dark. Press and release button 5 momentarily to activate the LCD backlight.
System Confirmation
The 2-way transmitter's confirmation feature allows the current vehicle status to be displayed at any time.
To display system status:
1. Press and hold Button 5 until the display shows CON.
· The transmitter will beep once.
2. Release Button 5.
· The transmitter will beep once.
· The LCD panel will display the current system status.
Programmable Functions using the LCD Transmitter
Pressing and holding transmitter button 5 will scroll through several transmitter programmable options -
DEG, CHP, SND, PSV, VAL,
C
O
and
h
O
.
DEG Check the temperature inside the vehicle
1. Press and hold Button 5 until the display shows DEG
·The transmitter will beep twice.
2. Release Button 5.
· The transmitter will beep four times.
· The LCD panel will display the temperature inside the vehicle
Page 6 - Galaxy 2000RS
Galaxy 2000RS - Page 7
CHP Set the siren*/horn confirmation chirps/honks ON or OFF:
1. Press and hold Button 5 until the display shows CHP.
·The transmitter will beep three times.
2. Release Button 5.
· The transmitter will beep once.
· The LCD panel will show a siren if the chirps*/honks are enabled or "off" if the chirps*/honks are
disabled.
SND sound function selects the transmitter's confirmation mode - Tone or Vibration mode.
Set the transmitter confirmation tones ON or OFF:
1. Press and hold Button 5 until the display shows SND.
· The transmitter will beep four times.
2. Release Button 5.
· The transmitter will beep once.
· The LCD transmitter will beep 5 times and display “on” if the sounds are enabled or vibrate and
display "off" for the Remote to vibrate.
PSV Not Used
VLT Valet mode function sets and resets the security system valet mode.
*this function is enabled only when the system is unlocked.
Set or reset the Valet mode:
1. Press and hold Button 5 until the display shows VLT.
· The transmitter will beep six times.
2. Release Button 5.
· The LCD panel will play a tone and the siren will chirp once if the Valet mode was set and the symbol
“V" will be displayed indicating that the system is in Valet mode.
· The transmitter will beep twice and the siren will chirp twice if the Valet mode was reset. The symbol
“V" will turn off indicating that the system is out of Valet mode.
C
O
Auto Start Cold Temperature Activation Mode.
1. Press and hold Button 5 until the display shows
C
O
.
· The transmitter will beep 7 times.
2. Release Button 5.
· The transmitter will beep once.
· The LCD panel will show Auto Start Cold Temperature setting.
3. Press and hold Button 5 until the display shows CON.
4. Release Button 5.
· The transmitter will beep once.
· The LCD panel will show "ON" indicating that Auto Start Cold Temperature Activation
Mode is enabled
h
O
Auto Start Hot Temperature Activation Mode.
1. Press and hold Button 5 until the display shows
h
O
.
· The transmitter will beep 8 times.
Page 8 - Galaxy 2000RS
Galaxy 2000RS - Page 9
Remote Locking
The system monitors 4 independent areas (
zones
): doors, hood/ trunk, Brake Switch input, and the
network port for future expansion.
To Lock the System:
1. Turn off the ignition.
2. Press Button 1.
· The siren*/horn will chirp/honk once.
· The doors will lock.
· The parking lights will flash once.
· The LED will turn ON, to indicate the Optional Starter Defeat is activated.*
3. 10 seconds after Locking:
· The LED will start blinking as a theft deterrent.
Remote Unlocking
To Unlock the System:
Press Button 2.
· The siren*/horn will chirp/honk twice.
· The doors will unlock.
· The parking lights will flash twice.
· The dome light will turn on.**
· The LED will turn off.
** If the Optional Dome Light Activation feature is installed.
Silent Disarming
The Galaxy 2000RS Series system can be programmed to operate the system without Lock and Unlock
chirp/honk confirmations. When programmed for full-time silent operation, the siren/horn will sound only
when the Panic feature is activated
The system is also capable of temporary silent operation if desired. Pressing the Shift button before Locking
or Unlocking, the system will bypass the chirp/honk confirmations and allow one-time silent operation.
System Operation
Page 10 - Galaxy 2000RS
Panic Mode
In the event of an emergency, the transmitter’s remote Panic feature can be used to instantly trigger the
panic feature or vehicle locate feature.
To activate the Panic / Vehicle locate feature:
1. Press and hold Button 1 for five seconds.
· The alarm will sound.
· The parking lights will flash.
· The doors will unlock** allowing access to the vehicle.
2. Press Button 1 or 2 to stop Panic Mode.
**If the ignition is on when the Panic feature is activated, the doors will lock for personal safety.
If not deactivated using Buttons 1 or 2, the Panic Mode will automatically exit after 30 seconds and the
system will be restored to its previous Lock or Unlocked state.
Emergency Override
If the transmitter becomes lost or inoperable, the system can still be disarmed if the the Optional Starter
Disable Feature was installed. Before beginning this procedure be sure to have the ignition key ready and
know the location of the override switch.
To Emergency Override the system:
1. Unlock the door using the key.
2. Enter the vehicle.
· The vehicle will not start.
3. Turn the ignition key to the ON position.
4. Press and hold the override switch until the horn/siren chirps once. (approximetly 10sec)
· The Optional Starter Disable Feature will de-activate.
5. The vehicle will now be able to start.
Valet Mode
The Valet Mode temporarily disables the Remote Start System so that the vehicle may be operated by a
mechanic or parking attendant.
To activate the Valet Mode:
1. Turn the ignition switch to the ON position.
2. Press and hold the override switch for 5 seconds.
· The siren*/horn will chirp/honk once and the LED light will stay ON to confirm the Valet Mode
is on.
3. Repeat steps 1 and 2 to deactivate the Valet Mode.
· The siren*/horn will chirp/honk twice and the LED light will turn off to confirm the Valet Mode
is off.
4. Turn off the ignition.
While in Valet Mode the remote transmitters will continue to lock and unlock the doors, and operate the
optional auxiliary functions.
Page 11 Galaxy 2000RS
DRIVER CALLING/PAGE FEATURE
The Galaxy 2000RS-2W Series is equipped with a driver calling or paging feature that allows the system
to send a page to the LCD transmitter in the event the transmitter has been misplaced or lost (must be
within 1500 feet)
To activate the Driver Calling / Page feature:
1.Locate the Call/Valet/Emergency Override button in your vehicle.
· With the ignition switch OFF, press and hold the Call/Valet/Emergency override button for 2
seconds, then release.
· The LCD transmitter will beep continually and the “DRIVER CALLING” icon will appear.
· Press and release button 5 to turn Off transmitter page.
Page 12 - Galaxy 2000RS
Remote Starting
To Remote Start the System:
1. Be sure the system is not in Valet Mode.
2. Press and hold Button 4 for three seconds.
· The parking lights will flash 4 times and turn on.
· The siren*/horn will chirp/honk 4 times. ( if enabled, see page )
· The engine will start and run for the duration of its programmed Run Time.**
· The heater or air conditioner will turn on (if turned on prior to exiting the vehicle).
**If the engine fails to start on the first attempt, it will repeat the starting procedure 2 more times. If the vehicle
fails to start after a total of 3 times the parking lights will flash 4 times and the doors will lock (if installed).
Turn on the ignition and press the brake pedal to disengage the remote start feature and drive the vehicle.
Shut Down
When the the Remote Start feature is active, any of the following actions will shut down the engine:
1. Pressing Button 4.
· After the engine shuts down the doors will lock (if the optional keyless entry feature is installed).
2. Pressing the Brake Pedal.
3. Opening the Hood.
4. Remote Start Time-Out (completion of the timed run cycle).
Quick Stop
The Quick Stop Feature allows you to exit the vehicle while keeping the engine running for quick stops.
To leave the vehicle running:
2. While the engine is running push the Remote Start button on the Remote Transmitter.
· The parking lights will turn On.
4. Remove the key from the ignition switch.
5. You may now exit the vehicle and lock the doors manually or by using the Remote Transmitter
To resume control of the vehicle:
1. Unlock the doors manually or by pressing the Disarm/Unlock Button on the Remote Transmitter.
2. Turn on the ignition.
3. Press the Brake Pedal to disengaged the remote start.
· The parking lights will turn Off.
.
Remote Start Features
Galaxy 2000RS - Page 13
Automatic Start Mode
Automatic Start feature has three modes that will start the vehicle every one or two hours
within a 24 hour period.
1. Timer Only Mode (factory default)
The Automatic Start feature starts the vehicle automatically every one or two hours and runs for
the preset Run Time. (15 or 25 min)
Auto Start on Timer Mode:
1. Turn Ignition switch Off and wait for 3 seconds.
2. Turn Ignition switch On and Off three times ending with Ignition in Off position
3. Press the Valet switch immediatly after.
parking lights will flash indicating that the Auto Start mode has been activated.
2. Low Temperature Start Mode**
The Automatic Start feature starts the vehicle automatically for a preset Run Time every one or two
hours if the temperature in the vehicle drops bellow the preset value (factory default -15oF).
3. High Temperature Start Mode**
The Automatic Start feature starts the vehicle automatically for a preset Run Time every one or two
hours if the temperature in the vehicle exceeds the preset value (factory default 138oF).
** See the
2-way LCD Remote Transmitter section for
Auto Start Cold or Hot Temperature Activation.
To disable Auto Start function
Do one of the following:
· Turn ignition On.
· Lock and then Unlock the system
· Panic the system
Turbo Timer Feature
The optional Turbo Timer feature allows vehicles with turbocharged engines to remain running after the
ignition key is removed, for proper cool-down of the turbocharger. The Turbo Timer feature requires
connection to the vehicle’s parking brake wire.
To activate the Turbo Timer feature:
1. Leave the engine running after parking the vehicle.
2. Set the vehicle’s parking brake.
· The Turbo Timer will begin a two-minute run cycle to allow the turbocharger to cool down.
3. Turn OFF the ignition and exit the vehicle.
To deactivate the Turbo Timer feature:
1. Press and hold the brake pedal.
2. Release the emergency/parking brake.
3. Re-apply the vehicle’s parking brake.
· The Turbo Timer countdown will automatically stop and the engine will shutdown.
WARNING: the Turbo Timer feature is not intended for use inside garages or other non-ventilated areas.
Make sure to deactivate the Turbo Timer feature when parking in such areas.
Page 14 - Galaxy 2000RS
Model: Galaxy 2000RS-M
1- Tach wire must be connected , The system must learn RPM.
2- Hand brake must be connected.
3- Door trigger must be connected
4- Clutch override installed
NOTE: MUST USE RELAY, SEE PAGE 25.
Remote Starting
With engine running and Hand-brake engaged put the vehicle transmission in neutral and remove the foot
from the brake pedal, press the remote start button on your transmitter, parking lights will flash twice
indicating Manual Start Mode is enabled, turn off the Ignition switch, the engine will remain running. Open
and close the door, the system will shut the engine Off. Using the remote Control, Lock the vehicle. Vehicle
is now ready for remote start operation.
Starter Ready Mode is canceled any time the door is opened; hand brake is released or any
other error condition.
To Remote Start the System:
1. Be sure the system is not in Valet Mode.
2. Press and hold Button 4 for three seconds.
· The parking lights will turn on.
· The LED will flash rapidly.
· The engine will start and run for the duration of its programmed Run Time.**
· The heater or air conditioner will turn on (if turned on prior to exiting the vehicle).
**If the engine fails to start on the first attempt, it will repeat the starting procedure 2 more times. If the vehicle
fails to start after a total of 3 times the parking lights will flash 4 times and the doors will lock (if installed).
Turn on the ignition and press the brake pedal to disengage the remote start feature and drive the vehicle.
Shut Down
When the the Remote Start feature is active, any of the following actions will shutdown the engine:
1. Pressing Button 4.
· After the engine shuts down the doors will lock (if installed).
2. Pressing the Brake Pedal.
3. Opening the Hood. (
safety switch must be installed
)
4. Remote Start Time-Out (completion of the timed run cycle).
5. Emergency Brake Off.
Manual Transmission Remote Start Features
Galaxy 2000RS - Page 15
Extended Features
Ignition Door Locking
For added safety, the Ignition Door Locking feature allows vehicles equipped with power door lock systems
to automatically lock the doors when the ignition is turned on. If a door is open when the ignition is turned
on, the Ignition Door Locking feature is disabled to protect against locking the keys inside the vehicle.
If RPM is selected Doors will lock when engine RPM exceed 2.5 times the idle.(tach wire must be connected)
Ignition Door Unlocking
For added convenience, this feature automatically unlocks the doors after the ignition key is turned off. If

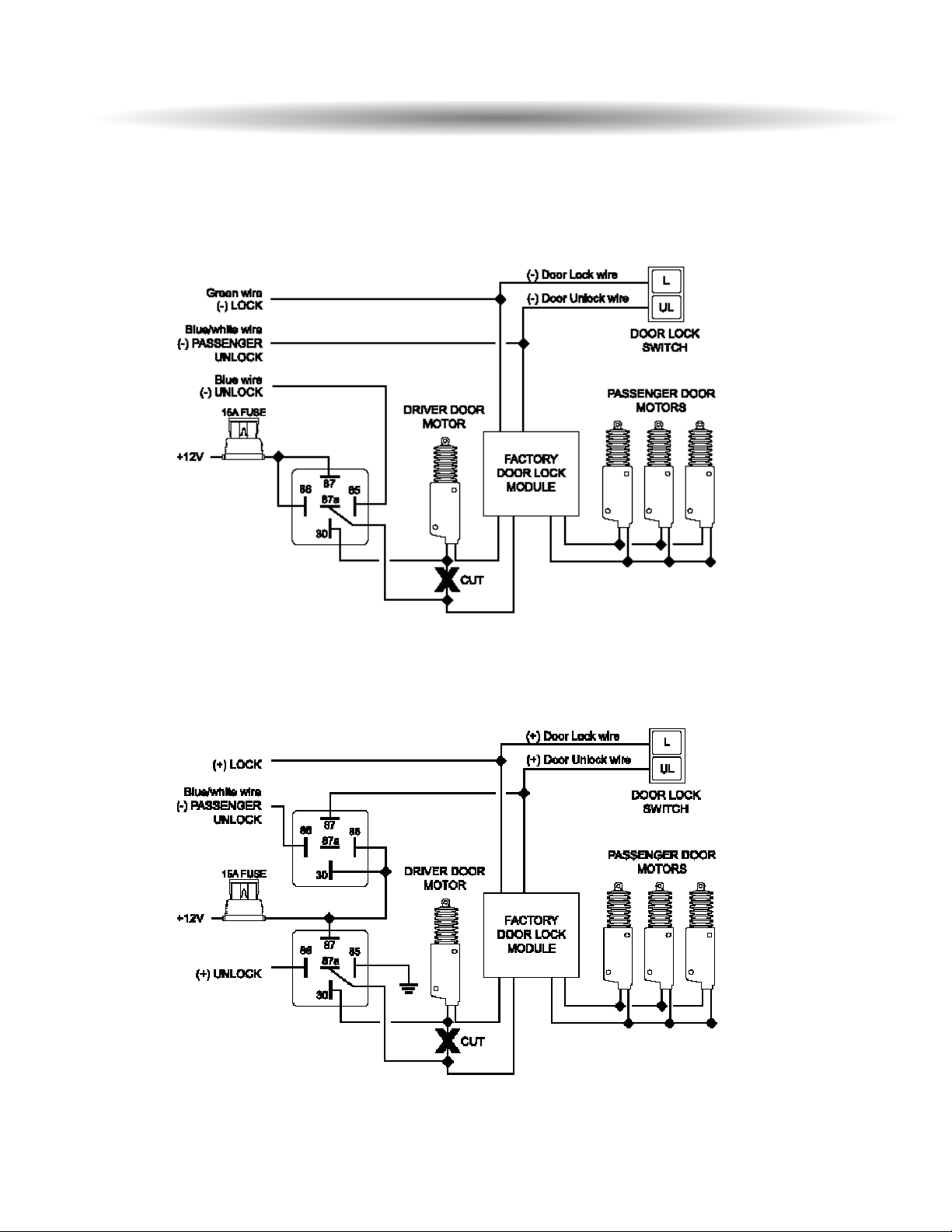

the optional Passenger Unlock feature is installed, the Ignition Door Unlocking feature can be programmed
to unlock only the driver door as a higher measure of safety, especially when children are present. The
Ignition Door Unlocking feature may also be completely disabled if desired.
Dome Light Activation
If the optional Dome Light Activation feature is installed, the dome light will turn on when the system is
disarmed using the Remote Transmitter, and remain on for 30 seconds or until the ignition is turned On.
Auxiliary Function Outputs
The Galaxy 2000RS Series system is equipped with 3 Auxiliary Channel Outputs allowing the convenience
features of the system to be further expanded. Aux-2 output can be programmed for pulsed, timed, or
latched operation and used to add a number of optional features such as: power trunk release, power
window activation, power sunroof control, auxiliary lighting, audio/video system control, and more.
The Pulsed operation setting allows an output to activ
ate as long as the button is held.(
1-way remote only
)
The Timed operation setting allows an output to activate when the transmitter button is pressed, and
remain activ
ated for 10 seconds or until the transmitter button is pressed again.
Note: With the optional ScyNet network interface and Wizard software, the timed output can be programmed for any time
between 1 second and 255 seconds.
The Latched operation setting allows an output to activate when the transmitter button is pressed, and
remain activated until the transmitter button is pressed again.
Unlock with Auxiliary Function
If the Auxiliary 1 option is installed to activate the vehicle’s trunk release, the system can be programmed to
automatically unlock the system when the trunk is opened using the transmitter. In this manner, the trunk
can be accessed without first disarming the alarm.
.
Page 16 - Galaxy 2000RS
1. Thoroughly read and become familiar with the installation instructions before beginning the installation.
2. Review system contents:
Main Unit
1 or 2 One-way 5 Button Remote Transmitters (varies by model)
1 or 2 Two-way 5 Button LCD Remote Transmitters (varies by model)
Siren*
Harnesses
• 6-Pin starter harness
• 20-Pin main harness
• 4-Pin Auxiliary start harness.
• 3-Pin door lock harness
• LED harness
• Override Switch harness
• 5 Pin antenna harness
3. Verify vehicle is equipped with electronic fuel injection, and starts/idles normally before installation.
4. Determine if vehicle is equipped with a factory theft deterrent system and obtain proper bypass module
if required.
5. Find a location to mount the hood pin switch that will not interfere with the opening of the hood, and
is not in a position that can accumulate water.
The hood pin is a safety device that must be
installed to avoid remote starting during engine servicing.
6. Verif y with the owner, the mounting locations for all visible components, including the LED and Override
switch.
7. Verif y with the owner, the optional features of the Galaxy 2000RS Series and the features that must be
programmed during installation.
8. Inspect and perform a function test of all vehicle systems before and after the installation.
9. Always use a Volt / Ohm meter for testing vehicle circuits. Never use a test light.
10. Always look before drilling any holes or mounting self-tapping screws. Be sure fuel lines and exterior
wiring looms are clear as they are often close to the chassis and difficult to see.
11. Protect all wires running from the engine compartment to the interior of the vehicle by covering with
electrical tape and split loom tubing. Be sure to use a grommet when routing wires through the
firewall.
12. Properly fuse any additional accessories such as window modules, door lock actuators, etc., making
sure to power them separate from the alarm module. This will ensure the functionality of the security
system in the event of an accessory failure.
System Installation
Galaxy 2000RS - Page 17
Mounting the Control Unit
The control unit must only be mounted in the interior of the vehicle. Do not mount the main unit in
the engine compartment. Choose a mounting location that will not be easily accessible to a thief, and
will not interfere with the operation of any vehicle components such as foot pedals, steering column,
air vents, seat rails, etc.
Do not mount the control unit until after setting the internal jumpers and performing a complete
operation check of the system. After installation is complete and performance verified, the control unit
can be easily mounted using wire ties through the mounting tabs on the bottom of the unit.
Page 18 - Galaxy 2000RS
System Wiring
6-Pin Starter Harness
Pin 1 RED WIRE A: Main Power Input A (+). Connect to the battery or constant power wire at the ignition
switch with a minimum 25 Amp supply. Remove the fuse until the installation is complete and all wiring
is checked.
Pin 2 RED WIRE B: Main Power Input B (+). Connect to the battery or constant power wire at the ignition
switch with a minimum 25A supply. Note: if connecting at the ignition switch it is highly recommended
to use separate power wires for each Red wire, each with a minimum 25A supply. Remove the fuse
until the installation is completed and all wiring is checked.
Pin 3 BROWN WIRE: Second Ignition Output (+). The Brown wire provides +12V for a second ignition
wire. This wire may instead be programmed for use as a second accessory or second starter wire.
Pin 4 ORANGE WIRE: Accessory Output (+). Connect to the accessory wire coming from the ignition
switch that supplies power to the heater/air-conditioner. Some cars may have multiple accessory wires.
Pin 5 YELLOW WIRE: Ignition Output (+). Connect to the main ignition wire that provides +12V when the
ignition is on and while cranking the starter.
Pin 6 VIOLET WIRE: Starter Output (+). Connect to the the vehicle’s starter wire.
20-Pin Main Harness
Pin 1 GREEN/WHITE WIRE: Brake Input (+). Connect to the wire that shows +12V when pressing the
brake. The Green/White wire is a safety shutdown wire that must be connected.
Pin 2 BLACK/GRAY WIRE: Tach Input. Connect to the vehicle’s tach wire or a fuel injector wire if the
tachless mode does not provide satisfactory operation or for manual transmission models.
Pin 3 WHITE/RED WIRE: Auxiliary 2 Output (-) 500 mA. Connect to a relay or module for an optional
feature such as power window activation, etc. This output may be programmed f or momentary, timed,
or latched operation.
Pin 4 BLACK/WHITE WIRE: Dome Light Output (-) 500 mA. Connect to the wire that activates the
vehicle’s dome light, usually the door pin switch wire (see Green and Violet door trigger wires). Note:
MUST USE RELAY(see page 25)
Pin 5 YELLOW WIRE: +12V Ignition Input. The Yellow wire must connect to a main ignition wire at the
ignition harness. This wire must show +12V when the ignition is on and while cranking the starter. The
voltage must not drop when the car is starting.
Pin 6 BLUE/YELLOW WIRE: Glow Plug Input (+). For vehicles equipped with diesel engines the
Blue/yellow wire must be connected to the wait-to-start light in the gauge panel. This wire will show
+12V when the light is on, and ground when the light turns off. If the wait-to-start wire shows ground
when the light is on, a relay must be installed (see wiring diagrams).
Pin 7 BLUE/WHITE WIRE: Passenger Unlock Output (-) 500 mA. Connect to a relay to unlock the
passenger doors when the system is configured for Driver Priority Unlocking.
Pin 8 BLUE/ORANGE WIRE: Ground When Running Output (-) 500 mA. Connect to an optional factory
security bypass module if required Or to a clutch switch bypass relay pin#86 for manual
transmissions
Pin 9 BLACK WIRE: Ground Input (-). The Black wire must connect to a solid chassis ground. Clean away
any paint or dirt to insure the best possible ground.
Pin 10 RED WIRE: Module Power Input (+). Connect to a constant source of 12 volts.
Galaxy 2000RS - Page 19
Pin 11 VIOLET WIRE: Positive Door Input (+). Connect to the door switch circuit wire that shows +12V
when the door is open. This type of door circuit is usually found on Ford
vehicles.
Pin 12 GREEN WIRE: Negative Door Input (-). Connect to the door switch circuit wire that shows ground
when the door is open.
Pin 13 WHITE/BLACK WIRE: Hood/Trunk Pin Input (-). Connect to the hood/trunk pin switch. The switch
must provide a ground output when the switch is opened.
Pin 14 ORANGE WIRE: Armed Output (-) 500 mA. The Orange wire provides a ground output while armed
to activate a relay for starter defeat and anti-grind protection or window rollup.
Pin 15 VIOLET/WHITE WIRE: Factory Disarm Output (-) 500 mA. The Violet/white wire provides a ground
pulse output on disarming and before remote starting to disarm a factory security system. Connect to
the wire that requires a ground pulse to disarm the factory security system.
Pin 16 WHITE/VIOLET WIRE: Auxiliary 3 / Factory Rearm Output (-) 500 mA. White/violet wire
Auxiliary 3: Connect to a relay for an optional feature such as trunk release, etc
.
Factory Rearm Output: provides a ground pulse output on remote start shutdown to rearm a factory
security system. Connect to the wire that requires a ground pulse to rearm the factory security system.
Pin 17 BROWN WIRE: Optional Siren Output.
Pin 18 GRAY WIRE: Auxiliary 1 Output (-) 500 mA. Connect to a relay for an optional feature such as trunk
release, etc.
This output may be programmed for momentary, timed, or latched operation (available
through C-NET only)*.
Pin 19 WHITE WIRE: Parking Light Output (+/-) Built-in Relay. Connect the White wire to the circuit that
shows +12V or ground only when the parking lights are on and set the internal parking light relay
jumper to the proper polarity. For parking light circuits exceeding 10 amps an additional relay is
required. For vehicle’s with independent left and right parking light circuits, 6amp diodes must be
installed to keep the circuits separate. NOTE: Do not connect the WHITE wire directly to the vehicle’s
headlight circuit.
Pin 20 BROWN/WHITE WIRE: Horn Output (-) 500 mA. Connect to a relay to activate the vehicle’s horn
when the alarm is triggered. This wire may instead be programmed as an ignition 3 relay trigger.
Plug-in Connectors
4-Pin White Connector: Auxiliary (-) start activation harness
· WHITE WIRE - Pulsing this wire to ground 3 times will activate the remote start. (can be used when adding system
to a factory security or keyless entry sytem. Connect this wire to the lock circuit of the vehicle. If the circuit is positive,
use a relay to invert positive to negative.
· BLUE WIRE - Pulsing one time Negative will activate the remote start.
· RED WIRE - not used.
· BLACK WIRE - not used.
2-Pin Blue Connector: Valet switch port.Mount program switch in an area that is easily accessible from the driver’s
position.
2-Pin Red Connector: LED port. Mount LED in an area where it may be easily seen from either side of the vehicle.
3-Pin White Door Lock Connector: Door lock port.
· BLUE WIRE - negative unlock output (-) 500mA.
· GREEN WIRE - negative lock output (-) 500mA.
3-Pin Blue Connector: The plug-in network connector port is located on the side of the main module. This network
port may be used with the optional personal computer interface or Pocket PC for diagnostics, software customization and
expanded programming options. The network also offers connection to several optional accessories.
Page 20 - Galaxy 2000RS
2-Pin White Connector: Located on the side of the main module.
· Green WIRE - Parking Brake Input (-) For Manual Transmission and/or vehicles equipped with a turbo charged engine.
Must be connected if using the Turbo Timer feature and/or Manual Transmission remote start feature.
· Blue WIRE -
Turbo Timer cancel input for Manual transmission systems in Turbo Timer mode.
(this feature allows the the turbo timer feature to be temporarilly canceled for remote start applications on manual
transmission vehicles) A seperate push button switch wired to GROUND is needed.
To temporarily bypass the turbo timer in order to perform the remote start procedure for manual transmissions:
With the engine running, apply the parking brake then push the remote start button on transmitter, lights will flash
twice. Turn off the ignition, the engine will stay running. Now push and release the button on the push switch, the
siren will chirp once. The Turbo Timer feature is now canceled. Open and close the door, engine will shut down.
Vehicle is now ready for remote start.
Jumper Selection
Carefully separate the top and bottom halves of the main unit case. Once the cov er is removed, the parking
light polarity jumper will be visible next to the parking light relay. Set the jumper for the correct polarity
output as described below, then reassemble the main unit case.
Parking Light Output. Selects the polarity (+/-) for the output of the on-board Parking Light relay.
Left Pin + Center Pin = positive ( Default setting is ( + )
Right Pin + Center Pin = negative
Jumper Settings
default setting shown
Galaxy 2000RS - Page 21
Entering System Programming
This system is compatible with both the LCD two-way transmitter or the standard transmitter, all system
programming can be performed using either one.
To enter System Programming:
1. Turn the ignition switch to the ON position.
2. Within 5 seconds, press the valet switch 5 times.
· The siren*/horn will pro vide three chirps/honks, indicating that y ou have entered Programming.
3. Press the valet switch the number times equal to the System Parameter you want to change.
· The siren*/horn will chirp/honk each time the valet switch is pressed.
4. Within 5 seconds, press the transmitter button corresponding to the desired operating mode for
that System Parameter.
· The siren*/horn will chirp/honk to indicate the setting.
1 chirp/honk = Button 1
2 chirps/honks = Button 2
3 chirps/honks = Button 3
5. When you are finished, turn off the ignition to save the changes.
Default Reset
Following this procedure will set all System Programming Parameters to factory default settings.
1. Enter System Programming.
2. Press Transmitter Button 3.
· The siren*/horn will chirp/honk 6 times indicating that the reset signal was received.
· All System Programming parameters are now set to factory default settings.
· The Valet Mode is off.
3. Turn off ignition.
System Programming
Page 22 - Galaxy 000RS
Programming Branch Table
Branch Feature Button 1 (default) Button 2 Button 3
1. Ignition Door Locking On Off
2. Ignition Door Unlocking Unlock All Unlock Driver Only Off
3. Door Unlock Pulse Single Double
4. Door Lock Pulse Length 1 second 3 seconds
5. Aux 2 Activate on Lock Off On
6. Aux 2 Mode Pulsed Timed Latched
7. Unlock with Aux 1 Disabled Enabled
8. Aux 3 Mode Aux 3 Output Factory Re-Arm Output
9. Start in Valet Mode Disable Enabled
10. Lock after Start On Off
11. Lock after Shutdown On Off
12. Engine Run Time 15 minutes 25 minutes
13. Automatic Start Mode 2 hours 1 hour
14. Tachless Sense Crank Time Normal Extended Super Extended
15. Remote Start Program RPM Learn Gas Engine Diesel Engine
16. Ignition 2 Output Program Ignition 2 Output Accessory 2 Output Starter 2 Output
17. Horn Honk Output Horn Output Ignition 3 Output
18. Turbo Mode Disabled Enabled
19. Extended Parking Lights On Off
20 Horn Chirp Mode Normal Extended
21 Key-Less Entry Chirps Enabled Disabled
22 Remote Start Confirmation Disabled Enabled
Galaxy 2000RS - Page 23
Programmable System Options
The following is a description of the programming options of the system. Some of the program branches
control more than one option, and may require accessing a particular branch number twice in order to
program all desired features.
1. Ignition Door Locking. Selects whether or not the system will automatically lock the doors 5 seconds
after the ignition key is turned on.
2. Ignition Door Unlocking. Selects whether or not the system automatically unlocks the doors when
the ignition is turned off. The Ignition Door Locking feature may be programmed to unlock all doors or
the driver’s door only. If driver’s door only is selected, the optional Passenger Unlock wire must be
connected. (
See Two Stage Door Lock Diagrams
)
3. Door Unlock Pulse. Selects between one pulse or two pulse operation for the door unlock output.
Many new import vehicles’ factory door locking systems require two pulses on the proper wire to unlock
the doors. These systems can be interfaced directly without the use of relays or any additional circuitry
by programming the system for double unlock pulse.
4. Door Lock Pulse Length. Selects between a 1-second or 3-second output for door locking and
unlocking. Program to 3 seconds for vehicles equipped with vacuum door locking systems.
5. Aux 2 Auto Activate with Lock. When selected, the Auxiliary 2 output will activate when the system
is locked. This feature can be used to roll-up windows, close sunroofs, activate accessories, etc.
6. Auxiliary 2 Mode. Selects from momentary, 10 second timed, or latched operation for Auxiliary 1.
Momentary
operation provides an output for as long as the transmit ter button is pressed.(1-way remote
only)
Timed
operation provides an output that turns on for 10 seconds each time the transmitter button is
pressed. If the button is pressed again during the 30 seconds, the output will turn off.
Latched
operation provides an output that turns on when the transmitter but ton is pressed and remains
on until the transmitter button is pressed again.
Note: With the optional ScyNet network interface and Wizard software, Auxiliary outputs 1 & 2 can be
programmed to pulse for 1 to 255 seconds.
7. Unlock with Auxiliary 1. When selected, activating the Auxiliary 1 output (usually used to open the
trunk) will unlock the vehicle doors.
8. Auxiliary 3 Mode. Selects between Aux 3 Output or Factory Re-Arm Output.
9. Start in Valet Mode. Selects whether or not the vehicle can remote start while in the valet mode.
10. Lock After Start. When selected, the doors will automatically lock after remote starting.
11. Lock After Shutdown. When selected, the doors will automatically lock after remote shutdown.
12. Engine Run Time. Selects between 15 or 25 minutes for the remote start run cycle.
13. Automatic Start Mode. Selects between every two hours or every hour for the automatic engine
starting feature.
14. Tachless Sense Crank Time. Selecting engine crank time automatically selects the tachless mode
and one of three crank times.
If the normal engine crank time is too short increase the time by selecting one of the two additional
extended crank time options.
Normal - 0.8Sec.
Extended - 1.0Sec.
Super Extended - 1.4Sec.
Page 24 - Galaxy 2000RS
Tachless Mode. Determines the engine status using an advanced software routine, without requiring
connection to the vehicle’s tachometer. Tachless operation may not be compatible with some vehicles
or in severe temperatures, in which case the tach wire must be connected.
15. Remote Start Program. This dual program branch sets the engine mode for Gas or Diesel, and
learns the vehicle’s RPM threshold. For installation into a diesel equipped vehicle, first set the engine
type to diesel before learning RPM.
RPM Learn.
After engine type is set, start the engine, re-enter Branch 15, LED will start flashing if tach
signal is detected, otherwise the LED will stay solid. Press Button 1 to learn the vehicle’s idle speed.
The horn will honk once to confirm. The horn will honk four times if the tach signal was not learned.
Gas Engine.
Sets the engine type for Gasoline.
Diesel Engine. Sets the engine type for Diesel and monitors the glow plug input to make sure the glow
plugs are warm before cranking the starter. If the glow plug wire is not connected, the built-in timer
waits 15 seconds before automatically cranking the starter.
16. Ignition 2 Relay Program. Selects one of three operating modes for the Ignition 2 relay output:
Ignition 2, Accessory 2, or Starter 2.
17. Horn Output. When set for Horn Output the horn wire will pulse when the system is locked or unlocked.
When Ignition 3 Output is selected, the output will activate during remote start to trigger a relay for
Ignition 3.
18. Turbo Timer. When enabled, if the emergency brake has been applied, the engine will be kept running
for a predetermined time to allow for proper cool-down of turbo charged engines. (2 minutes Factory
Default from the application of the emergency brake.)
19. Extended Parking Lights. When Enabled, upon Disarming Parking lights will turn On for 30 seconds.
20. Horn Chirp Mode. Normal mode - sets horn honk timing for most vehicles. Extended mode - extends
horn honks for vehicles that require longer horn honk timing.
21. Key-Less Entry honks. When enabled, system honks when lock or unlock feature is activated using
the remote control. When disabled, no horn honks will sound upon lock or unlock.
22. Remote Start Confirmation honk. When enabled, system honks before starter is activated. When
disabled, no honks will sound upon start.
Galaxy 2000RS - Page 25
Relay Diagrams
Positive Dome Light Activation
Negative Dome Light Activation
Positive Horn Honk Negative Horn Honk
Starter Defeat/Anti-Grind
Negative Glow Plug
Page 26 - Galaxy 2000RS
Negative Trigger
Reverse Polarity Vacuum
Adding Actuators
Follow the diagrams below for connecting basic door lock systems. For Two Stage door lock
systems (separately unlocks driver and passenger doors) see following pages.
Door Lock Diagrams
Positive Trigger
UL
L
blue
green
Galaxy 2000RS - Page 27
Two Stage Door Lock Diagrams
Two Stage Negative Trigger
Two Stage Positive Trigger
The Galaxy 2000RS Series is equipped with a dedicated Passenger Unlock output allowing Two
Stage Door Lock operation. When connected as shown below, disarming the system will unlock
only the driver’s door. Pressing the disarm button again will unlock all doors.
Door Lock Inverter Green Wire
Door Lock Inverter Blue Wire
Page 28 - Galaxy 2000RS
Two Stage Door Lock Diagrams cont’d
Two Stage Reverse Polarity
Two Stage Adding Actuators
Galaxy 2000RS - Page 29
FCC ID: OARRXAM2000
This device complies with Part 15 of FCC Rules.
Operation is subject to the following two conditions:
1) This device may not cause harmful interference.
2) This device must accept any interference received, including interference that may cause
undesired operation
Technical Information
Built-in LED Light/Override/Valet/Call Switch into
Antenna
RS-2W ModelsRS Models
Valet Switch
LED light
Valet/Call/Override Switch
LED Light
Page 30 - Galaxy 2000RS
Starter Diagnostics
Starter doesn’t start and parking lights flash:
3 Times -
Engine RPM not detected (check tach wire and/or perform tach learn procedure)
Hood Trigger is active (hood is open, wire is shorted to ground or pin switch is
defective)
4 Times -
Brake Trigger is active ( Brake switch input is shorted to ground or incorrect)
5 Times -
Unit is in Valet (service) mode, and start is disabled.
6 Times -
Emergency Brake Disengaged ( Manual Transmission )
7 Times -
Start Canceled ( Manual Transmission )
Galaxy 2000RS - Page 31
Notes:
ScyTek Electronics
11627 Cantara Street
North Hollywood, CA 91605
www.scytek.net
© ScyTek Electronics 2007 Galaxy 2000RS 3-22-07
Wiring Diagram
ScyNet
Turbo Timer Cancel
Green Emergency brake(-)
Antenna
1 pulse or 3 pulse (-) Start Input
LED
Valet Switch
Green Lock output (-) 500mA
Blue Unlock output (-) 500mA
Green/White Brake Input(+)
Black/Gray Tachometer Input
White/Red Auxiliary 2 Output (-)500mA
Black/White Dome Light output (-)500mA (must use relay)
Yellow Ignition Input (+) ( Must Be connected
Blue/Yellow Glow plug (wait to start) Input (+)
Blue/White Passenger Unlock Output (-)500mA
Blue/Orange Remote Start Output (-)500mA
Black Ground
Red +12V Battery Input #3
Violet Door Trigger Input (+)
Green Door Trigger Input (-)
White/Black Hood/Trunk Input (-)
Orange Armed Output (-)500mA
Violet/White Factory Alarm Disarm Output (-)500mA
White/Violet Auxiliary 3/Factory Alarm Arm Output (-)500mA
Brown Siren Output (+)3A
Gray Auxiliary 1 Output (-)500mA
White Parking Light Output (+/- built-in relay)
Brown/White Horn Output (-)500mA
Violet Starter Output
Yellow Ignition 1 Output
Orange Accessory Output
Brown Ignition 2 Output
Red +12V Battery Input #1
Red +12V Battery Input #2
Port
Galaxy 2000RS Series
For Manual Transmission:
Model 2000RS-M
These Wires Must be connected : Tachometer input , Emergency Brake and Door Trigger
Loading...
