Infrared Digital Scouting Camera
User’s Manual
Scouting Camera SG560K-8M
For model: SG560K-8M
Content
1 Instruction..............................................................................................................................1
1.1 General Description ....................................................................................................1
1.2 Application.....................................................................................................................1
1.3 Camera Interface..........................................................................................................1
1.4 Saving Images or Videos ...........................................................................................3
2 Cautions .................................................................................................................................4
3 Easy Operations...................................................................................................................5
3.1 Power Supply................................................................................................................5
3.2 Insert the SD-card ........................................................................................................5
3.3 Power on and Entering into the ON Mode.............................................................5
3.4 Enter into the TEST Mode..........................................................................................5
3.4.1 Preview ...................................................................................................................5
3.4.2 Customer Settings ...............................................................................................5
3.4.3 Manual Capturing.................................................................................................5
3.4.4 View Images or Videos .......................................................................................6
3.4.5 Delete Images or Videos ....................................................................................6
3.6 Power Off .......................................................................................................................6
4 Advanced Operations .........................................................................................................7
4.1 Settings Menu ...............................................................................................................7
4.1.1 Set Camera Mode .................................................................................................7
4.1.2 Format SD-Card....................................................................................................7
4.1.3 Set Photo Size.......................................................................................................7
4.1.4 Set Video Size .......................................................................................................8
4.1.5 Set Date and Time
................................................................................................8
4.1.6 Set Photo Burst ....................................................................................................8
4.1.7 Set Video Length..................................................................................................8
4.1.8 Set PIR Sensitivity ...............................................................................................9
4.1.9 Set PIR Triggering Interval ................................................................................9
4.1.10 Set Timer Triggering Interval ............................................................................9
4.1.11 Set Timer Switch ................................................................................................10
4.1.12 Set Time Stamp ..................................................................................................10
4.1.13 Reset to Default Settings .................................................................................10
4.2 Default Settings and Live Monitoring ...................................................................11
4.3 Firmware upgrade......................................................................................................11
5 Mounting the Camera ............................................................................................................12

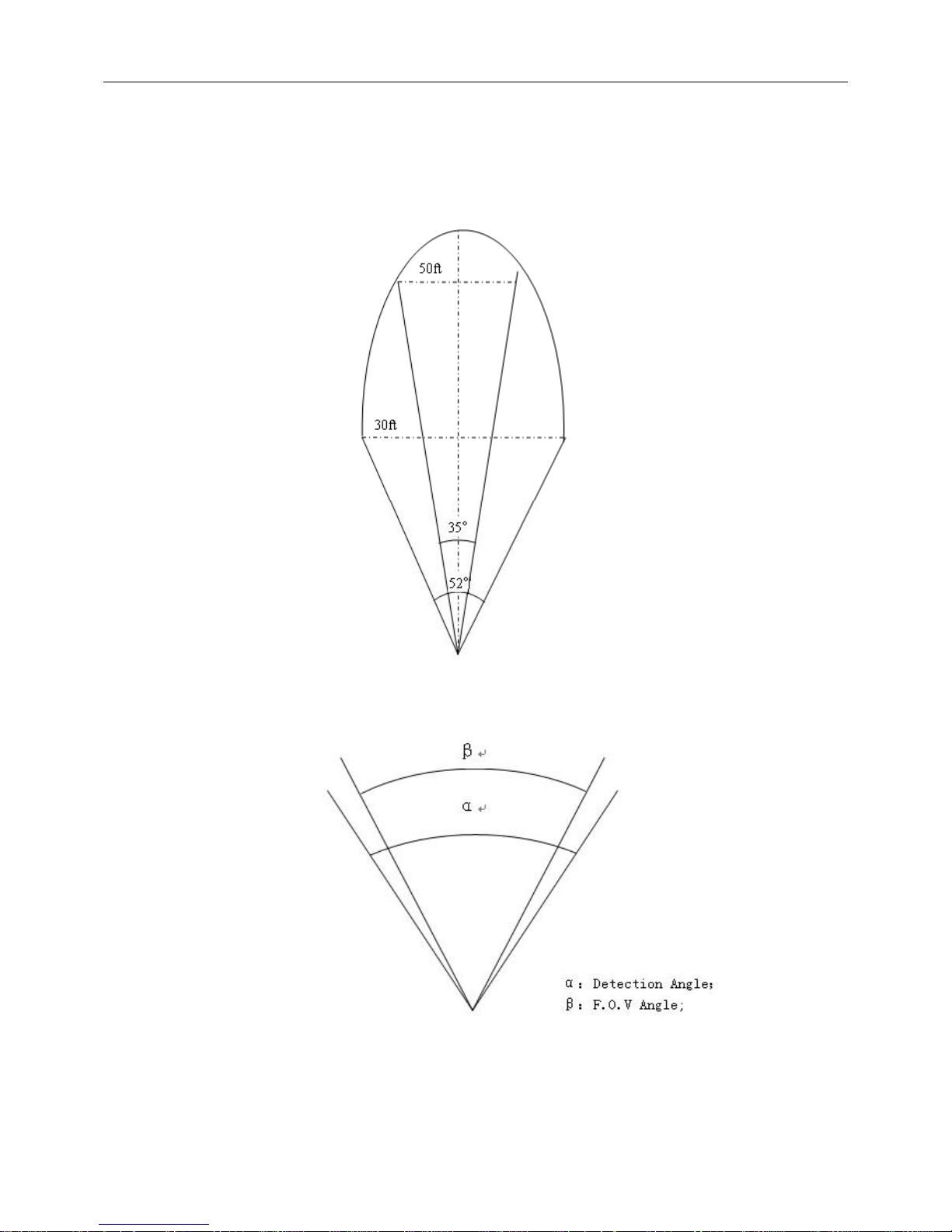

Appendix I: PIR Detection Zone .............................................................................................13
AppendixⅡ: Technical Specifications .................................................................................15
AppendixⅢ: Parts List..............................................................................................................16
SG560K-8M 1 Instruction
1 Instruction
1.1 General Description
This camera is a black IR scouting camera with great performance.
It can be triggered by any movement of human (or animals) in a certain region of interested
(ROI) monitored by a highly sensitive Passive Infra-Red motion sensor (PIR)，and then take high
quality pictures (up to eight mega pixels) or video clips.
It also has time laps function, which means the camera can capture pictures or video clips
at specified time intervals regardless of if there is a motion of human or animals.
The device is equipped with dark glow IR LEDs( 940nm invisible infrared LEDs), it takes
clear pictures or videos (in black&white) even in the dark night, while it takes color pictures or
videos under sufficient daylight.
The camera consumes very little power(μA level) at surveillance mode. Powered by 8 new
AA alkaline batteries, the camera stands-by about 6 months. Once a motion by human or
animals is detected, the digital camera unit will be awoken up at once and then automatically
take pictures or videos according to previously programmed settings.
The device is designed for outdoor use and is resistant against water and snow.
Furthermore, the camera can be used as a portable digital camera. Pictures or videos can be
taken manually by pressing on the operation panel.
1.2 Application
This camera can be used as automatic surveillance device for guarding and recording
unexpected intrusion to homes, shops, schools, depots, offices, taxies, worksites etc. It can also
be used as trail camera for hunting or monitoring animals by recording the traces of wild animals.
It can be left alone for weeks and months and it will save event records automatically in digital
format.
1.3 Camera Interface
1.3.1 Camera Body Interface
The camera has the following interfaces: a 2.0’’ TFT LCD display screen, operation panel,
USB connector, SD-card slot, TV output and external DC power connector. Fig.1 shows the front
view of the camera and its function parts. Fig.2 shows the operation panel and display screen.
Fig.3 shows the bottom view of the camera and its I/O interface.
Take a few moments to familiarize with the camera controls and displays. It is helpful to
bookmark this section and refer to it when read through the rest of the manual.
Page
1
SG560K-8M 1 Instruction
Figure 1: Front view
Figure 2: Operation interface
Figure 3: Bottom view
Page
2
SG560K-8M 1 Instruction
1.3.2 Key Notes
“MENU” : to enter the program menu in preview mode;
“▲”“▼”“◄”“►”: for parameter settings as described in the user’s manual;
“OK”: to save parameter settings and play videos;
“ ”: to exchange between playback mode and preview mode;
“DEL”: to delete an image;
“ ”: to capture a photo or record a video manually.

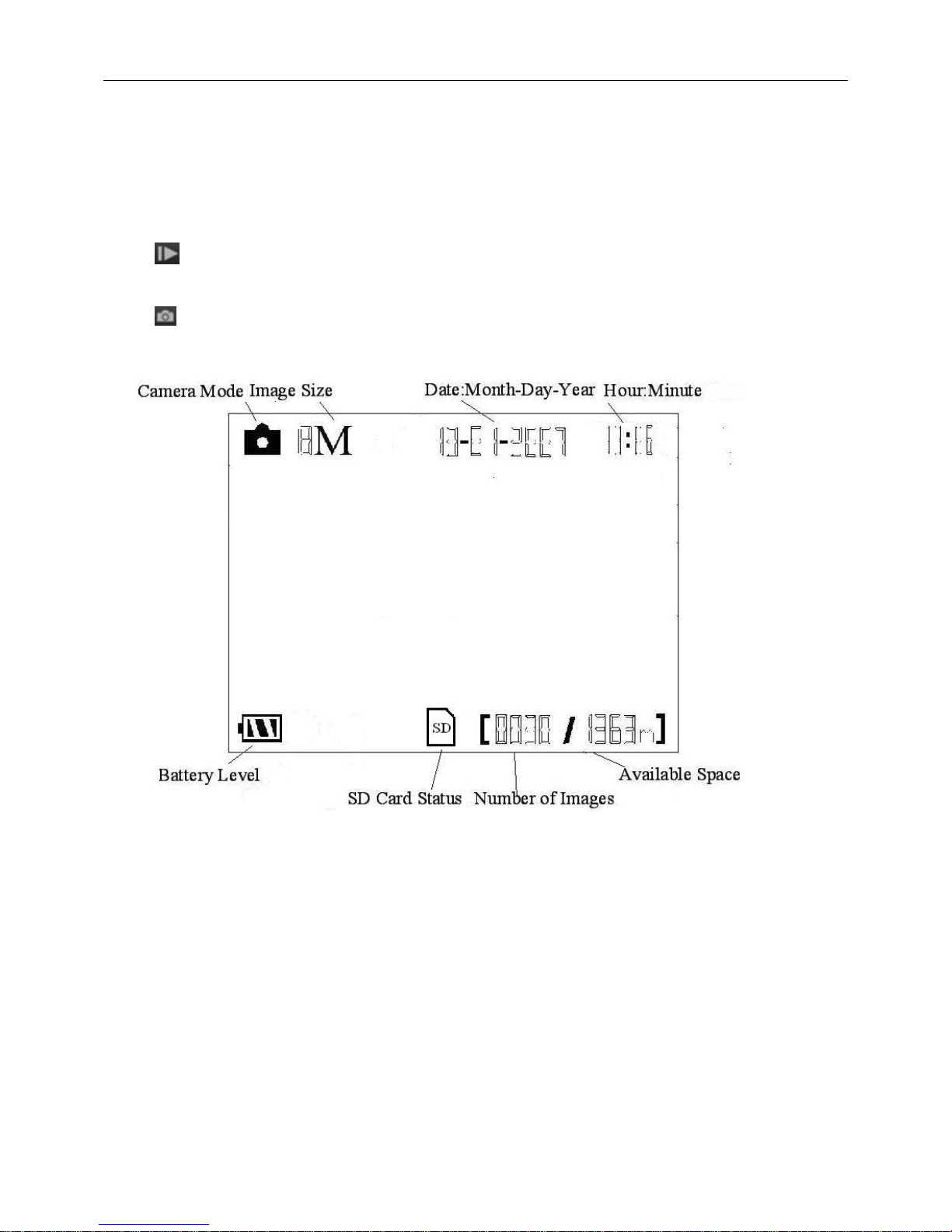

1.3.3 Shooting Information Display
1.4 Saving Images or Videos
The Camera uses a SD-card to save images (in .jpg format) and videos (in .avi format).
Before inserting the SD-card be sure that the SD card is unlocked. The camera is compatible
with SD-card from 8MB to 8GB.
Page
3
SG560K-8M 2 Cautions
2 Cautions
★ The working voltage of the camera is 6V. The camera is supplied by four AA batteries.
★ Please install batteries according to shown polarity.
★ Please unlock the write-protect before inserting the SD-card.
★ Please insert the SD-card when the power switch is at OFF position before testing the
camera. The camera has no internal memory for saving images or videos. If no SD-card is
inserted, the camera will shut down automatically after a continuous indication sound.
★ Please do not insert or take out the SD-card when the power switch is at ON position.
★ It is recommended to format the SD-card by the camera when used at the first time.
★ In the TEST mode, the camera will shut down automatically after 3 minutes if no operation is
done. Please turn on the power again if you want to continue to work with the control.
Page
4
SG560K-8M 3 Quick Introductions
3 Easy Operations
3.1 Power Supply
Use 8 or 4 AA batteries or 6v external battery for power supply.
Install the fully charged batteries into the depot according the polarities sign shown. The
following batteries with 1.5V output can be used:
1. High-density and high-performance alkaline batteries (Recommended)
2. Rechargeable alkaline batteries
3. Rechargeable NiMH batteries
When in low-battery state, camera will be automatically shut down after the indication LED
flashing for a while. Please change the batteries in time.
3.2 Insert the SD-card
The camera has no internal memory for saving images or videos. If no SD-card is inserted
or SD-card is locked, the camera will shut down automatically after a continuous indication
sound.
3.3 Power on and Entering into the ON Mode
The Camera has three basic operation modes:
1. OFF mode: to turn off the camera.
2. TEST mode: to set operational parameters, or to playback the photos or video clips via
display screen or via TV.
3. ON mode: to work under surveillance state.
After switching the camera to ON position, the motion indication LED (red) will blink for
about 10s. This time interval is for you to make the Camera ready for automatic surveillance
operation, e.g., to close the bottom cover and to lock it, to fix the camera on a tree and to walk
away. After entering into the ON mode, no manual controls are needed and possible. The
Camera will take pictures or videos automatically according to the previous programmed
settings, when human or animals enter into the monitoring region.
3.4 Enter into the TEST Mode
There are 3 states in TEST Mode: preview state (preview the scene in the front of the
camera), setting state (make customer settings), and playback state (view Photos or videos via
2.0” TFT display).
(Note: SG560P0 model has no preview and playback.)
3.4.1 Preview
After switching the camera to TEST Mode, it enters into the preview state.
Press to exchange between playback mode and preview mode;
3.4.2 Customer Settings
Press MENU to manually customizing the camera settings which displayed on the screen or
external TV monitor. The detailed operations will be described in “Advanced Operations”
chapter.
3.4.3 Manual Capturing
Press to manually capture photos or record videos. Press again to stop the manual
Page
5
SG560K-8M 3 Quick Introductions
capturing of a video.
3.4.4 View Images or Videos
There are two ways to view the captured images or videos:
1. LCD screen on the control
2. TV monitor which connect to camera with TV cable
Press to view images or videos, the latest image or video will be shown in the LCD
screen on the control or TV monitor. Press “▲” or “▼” to view the previous or next image or
video.
3.4.5 Delete Images or Videos
Press DEL to delete images or videos .Note the DEL button just works in Playback state. So
if it’s in Preview state, you should press
to enter into Playback state.
3.5 Triggering modes
There are 3 triggering modes of the camera: PIR triggering，Timer triggering and PIR&Timer
triggering.
3.5.1 PIR Triggering
PIR triggering is the default setting. The camera works only when motions get detected,
while, if PIR sensitivity is set as PIR OFF, the camera stops PIR triggering.
3.5.2 Timer triggering
The Timer interval Default setting is OFF which means the timer triggering is disabled.
While changing the timer triggering interval to a non-zero value, the camera starts to work at a
preset interval. User need to OFF the PIR triggering (choose PIR sensitivity as PIR OFF) if
want the camera work only via Timer triggering.
3.5.3 PIR&Timer triggering
If want both PIR triggering and Timer triggering, the user need go to PIR sensitivity to set
“normal, high or low” sensitivities according to the external environments, and need to set the
Timer interval to a desired non-zero value. The camera will capture pictures or videos in a
preset time interval even there is no motions get detected; the camera will also capture pictures
and videos if motions get detected.
3.6 Power Off
Switch the camera to OFF position to power off the camera. Please note that even in the
OFF mode, the camera still consumes certain power at μA level. Therefore, please remove the
battery if the camera will not be used for a long time.
Page
6
SG560K-8M 4 Advanced Operations
4 Advanced Operations
After familiar with the basic operations of the Camera, you are now ready for advanced
operations，and the options and parameters of the Camera are explained in more detail.
4.1 Settings Menu
To view the camera settings menu, press MENU in the TEST mode (Power switch is at
TEST position). The settings menu will be shown on the LCD on the camera or the external TV
monitor (only when the camera is connected to a TV).
4.1.1 Set Camera Mode
There are two modes: Camera, Video.
Camera mode: The camera takes photos when it is triggered.
Video mode: The camera takes videos when it is triggered.
There are two ways to set camera mode: 1. Via shortcut key; 2. Via setting menu.
1. Via shortcut key: You can set mode to “video” by pressing “▲” key and set mode to
“camera” by pressing “▼”key in TEST mode.
2. Setting menu: The following shows how to set camera mode to Video, provided that the
previous option is Camera:
a) Press MENU to display the setting menu.
b) Press “▲” or “▼” to select Mode.
c)
Press “►” to select Video.
d) Press OK to save the current setting and the option will be un-highlighted.
Press MENU to cancel setting and return to info display.
4.1.2 Format SD-Card
The system will delete all images or videos stored in the SD-card after formatting, make
sure that you have made a backup of important data.
Highly recommend you format the SD card if it has been used previously in other devices.
a) Press MENU to display the setting menu.
b) Press “▲” or “▼” to select Format.
c) Press OK to choose Enter to enter into submenu.
d) Press “►” to select Yes. Yes will be highlighted.
e) Press OK to start formatting the SD-card. During formatting, the display screen will show
a message “Formatting…” as below.
Press MENU to return to info display.
4.1.3 Set Photo Size
This parameter has two values: 8 mega pixels (8MP) ,5 mega pixels (5MP) and 1.3mega
pixels(1.3MP). The default value is 8 mega pixels.
The following shows you how to set pixel size as “5M Pixel” provided that the previous
Page 7
SG560K-8M 4 Advanced Operations
value is “8M Pixel” at MENU state:
a) Press MENU to display the setting menu.
b) Press “▲” or “▼” to select Photo Size.
c) Press “►” to select 5MP.
d) Press OK to save the current setting and the option will be un-highlighted.
Press MENU to return to info display.
4.1.4 Set Video Size
This parameter also has two values: VGA (640×480）and QVGA (320×240）. The default
value is “640x480” (VGA).
The following shows how to set video size as 320×240 provided that the previous option is
640×480:
e) Press MENU to display the setting menu.
f) Press “▲” or “▼” to select Video Size.
g) Press “►” to select 320×240.
h) Press OK to save the current setting and the option will be un-highlighted.
Press MENU to return to info display.
4.1.5 Set Date and Time
You can change the date and time of the device by setting this parameter when necessary,
e.g., after every battery change. The date format is month/day/year, the time format is hour:
minute: second. The valid value for year is between 2009 and 2050.
Provided that the date and time are needed to be set to November 15th, 2010 and half past
ten, the steps are as following:
a) Press MENU to display the setting menu.
b) Press “▲” or “▼” to select Set Clock.
c) Press OK to enter into submenu.
d) Press “►” to select item, press “▲” or “▼” to change the value.
e) Press OK to save all current setting and return to info display.
Press MENU to return to info display.
4.1.6 Set Photo Burst
This parameter affects the number of pictures taken for each triggering in Camera mode. It
has three values: “1 Photo” “2 Photos” and “3 Photos”. Its default value is “1 Photo”.
The following shows how to set continuous capture number to 3 Photos provided that the
previous option is 1 Photo:
a) Press MENU to display the setting menu.
b) Press “▲” or “▼” to select Capture Number.
c) Press “►” to select 3 Photos.
d) Press OK to save the current setting and the option will be un-highlighted.
Press MENU to return to info display.
4.1.7 Set Video Length
This parameter is effective and can be adjusted only when the device in the video mode for
Page 8
SG560K-8M 4 Advanced Operations
the LIVE mode. Its value extends from 1 to 60 seconds with a step of one second. The default
value is 10 seconds. Press “◄” and “►” to decreases or increases the value by 1 second.
The following shows how to set video length to 15 Seconds provided that the previous
value is 1 Seconds:
a) Press MENU to display the setting menu.
b) Press “▲” or “▼” to select Video Length.
c) Press “►” to increase to 15 Seconds.
d) Press OK to save the current setting and the option will be un-highlighted.
Press MENU to exit.
4.1.8 Set PIR Sensitivity
This parameter defines the sensitivity of the PIR. There are four parameters: High, Normal,
Low and PIR off. The default value is “Normal”. The higher degree indicates that the
Camera is
more easily to be triggered by motion, taking more pictures or recording more videos. It is
recommended to use high sensitivity degree in room or environment with little interference, and
to use lower sensitivity for outdoor or environment with lots of interference like hot wind, smoke,
near window etc. Furthermore, the sensitivity of the PIR is strongly related to the temperature.
Higher temperature leads to lower sensitivity. Therefore it is suggested to set a higher sensitivity
for high temperature environment.
The following shows how to set PIR sensitivity as Low provided that the previous option is
Normal.
a) Press MENU to display the setting menu.
b) Press “▲” or “▼” to select Sensitivity.
c) Press “►” to select Low.
d) Press OK to save the current setting and the option will be un-highlighted.
Press MENU to return to info display.
4.1.9 Set PIR Triggering Interval
This parameter means that how long the PIR (Passive Infrared motion sensor) will be
disabled after each triggering in ON mode. During this time the PIR of the device will not react to
the motion of human (or animals). The minimum interval is 0 second, it means the PIR works all
the time. The maximum interval is 1 hour, it means the PIR will be disabled for 1 hour after each
triggering. The default value is 1 minute. Press “◄” and “►” to decreases or increases the
value.
The following shows how to set triggering interval time to 5 Minutes provided that the
previous value is 1 Minute.
a) Press MENU to display the setting menu.
b) Press “▲” or “▼” to select PIR Interval.
c) Press “►” to decrease or increase to 5 Minutes.
d) Press OK to save the current setting and the option will be un-highlighted.
Press MENU to cancel setting and return to info display.
4.1.10 Set Timer Triggering Interval
This camera has a new function, time laps function，which means the camera captures
Page 9
SG560K-8M 4 Advanced Operations
images or videos at a preset time intervals regardless of weather there are motions get detected.
The default parameter is OFF which means the timer function is disabled. When changing this
parameter to a non-zero value, it starts to take photos at given time interval. The value ranges
from 10 seconds to 8 hours. Press “◄” and “►” to decreases or increases the value.
The following shows how to set timer interval to 1 hour provided that the previous value is
OFF.
e) Press MENU to display the setting menu.
f) Press “▲” or “▼” to select Timer Interval.
g) Press “►” to decrease or increase to 1 hour.
h) Press OK to save the current setting and the option will be un-highlighted.
Press MENU to cancel setting and return to info display.
4.1.11 Set Timer Switch
This parameter defines a certain time lapse in a day when the camera can be triggered,
while in the rest of the time lapse the device is shut off. The effective value ranges from 00:00:00
to 23:59:59.
Timer Switch OFF means the camera works all along; Timer switch ON means the camera
works only during the time lapse according to the preset settings.
Please note that the Timer switch functions only when the timer is set as On. Provided that
the camera works from 08:00 a.m. to 17:00 p.m., the steps are as following:
a) Press MENU to display the setting menu.
b) Press “▲” or “▼” to select Timer Switch.
c) Press “►” to select On.
d) Press OK to enter into submenu.
e) Press “►” to select item, press “▲” or “▼” to change the value until the start time
changes to 8 and the stop time changes to 17.
f) Press OK to save all current setting and the option will be un-highlighted.
Press MENU to return to previous menu.
4.1.12 Set Time Stamp
This parameter defines whether the date and time be stamped in the pictures and video
clips or not. The following shows you how to set time stamp as “Off” provided that the previous
value is “On” in MENU state.
a) Press MENU to display the setting menu.
b) Press “▲” or “▼” to select Time Stamp.
c) Press “►” to select Off.
d)
Press OK to save the current setting and the option will be un-highlighted.
Press MENU to cancel setting and return to info display.
4.1.13 Reset to Default Settings
To reset the setting to the default values, the steps are as follows:
a) Press MENU to display the setting menu.
b) Press “▲” or “▼” to select Reset.
c) Press OK to reset to default settings and return to info display.
Press MENU to cancel setting and return to info display.
Page 10
SG560K-8M 4 Advanced Operations
4.2 Default Settings and Live Monitoring
Please refer to table 1 for the default settings:
Parameter name Default Other settings
Camera Mode Camera Video
Photo Size 8M Pixel 5M Pixel,1.3M Pixel
Photo Burst 1 Photo 2 Photos, 3 Photos
Video Size 640×480 320x240
Video Length Avi 10 Second 1-60 seconds
PIR Sensitivity Normal High, Low,OFF
PIR Interval 1 Minute 0-59 seconds, 1-60
minutes
Timer Interval OFF 10 seconds to 8 hours
Timer Switch Off On (00:00 – 23:59)
Time Stamp On Off
Table 1: Default settings of the Camera
4.3 Firmware upgrade
This camera is provides an upgrading function for the users. Upgrading is needed only
when an improved firmware is available.
Page 11
SG560K-8M 5 Mounting the camera
5 Mounting the Camera
When use the camera in outdoor environment, such as hunting or monitoring the living
habits of wild animals, you need to mount the device on a certain place properly. It is
recommended to mount the camera on a tree with diameter about 15cm. To get the optimal
picture quality, the recommended distance is 5m from the tree to the target monitoring area and
recommended height from the ground is 1.5~2 meters. Adjust the viewing angel properly (view
angle of this camera is 52°).
There are two ways to mount the camera: using a band shaped belt, bottom screw.
z Using the belt: To use the belt to fix the camera on a tree is illustrated in Fig. 4. Take the
belt toes to go through the two back holes of the camera. At the end, tie the two toes to the
tree to finish fixing.
z Using bottom screw.
Figure 4: Fixing the
camera with belt
Page 12
SG560K-8M Appendix I: PIR Detection Zone
Appendix I: PIR Detection Zone
The figure4 shows the detection range in different detection angle. When the detection
angle is 35°,the detection range is 50ft. When the detection angle is 52°,the detection range is
30ft.
Figure 4
The PIR detection angle (α) is just barely larger than the field of view angle(β). The
advantage of this design is to avoid empty pictures and get available pictures.
Figure 5
SG560K-8M has a new design of PIR and this new PIR is patented. The new patented PIR’s
detection range can reach to 25m. The figure 6 shows the compared detection zone between
Page 13
SG560K-8M Appendix I: PIR Detection Zone
normal PIR and the new patented PIR.
Figure 6
Page 14
SG560K-8M AppendixⅡ: Technical Specifications
AppendixⅡ: Technical Specifications
Image Sensor 5MP Color CMOS；8MP interpolation;
Lens
F/NO=3.1mm
FOV(Field of View)=52°
PIR Detection Range
20m-25m
Display Screen
2.0” TFT
Memory Card
From 8 MB to 16 GB
Picture Resolution
8MP =3328 ×2496
5MP =2560
×1920
Video Resolution
640
×480 (16fps)
320×240 (20fps)
PIR Sensor
Multi Zone
PIR Sensitivity
Adjustable (High/Normal/Low)
Trigger Time
1.2s
Weight *
0.24 kg
Operation/Storage Tem.
-20 - +60°C / -30 - +70°C
Interval
1s – 60 min.
Photo Burst
1–3
Video Length
1–60s
Power Supply
8× AA (recommend),4× AA(urgent)
Stand-by Current
< 0.3 mA (<7mAh/Day)
Power Consumption
150 mA(+450mA when IR-LED
lighted)
Low Battery Alert
LED Indicator
Display Screen
LCD display
Mounting
Rope/Belt/Python lock
Dimensions**
140x 80x 50 mm
Operation Humidity
5% - 90%
Security authentication
FCC, CE, RoHS
*without battery
Page 15
SG560K-8M AppendixⅢ: Parts List
AppendixⅢ: Parts List
Part Name Quantity
Digital Camera One
TV Cable One
USB Cable One
Belt One
User Manual One
Page 16
Loading...
