MOUNTING OPTIONS
TV ANTENNAS

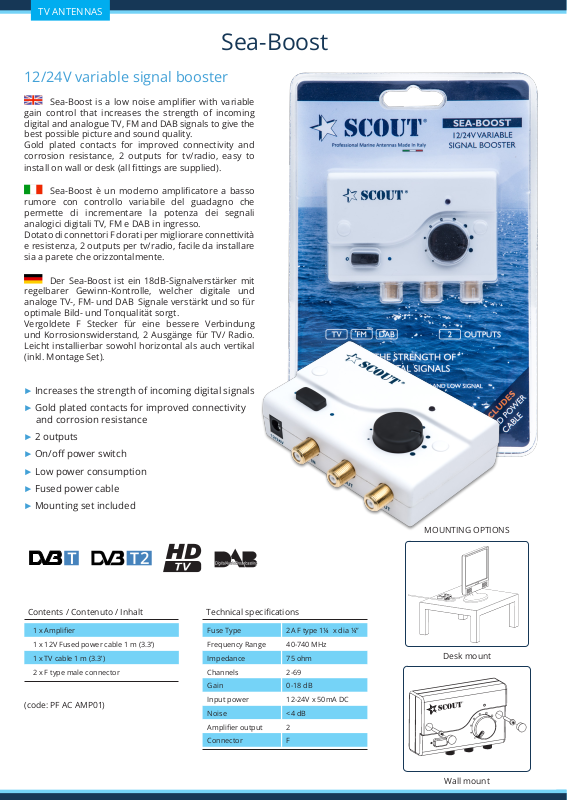

Sea-Boost
12/24V variable signal booster
Sea-Boost is a low noise amplier with variable
gain control that increases the strength of incoming
digital and analogue TV, FM and DAB signals to give the
best possible picture and sound quality.
Gold plated contacts for improved connectivity and
corrosion resistance, 2 outputs for tv/radio, easy to
install on wall or desk (all ttings are supplied).
Sea-Boost è un moderno amplicatore a basso
rumore con controllo variabile del guadagno che
permette di incrementare la potenza dei segnali
analogici digitali TV, FM e DAB in ingresso.
Dotato di connettori F dorati per migliorare connettività
e resistenza, 2 outputs per tv/radio, facile da installare
sia a parete che orizzontalmente.
Der Sea-Boost ist ein 18dB-Signalverstärker mit
regelbarer Gewinn-Kontrolle, welcher digitale und
analoge TV-, FM- und DAB Signale verstärkt und so für
optimale Bild- und Tonqualität sorgt.
Vergoldete F Stecker für eine bessere Verbindung
und Korrosionswiderstand, 2 Ausgänge für TV/ Radio.
Leicht installierbar sowohl horizontal als auch vertikal
(inkl. Montage Set).
► Increases the strength of incoming digital signals
► Gold plated contacts for improved connectivity
and corrosion resistance
► 2 outputs
► On/o power switch
► Low power consumption
► Fused power cable
► Mounting set included
Contents / Contenuto / Inhalt
1 x Amplier
1 x 12V Fused power cable 1 m (3.3’)
1 x TV cable 1 m (3.3’)
2 x F type male connector
(code: PF AC AMP01)
2 YEAR
WARRANTY
Technical specications
Fuse Type 2A F type 1¼ x dia ¼”
Frequency Range 40-740 MHz
Impedance 75 ohm
Channels 2-69
Gain 0-18 dB
Input power 12-24V x 50mA DC
Noise <4 dB
Amplier output 2
Connector F
MOUNTING OPTIONS
Desk mount
10
Wall mount
