VHF MOTORBOAT ANTENNAS

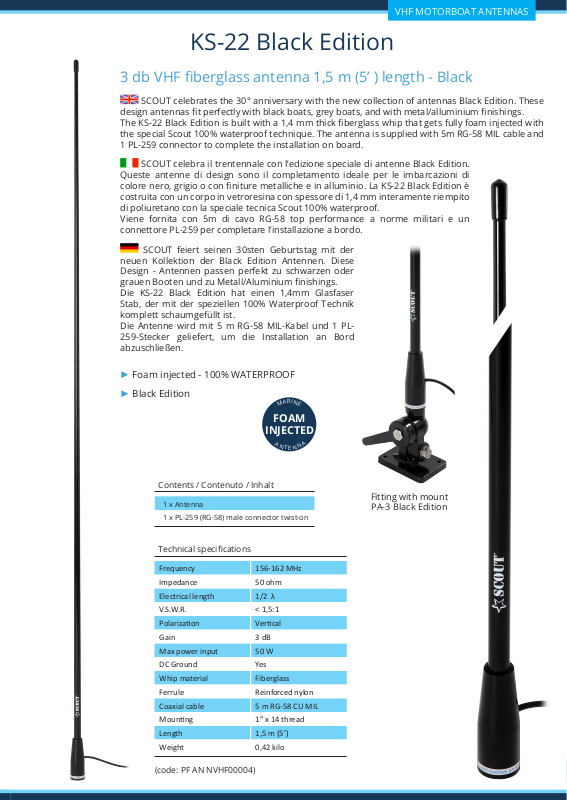

KS-22 Black Edition
3 db VHF berglass antenna 1,5 m (5’ ) length - Black
SCOUT celebrates the 30° anniversary with the new collection of antennas Black Edition. These
design antennas t perfectly with black boats, grey boats, and with metal/alluminium nishings.
The KS-22 Black Edition is built with a 1,4 mm thick berglass whip that gets fully foam injected with
the special Scout 100% waterproof technique. The antenna is supplied with 5m RG-58 MIL cable and
1 PL-259 connector to complete the installation on board.
SCOUT celebra il trentennale con l’edizione speciale di antenne Black Edition.
Queste antenne di design sono il completamento ideale per le imbarcazioni di
colore nero, grigio o con niture metalliche e in alluminio. La KS-22 Black Edition è
costruita con un corpo in vetroresina con spessore di 1,4 mm interamente riempito
di poliuretano con la speciale tecnica Scout 100% waterproof.
Viene fornita con 5m di cavo RG-58 top performance a norme militari e un
connettore PL-259 per completare l’installazione a bordo.
SCOUT feiert seinen 30sten Geburtstag mit der
neuen Kollektion der Black Edition Antennen. Diese
Design - Antennen passen perfekt zu schwarzen oder
grauen Booten und zu Metall/Aluminium nishings.
Die KS-22 Black Edition hat einen 1,4mm Glasfaser
Stab, der mit der speziellen 100% Waterproof Technik
komplett schaumgefüllt ist.
Die Antenne wird mit 5 m RG-58 MIL-Kabel und 1 PL259-Stecker geliefert, um die Installation an Bord
abzuschließen.
► Foam injected - 100% WATERPROOFFoam injected - 100% WATERPROOF
► Black Edition
A
M
FOAM
INJECTED
A
N
T
Contents / Contenuto / Inhalt
1 x Antenna
1 x PL-259 (RG-58) male connector twist-on
Technical specications
Frequency 156-162 MHz
Impedance 50 ohm
Electrical length 1/2 λ
V.S.W.R. < 1,5:1
Polarizaon Vercal
Gain 3 dB
Max power input 50 W
DC Ground Ye s
Whip material Fiberglass
Ferrule Reinforced nylon
Coaxial cable 5 m RG-58 CU MIL
Mounng 1” x 14 thread
Length 1,5 m (5’)
Weight 0,42 kilo
(code: PF AN NVHF00004)
I
R
N
E
N
N
E
WARRANTY
A
5 YEAR
Fitting with mount
PA-3 Black Edition
