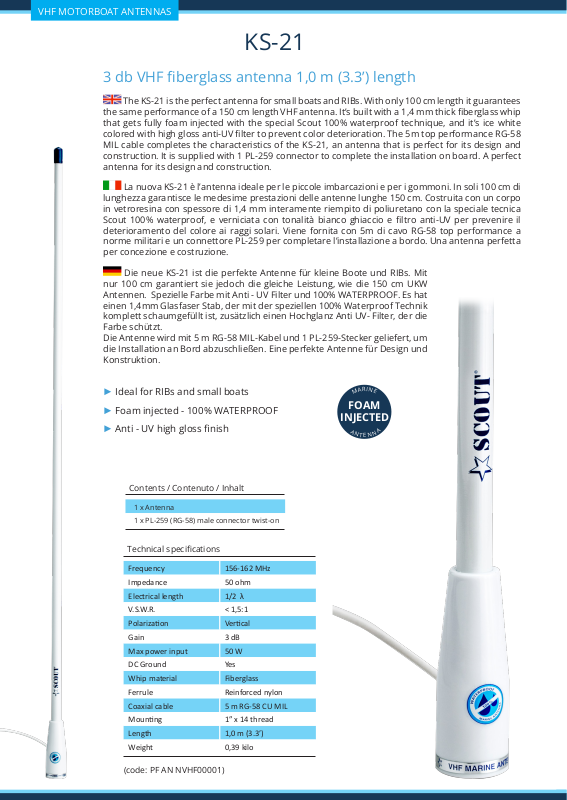

VHF MOTORBOAT ANTENNAS

3 db VHF berglass antenna 1,0 m (3.3’) length

The KS-21 is the perfect antenna for small boats and RIBs. With only 100 cm length it guarantees
the same performance of a 150 cm length VHF antenna. It’s built with a 1,4 mm thick berglass whip
that gets fully foam injected with the special Scout 100% waterproof technique, and it’s ice white
colored with high gloss anti-UV lter to prevent color deterioration. The 5m top performance RG-58
MIL cable completes the characteristics of the KS-21, an antenna that is perfect for its design and
construction. It is supplied with 1 PL-259 connector to complete the installation on board. A perfect
antenna for its design and construction.

La nuova KS-21 è l’antenna ideale per le piccole imbarcazioni e per i gommoni. In soli 100 cm di
lunghezza garantisce le medesime prestazioni delle antenne lunghe 150 cm. Costruita con un corpo
in vetroresina con spessore di 1,4 mm interamente riempito di poliuretano con la speciale tecnica
Scout 100% waterproof, e verniciata con tonalità bianco ghiaccio e ltro anti-UV per prevenire il
deterioramento del colore ai raggi solari. Viene fornita con 5m di cavo RG-58 top performance a
norme militari e un connettore PL-259 per completare l’installazione a bordo. Una antenna perfetta
per concezione e costruzione.

Die neue KS-21 ist die perfekte Antenne für kleine Boote und RIBs. Mit
nur 100 cm garantiert sie jedoch die gleiche Leistung, wie die 150 cm UKW
Antennen. Spezielle Farbe mit Anti - UV Filter und 100% WATERPROOF. Es hat
einen 1,4mm Glasfaser Stab, der mit der speziellen 100% Waterproof Technik
komplett schaumgefüllt ist, zusätzlich einen Hochglanz Anti UV- Filter, der die
Farbe schützt.
Die Antenne wird mit 5 m RG-58 MIL-Kabel und 1 PL-259-Stecker geliefert, um
die Installation an Bord abzuschließen. Eine perfekte Antenne für Design und
Konstruktion.

KS-21

38

► Ideal for RIBs and small boats

► Foam injected - 100% WATERPROOFFoam injected - 100% WATERPROOF

► Anti - UV high gloss nish

Contents / Contenuto / Inhalt

1 x Antenna

1 x PL-259 (RG-58) male connector twist-on

Technical specications

Frequency 156-162 MHz

Impedance 50 ohm

Electrical length 1/2 λ

V.S.W.R. < 1,5:1

Polarizaon Vercal

Gain 3 dB

Max power input 50 W

DC Ground Ye s

Whip material Fiberglass

Ferrule Reinforced nylon

Coaxial cable 5 m RG-58 CU MIL

Mounng 1” x 14 thread

Length 1,0 m (3.3’)

Weight 0,39 kilo

(code: PF AN NVHF00001)
