VHF SAILBOAT ANTENNAS

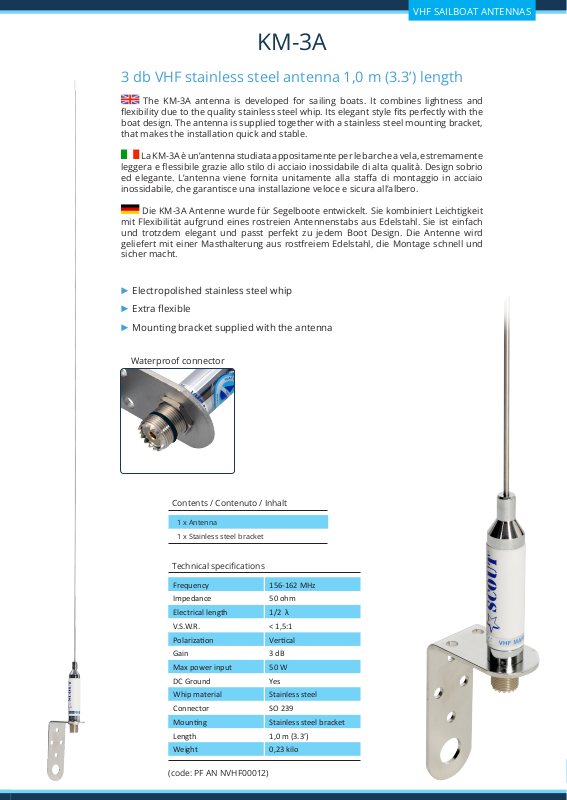

KM-3A
3 db VHF stainless steel antenna 1,0 m (3.3’) length
The KM-3A antenna is developed for sailing boats. It combines lightness and
exibility due to the quality stainless steel whip. Its elegant style ts perfectly with the
boat design. The antenna is supplied together with a stainless steel mounting bracket,
that makes the installation quick and stable.
La KM-3A è un’antenna studiata appositamente per le barche a vela, estremamente
leggera e essibile grazie allo stilo di acciaio inossidabile di alta qualità. Design sobrio
ed elegante. L’antenna viene fornita unitamente alla staa di montaggio in acciaio
inossidabile, che garantisce una installazione veloce e sicura all’albero.
Die KM-3A Antenne wurde für Segelboote entwickelt. Sie kombiniert Leichtigkeit
mit Flexibilität aufgrund eines rostreien Antennenstabs aus Edelstahl. Sie ist einfach
und trotzdem elegant und passt perfekt zu jedem Boot Design. Die Antenne wird
geliefert mit einer Masthalterung aus rostfreiem Edelstahl, die Montage schnell und
sicher macht.
► Electropolished stainless steel whip
► Extra exible
► Mounting bracket supplied with the antenna
Waterproof connector
Contents / Contenuto / Inhalt
1 x Antenna
1 x Stainless steel bracket
Technical specications
Frequency 156-162 MHz
Impedance 50 ohm
Electrical length 1/2 λ
V.S.W.R. < 1,5:1
Polarizaon Vercal
Gain 3 dB
Max power input 50 W
DC Ground Ye s
Whip material Stainless steel
Connector SO 239
Mounng Stainless steel bracket
Length 1,0 m (3.3’)
Weight 0,23 kilo
(code: PF AN NVHF00012)
5 YEAR
WARRANTY
