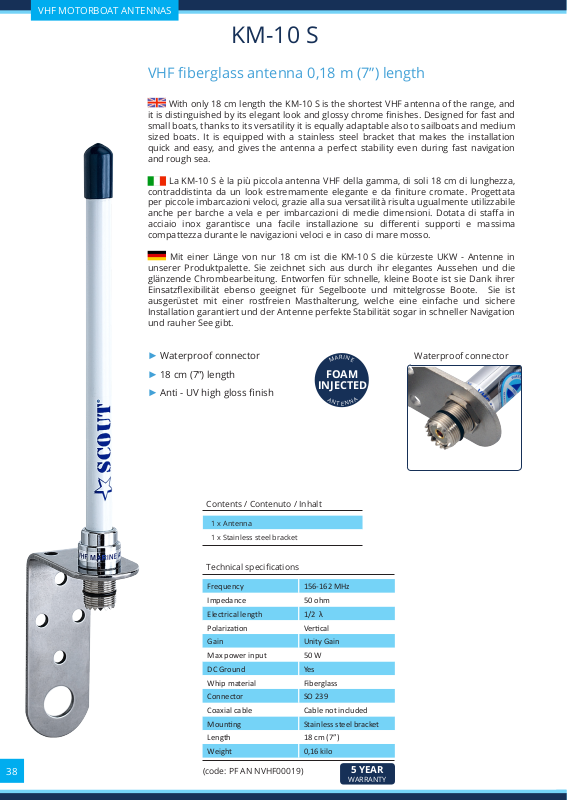

VHF MOTORBOAT ANTENNAS
VHF berglass antenna 0,18 m (7”) length
it is distinguished by its elegant look and glossy chrome nishes. Designed for fast and
small boats, thanks to its versatility it is equally adaptable also to sailboats and medium
sized boats. It is equipped with a stainless steel bracket that makes the installation
quick and easy, and gives the antenna a perfect stability even during fast navigation
and rough sea.
contraddistinta da un look estremamente elegante e da niture cromate. Progettata
per piccole imbarcazioni veloci, grazie alla sua versatilità risulta ugualmente utilizzabile
anche per barche a vela e per imbarcazioni di medie dimensioni. Dotata di staa in
acciaio inox garantisce una facile installazione su dierenti supporti e massima
compattezza durante le navigazioni veloci e in caso di mare mosso.
unserer Produktpalette. Sie zeichnet sich aus durch ihr elegantes Aussehen und die
glänzende Chrombearbeitung. Entworfen für schnelle, kleine Boote ist sie Dank ihrer
Einsatzexibilität ebenso geeignet für Segelboote und mittelgrosse Boote. Sie ist
ausgerüstet mit einer rostfreien Masthalterung, welche eine einfache und sichere
Installation garantiert und der Antenne perfekte Stabilität sogar in schneller Navigation
und rauher See gibt.
KM-10 S
With only 18 cm length the KM-10 S is the shortest VHF antenna of the range, and
La KM-10 S è la più piccola antenna VHF della gamma, di soli 18 cm di lunghezza,
Mit einer Länge von nur 18 cm ist die KM-10 S die kürzeste UKW - Antenne in
38
► Waterproof connector
► 18 cm (7”) length
► Anti - UV high gloss nish
Contents / Contenuto / Inhalt
1 x Antenna
1 x Stainless steel bracket
Technical specications
Frequency 156-162 MHz
Impedance 50 ohm
Electrical length 1/2 λ
Polarizaon Vercal
Gain Unity Gain
Max power input 50 W
DC Ground Yes
Whip material Fiberglass
Connector SO 239
Coaxial cable Cable not included
Mounng Stainless steel bracket
Length 18 cm (7”)
Weight 0,16 kilo
(code: PF AN NVHF00019)
I
R
N
A
E
M
FOAM
INJECTED
A
A
N
N
T
N
E
5 YEAR
WARRANTY
Waterproof connector
