USER MANUAL

SCOTT VOLTAGE FR

www.scot t-sport s.com

ENGLISHENGLISH

The Voltage FR 700 should be adjusted exactly to the current
rider to maximize safety, comfort a nd fun while riding.

All adjustm ents should be done at your local SC OTT dealer or by
following the instructions in this manual.

CONTENTS

Voltage FR Concept. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 04

Geom etry/ Technical Data Voltage FR 700. . . . . . . . . . . . . . . . . . . . . . . . . . . 05

Adjustable Rear Travel . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 06

Rear Suspension Set- Up Voltage FR 700. . . . . . . . . . . . . . . . . . . . . . . . . . . . 07

Basic Set-Up of Rebound. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 07

Recommended Tools for Set-Up . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 08

Rear Shock Mounting Position . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 08

Set-Up of Other Shock Models . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 09

Headset Standard . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 09

Adjustable Headset . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .10

Seatpost Standard. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .10

BB Standard. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .11

IDS Drop Out System . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 11

Rear Brake Mount Standard . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .12

Frame Hardware . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 13

Pivot Maintenance . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .14

Front Fork Set- Up/Change of Front Fork. . . . . . . . . . . . . . . . . . . . . . . . . . . . .15

Cable Routing. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .16

Guarantee on S COTT Bikes . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 18

03 |

BIKE USE R MANUAL | VOLT AGE FRVOLTAG E FR | BIKE USER MANUAL

| 02

ENGLISHENGLISH

VOLTAGE FR CONCEPT GEOMETRY/TECHNICAL DATA VOLTAGE FR 700

Voltage FR 700 is the result of years of research and development sea rching for one
of the most vers atile, durable and affordable gravit y bikes availabl e on the market,
but still easy in set-up and maintenance.

SCOTT’s focus was n ot only on light weight but also on a durable a nd sturdy fra me
with an optimized kinematics of th e rear swingarm.

Voltage FR 700 was designed for riders looking for a dual suspended gravity bike
offering rear wheel travel of 190mm .

The Voltage FR Concept is based on an improved multi-pivot techno logy design ed
specific ally around th e new 27.5” wheels.

In combination with the linear coil-over shock charac teristics the kinematic s
guarantees a progressive suspension , adapted to smooth riding (beginning of travel)
as well as extrem e jumps (end of travel) .

Sizes S, M and L
Frame Travel 170/190 mm depending on th e

shock position.
Piston stroke 76mm (3”)
Shock le ngth (Eye
to Eye)

241mm (9.5” )

Fork travel 170-200m m (27.5” whee l) –

180-20 0mm (26” wheel)
Fork length 560-5 86mm (27.5” wheel) –

565-586mm (26” wheel)
Hardware Mainframe 22. 2mm x 8mm
Hardware Swingarm 22. 2mm x 8mm
Seatpost diameter 31.6mm
Headtube diameter 1.5”
Headset Semi integrated
BB housing 73mm
Front derailleur No
Rear Hub W idth 135mm
Drop out option 12mm thru a xle: 425mm /415mm,

nutted axl e: 425mm
Max tire widt h 61mm (2. 35 Schwalbe or

2.5Ma xxis)

Wheel s ize 27.5”: 425mm DO O nly /

26”:425m m and 415mm DO
Bearings 4 x 618 05 / 4 x 6902
Chainguide ISCG05
Chainring Single sp eed, 34T to max. 38T

S M L

LOW BB SETT ING LOW BB SETT ING LOW BB SETT ING

A HEAD TUBE ANGLE 64.0 ° 64.0 ° 64.0 °

B HEA D TUBE LENGTH 115.0 mm 4.5 in 115 .0 mm 4.5 in 1 15.0 mm 4 .5 in

C TOP TUBE HORIZONTAL 569.6 mm 22.4 in 604.6 mm 23.8 in 629.6 mm 24.8 in

D STANDOVER HEIGHT 776.6 mm 30.6 in 770.6 mm 30.3 in 770.3 mm 30.3 in

E BB O FFSET -13.0 mm -0.5 in -13 .0 mm -0.5 in -13.0 mm -0.5 in

F BB HEIGHT 345.0 mm 13.6 in 345.0 mm 13.6 in 3 45.0 mm 13.6 in

G WHEEL BASE 1,165 .2 mm 45.9 in 1,200.2 mm 47.3 i n 1,225. 2 mm 48.2 i n

H BB CENT ER TO TOPTUBE CENT ER

I BB CEN TER TO TOP OF SEATTU BE 368. 8 mm 14 .5 in 36 8.8 mm 14.5 in 368.8 mm 14 .5 in

J SE AT AN GLE 73.5 ° 73 .5 ° 7 3.5 °

K CH AIN STAY 425.0 mm 16 .7 in 425 .0 mm 1 6.7 in 425.0 mm 1 6.7 in

L R EACH 385.0 mm 15 .2 in 420.0 mm 16 .5 in 445.0 mm 17.5 in

M STACK 623.1 mm 24 .5 in 623.1 mm 24.5 in 62 3.1 mm 24.5 i n

N STEM LENGTH 50.0 mm 2.0 in 50.0 mm 2 .0 in 50.0 mm 2.0 in

05 |

BIKE USE R MANUAL | VOLT AGE FRVOLTAG E FR | BIKE USER MANUAL

| 04

ENGLISHENGLISH

ADJUSTABLE REAR TRAVEL REAR SUSPENSION SET-UP VOLTAGE FR 700

Depending on the different mode ls of Voltage FR you’ll find the shock mounted at
2 different positions that will provide 2 different suspension travels to the f rames
without changing seat/headtube-angles o r riding position on the bike.

Long trave l setting: 190 mm

Shor t travel set ting: 170mm

•

IMPORTANT!

After a dismantlement of th e rear shock , both fixing bolts should be tightened with a
tightening torq ue of 35Nm/ 308in-lbs.

If this is not done correctly th e rear shock c an be damaged.

In addit ion we strongly recom mend usi ng a tightening torque key with a 6m m
allen key insert.

The Set-Up of the re ar shock ca n be easily done within a few minutes.

Please ta ke this tim e to avoid dang erous rid ing perf ormance a nd to get th e best
out of your Voltage FR.

Please make sure that the coil spring on the sho ck matches to your riding weight
(including your riding ge ar).

We recommend following coil springs:

50- 60kg 250x3.25

60 -70kg 30 0x3.25

70-80kg 350x3. 25

80-90kg 400x3.25

For fine tuning the SAG and the corresponding eye-to-eye distance of the shock
bolts you can tighten or release the pretension of the coil spring but please respect
the maximum a nd minimum spring indications of the sh ock manufact urer.

The eye-to-eye distance between the shock bolts should be in basic set u p 144.6 mm
(40 % SAG).

For further details on the shock set-up please follow the indications of the rear shock
manufac turer attached to this bike.

BASIC SET-UP OF REBOUND

“Rebou nd” describes the speed the shock co mes back to its original len gth after
absorbing an obstacle.

By using the red rebound screw you can adjust the rebound step by step.

Please refer to the following ins truction:

Ride your bike of f a pavement (remain in the saddle) and ch eck how many time s it
bounces.

- if it bounces 1-2 time s, the set up is good.

- If it bounces more than 3 times the rebound is too fast. Turn the screw 1-2 “click s”
clockwise

- If it does not bou nce the rebound is too slow. Turn the screw 1-2 “clicks” counter
clockwise.

07 |

BIKE USE R MANUAL | VOLT AGE FRVOLTAG E FR | BIKE USER MANUAL

| 06

ENGLISHENGLISH

RECOMMENDED TOOLS FOR SET-UP

Please read this manual and the rear shock manufacturer's manual carefully before
you start the set-up procedure.

In addition we strongly recommend using a tightening torque key with a 6mm allen
key insert.

REAR SHOCK MOUNTING POSITION

Please make sure to mount the rea r shock of your S COTT Voltage FR 700 always as
shown in the pic ture below (piggy back in the “ Top/Bottom” posi tio n).

SET-UP OF OTHER SHOCK MODELS

HEADSET STANDARD

SCOTT strongly recommends on ly using the originally specified shock with the
Voltage FR bike, as the shock has been ca refully chosen to fit and work perfectly

with this bike.

If you use a different rear shock model than the original shock on the bike, please
avoid potential damage to the fram e by checking th oroughly that the shock does not
hit the frame in any position.

Please follow these instructions:

Ensure that the rear shock an d its accessory parts do not touch the frame when
mounting or suspending.

To check this, release the air/remove the coil, install the shock and compre ss the
shock completely.

If the shock touches the fram e while doi ng so, do not u se this sh ock in orde r to
avoid damag e to frame, swingarm o r shock.

Standard Semi integrated : 1.5”
headset cup can be used .

- S.H.I.S : ZS 49 / 28.6 | Z S49 / 30

09 |

BIKE USE R MANUAL | VOLT AGE FRVOLTAG E FR | BIKE USER MANUAL

| 08

ENGLISHENGLISH

ADJUSTABLE HEADSET

SEATPOST STANDARD IDS DROP OUT SYSTEM

BB STANDARD

Threaded BB: 73mm wide

Thru axle setup Nutted Axle Setu p

Chainguide mount tab: ISCG05

Chainring size: 38T maximum size

In addition Syncros Pressfit D H
Adjustable headset (SCOTT part
number : 2 28442) can be used to
change the g eometry (+/-1° or +/-2°
head angle) and modify the ride
feeling of the bike

Voltage FR 700 is com patible with 31.6mm diameter seat post and 34. 9mm
Seatclamp diameter.

Please note that maximum insertion is 120mm Maximum .

The Voltage FR 700 offers the possibility not only to change drop out hang er in
case of dama ge, you also can choose bet ween diffe rent drop out s of the SCOT T IDS
(Interchangeable Drop-Out System):

11 |

BIKE USE R MANUAL | VOLT AGE FRVOLTAG E FR | BIKE USER MANUAL

| 10

ENGLISHENGLISH

REAR HUB SPACING

135mm width hub

REAR HUB AXLE DIAMETER

For thru axle hubs – 12mm axle. Use only SC OTT provi ded axle.

For nutted hu bs – 12mm nutted axle.

Please contact your local SCOT T dealer for supply of those parts in case you want to
re-fit your bike with one of those versions.

REAR BRAKE MOUNT STANDARD

IS rear brake mount.

No adapter needed for 1 60mm disc size.

Adapter needed for 180mm and 20 0mm disc sizes.

Thru axle setup

Bearing kit

Nutted Axle Setu p

FRAME HARDWARE

Some hardwa re is shared with G ambler 700 MY15: Main pivot nuts, main pivot
spacers an d all bearin gs, as highlighted in the pic tures below.

4 x 61805 2RS

4 x 6902 2RS

13 |

BIKE USE R MANUAL | VOLT AGE FRVOLTAG E FR | BIKE USER MANUAL

| 12

ENGLISHENGLISH

The pivots and b earings on SCOTT Voltage FR 700 are extremely easy to maintain.

An external tre atment with a grea se spray after every bike wash is all that is neede d.
We do not recomme nd heavy grease sprays as these leave a film on the pa rts which
is difficult to remove. We also recom mend the same for the chain.

•

ATTENTION!

We strongly recommend going to your local SC OTT dealer if the swingarm requires
repair or assembly/disassembly in order to avoid injuries and damage cause d by
incorrect set- up .

Should you ch oose to order a bearing ser vice tool kit or a kit with all necessary
bearings , these are available to order at your local SCOTT dealer using the S COTT
article nu mbers below. Alternatively, order from a hardware store using the bearing
information in the Geometry/Tech Data sectio n of this manual.

For the set-up of the fro nt fork please use the fork specific manual attached to
the bike.

The recommended Fork lengths for the S COTT Voltage FR 700 are:

Wheel s izes Front fork l ength range Max fork of fset Accepted for k travel range

27. 5” 586m m / 560mm 52mm 203mm/170mm

26” 586mm / 56 5mm 52mm 203mm/18 0mm

PIVOT MAINTENANCE

FRONT FORK SET-UP/CHANGE OF FRONT FORK

Pivot and hardware torque values

15 |

BIKE USE R MANUAL | VOLT AGE FRVOLTAG E FR | BIKE USER MANUAL

| 14

ENGLISHENGLISH

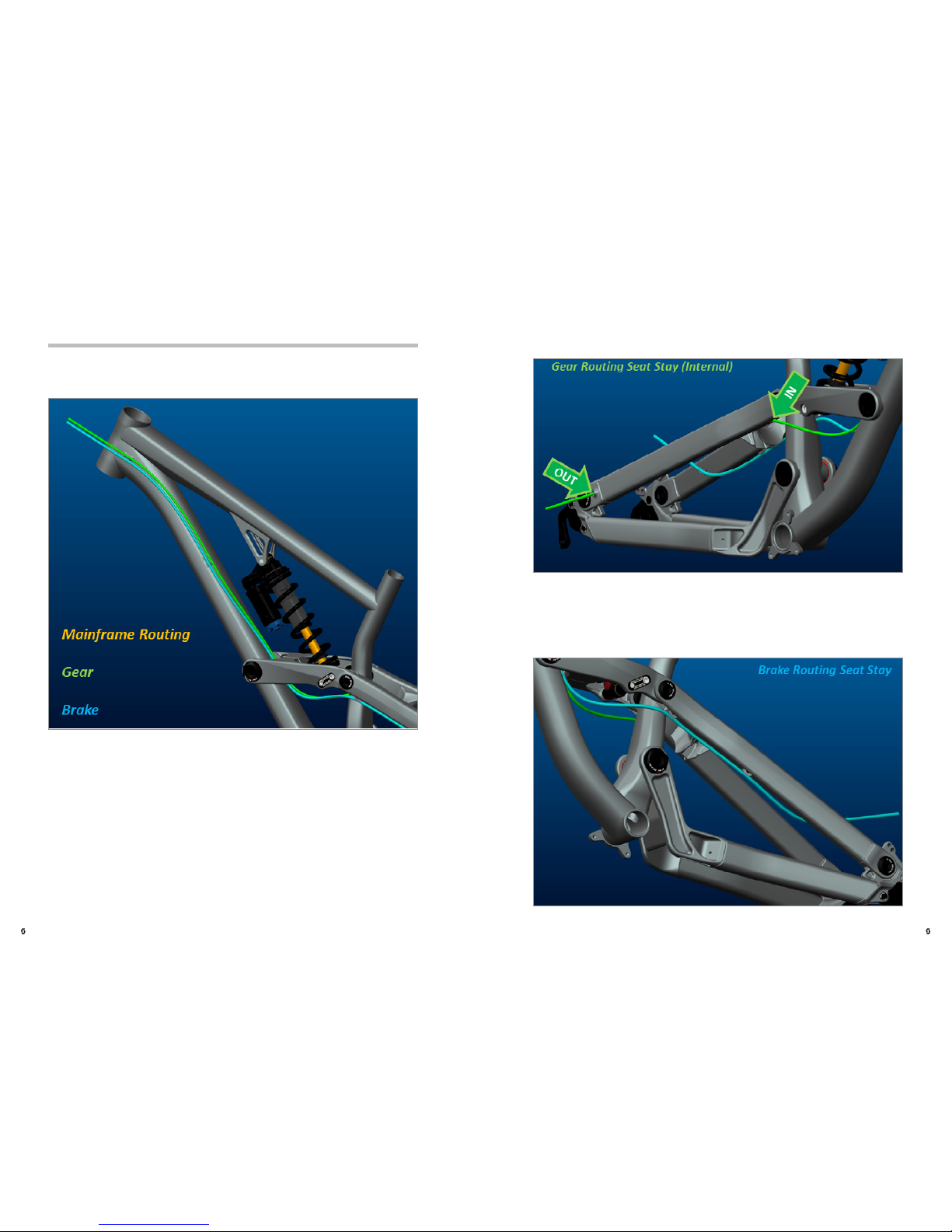

CABLE ROUTING

Mainframe Routing: External for b oth gear and b rake via 3 cable guides. C ables exit

mainframe under link.

Brake external alon g seat stay via 3 cable guides

Rear Triangle Routing: Internal ge ar routing through right seat stay via entry just

after link a nd exit just befo re drop out.

17 |

BIKE USE R MANUAL | VOLT AGE FRVOLTAG E FR | BIKE USER MANUAL

| 16

SCOTT Bikes

Gambler, Voltage FR, Volt-X

5

ENGLISHENGLISH

limited warranty does not cover purchases of n ot completely assembled b ikes. This
limited warranty does not cover any defect ca used by “wear and tear” (a complete lis t
of all parts of “wear and tear” can be found in the gen eral manual that came with your
bike), accident, neglect, improper handling, colo ur fade due to exp osure to sunlight,
abuse, misuse, an act of God, improper assembly, non-compliance with recommended
maintenance and care procedures, improper or incorrectly performed maintenance or
repairs pe rformed by so meone othe r than an authorized SCOT T dealer, use of pa rts or
devices not consistent with the Product, and alteration of the Product.

All Produc ts come with a manual; please carefully fo llow the instru ctions loc ated there
or affixed e lsewhere to the Product. To the extent permitted by law, consequential and
incidental damages a re not recoverable under this limited warrant y.

How do you make a claim under this lim ited warra nty?

To make a claim under this limited warranty, you must notif y SCOTT of the claimed d efect
within the warra nty period and timely retu rn the Produc t to SCOT T at your expense for
inspection. Please contact your a uthorized SC OTT dealer, call SCOTT ’s customer service
or the national SCOTT distributor (dealer locator: www.scott-sports.com). All returned
Products must be accompanied by proof of purchase (receipt) from an authorized
SCOTT dealer or thi s limited warranty will not app ly. In case of repla cement or ref und,
returned Pro duct becomes the prope rty of S COT T.

A protocol for the handing over of the Product (which you will find at the end of the
manual) will remain in copy at the SCOTT dealer after acceptance and signature of
the consume r. It is obligatory to show this protocol of ha nding over togeth er with the
defective part in case of a warranty claim given that it provide s evidence of purchase or
this limited warranty will not a pply.

How do state laws affec t your right s under this limited warrant y?

This limited warranty gives you specific legal rights, and you may also have other rights,
which vary f rom state to state.

Recommendation

We strongly recommend that you use only authorized SCOTT dealers for yearly
maintenance services and for repairs, as improper or incorrectly performed maintenance
or repairs voids this limited warranty. Costs fo r maintenan ce service have to be borne by
the consumer.

•

WARNING!

SCOTT Spor ts SA is not res ponsib le or liable for any injury cau sed by any missing
complia nce with th ese inst ructions, particularly but not lim ited to mis use, inco rrect
maintenance, incorrect set-up and handlin g, neglect or abuse. Failure to follow these
instructions can result in component failure, serious personal injury. Component failure
can lead to loss of control of the bi cycle and result in serious personal injury.

What is Covered?

This warrant y covers defects in materials and workman ship at the time of transfer of risks
in frames , swingarms and forks (provided it is a fork of SCOT T) on SCOTT branded bikes
sold completely assembled by SCOT T or an authorized SCOTT dealer (“Product”).

How long do es coverage las t?

This voluntary manufacturer’s warranty is limited to five years for frames and swingarms,
respectively two years for forks, from the d ate of purchase of th e Product and is limited
to the first purchaser of the Product and subject to the prior registration of your SCOTT
bike on www.scott-sports .com within 10 days as of the date of purchase. Transfer of
the Produc t from the firs t purchaser to another per son terminates this limited warranty.
The limited warranty of five years for the fram es and swingarms shall on ly be granted
in case once a year a maintenance service has been effected according to maintena nce
requirements as set for th in the manual. The effected annual maintena nce service shall
be confirmed by stamp and signature. In c ase such an annual maintenance ser vice has
not been ef fected the wa rranty of five yea rs for the frame shall be red uced to three years.
Costs for ma intenance and service have to be borne by the owner of the Product.

On Gambler, Voltage FR and Volt-X the warranty pe riod is limited to t wo years.

Repaired or replaced Products are covered for the remainder of the original warranty
period and subject to the conditions outlined in the original warra nty, to the extent
permitted by law.

Hereby SCOTT grants a worldwide voluntarily manufacturer ’s warranty. To the extent
permitted by law and unless a shorter duration is stipulated by law, any warranties
implied by law are limited in duration to maximum five, respectively two years, f rom the
date of purchase of the Product and are limited to th e first purchaser of the Product.

What will SCOTT do?

SCOTT will replace or re pair any defective Product, or will refund your purchase price (as
evidenced by your tendered receipt of purchas e of the Produc t), at SCOTT ’s option. You
must pay charges in connection with replacement of any non-defective parts . In such a
case, you will b e alerted to the advisability of replacing non-defective parts, so you can
pre-autho rize the costs.

What does t his limi ted warran ty not cover?

This limited warranty doe s not cover defect s which did not exist before the tra nsfer
of risks. This limited warranty does not cover Products used in rental o perations . This

GUARANTEE ON SCOTT BIKES

19 |

BIKE USE R MANUAL | VOLT AGE FRVOLTAG E FR | BIKE USER MANUAL

| 18
