Scale Concept . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 04
Geometry/Technical Data Scale 3 700 . . . . . . . . . . . . . . . . . . . . 05
Geometry/Technical Data Scale 3 900 . . . . . . . . . . . . . . . . . . . . 06
RIDELOC . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .07
Basic Set- Up of Forks . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 08
SAG . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 09
Rebound Fork Set-Up . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .10
Replaceable Rear Dropout . . . . . . . . . . . . . . . . . . . . . . . . . . . . .10
Cable Guides and Cabling. . . . . . . . . . . . . . . . . . . . . . . . . . . . . .12
BB Standards/FD Mounting Details . . . . . . . . . . . . . . . . . . . . . . . .13
Adjustment . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .13
Guarantee on SCOTT Bikes. . . . . . . . . . . . . . . . . . . . . . . . . . . . .14
CONTENTS
The SCOT T Scale 3 should be adjusted exactly to the individual rider to achieve ma ximum saftey and fun while riding.
SCOTT reco mmends that all adju stments b e carried out by your local authorized SCOTT dealer. Some basic maintenance
can be done if strictly following the manuals supplied with this bike.
Please contact your authorized SCOTT dealer for advice in order to avoid any harm and assist you with any questions or technical problems .
IMPORTANT
Please note this manual refers to th e SCOTT Scale 3 only, models covered by this manual are:
Scale RC 700 SL / RC 900 SL
Scale RC 700 Ultimate / RC 90 0Ultima te
Scale RC 700 World Cup / RC 90 0 World Cup
Scale RC 700 Pro / RC 900 Pro
Scale 700 / 9 00, 710 / 910, 720 / 920
03 |
BIKE USE R MANUAL | SCALE 2016 ONLYSCALE 2016 ONLY | BIKE USER MANUAL
| 02
S M L
A HEAD TUBE ANGLE 69.0 ° 69.0 ° 69.0 °
B HEA D TUBE LENGTH 95.0 mm 3.7 in 100.0 mm 3.9 in 115 .0 mm 4. 5 in
C TOP TUBE HORIZONTAL 575.0 mm 22.6 in
600.0 mm
23.6 in 625.0 mm 24.6 in
D STANDOVER HEIGHT 726.0 mm 28.6 in 756.0 mm 29.8 in 784.0 mm 30. 9 in
E BB O FFSET -46.0 m m -1.8 in -46.0 m m -1.8 in -46.0 m m -1.8 in
F BB HEIGHT 305 .5 mm 12.0 in 305. 5 mm 12.0 in 3 05.5 mm 12.0 in
G WHEEL BASE
1,073 .7
mm
42.3 in
1,099.0
mm
43.3 in 1,125 .2 mm 44.3 in
H BB CENT ER TO TOPTUBE CENT ER 325.0 mm 12 .8 in 375.0 mm 14. 8 in 415.0 mm 16.3 in
I BB CENTER TO TOP OF SE ATTUBE 390.0 mm 15.4 in
440.0 mm
17.3 in 480.0 mm 18.9 i n
J SE AT ANG LE 73.2 ° 73.2 ° 73.2 °
K CH AIN STAY 425.0 mm 16 .7 in 425 .0 mm 1 6.7 in 425.0 mm 16. 7 in
L R EACH 401.0 mm 1 5.8 in 424.6 mm 1 6.7 in 445.3 mm 17.5 in
M STACK 575 .0 mm 22.6 i n 579.6 mm 22.8 in 593.6 mm 23.4 in
N STEM LENGTH 60.0 mm 2.4 in 70.0 mm 2.8 in 80.0 mm 3 .1 in
0 TRAIL 87.8 mm 3.5 in 87. 8 mm 3. 5 in 87.8 m m 3.5 in
ENGLISHENGLISH
SCALE CONCEPT
From the Carbon fiber to the manufacturing process to the f inal result- the new S cale has been completely rede signed. Th e result: a new benchmark for race hardtail frames. The Scale R C 700 SL weighs in at only 849 grams. The incredible light weight frame characteristics and two dedicated frame platfo rms for 1x and 2x drivetrains lif t the standard of hardtail mountain bikes to a new level.
A mix of high- end carbon fibers has been used on all Scale C arbon frames in orde r to achieve incredible results . The HMX-SL fr ame utilizes MR70, YS60 and HR40 C arbon fibers. HR40 is a strong an d light filament which, used together with M R70 fibers, attains unachieved ten sile strength values. In order to achieve the set stiffness targets, YS60 layers are added into the lay-up. Af ter choosing the Carbon f ibers, th e enginee rs are using spe cific tools, like FE A software , to map out the carbon lay-up. Thanks to SC OTT 's proprietar y EvoLap-Technology, diffe rent forces can be applied on a virtual mo del and the f rame construction is adjusted accordingly.
The SDS2 technology achieves comfort in c arbon fra mes without adding parts or sacrificing stiffne ss characteristics. In order to achieve this , the engineers use dif ferent tube sh apes in combination with a strategic alig nment of the carbon fibers to avoid any undesired flex that can impair performance.
The Boost standard improves wheel stiffness and a llows for increased tire clearance. The new Scale frame has been developed around the Bo ost standa rd in order to maximize the advantage s of the new norm . The three millimeter outboa rd chain ring ad ds clearan ce to the chainstay area allowing for a significant increase of the chainstay cross-sec tion for both, the 1x and 2x models. This of fers more possibilities to find the right position of the rear whe el in the frame in o rder to achieve improved structural stiffness.
The new Scale is available in t wo different versions. The HMX-SL and HM X frames are optimized for 1x drivetrains only an d therefore ded icated to race-oriented riders. The HMF line-u p is designed and optimized around a double chain ring setup. These models can, however, accommodate a single chainrin g configuration.
On the new Scale introduce a sp ecific brake mount adapter which is linked dire ctly to the chainstay an d thru-axle in order to increase stiffness.
Routing the cables internally avoids bulky external hardwa re and looks cl eaner. Due to the improved protectio n, the cabl es have a longer lifetime.
The new Scale chain guide weighs in at just 23 grams, is easy to assemble thanks to a smart mounting system and can accommodate 30T to 36T chainrings.
The new Scale dropouts are designed to be integrated on the thru-axle system thanks to a hollow tube design that allows a sim ple and light weight struc ture.
GEOMETRY/TECHNICAL DATA SCALE 3 700
Seatpost Diameter 31.6mm
Seattube clamp 34.9
Headset bearing s: 51.9x40x8 45 ° x 45 °/
41.8x3 0.5x8 45 ° x 45 °
Fork travel 100mm
BB housing BB PF92
Front derailleur Shiman o high direc t mount side
swing (none RC m odels only)
Additional parts needed
Chainring size 38T max
Max tyre wi dth 2.3/57mm
Please note: Tire size s often vary from brand to b rand. Ensure t he tire clearan ce is adequate wh en replacing your tires!
IMPORTANT
Only a bot tle with 0.55L c apacity will have the cle arance to fit a sma ll frame
05 |
BIKE USE R MANUAL | SCALE 2016 ONLYSCALE 2016 ONLY | BIKE USER MANUAL
| 04
S M L XL
A HEAD TUBE ANGLE 69.5 ° 69 .5 ° 69.5 ° 69. 5 °
B HEA D TUBE LENGTH 95.0 mm 3.7 in 100.0 mm 3. 9 in 115 .0 mm 4. 5 in 125.0 mm 4 .9 in
C TOP TUBE HORIZONTAL 575.0 mm 22.6 in
600.0 mm
23.6 in 62 5.0 mm 24.6 in 650.0 mm 25.6 i n
D STANDOVER HEIGHT 743. 0 mm 29.3 in 7 74.0 mm 30.5 i n
800.0 mm
31.5 in 835.1 m m 32 .9 in
E BB O FFSET -58. 0 mm -2.3 in - 58.0 mm -2. 3 in -58. 0 mm -2.3 in - 58.0 mm -2. 3 in
F BB HEIGHT 312.0 mm 12. 3 in 312.0 mm 1 2.3 in 3 12.0 mm 12.3 in 312.0 mm 12. 3 in
G WHEEL BASE
1,076. 4
mm
42.4 in 1,10 1.8 mm 43.4 in 1 ,127. 9 mm 44. 4 in 1,153.7 mm 45.4 in
H BB CENT ER TO TOPTUBE CENT ER 325.0 mm 12 .8 in 375.0 mm 14. 8 in 415.0 mm 16.3 in 465.0 mm 18. 3 in
I BB CENTER TO TOP OF SE ATTUBE 390.0 mm 15.4 in
440.0 mm
17.3 in 480.0 mm 18. 9 in 530.0 mm 20.9 in
J SE AT ANG LE 73.6 ° 73 .6 ° 73.6 ° 73.6 °
K CH AIN STAY 425.0 mm 16 .7 in 425 .0 mm 1 6.7 in 425.0 mm 16. 7 in 425 .0 mm 1 6.7 in
L R EACH 398.7 mm 1 5.7 in 422.3 m m 16 .6 in 443 .2 mm 17. 4 in 46 5.5 mm 18.3 in
M STACK 599. 0 mm 23.6 in 603. 6 mm 23.8 in 617.7 mm 24 .3 in 6 27.1 m m 24.7 i n
N STEM LENGTH 60.0 mm 2.4 in 70.0 mm 2.8 in 80.0 mm 3 .1 in 90.0 mm 3.5 in
0 TRAIL 83.9 mm 3.3 in 83.9 mm 3.3 in 83.9 mm 3.3 in 83.9 mm 3.3 in
ENGLISHENGLISH
IMPORTANT!
SCOTT Scale 3 is designed around the BOOST platform so many of the fitted parts: cranks/ wheels/dropo uts/forks d iffer fro m traditional cycle par ts. Always consult your aut horized SCOTT dealer for advice on replacing or repairing any part of your SCOTT bike!

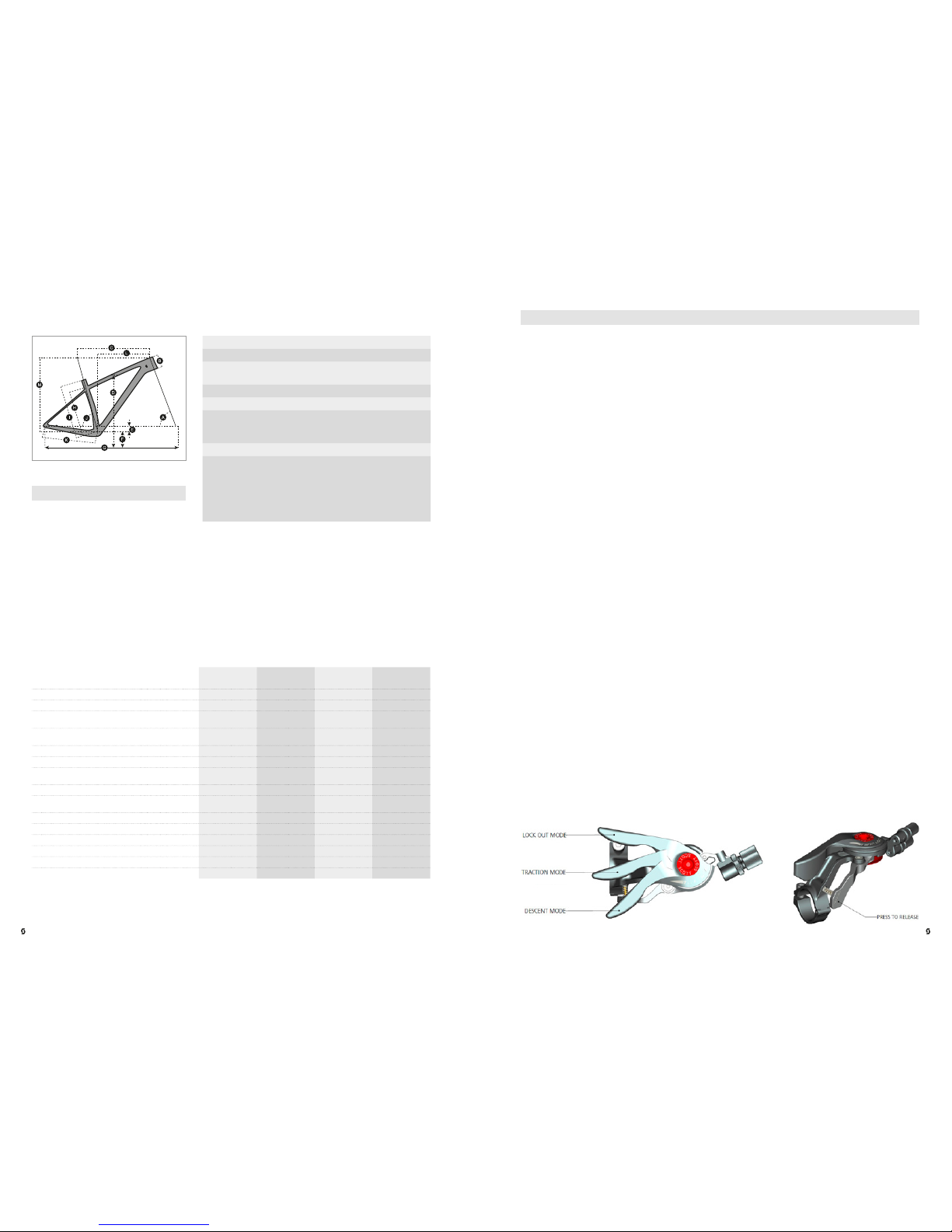

RIDELOC
This section refers to SCOT T bikes f itted with the RI DELOC system. Fo r all non- RIDELOC systems please refer to the specif ic fork manual for your setup.
The RIDELOC system offers the rider full control of all 3 modes of the front forks with a single lever, the positio n and function of the RID ELOC lever make for ef fortless co ntrol over the forks function.
The 3 basic fu nctions of RI DELOC system a re:
- Climb-out Mode
- Tra ct ion Mode
- Descent Mode
There are 3 positions of the RID ELOC remote l eve r.
1. CLIMB MODE: The fork is ne arly locked; climbing on asp halt roads is now p ossible with little power loss. A simultan eous blow- off-system prevents the forks being damag ed in case the rider does not op en the system while crossing obstacles.
2. TRACTION MODE: Altering the dampening of the forks will result in climbin g with reduced “bobbing ” and still offers optimum co ntrol of the front wheel.
3. DESCENT MODE: Full travel of the fork.
You can only assemble the “standard” RIDELOC remote lever in “lef t side upward positi on” on the handl ebar (this is usually fitted on bikes with x2 front chainrings).
On bikes with X1 chainring on the front the und er bar RID ELOC remote lever in “lef t side downward” positio n can be fitted as standard.
It is possible to ch ange the RI DELOC lever to the underbar option if the bikes gears have been chan ged to X1 system , a new alternative lever will be required for this adjustment; please consult your local S COT T dealer for more information on obtaining the correct lever for your bike.
You will find the following positions on the remote lever:
GEOMETRY/TECHNICAL DATA SCALE 3 900
Seatpost Diameter 31.6mm
Seattube clamp 34.9
Headset bearing s: 51.9x40x8 45 ° x 45 °/
41.8x3 0.5x8 45 ° x 45 °
Fork travel 100mm
BB housing BB PF92
Front derailleur Shiman o high direc t mount side
swing (none RC m odels only)
Additional parts needed
Chainring size 38T max
Max tyre wi dth 2.3/57mm
Please note: Tire size s often vary from b rand to brand . Ensure the tir e clearance is adequate when replacing your tires!
IMPORTANT
Only a bot tle with 0.55L c apacity will have the cle arance to fit a sma ll frame
07 |
BIKE USE R MANUAL | SCALE 2016 ONLYSCALE 2016 ONLY | BIKE USER MANUAL
| 06
ENGLISHENGLISH
BASIC SET-UP OF FORKS
Recommended tools for th e shock setup:
- The SAG tool that came with your bike. * Fox forks only
- A shock pum p with a special air valve connector (not supplied with this bike), this will help stop air from escaping while removing th e pump from the shock valve .
Please note that air will flow into the hose and indicator when counterch ecking the air pressure, this will give the appearance that the shock has less air pressure than it was setup, your shock may need to be adjusted once this action is made.
Please also n ote that the indicators of shock pumps have a tolerance of max. 10% .
For bikes spec ’d with Fox forks:
You can find more specific inform ation about Fox set up on Fox’s website, ple ase use your fork ID number to find more usef ul setup tips for your exact fork (visit : ridefox.com)
SAG
You r SCOTT bike will be supplied with a SAG tool to help set up your bikes suspension, these SAG tools can be easily clipped on the fork body a nd Fork dust se al.
For the best performance it is recommended you sta rt with SAG of 15-20% for forks.
1. Make sure before any adjustment is made that your forks are in the “open” p osition.
2. With the fork pump attache d to the fork valve, pu mp your desired pressure into the for k. Once the pressure is achieved slowly compress and decompress your fork throug h 25% of its travel 10 time s. This will eq ualize the positive an d negative air chambers and will change the pressure on the pump gauge, if needed add or reduce pressure and repeat.
Note the compression/decompression of the fork through the travel must also be done if the pressure is reduced!
3. Once your desired pressure is reached slide the rubber O -ring on the fork leg against the dust seal, clip on your SAG tool if required.
4. Sit on your bike in your usual riding position (in your riding ge ar: if you carry a bag/ Hydration-system put it on,) d on’t “boun ce” the suspension while doing this, use a wall or a friend for support if needed.
5. Get off the bike gently without b ouncing an d check the O -ring position on the fork stanchion, with the SAG adjuster clipped on. This makes it e asy to see where your SAG is set. Examp le below.
IMPORTANT!
Do not sit on your bike with the shock pump attached to the bike!
09 |
BIKE USE R MANUAL | SCALE 2016 ONLYSCALE 2016 ONLY | BIKE USER MANUAL
| 08
* Fox rebound adjuster shown
ENGLISHENGLISH

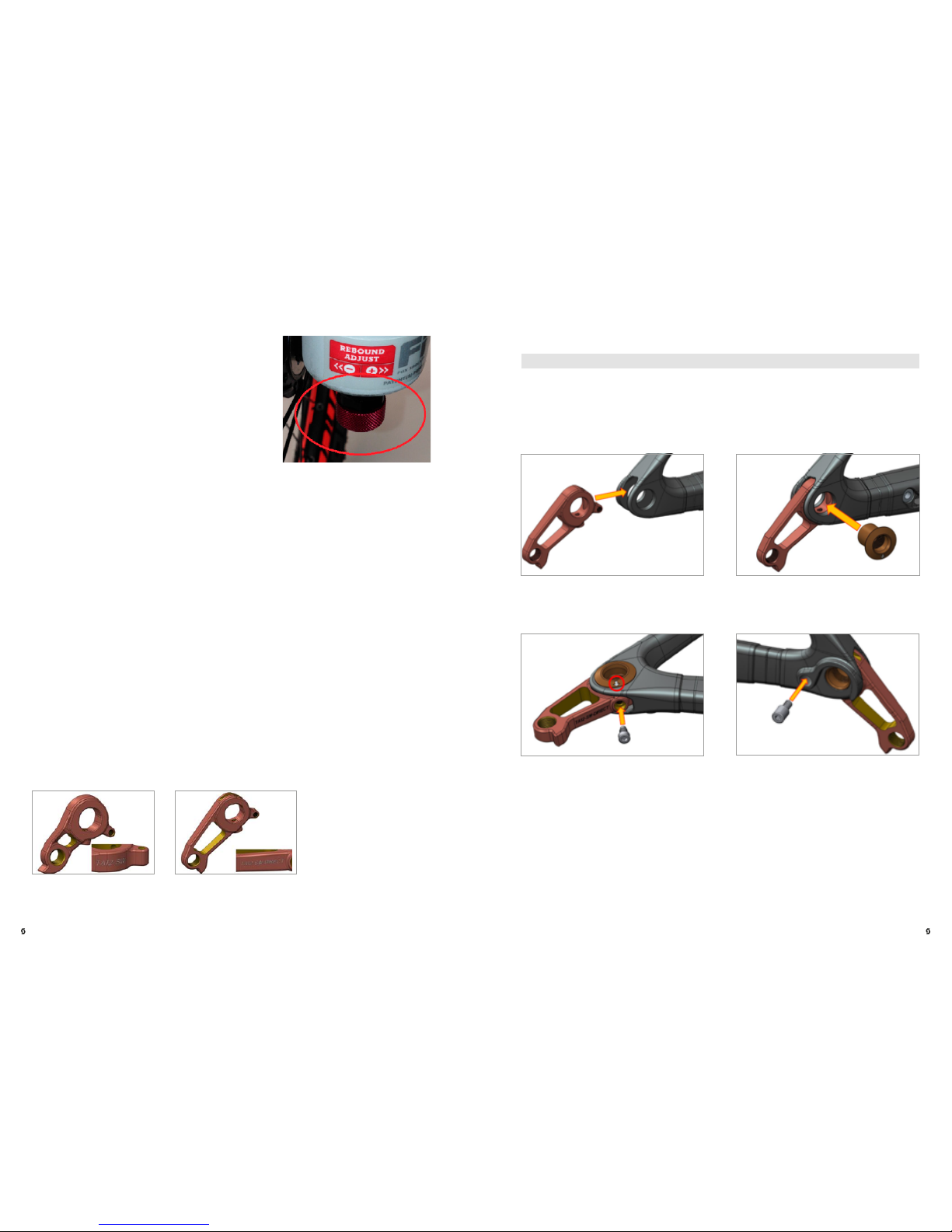

If your dropout needs to be replaced, we recom mend this work should be ca rried out by your local S COTT dealer as the rear dera illeur may need adjustment, failure to ad just this correctly may result in accident o r damage to your b ike.
IMPORTANT!
We recommend all work should be carried out by your authorised SCOTT dealer!
If you wish to change this item yourself, please ensure the b ike is suppor ted correctly to prevent damage by referring to the general manual instructions supplied with your bike .
Sram and non-direct
mountderailleurs
SCOT T part number 254090
Shimano direct
mountderailleurs
SCOT T part number 254 091
Before installing the new hanger first make sure the area is clean; insert the hanger.
Insert th e end cap through the fram e and into the hanger.
Make sure the location arrow is pointing to the lower bolt hol e; insert th e bolt (Max torque 1.5 N/M)
Insert th e second bolt in the rear of the dropout (Ma x torque 1.5 N/M)
Once the bike is reassemble d please insure the wheels are refitted correc tly and the gears are set correctly including th e over shift stops , please consult your authorized SCOT T dealer for assistance.
REBOUND FORK SET-UP
“Rebou nd” describes the speed the fork returns back to its original l ength after a bsorbing an o bstacle, setting of this is very impor tant for the handling and correct function of the b ike.
The reboun d adjustment dial location may vary form fork to fork please consult the ma nual that came with this bike.
After the fork pressure/SAG is corre ctly set ride your bike in a safe area with your riding gea r/backpack, etc. While remaining in the sa ddle, ride you bike off a drop/kerb of about 10-1 5 cm.
- If it bounce s 1-2 times and settles the set-u p is good.
- If it bounce s more than 3 time s the rebound is too fast, turn the knob 1-2 “clicks” clockwise and repeat.
- If there is no bounce the rebound is too slow, turn the knob 1-2 click counter clockwise and repeat.
- Repeat these steps until the d esired result is achieved .
You r SCOTT Scale bike was d esigned to be used in conjunction with a specific forks, changing th e forks on your bike may cause poo r/unsafe riding characteristics or d amage to frame and co mponent s, please co nsult your SC OTT d ealer for any assistance you n eed, failure to do this may affect your warranty
This is the basic principle on setting your for ks up, please always consult the fork owner's manual for f ull instruc tions to familia rize yourself with the product.
REPLACEABLE REAR DROPOUT
On SCOT T Scale models for 2017 the rear derailleur han ger is replaceable, this h anger is available in two options depe nding on if your bike is equipped with a standa rd or direct mount rear derailleur.
FOR CARBON SCOTT SCALE 3 FRAMES ONLY:
11 |
BIKE USE R MANUAL | SCALE 2016 ONLYSCALE 2016 ONLY | BIKE USER MANUAL
| 10
ENGLISHENGLISH

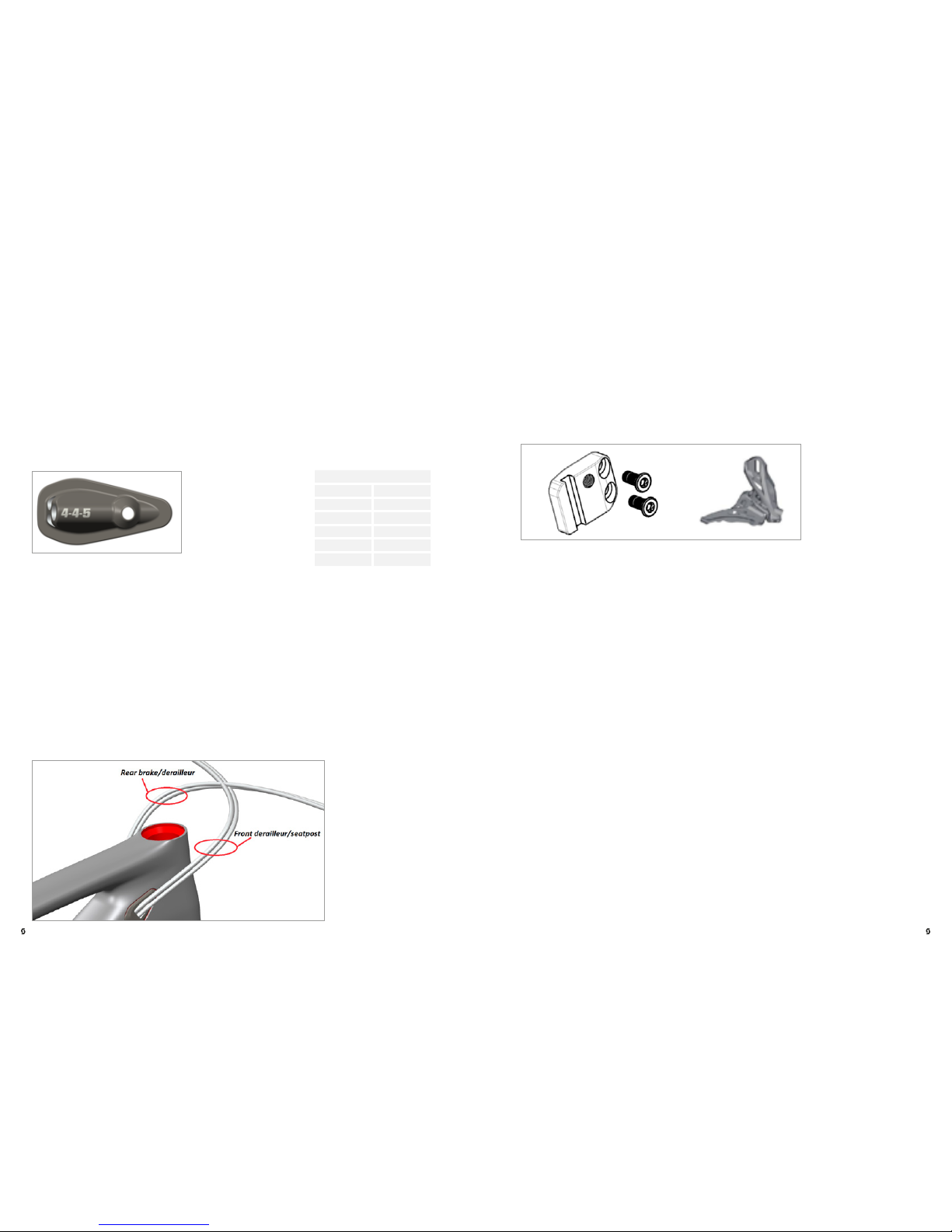

CABLE GUIDES AND CABLING.
On the carb on SCOT T Scale the cable guides on the headtube c an be changed if required so different cable configurations c an be used, the inside of the c able guide is stamped with a number or n umbers , these numb ers dictate what c ables can be used, these are the same for left and right.
The numbe rs indicate what cables fit the guide; the g uide shown will ho ld 2 mechanical cables an d one hydraulic.
They are available in the following combinations and are available f rom your SCOTT d eale r.
4 = mechanical cable
5 = hydraulic cables
DI2 = DI2
Blank= no cable
Combinations:
4, 4-5 -5, 5, 4-4-5, 4-4, DI2, 4-5, 4-DI2, 5-5, 5-DI2,
4-5-DI2
These cable guides are f itted with a single bolt, the fixing torque of this must not exceed
0.75-1 N/M.
With the many dif ferent cabling options it is possible to customise the cable routing slightly depending what compo nents you wish to ru n, it is recommended that h andlebar cables that come from th e right hand side enter the fra me on the lef t, and handlebar cables that come from the left hand side enter the fra me on the right, while this is not crucial to the perform ance of the bike it may help to prevent any cable rub
Below is an example of a bike set up “European style” with a 1X set up and a dropper seatpost.
Please note t hat below is an example and that your bikes brakes need to be set up as per the law in your co untry, please check with your local SCOTT deale r for this information.
BB STANDARDS/FD MOUNTING DETAILS
The SCOT T Scale has a Press fit PF92 bottom bracket with an inner diameter of 41mm , this is a press fit system and special tools are required for removal and ref itting, please contact your SCOT T dealer for assistance.
The SCOT T Scale (non RC models) uses a high direct mount side swing front de railleur only, this must be used with the use of an FD adaptor pla te.
It is not poss ible to mount a front derai lleur to RC fra mes/bike s.
ADJUSTMENT
We recommend all adjustments are carried out by your local authorized S COTT dealer but basic maintenance and che cks should b e done regularly before each ride as described in the general m anual that was supplied with you r bike.
Please pay attention to all instructions and torque settings , if you have any doubts please contact your deal er,
*in addition to the torque settings please note all bikes with a dropper t ype seatpost have a seatpost clamp maximum torque of 5 N/M.
13 |
BIKE USE R MANUAL | SCALE 2016 ONLYSCALE 2016 ONLY | BIKE USER MANUAL
| 12
SCOTT Bikes
Gambler, Voltage FR, Volt-X
5
ENGLISHENGLISH
GUARANTEE ON SCOTT BIKES
WARNING!
SCOTT Spo rts SA is not r esponsible or lia ble for any i njury caused by any missing complia nce with th ese inst ructions, particularly but not lim ited to mis use, inco rrect maintenance, incorrect set-up and handlin g, neglect or abuse. Failure to follow these instructions can result in component failure, serious personal injury. Component failure can lead to loss of control of the bi cycle and result in serious pers onal injury.
What is Cover ed?
This warrant y covers defect s in materials an d workmanship at the time of transfer of risks in frames, swingarms and forks (provided it is a fork of SC OTT ) on SCOTT bra nded bikes sold completely as sembled by S COTT or an authorized SCOT T deal er (“Produ ct”).
How long do es coverage las t?
This voluntar y manufacturer’s warranty is limited to five years for fram es and swinga rms, respectively two years for fork s, from the date of p urchase of the Product and is lim ited to the first purchaser of the Prod uct and subject to the prior re gistration of you r SCOT T bike on www.scott-sports .com within 10 days as of the date of purchase. Transfer of the Product f rom the first p urchaser to another person terminates this lim ited warranty. The limited warranty of five year s for the frames and swingarms shall only be granted in case once a year a maintenance service has been effected according to maintenance requireme nts as set forth in the manual. The effe cted annual maintenance service shall be confirmed by stamp and signature. In case such an annual maintena nce service has not been ef fected the warranty of five yea rs for the frame shall be reduced to three years. Costs for maintenance and service have to be borne by the owner of th e Produc t.
On Gambler, Voltage FR and Volt-X the warranty period is limited to two years.
Repaired or re placed Prod ucts are covered fo r the remaind er of the original warranty period and subject to the co nditions outlined in the original warranty, to the extent permi tted by law.
Hereby SCOTT grants a worldwide voluntarily man ufacturer ’s warranty. To the extent permitted by law and unless a sh orter duration is stipulated by law, any warranties implied by law are limited in duration to maximum five, respectively two years, from the date of purchase of the P roduct and a re limited to the first purchaser of th e Product.
What will SCOTT do? SCOT T will replace or repair any defective Product, or will refun d your purchase p rice (as evidenced by your tendered receipt of purchase of th e Product), at SC OTT ’s option. You must pay charges in connec tion with replacement of any non -defec tive parts . In such a case, you will b e alerted to the a dvisabilit y of replacing n on-defective part s, so you can pre-authorize the costs .
What does t his limi ted warran ty not cover?
This limited warranty does n ot cover defects which did not exist b efore the transfer of risks. This limited warrant y does not cover Pro ducts use d in rental operations. This limited warranty does not cover purchases of not completely assembled bikes. This limited warranty does not cover any defect caused by “wear and tear” (a complete list of all pa rts of “wear and tear” c an be found in th e general manual that c ame with your bike), accident, neglec t, improper handling, co lour fade d ue to exposure to sunlight, abuse, misuse, an act of God,
improper assembly, non-compliance with recommended maintenance and care procedures, improper or incorrectly p erformed maintenance or repairs performe d by someone oth er than an autho rized SCOT T dealer, use of parts or devices not consistent with the Product, and alteration of the Product.
All Product s come with a manual; please c arefully follow the instructions located th ere or affixed e lsewhere to the Prod uct. To the extent permitted by law, consequential and incidenta l damages are not recoverable under this limited warranty.
How do you make a claim under this lim ited warranty? To make a claim under this li mited warrant y, you must notify S COTT of the claime d defect within the warra nty period and timely return the Product to SCOT T at your expense for inspection. Please contact your authorized SCOT T dealer, call SCOT T’s customer service or the national SCOT T distributor (dealer locator: www.scott-sports.com). All returned Products m ust be accompanied by proof of p urchase (receipt) from an authorized SC OTT dealer or this limited warranty will not apply. In case of replacement or refu nd, returne d Product becomes the property of SCOTT.
A protocol for the handing over of the Product (which you will find at the end of the manual) will remain in copy at the SCOT T deal er after acce ptance and signature of the consumer. It is obligator y to show this protocol of han ding over togethe r with the defective part in case of a warranty cl aim given that it provid es evidence of purchase or this limited warranty will not app ly.
How do state laws affec t your right s under this limited warranty?
This limited warranty gives you sp ecific legal rights, and you may also have other rights, which vary f rom state to state .
Recommendation
We strongly recomm end that you use only authorized S COTT dealers for yearly maintenance services and for repairs, as improper or incorrectly performed maintenance or repairs voids this limited warranty. Costs for m aintenance se rvice have to be bor ne by the con su mer.
15 |
BIKE USE R MANUAL | SCALE 2016 ONLYSCALE 2016 ONLY | BIKE USER MANUAL
| 14
Loading...
