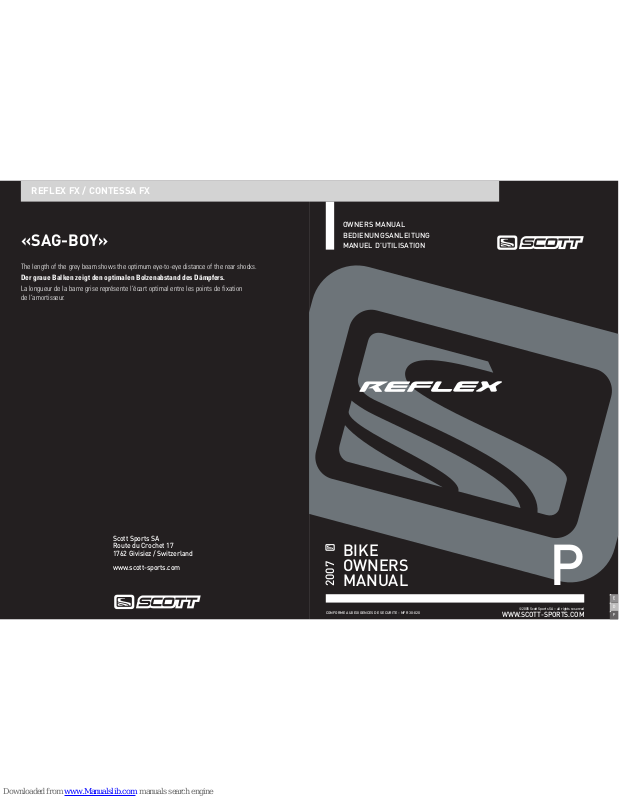

CONFORME AUX EXIGENCES DE SECURITE - NF R30-020
P
OWNERS MANUAL
BEDIENUNGSANLEITUNG
MANUEL D’UTILISATION
BIKE
OWNERS
MANUAL
2007
©2005 Sc
ott Sports SA – all rights r
eserv
ed
WWW.SCOTT-SPORTS.COM
Scott Sports SA
Route du Crochet 17
1762 Givisiez / Switzerland
www
.sc
ott-sports.c
om
«SAG-BOY»
The length of the grey beam shows the optimum eye-to-eye distance of the rear shocks.
Der graue Balken zeigt den optimalen Bolzenabstand des Dämpfers.
La longueur de la barre grise représente l’écart optimal entre les points de fixation
de l’amortisseur.
REFLEX FX / CONTESSA FX
Page 2
ENGLISH
01
00
CONTENT
DEUTSCH
FRANÇAIS
> Reflex-Concept / Characteristics Page 2
> Kinematics Page 2
> Shock-Technology Page 3
> Set-Up Reflex FX Page 3
> SCOTT Smart Cable Routing Page 4
> Front Fork Set-Up Page 5
> Pivot Maintenance Page 5
> Warranty Page 6/7
CONTENT
The Reflex FX should be adjusted exactly to the current
rider for reaching maximum safety and fun while riding.
All adjustments should be done at the local Scott dealer
or following this manual.
Page 3
ENGLISH
03
02
DEUTSCH
FRANÇAIS
SET-UP REFLEX FX
Reflex is based on the results of research and development of the very successful Scott Genius-Series, not
only looking for a lightweight frame but also for an
innovative suspension technology in combination with
an optimized kinematics of the rear swingarm.
The combination of an optimized kinematics with a
revolutionary suspension technology closes the gap
between hardtail bikes and the new generation of full
suspended bikes with automatic lockout systems
which are already on the market and which are still
a compromise between suspended and non suspended
bikes.
Reflex was designed for riders and enthusiasts looking
for a “non-bobbing” hardtail-like power transfer to the
rear wheel but are not willing to give up the benefits
of a full suspended bike.
Scott does not see frame, rear shock and kinematics
as single components which are assembled together
on a bike, but as a concept with all these components
working together and offering an outrageous function
by matching perfectly.
REFLEX-CONCEPT /
CHARACTERISTICS
The heart of the LC-R-System is the newly developed
and innovative Scott Genius LC-R Shock, offering two
functions:
By using the lock out lever on top of the shock body
you can choose between following functions:
1.
AALLLL TTRRAAVVEELL MMOODDE
E
: full travel of 100mm on Reflex
FX models.
2.
LLOOCCKK OOUUTT MMOODDEE:
:
the shock is locked; climbing on
asphalt roads is now possible without any power loss.
Simultaneously a blow-off-system prevents the shock
being damaged in case the rider did not open the system
while crossing obstacles. [1]
The Set-Up of the Genius LC-R Shock is shown in
the manual “Scott Genius TC+LC-R Shock 07” attached to this bike and can be done within a few
minutes. [2]
SHOCK-TECHNOLOGY
The Reflex Concept is based on a new designed multipivot technology having no fixed swingarm pivot but
moving on a virtual pivot line.
The more the weight of the rider gets on the rear
wheel (going uphill) and with this the SAG (negative
travel) getting bigger, the more the pivot is moving
towards the small chainring.
In combination with the linear and at the end of stroke
progressive shock characteristics the chain tension
will be reduced and doing so the pedaling will not
influence function or movement of the rear swingarm.
Scott Intelligent Linkage System (ILS) eliminates the
troublesome bobbing.
No power will be lost and an optimum power transfer
is guaranteed as the swingarm, in contrary to locked
or automatic-locking systems, can follow the trail surface and will offer perfect traction and higher speed.
KINEMATICS
Genius Shock Manual
2
O
WNERS MANUAL
B
EDIENUNGSANLEITUNG
MANUEL D ’UTILISATIO
BIKE
OWNERS
MANUAL
2005
TRACTION CONTROL FUNCTIONS
Lockout
Full Travel
Page 4
ENGLISH
05
04
DEUTSCH
FRANÇAIS
The outer housing of the cables can also be fixed on
the bottle cage with cable fixers, the two brackets
below the cage are not needed anymore. [4]
The direct and straight cable system on all our full
suspension models allows Smart Cable Routing which
is very resistant against water and dirt.
To change the cables simply unscrew and open the
three cable brackets on the downtube.
On the left side of the downtube you will find the
cable housings of the rear brake and on the right side
for the rear derailleur. [3]
SCOTT SMART
CABLE ROUTING MECHANICS HINT FRONT FORK SET UP PIVOT MAINTENANCE
The pivot and bearings on SCOTT Reflex FX are
extremely easy to maintain.
An external treatment with a grease spray after
every bike wash is all you have to do. We do not
recommend heavy grease sprays since these will
leave a film on the parts which is difficult to remove.
We recommend the same for the chain also.
If you have to change the bearings you can order
them included in a service kit at your local SCOTT
dealer with parts number 15.5.860.503.0.000.
In case of a change of the bearings or of the rear
swingarm you should contact your local SCOTT
dealer therefore you need special tools for disassembly and assembly.
For the set up of the front fork please use the fork
specific manual attached to the bike .
43
Smart Cable Routing Mechanics hint
Page 5
ENGLISH
07
06
DEUTSCH
FRANÇAIS
SCOTT bikes are made using the most innovative production and quality methods. They are equipped with
best components of well known parts suppliers.
Doing so SCOTT warrants its frames and swingarms
for five years (subject to compliance with maintenance
ranges, see below) and SCOTT forks (provided it is
a fork of SCOTT) for two years for defects in material
and/or workmanship in case of purchase of completely
assembled bikes.
This warranty of 5 years for the frames shall only be
granted in case once a year a maintenance service has
been effected according to maintenance requirements
as set forth in this manual by an authorised SCOTT
dealer.
The authorised SCOTT dealer shall confirm the effected
annual maintenance service by stamp and signature.
In case such an annual maintenance service has not
been effected the warranty of 5 years for the frame
shall be reduced to 3 years.
Costs for maintenance and service have to be born
by the owner of the SCOTT bike.
On High Octane the warranty period is limited to 2 years.
The warranty period starts at the day of purchase.
This warranty is limited to the first buyer, what means
the first person who uses the bike and only with the
use it was made for. Furthermore, this warranty is limited
to purchases via authorized SCOTT-dealers to the
exclusion of purchases via internet auctions.
In case of a warranty claim the decision to repair or to
replace the defective part is up to SCOTT. Non defective
parts will only be replaced at the guarantee’s own
expense.
Fair wear and tear is not covered by the warranty.
A complete list of all parts of wear and tear can be
found in the next chapter of this manual.
In addition, you will find at the end of this manual a
protocol for the handing over of the bike which will
remain in copy at the SCOTT dealer after acceptance
and signature of the consumer.
It is obligatory to show this protocol of handing over
together with the defective part in case of a warranty
claim given that it provides evidence of purchase.
Otherwise no warranty is granted.
In principle, this warranty is granted worldwide.
Claims must be made through an authorized dealer,
for information regarding the nearest dealer, write or
call this company or the national SCOTT distributor.
Normal wear, accident, neglect, abuse, improper
assembly, improper maintenance by other than an
authorized dealer or use of parts or devices not consistent with the use originally intended for the bicycle as
sold are not covered by this warranty.
Hereby SCOTT grants a voluntarily manufacturer’s warranty. Additional entitlements according to national
warrant of merchantability are reserved.
WARRANTY
Model __________________________
Year __________________________
Size __________________________
Frame _________________________
WARRANTY
