SCV32 Service Parts
This parts list contains the service parts for the
Scotsman wine storage unit model SCV32.
Table of Contents
Cabinet Front and Interior ····································· Page 2
Cabinet Back ··········································· Page 3
Condensing Unit & Electrical ··································· Page 4
Wiring Diagram ·········································· Page 5
June 2002
Page 1
SCV32 Service Parts
Cabinet Front and Interior
21
22
24
23
1a
3
1
2
4
13
5
6
7
6a
8
14
17
18
20
Item Part
Number Number Description
1 02-3847-01 Door handle
1a 03-3814-02 Screw
2 02-4004-01 Bushing
3 03-1418-24 Screw, flush head
4 03-3834-01 Hinge pin
5 15-0813-02 Hinge, left upper/rt lower
6 A38846-001 Light housing
6a 03-3869-01 Bulb clamp
6b 03-1730-01 Washer
7 12-2888-21 Bulb kit, includes 6, 6a, 6b
8 02-3983-01 Rack
19
15
16
12
11
Item Part
Number Number Description
12 02-3982-01 Kickplate
13 15-0813-01 Hinge, left lower/rt upper
14 A38411-001 Switch actuator
15 03-1431-00 Screw
16 02-3987-01 Trough
17 03-1404-19 Screw
18 A38413-001 Thermostat bracket
19 03-1531-01 Screw
20 18-8876-21 Evaporator
21 03-1404-19 Screw
22 02-2505-01 Spacer
10
9
9 02-2481-02 Plug
10 03-1419-26 Screw
11 15-0812-01 Knob
23 13-0825-04 Gasket
24 02-3985-21 Door, includes items 1
and 1a
June 2005
Page 2
SCV32 Service Parts

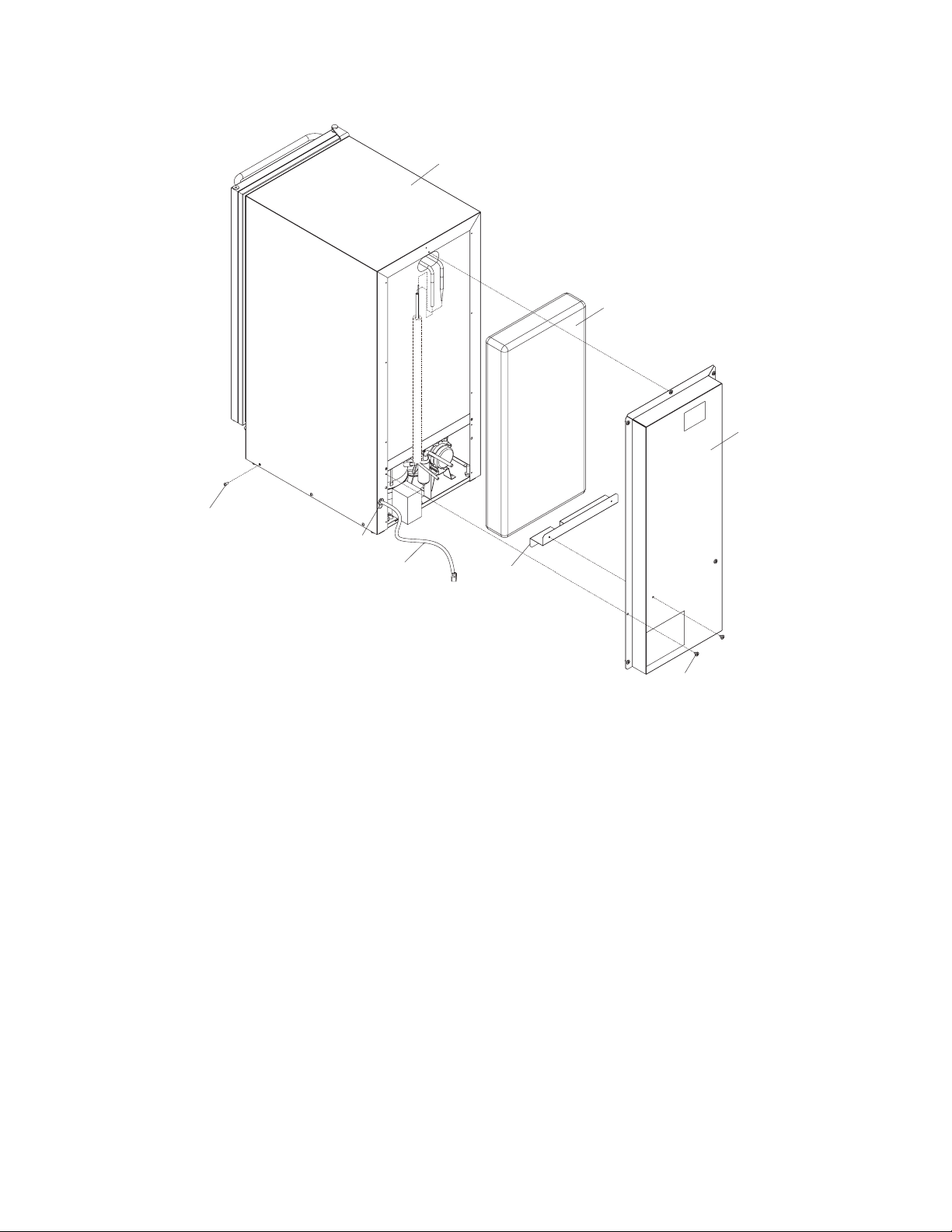

Cabinet Back
1
2
3
8
Item Part
Number Number Description
1 no number Cabinet w/liner
2 02-3256-01 Insulation pack
3 A35546-001 Back cover
4 03-1404-08 Screw
5 A35547-001 Baffle
6 12-1638-17 Cord
7 12-0629-08 Strain relief
7
6
5
4
8 03-1431-00 Screw
June 2002
Page 3
17
SCV32 Service Parts

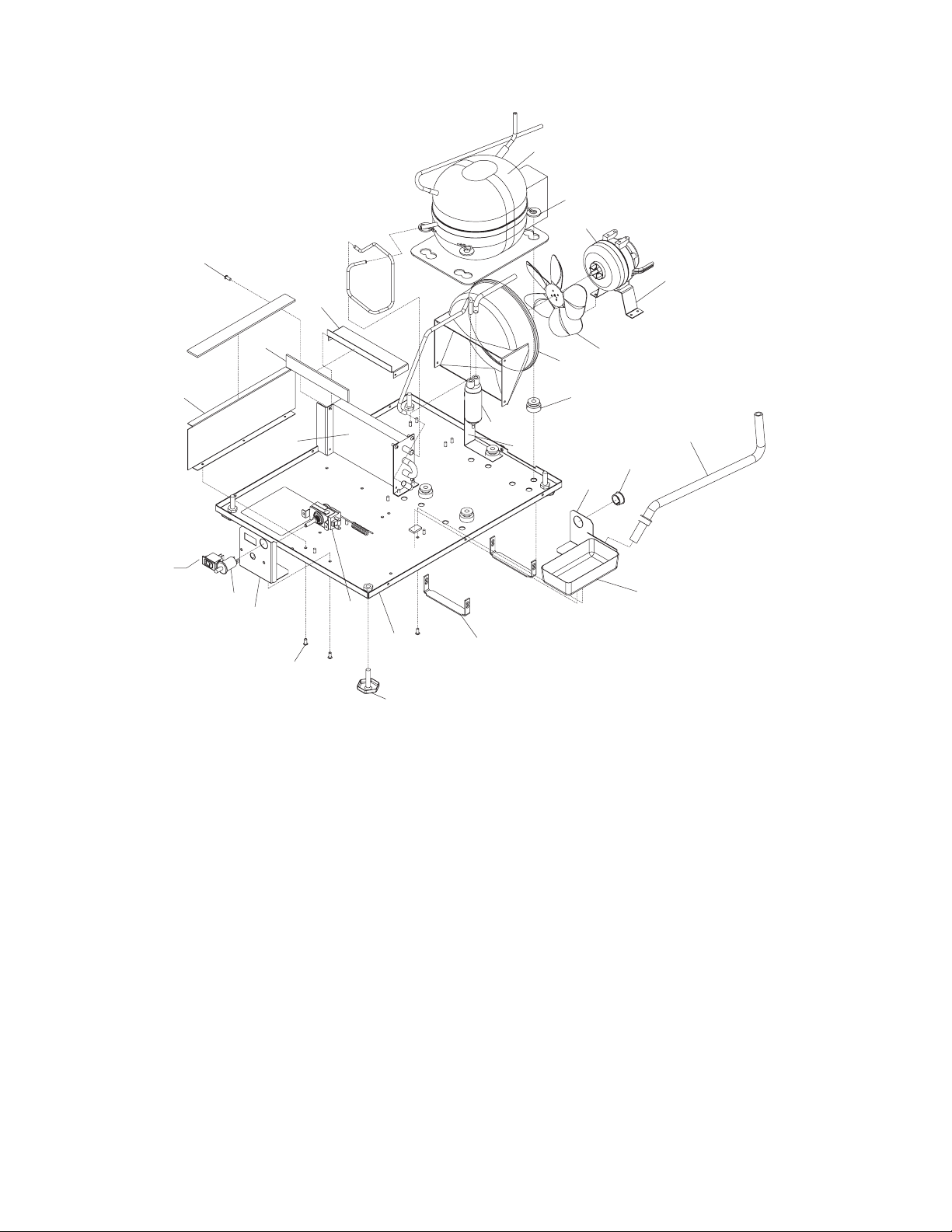

Condensing Unit & Electrical
1
2, 3
4
5
24
23
21
22
25
19
18
17
Item Part
Number Number Description
1 18-8802-21 Compressor, incl 1a, 1b
20
15
16
6
7
8
13
9
11
14
Item Part
Number Number Description
14 A29015-001 Bracket
10
12
1a 18-8802-55 Overload & Relay
2 03-3821-01 Hitch pin
3 03-1407-08 Washer
4 12-2927-01 Fan motor
5 A28798-001 Bracket
6 02-4197-01 Fan blade
7 02-2871-01 Shroud
8 18-8861-01 Mounting grommet
9 12-1213-10 Snap bushing
10 13-0674-02 Drain tubing, 1 unit
12 02-3984-01 Drain pan
13 02-3490-01 Drier
15 A28921-002 Base
16 03-1608-01 Leg
17 03-1531-01 Screw
18 A38407-001 Bracket
19 12-2886-01 Plunger Switch
20 11-0547-21 Thermostat
21 A35495-001 Panel
22 18-8712-01 Condenser
23 19-0503-02 Ins tape
24 A35512-001 Baffle
25 12-2885-01 Rocker Switch
January 2006
Page 4
SCV32 Service Parts
Wiring Diagram
February 2004
Page 5
