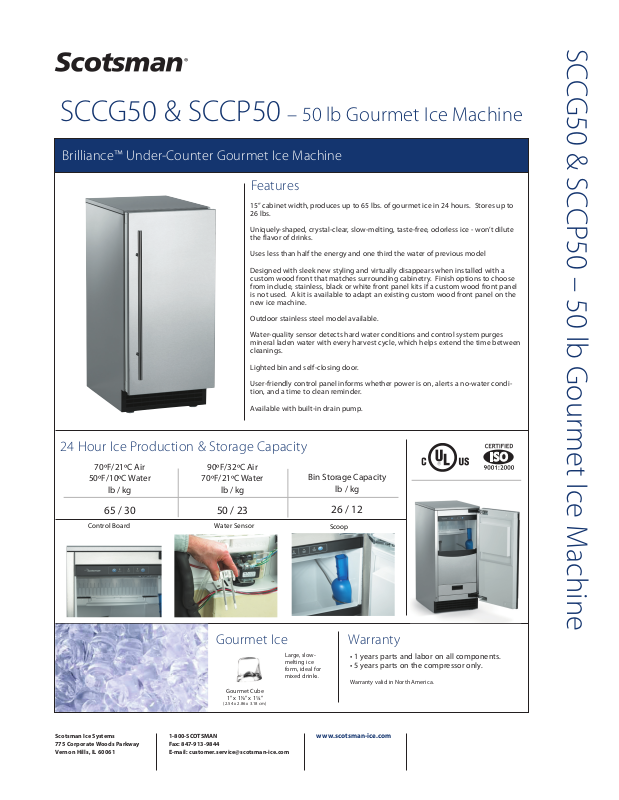

SCCG50 & SCCP50 – 50 lb Gourmet Ice Machine
Brilliance™ Under-Counter Gourmet Ice Machine
Features
15” cabinet width, produces up to 65 lbs. of gourmet ice in 24 hours. Stores up to
26 lbs.
Uniquely-shaped, crystal-clear, slow-melting, taste-free, odorless ice - won’t dilute
the flavor of drinks.
Uses less than half the energy and one third the water of previous model
Designed with sleek new styling and virtually disappears when installed with a
custom wood front that matches surrounding cabinetry. Finish options to choose
from include, stainless, black or white front panel kits if a custom wood front panel
is not used. A kit is available to adapt an existing custom wood front panel on the
new ice machine.
Outdoor stainless steel model available.
Water-quality sensor detects hard water conditions and control system purges
mineral laden water with every harvest cycle, which helps extend the time between
cleanings.
Lighted bin and self-closing door.
User-friendly control panel informs whether power is on, alerts a no-water condition, and a time to clean reminder.
SCCG50 & SCCP50 – 50 lb Gourmet Ice Machine
Available with built-in drain pump.
24 Hour Ice Production & Storage Capacity
70ºF/21ºC Air
50ºF/10ºC Water
lb / kg
65 / 30
Control Board
90ºF/32ºC Air
70ºF/21ºC Water
lb / kg
50 / 23
Water Sensor
Gourmet Ice
Large, slowmelting ic e
form, idea l for
mixed drink s.
Gourmet Cu be
1” x 11/8” x 1¼”
(2.54 x 2.8 6 x 3.18 cm)
Bin Storage Capacity
lb / kg
26 / 12
Scoop
Warranty
• 1 years parts and labor on all components.
• 5 years parts on the compressor only.
Warranty vali d in North Am erica.
Scotsman I ce Systems
775 Corporate Woods Parkway
Vernon Hills, IL 60061
1-800-SCOTSMAN
Fax: 847-913-9 844
E-mail: cu stomer.service@scotsman-ice.com
www.scotsman-ice.com
SCCG50 & SCCP50 – 50 lb Gourmet Ice Machine
Power Cord
®
All Models
24 Hour Ice Production:
(70 deg. Air/50 deg. Water)
65 lb / 30 kg
(90 deg. Air / 70 Deg. Water)
50 lb / 23 kg
Bin Storage Capacity:
26 lb / 12 kg
Condenser Type:
Air
Basic Electrical:
(Volts/Hz /Phase)
115/60/1
Amps:
5
Maximum Fuze Size:
15
Refrigerant:
R-134A
Dimensions (W x D x H):
Unit (without legs adjusted):
14.875” x 22” x 33.375”
(37.8 x 55.9 x 84.78 cm)
Shipping Carton:
18” x 28” x 38”
(45.7 x 71.1 x 96.5 cm)
20 3/8"
3 7/8"
Floor Drain
Access Hole
14 7/8"
Air Out
Air In
Specifications
SCCG50MA-1BU
SCCG50MA-1WU
SCCG50MA-1SU
IndoorOutdoor
SCCP50MA-1BU
SCCP50MA-1WU
SCCP50MA-1SU
SCCG50MA-1SS
SCCP50MA-1SS
Accessories
Model
KDFB
KDFW
KDFS
KDFWS
KDFBS
KKPF
KATB
KDFR
KSSKP
22"
.75 Sheet Metal Door Front
.63 Min Cabinet Door
29 1/4"
4"
2 3/4"
Model
1” Leg Adjustment
1"
Black / Unnished
White / Unnished
Stainless Steel / Unnished
Black / Unnished
White / Unnished
Stainless Steel / Unnished
Stainless Steel / Stainless Steel
Stainless Steel / Stainless Steel
Description
Black door front kit
White door front kit
Stainless Steel door front kit
White front with Stainless Steel handle kit
Black front with Stainless Steel handle kit
Kick plate ller kit
Anti-tip bracket kit
Retro-t door front kit
Stainless Steel Kick Plate Cover
Door & Handle add 1 5/8”
33 3/8" Min.
34 3/8" Max.
(4) Places
Finish
Cabinet / Front
SCCG: Gravity ow drain tube
SCCP: Built-in pump to expel drain water which includes 10’ drain tube
115 V
Shipping
Weight
lb / kg
12 / 5.5
12 / 5.5
12 / 5.5
12 / 5.5
12 / 5.5
1 / 0.45
2 / 0.9
8 / 3.6
5 / 2.3
Drain Flexible Tubing
3/8 I.D. Pump Model (Included)
5/8 I.D. Gravity Model (Not Included)
Potable Water Inlet
1/4" Compression Fitting
3 1/4"
2 1/2"
1 1/2"
3 3/4"
7 3/8"
Supply Hose Not Included
Drain
Type
Gravity
Gravity
Gravity
Pump
Pump
Pump
Gravity
Pump
Shipping
Weight
lb / kg
113 / 51
113 / 51
113 / 51
118 / 54
118 / 54
118 / 54
122 / 55
127 / 58
Operating Requirements
Minimum Maximum
Air Temperatures
Water Temperatures
Water Pressures
Electrica l Voltage
Scotsman I ce Systems
775 Corporate Woods Parkway
Vernon Hills, IL 60061
© 2008 Sco tsman Ice Systems. SIS-SS-SCC50 8-09
50°F (10°C) 100°F (38°C)
40°F (4.4°C) 100°F (38°C)
20 PSIG (1 bar) 80 PSIG (5 bar)
-10% +10%
1-800-SCOTSMAN
Fax: 847-913-9 844
E-mail: cu stomer.service@scotsman-ice.com
Machine requires voltage indicated on rating name plate.
Failures caused by improper voltage are not considered factor y defects.
Scotsman products, except model SCCG50MA-1SS & SCCP5050MA-1SS, are not
designed for outdoor installations nor for installation where air temperatures
fall below 50ºF. or exceed 100ºF., nor where water temperatures fall below
40ºF. or exceed 100ºF. Extended periods of operation at temperatures
exceeding these limitations constitute misuse under the terms of Scotsman
Manufacturer’s Limited Warranty, resulting in a loss of warranty coverage.
Refer to owner’s manual for all installation requirements.
Please note: when installed in a corner, the door swing may be limited due to
handle contact with the wall or cabinet face.
