NS650 SERVICE PARTS
This parts list contains the service part numbers
and wiring diagrams for this model. Check the
model number of the unit being serviced to be
sure that this list is the correct one.
TABLE OF CONTENTS
Cabinet ....................................................................................................................Page 2
Air Cooled Refrigeration..........................................................................................Page 3
Water Cooled Refrigeration.....................................................................................Page 4
Water System..........................................................................................................Page 5
Evaporator...............................................................................................................Page 6
Gearmotor................................................................................................................Page 7
Ice Level Sensor .....................................................................................................Page 8
Control Box..............................................................................................................Page 9
Wiring Diagrams......................................................................................................Page 10
NS650 SERVICE PARTS
Janaury 1994
Page 1
22
9
21
12
NS650 SERVICE PARTS
Cabinet
1
2
3
6
2
20
5
7
11
13
18
19
4
8
10
14
15
22
16
21
ITEM PART
NUMBER NUMBER DESCRIPTION
1 03-1419-19 Screw
2 A30738-004 Top Panel, painted
A30738-002 Top Panel, Stainless
3 A30539-001‘ Door Track Assy
4 A24800-004 Rt. Side Panel, paint
A24800-002 Rt. Side Panel, Stainless
5 A34442-001 Bin Cover
6 A33986-001 Back Panel
7 A33952-001 Retainer
8 A34421-001 Ice Storage Bin
9 02-2130-03 Door, Brown
02-2130-02 Door, Gray (for Stainless)
10 15-0620-01 Moulding Right
11 A30497-006 Upper front panel, painted
A30497-002 Upper front panel, stainless
ITEM PART
NUMBER NUMBER DESCRIPTION
Janaury 1994
Page 2
17
23
12 15-0706-01 Moulding, left
13 A33958-001 Bracket
14 15-0324-00 Black insert 37"
15 15-0711-01 Emblem
16 A24794-004 Rt. Front Panel, painted
A24794-002 Rt. Front Panel, stainless
17 A33968-001 Lower left front, painted
A33968-002 Lower left front, stainless
18 03-1645-01 Screw
19 A33984-001 Bracket
20 A27034-004 Left side panel, painted
A27034-002 Left side panel, stainless
21 03-1531-01 Screw
22 03-1419-17 Screw, flathead
23 03-1403-06 Screw
16
1
1
NS650 SERVICE PARTS
Air Cooled Refrigeration
ITEM PART
NUMBER NUMBER DESCRIPTION
1 A32961-010 Insulation Kit (3 piece)
2 16-0780-01 Thermo Expansion valve
3 A33194-020 Evaporator
4 11-0446-23 Hi Pressure Cut Out
5 03-1405-40 Screw
6 03-1417-12 Lockwasher
03-1408-20 Washer
7 18-2200-27 Sleeve
8 18-2200-28 Grommet
9 02-2426-02 Drier
10 18-6100-01 Compressor
11 18-7200-01 Fan Motor
12 02-2378-01 Fan motor bracket
(shroud mounted)
18-3739-01 Fan motor bracket
(base mounted)
13 03-1404-12 Screw
14 18-0625-00 Fan Blade
15 A34618-001 Fan Shroud
16 18-7800-01 Condenser
17 16-0560-00 Valve Core
16-0563-00 Cap
2
3
17
5
4
6
11
10
13
13
12
14
7
8
9
15
Janaury 1994
Page 3

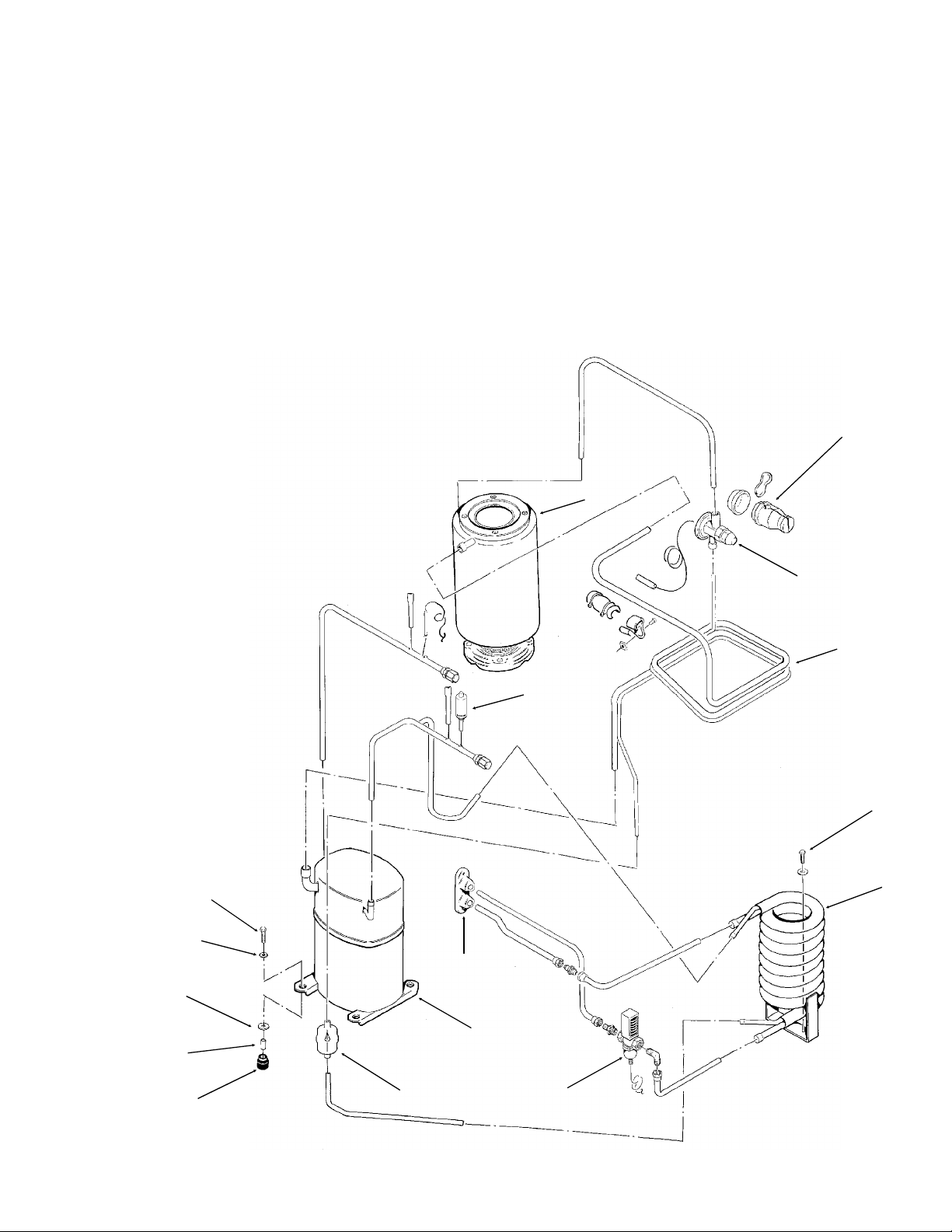

NS650 SERVICE PARTS
Water Cooled Refrigeration
ITEM PART
NUMBER NUMBER DESCRIPTION
1 A33194-020 Evaporator
2 A32961-020 Insulation Kit, 3 piece
3 16-0780-01 Thermo Expansion Valve
4 A33954-001 Suction Line Assy
5 11-0446-23 Hi Pressure Cut Out
6 03-1645-01 Screw
7 18-3306-02 Condenser
8 A31878-003 Casting
9 18-6100-01 Compressor
10 11-0424-01 Water Regulating Valve
11 02-2426-02 Dryer
12 03-1405-40 Screw
13 03-1417-12 Lockwasher
14 03-1408-20 Washer
15 18-2200-27 Sleeve
16 18-2200-28 Grommet
2
1
14
15
3
4
5
6
7
12
13
8
9
16
11
Janaury 1994
Page 4
10
10

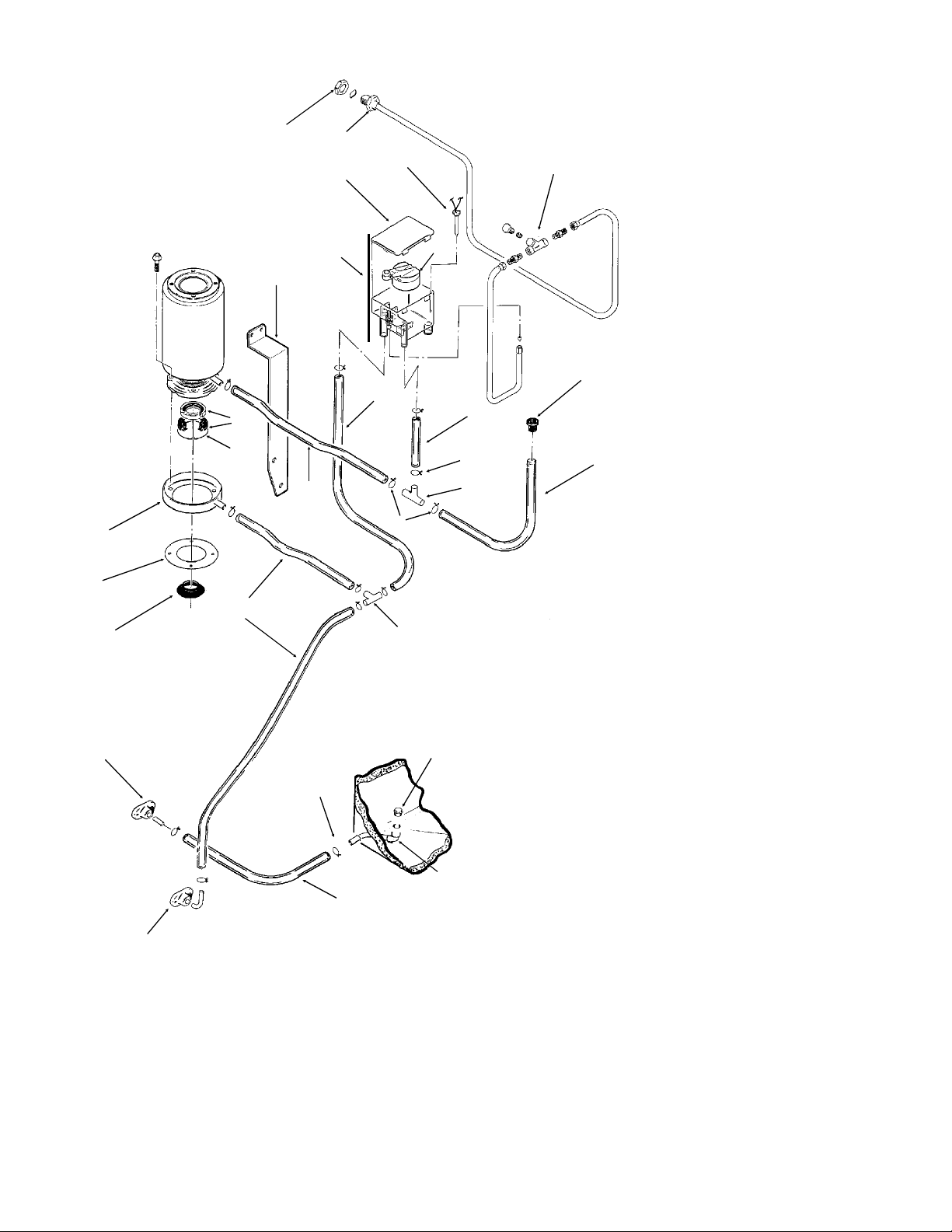

NS650 SERVICE PARTS
Water System
17
16
18
21
22
14
11
20
1
8
15
2
3
6
4
7
11
11
12
13
12
5
9
ITEM PART
NUMBER NUMBER DESCRIPTION
1 03-1394-01 Pal Nut
13
2 16-0721-01 Inlet Water Fitting
3 02-2936-01 Res. Cover
4 A33101-021 Water Level Sensor
5 16-0162-01 Strainer
6 A32929-020 Reservoir Assy, Complete
23
7 A32922-020 Float Assembly
8 A33953-001 Reservoir Bracket
26
9 A33205-001 Plug
10 13-0674-06 Drain Tubing 11"
11 13-0079-03 Tubing 5"
12 02-2814-08 Clamp
13 16-0670-01 Tee
24
25
14 A32777-001 Retaining Ring
15 A33203-001 Preformed Tubing
16 A32050-001 Drain Pan
17 13-0704-00 Gasket
18 13-0871-01 Water Shed
20 02-0929-02 Water Seal
21 A31828-005 Drain Casting
22 A31828-007 Drain Casting
23 02-2809-01 Drain top
24 a27018-001 Drain
25 13-0674-06 Drain Tube 6"
26 02-1338-00 Hose Clamp
Janaury 1994
Page 5
8
17
18
19
20
22
NS650 SERVICE PARTS
Evaporator
ITEM PART
NUMBER NUMBER DESCRIPTION
1 03-1420-03 Cap Screw
03-1417-13 Lockwasher
2 A33194-020 Evaporator
3 A32962-001 Insulation Half
4 A32962-002 Insulation Half
5 02-0929-02 Water Seal
6 A32777-001 Retaining ring for seal
7 A32050-001 Drip Pan
1
3
2
4
ITEM PART
NUMBER NUMBER DESCRIPTION
8 13-0704-00 Gasket
9 13-0868-01 Water Shed
10 02-2977-01 Lip Seal
11 13-0617-54 O-Ring
12 A32900-020 Breaker
(includes 10 & 14 & 23)
13 03-1544-08 Soc. head screw
14 13-0617-45 O-Ring
15 03-1405-52 Hex Cap Screw
16 02-3001-01 Ice Sweep
17 13-0871-01 Water Shed
18 02-2978-01 Lip Seal
19 08-0650-01 Breaker cover
20 13-0617-52 O-Ring
21 08-0653-01 Auger Stud
22 08-0654-01 Thrust Washer
23 A34559-020 Bearing
24 02-3002-01 Auger
10
11
5
6
7
9
13
12
14
21
15
16
23
24
Janaury 1994
Page 6
NS650 SERVICE PARTS
Gearmotor Assembly
1
2
*NOTE: GEARCASE
COVER INCLUDES
COVER, OUTPUT
SHAFT, KEY, OUTPUT
GEAR, BEARINGS
AND SEAL
3
11
4
5
12
9
10
14
13
6
ITEM PART
NUMBER NUMBER DESCRIPTION
1 13-0868-01 Water Shed
2 A32379-029 Seal
7
3 A32379-026 Bolt
4 A32379-022 Gearcase Cover*
5 A32379-024 1st Gear and Bearings
6 A32379-023 2nd G ear and Bearings
7 A32379-021 Gasket
8 A32379-020 Gearcase
9 A32898-020 Centrifugal Switch, GE PSC
8
12-2430-24 Centrifugal sw, Emerson
12-2430-44 Centrifugal sw, GE split phase
10 12-2430-21 Drive Motor 115 v
11 12-1741-29 Rotor Bearing, GE PSC
12-2430-29 Rotor bearing, Emerson
12-2430-49 Rotor bearing, GE split phase
12 A32379-028 Seal, not used on replacement
gear reducers or covers after 2/2000
13 A32379-027 Oil, 1 Container
14 12-2314-22 Capacitor, GE PSC
15 A33220-021 Complete Assy 115 v
A33220-030 Gears, oil and cases. No motor
November 2003
Page 7
5

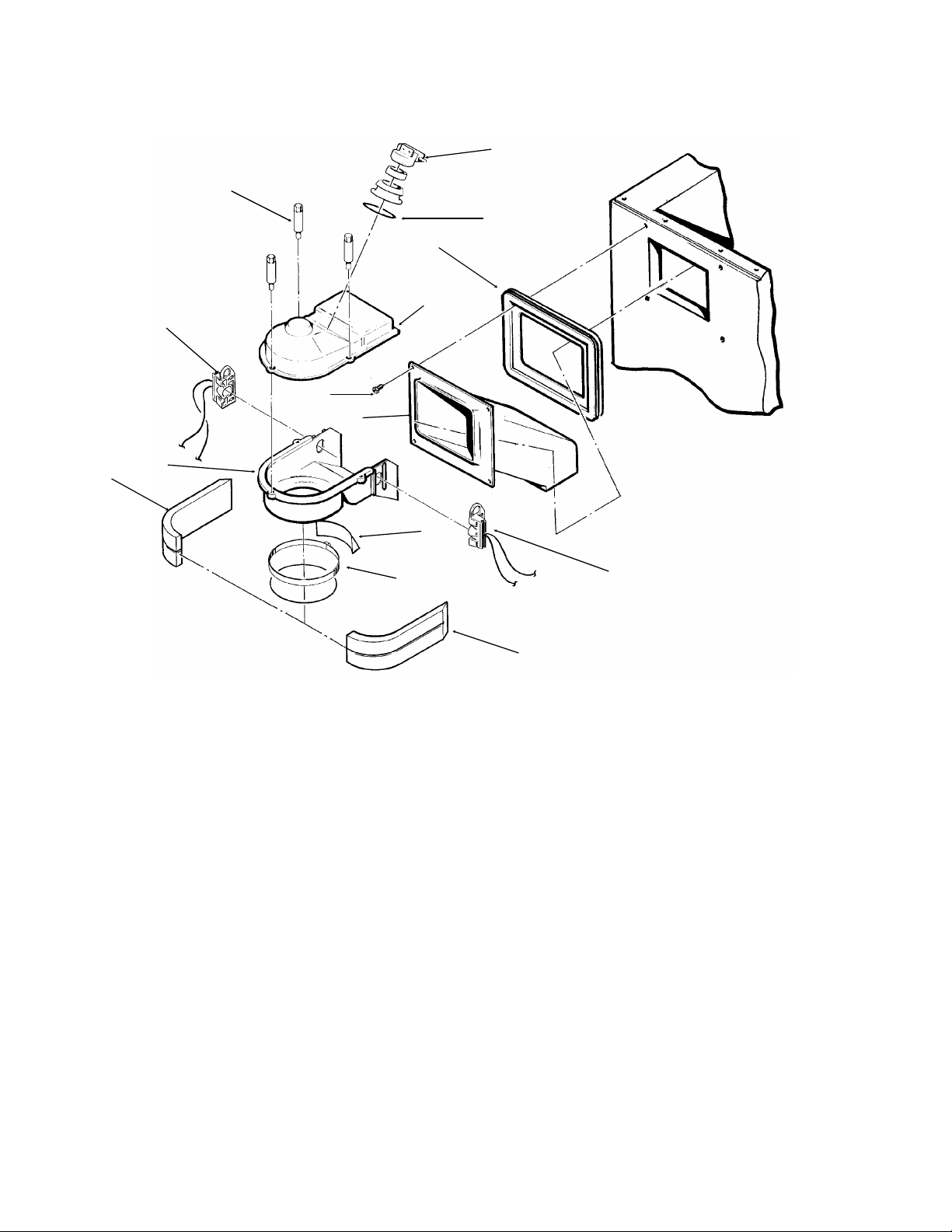

NS650 SERVICE PARTS
Ice Level Sensors and Ice Chute
1
3
2
10
4
6
11
12
9
ITEM PART
NUMBER NUMBER DESCRIPTION
1 A32891-001 Switch Assy
2 13-0617-53 O-Ring
3 02-2933-01 Hex Stud
4 02-2957-01 Ice chute cover
5 02-2958-01 Ice chute body
6 A34630-021 Ice level sensors
7 A32905-001 Band Clamp
8 A33102-001 Insulation
9 no number Insulation half
10 13-0867-01 Grommet
11 03-1531-01 Screw
12 02-2973-01 Chute extension
8
7
9
6
Janaury 1994
Page 8
8
12
13
NS650 SERVICE PARTS
Control Box
2
3
6
6
5
4
1
14
7
ITEM PART
NUMBER NUMBER DESCRIPTION
1 03-1419-10 Screw
2 18-1901-42 Start Capacitor
3 18-4300-50 Start Capacitor Cap
4 18-2200-39 Start Capacitor Bracket
5 13-0577-00 Grommet
6 12-1213-11 Bushing
7 12-2048-01 Contactor
8 03-1531-01 Screw
9 11-0447-20 Low Pressure Control
11
9
8
10
ITEM PART
NUMBER NUMBER DESCRIPTION
10 12-0426-01 Master Switch
11 12-2285-21 Transformer
12 18-1903-44 Potential Relay
13 12-2350-01 Stand off
14A37750-021 Circuit Board
NOT ILLUSTRATED
15 12-2337-02 Wire Harness, circuit
board to spout switch
16 12-2340-02 Wire Harnes, circuit
board to transformer
Janaury 1994
Page 9
NS650 SERVICE PARTS
Component Layout Diagram
Janaury 1994
Page 10

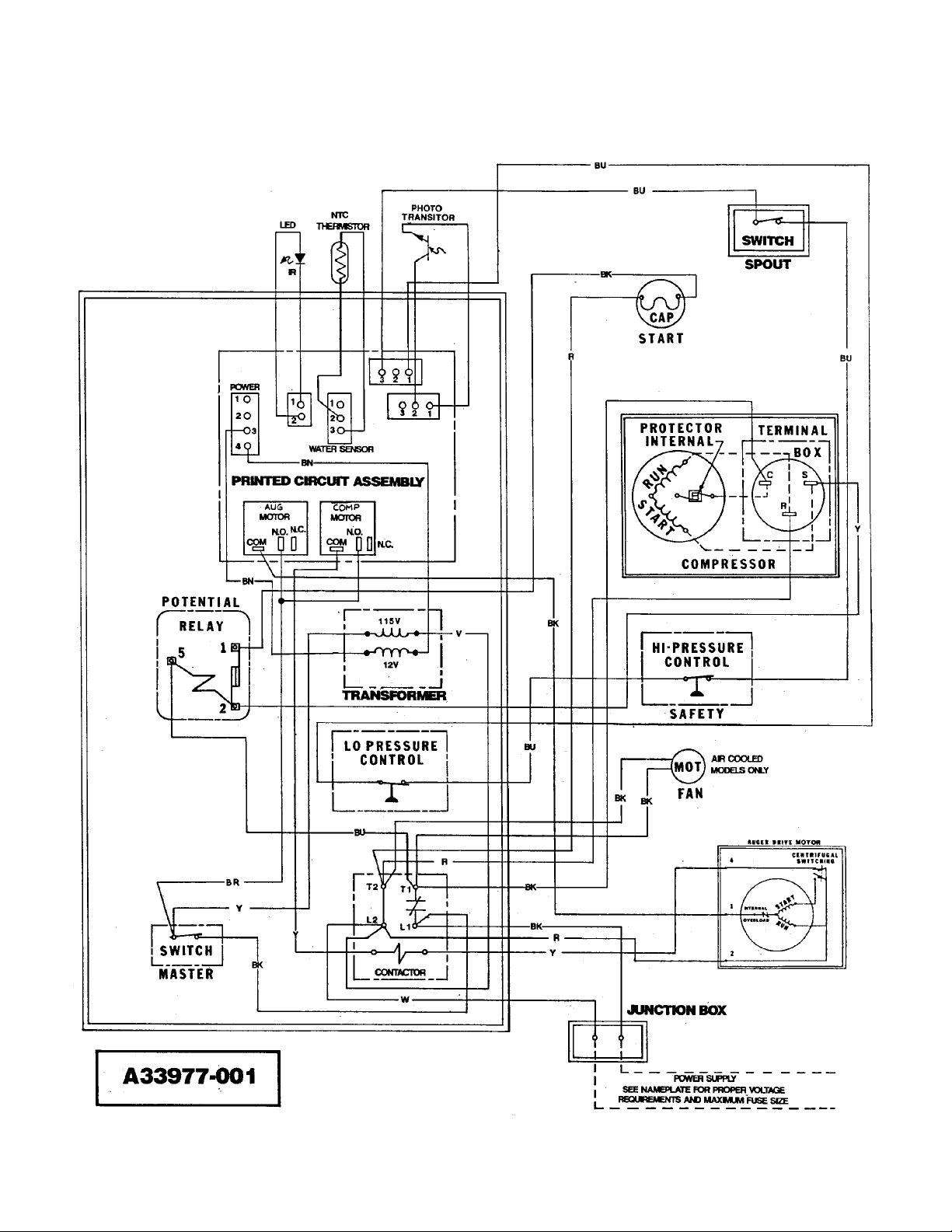

NS650 SERVICE PARTS
Schematic Diagram
USE COPPER CONDUCTORS ONLY
ALL CONTROLS SHOWN IN NORMAL ICE MAKING MODE
This Unit Must Be Grounded
Janaury 1994
Page 11
