Prodigy Eclipseä EH130 System
Introduction:
This manual covers the assembly, installation, start
up, operation and maintenance of the EH130 600
remote low side cuber system.
Table of Contents
Configuration·················· Page 2
Technical Specifications ············ Page 3
Model Number Locations ··········· Page 4
Cabinet Drawings, Ice Making System ···· Page 5
Cabinet Drawings, Compressor Package and
Condensers ··················Page 6
Proper Combinations: ············· Page 7
Create the System ··············· Page 8
System Examples ··············· Page 9
System Examples ··············· Page 10
Place Remote System ············· Page 11
System Location ················ Page 12
Route Tubing·················· Page 13
Ice Making Section··············· Page 14
Compressor Package ············· Page 15
Condensing Section Assembly ········ Page 16
Condensing Section Assembly ········ Page 17
Ice making section: ·············· Page 18
Water and Drain ················ Page 19
Water and Drain ················ Page 20
Initial Start Up ·················Page 26
Ice Bridge and Water Purge Adjustments · · · Page 27

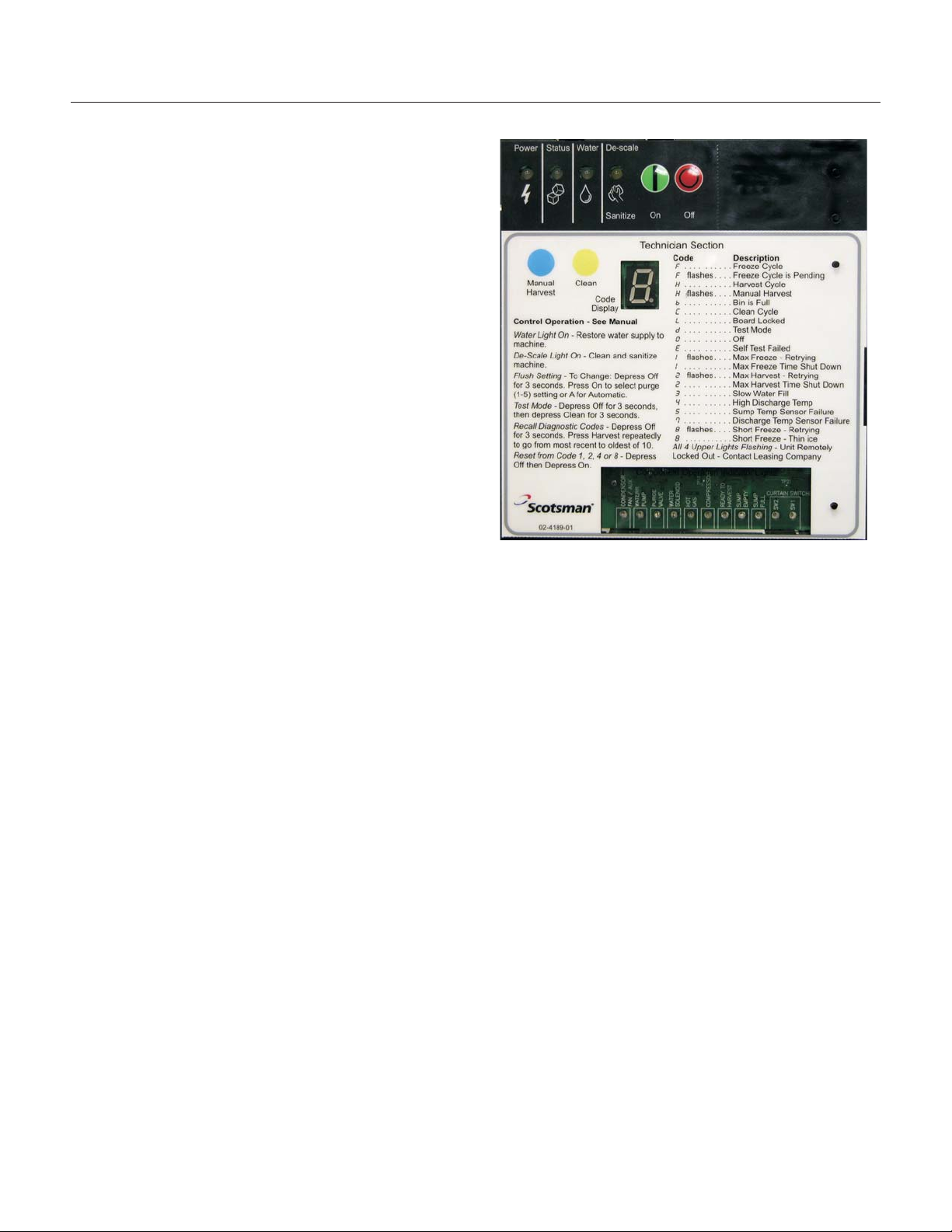

Controller Information ············· Page 28
Use and Operation··············· Page 29
Control Switches ················Page 30
Options····················· Page 31
System Operation: ··············· Page 32

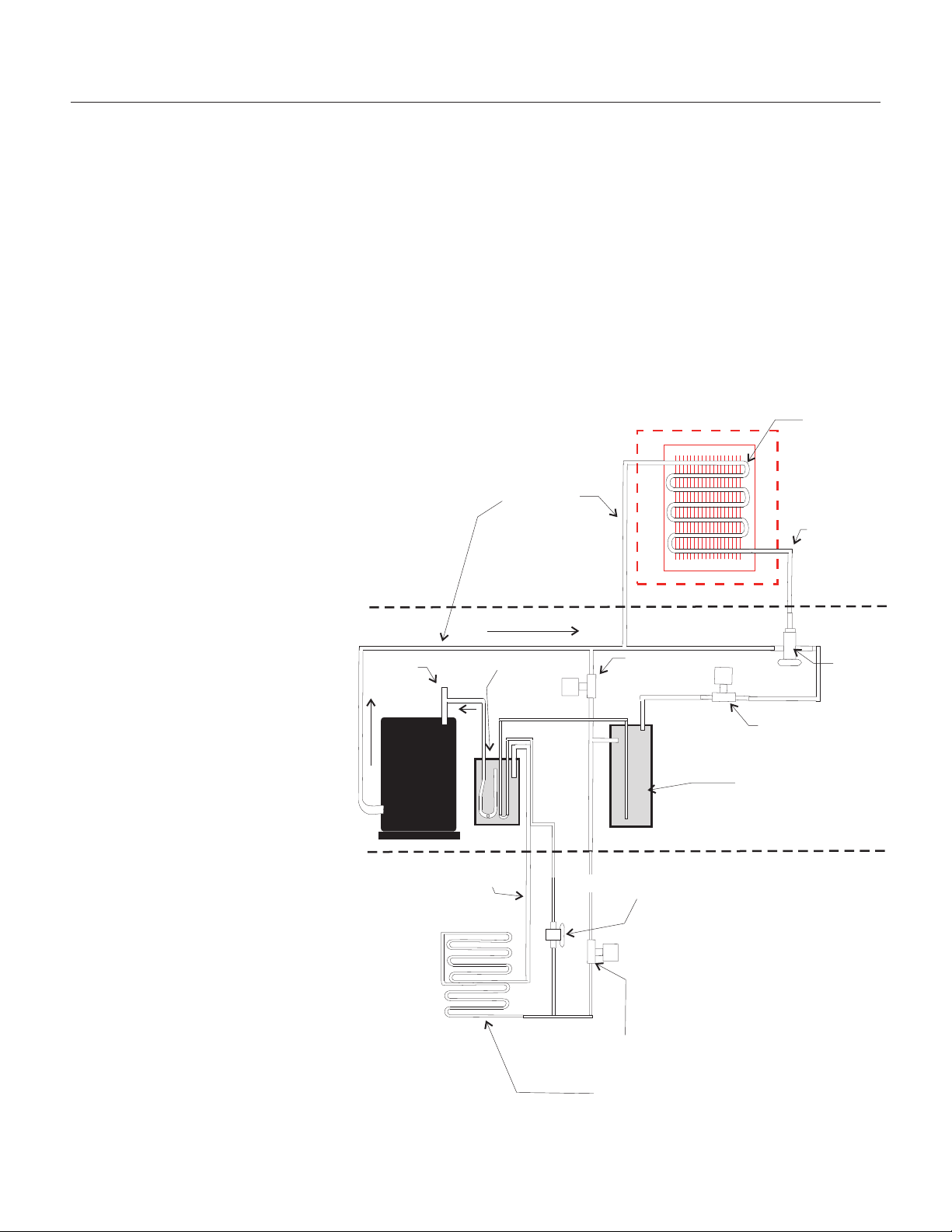

Refrigeration Details: ············· Page 33
Technicians Only: Freeze Cycle Sequence of Operation
Page 34
Technicians Only: Harvest Cycle Sequence of
Operation ··················· Page 35
Control Safeties
Controller Operation ·············· Page 37
Cleaning, Sanitation and Maintenance ···· Page 38
Service Diagnosis ··············· Page 40
Service Diagnosis ··············· Page 41
Service Diagnosis ··············· Page 42
Operational Characteristics 600 lb system · · Page 43
Refrigeration System Service ········· Page 44
················ Page 36
Ice Making Section Set Up ·········· Page 21
Coupling Connections:············· Page 22
Condensing Unit Connections ········· Page 23
Final Placement ················ Page 24
Controller Operation ·············· Page 25
Keep this manual for future reference.
April 2008
Note this symbol when it appears. It
indicates a potential hazard.
Page 1
Prodigy Eclipseä EH130 System
Configuration
A remote low side cuber system includes several
sub systems: an ice making section, a remote
compressor package, and a remote air cooled
condenser. Additionally, there are several models
of each sub-system and this manual covers all of
them.
The ice making sections are designed for use
indoors in a controlled environment. The remote
compressor packages and condensers are
designed to operate outdoors. Each sub-system
has limits for power, water and temperature.
Operational Limitations:
Minimum Maximum
o
Air Temp (IMS) 50
Air Temp (CU) -20
Water Temp 40
Water Pressure 20 psi 80 psi
Voltage (IMS) 104 126
Voltage (CU) 198 253
F 100oF.
o
F. 120oF.
o
F. 100oF.
IMS = Ice Making Section, CU= Condensing Unit
Do Not operate the machine in conditions beyond
these limitations. Doing so will void the warranty.
Scotsman ice systems are designed and
manufactured with the highest regard for safety
and performance. They meet or exceed the
standards of UL and NSF.
Scotsman assumes no liability of responsibility of
any kind for products manufactured by Scotsman
that have been altered in any way, including the
use of any part and/or other components not
specifically approved by Scotsman.
Scotsman reserves the right to make design
changes and/or improvements at any time.
Specifications and design are subject to change
without notice.
Warranty
Refer to the warranty coverage in effect when the
equipment was sold. Warranty statements are
included with each product.
Systems:
Each sub-system is a separate entity that carries
its own model and serial number. They must be
combined to create a remote cuber low side
system.
System Information
Prodigy
Eclipse
System Size
600 C0600CP-32A 208-230/60/1
Compressor Package Condenser
Model Electrical Model Electrical Model Electrical
C0600CP-3A 208-230/60/3
Condensing Unit (CU) Ice Making Section (IMS)
EH130SL-1A
ERC680 -32A 208-230/60/1
or
EH130ML-1A
115/60/1
Notes: Voltage Codes are at the end of the model number. Codes read Voltage/Hertz/Phase. Those related
to these products include:
-1 = 115/60/1
-3 = 208-230/60/3
-32 = 208-230/60/1
Pre-charged tubing kits are required to
interconnect the IMS to the CP.
·
20 foot: 3RTE20-EH, 35 foot: 3RTE35-EH,
·
50 foot: 3RTE50-EH, 75 foot: 3RTE75-EH
Interconnecting 24 volt control wire ships with the
CP unit.
April 2008
Page 2
Technical Specifications
Ice Making Section (IMS)
Prodigy Eclipseä EH130 System
Model Voltage Cube Size Minimum Circuit
Ampacity
EH130SL-1A 115/60/1 Small 3 15 30”w x 24”d x 23”h 94
EH130ML-1A 115/60/1 Medium 3 15 30”w x 24”d x 23”h 94
Max Fuse Size Cabinet Size Weight (lb)
Compressor Package (CP)
Model Voltage Contains
Headmaster
?
C0600CP-32A 208-230/60/1 Yes 10 15 232 oz 29 ¾”wx18”dx34½”h 180
C0600CP-3A 208-230/60/3 Yes 7.1 15 232 oz same 180
Minimum
Circuit
Ampacity
Max
Fuse
Size
Refrigerant
Charge
(R-404A)*
Cabinet Size Weight
(lb)
* Includes entire system charge.
Condenser
* * ERC condenser fan motor is powered from CP
unit and the ERC’s ampacity is included in CP unit
numbers.
Model Voltage Contains
Headmaster?
ERC680-32A 208-230/60/1 No 1 1.25 15 29 ¾”w x 28 5/8”d x 38 ½”h 95
Number
of
Circuits
Minimum
Circuit
Ampacity**
Max
Fuse
Size**
Cabinet Size, with legs Weight
(lb)
Note: 75 feet of interconnecting control wire (24
volt) is included with the CP units.
Model Number Description
Example:
•
EH130SL-1A
•
EH= Eclipse Head
•
1= Smallest capacity of the Prodigy Eclipse heads
•
30= nominal width of cabinet.
•
S= Cube size. S=small or half dice cube. M=medium or full dice cube
•
L = Remote Low Side
•
-1=Electrical code. -1=115 volts. -32=208-230 single phase. -3=208-230 three phase. -6=230 50 Hz
•
A=Series revision code. A=first series
Note: In some areas of this manual model numbers may include only the first five characters of the model
number, meaning that the cube size, condenser type and voltage differences are not critical to the
information listed there.
April 2008
Page 3
Prodigy Eclipseä EH130 System
Model Number Locations
Ice Making Section
The dataplate on the back of the ice machine
contains the model number, serial number and
electrical data.
A second plate, located behind the front panel at
the lower front, also lists the model and serial
numbers.
Compressor Package
The dataplate on the right side of the
compressor package contains the model
number, serial number, electrical data and
system refrigerant charge.
A second plate, located behind the front
panel in front of the compressor, also lists
the model number, serial number and
refrigerant charge.
Condenser
The dataplate lists the condenser’s
electrical information plus the model and
serial numbers.
On the condenser it is located on the side
opposite the refrigeration connections.
Dataplate
location for
ERC680
Dataplate
location for
CP Unit
Dataplate
location for
Ice Making
Section
April 2008
Page 4
Prodigy Eclipseä EH130 System
PLAN VIEW
24.00 REF.
61
30.00 REF.
76.2
2.00
5.1
2.00
5.1
19.05
48.4
3.25
8.3
10.25
26
7.00
17.8
ICE DROP OPENING
ULTRASONIC
BIN LEVEL
SENSOR
(OPTIONAL)
Cabinet Drawings, Ice Making System
April 2008
Page 5
Prodigy Eclipseä EH130 System
BACK VIEW
FRONT VIEW
RIGHT SIDE VIEW
1/2" COOL VAPOR LINE
0.88 ELECTRICAL INLET
3/4" SUCTION LINE
INTERFACE HARNESS
ACCESS HOLE
3/8" CONDENSER LIQUID LINE (OUT)
1/2" CONDENSER DISCHARGE LINE (IN)
CONDENSER FAN WIRE ROUTING
ERC680 or ERC1086:
This Side Attaches to
C600CP, C800CP
or C1410CP
ER2C6810:
Both Sides Attach to
C600CP, C800CP
or C1410CP
27.90
28.53
35.72
2.75
Liquid Line
Discharge
Line
29.50
38.47
33.19
6.68
22.51
29.19
ER2C6810 - 36.52
9/16” Mounting Hole
9/16” Mounting Hole
23.5”
1.5”
1.5”
3/8" LIQUID LINE
15”
1.5”
1.5”
Cabinet Drawings, Compressor Package and Condensers
April 2008
Page 6
Proper Combinations:
Prodigy Eclipseä EH130 System
The three sub systems are designed to be
connected together in certain combinations to
meet the user’s needs:
Eclipse EH130 - 600 System:
EH130, C0600CP, ERC680
·
ERC coils may be substituted for by an approved
UL listed central condenser coil & fan (coil must be
without headmaster - headmaster is part of CP).
ERC680 condenser coil internal volume target is
80 cubic inches, BHTU target is 30,000 BTUH.
Note: The ice making section cannot be stacked
vertically.
Accessories such as bin adapters and tubing kits
are required to complete the installation.
Dispenser Adapter Kits:
Scotsman ID200 or ID250: KBT44
·
Note: Dispensers with two rotors. the ice making
head should NOT be centered left to right between
the two rotors. It should be shifted slightly to one
side, and the agitation should be minimized.
Bin Adapter Kits:
·
B842: KBT29
·
B948: KBT22
Tubing Kits:
·
20 foot: 3RTE20-EH
·
35 foot: 3RTE35-EH
·
50 foot: 3RTE50-EH
·
75 foot: 3RTE75-EH
·
Suction Line Trap: KSLT075
·
Interconnecting Tubing to Approved Rack
Condenser Coil: RTE10
Items required for installation:
Ice making section
·
Compressor Package (includes interconnecting
·
control system wire)
Remote condenser or approved rack coil
·
w/tubing kit
20’, 35’, 50’ or 75’ triple line set (liquid, vapor
·
and suction)
Bin or dispenser adapter
·
Special Considerations
The ice making section’s footprint is 30” wide by
24” deep. The refrigeration connections can be
made out the top panel or out the back. The
electrical power cord and the water inlet line can
also be routed through either of those areas. The
drain may be routed out the back or to the left side.
Water
Pure water does not exist. All water supplies
contain some amounts of impurities, although
potable water is, by definition, fit for human
consumption. Because the contents of the water to
an ice machine directly impact its performance,
consideration should be given to improving the
water’s quality.
There are two ways water can contain impurities:
in suspension or in solution. Suspended solids can
be filtered out of the water. In solution or dissolved
solids must be diluted or treated. Water filters are
recommended to remove the suspended solids.
Some filters or filter systems have treatment
chemicals in them for treating the suspended
solids.
This ice machine has an adjustment for the
amount of water rinsed or purged. Water use
adjustments are customer convenience
adjustments; they are not factory defects and are
not covered by warranty.
·
Line end kit: KTE6-EH
April 2008
Page 7
Prodigy Eclipseä EH130 System
Create the System
Plan the installation. The system consists of four
parts: the ice making section, the compressor
package, the interconnecting tubing and the
remote condenser. Of these, the biggest variable is
the interconnecting tubing.
Tubing: The tubing consists of three pre-charged,
insulated and sealed soft copper tubes. They each
contain a small holding charge of R-404A. One
tube, the liquid line, is 3/8” OD. The vapor tube is
½” OD and the suction tube is ¾” OD. A site
inspection will determine what length of tubing is
required for the installation.
Excess tubing must be either shortened at the job
site (recovering the holding charge, purging with
nitrogen when brazing and evacuating to 50
microns) or coiled up inside the building.
Installations with greater than 20 feet of vertical lift
between ice machine and the compressor require
a suction line trap. The suction line requires careful
handling and large radius bends to prevent kinking.
Roof mounting: To make installation easier the
compressor and condenser are designed to be
assembled together on the roof. Some
installations will require the use of a hoist to lift the
components to the roof.
Pad mounting: The compressor and condenser
may be located below the ice making section, up to
a limit of 15 feet.
Distance from unit: Limited to the length of the
available pre-charged tubing.
Interconnecting wires: An interconnecting wire
harness is included with the CP unit. One end
plugs into the ice making section and the other into
the compressor package. The system will NOT
operate without this harness.
Exposed tubing: Minimize the amount of tubing
exposed outdoors.
Confirm Component Availability:
EH130
·
C0600CP with ERC680
·
ERC required unless connecting to an approved
·
condenser coil.
Note: Only these condensers may be used. They
do NOT contain a headmaster valve. That valve is
in the Compressor Package. Do NOT use any
other Scotsman condenser. Do NOT use these
condensers on any other Scotsman remote
product.
Interconnecting tubing kit
·
Note: Check tubing integrity before assembly by
attaching a refrigeration compound gauge onto
one of each tube’s schrader valves. If there is
pressure, the tube is OK, if not it should be
checked for damage and leaks.
·
Bin or dispenser adapter
Elevation: CP unit limited to 35 feet above the ice
making section.
Compressor package: Electrical power must be
supplied to the compressor package. The remote
condenser fan motor takes its power from the
compressor package.
Ice making section location and attachment:
The 115/60 Hz ice making section is cord
connected and requires an outlet within 6 feet of
the installation.
April 2008
Page 8
System Examples
Prodigy Eclipseä EH130 System
The Eclipse system can be installed on a bin or
dispenser. The CP unit can be installed on either a
single circuit condenser or onto a coil in a separate
rack condenser.
Separate coils must be:
Scotsman approved
·
The correct size and capacity
·
New or not have been part of a system that
·
used mineral oil.
System on Ice Storage Bin
System on Ice Dispenser
April 2008
Page 9
Prodigy Eclipseä EH130 System
System Examples
A variation of the typical system set up is one that
uses a non-Scotsman condenser. In that case the
CP unit is NOT bolted to the condenser and a
RTE10 line set is used to connect the refrigeration
system to the condenser’s coil.
IMS on Bin, CP Unit Connected to Approved Central
Condenser Coil
April 2008
Page 10
Place Remote System
Prodigy Eclipseä EH130 System
Roof preparation
Most installations of this system will place the
compressor package and condenser on the roof of
a building. The roof must be physically stout
enough to accept the load of the equipment and
the roofing material must be prepared to prevent
water leaks.
Follow local codes for the placement and
attachment of the equipment.
Location
The air cooled condensing unit assembly requires
unobstructed air flow to operate efficiently. A four
foot space between each intake side and a wall or
other cabinet is recommended. Provide at least 2
feet of space above the air cooled condenser for
proper air flow.
Do not place where the air cooled condenser will
pick up hot discharged air from an air conditioner
or other refrigeration system condensing unit.
Space must also be reserved for service on the
compressor package.
Roof Piercing:
The roof (or wall) must have a passage large
enough for the three pre-charged, pre-bent tubes
and the control wire to pass through. The minimum
recommended size is 4” ID. In most areas the
power supply may also pass through the same
passage. If there isn’t a passage one must be
created. In most cases this must be done by a
licensed and bonded roofer in order to maintain the
roof’s integrity.
Suggestions:
Hoist the compressor package and condenser to
the roof in separate loads.
Note: In most cases a mechanical lift, boom truck
or crane will be required to hoist the condensing
unit components.
Assemble the compressor package to the
condenser and mount both to either roof rails or
pressure treated4x4s.
Orient the assembled unit so that the unit’s mounts
are parallel to the pitch of the roof to allow water to
drain freely.
Do NOT place the unit directly onto roof rock.
April 2008
Page 11
Prodigy Eclipseä EH130 System
22.87"
17.15"
40.35"
System Location
Limitations:
Distance: Limited to the maximum length of a
single pre-charged tubing kit, 75 feet.
Condensing Unit Elevation over Ice Making
Section: 35 feet.
Note: Elevations greater
than 20 feet require
installation of a suction line
trap at the 20 foot mark.
Ice Making Section
Elevation over Condensing
Unit: 15 feet.
S-Trap
Limit of Line Set
Max Length -
Condensing
Unit Located
Above Ice
Machine
Line Routing:
Allowed: One rise after a drop.
·
Allowed: One drop after a rise.
·
Not Allowed: More than one rise after a drop
·
Not Allowed: More than one drop after a rise.
·
Max Rise:
35 Feet
Max Drop:
15 Feet
Condensing
Unit Located
Below Ice
Machine
Condensing Unit Distance Schematic
April 2008
Page 12
Route Tubing
Prodigy Eclipseä EH130 System
Scotsman’s pre-charged tubing kits are pre-bent to
fit the connection path at the ice making section.
If the tubing is to be routed out the back, use
·
the straight ends.
Suction
Vapor
Liquid
If the tubing is to be routed out the back and
·
then up, use the ends with the single 90
degree bends.
Suction
Select the correct end to send to the roof.
The method or technique used to route the tube is
left to the installer. However, in many cases it is
easier to position the tubing inside the building
first, then feed the outside portion through the
tubing passage (pitch pot). Installation of tubing will
be easier if the suction line is run first, followed by
the liquid and vapor lines. Use of two persons is
suggested to prevent kinking of the tubing, long
runs may require three people.
Allow enough tubing to make large radius bends
·
from the roof passage to the compressor unit.
Do NOT leave excess tubing on the roof.
If a trap must be installed, the suction line
·
tubing must be cut apart to install it.
Identify the ice machine end of the tubing. Each
·
tube has one end formed to route through the
hole in the unit’s top.
Tape the ends of the vapor and liquid line tubes
·
together along with the interconnecting wire.
Extend the end of the interconnecting wire
about 2 feet beyond the end of the precharged
tubes and then tape it back onto the tubes.
·
Route the three tubes and the wire from the
roof, or other entrance, to the ice making
section’s planned position. Avoid uncoiling and
recoiling the tubing, as that can lead to kinks.
Vapor
Liquid
Note: Units mounted against the wall require
refrigerant connections out the top, water supply in
from the top, and power supply routed through the
top.
·
Support long runs of tubing with hangers.
·
Repair any tears in the tubing insulation,
especially those on the suction line that are
inside the building.
Shortening Tubing
The precharged tubing kits are available in a
variety of lengths, they should only be shortened if
absolutely necessary.
To Shorten Tubes:
1. Recover the 3 ounce R-404A holding charge
from each tube.
2. Cut out the required length of tubing, do not cut
the tubing right at the quick connects.
3. Attach nitrogen bottle to one quick connect and
a hose with a depressor to the other end, purge
nitrogen through each tube while brazing.
4. Remove nitrogen, evacuate to 200 microns.
Note: If tubes are connected to the IMS, evacuate
the vapor & suction lines to get the entire system.
April 2008
Page 13
Prodigy Eclipseä EH130 System
Ice Thickness Sensor
Water Level Sensor
Insulated Sump Wall Section
Control Panel
Cutain Switch
Ice Making Section
Major Components:
TXV
Vapor Valve
Water Pump
Harvest Assist Solenoids - one for each
evaporator
Water Level Sensor - signals reservoir water level
to the controller
Controller - operates both the ice machine section
and the compressor unit.
Drain or Dump Valve - opens to allow pump to
drain the reservoir
Water Inlet Valve - solenoid valve that opens to fill
the reservoir
Liquid, Vapor and Suction Connections - where
the pre-charged tubing kits connect to.
April 2008
Page 14
Compressor Package
Prodigy Eclipseä EH130 System
Compressor packages are similar in layout, they
only differ in compressor and charge.
Major Components:
CPR Valve - limits refrigeration pressures
inside the dome of the compressor.
Condenser By Pass Valve - opens during
harvest to allow discharge gas to flow to the
vapor line.
Headmaster - maintains a minimum
discharge pressure during freeze
Liquid Inlet Valve - Normally Open, closes
during harvest.
Receiver - stores liquid refrigerant for
freeze and provides vapor for harvest
Suction Access Valve - provides a place to
attach a refrigeration manifold for diagnostics
and recovery.
Condenser By
Pass Valve
24 volt comm line
Liquid from
Power
Routing Hole
Vapor Line
Connection
Routing Hole
Suction Line
Connection
Liquid Line
Connection
CP Unit Refrigeration Connection ID
Cond.
Discharge to
Cond.
Condenser
Wire Routing
Hole
Headmaster
Suction
Access
Valve
CPR Valve
Pressure
Cut Out
Liquid
Access
Valve
Liquid Inlet
Valve
Receiver
Hi
CP Component Location
April 2008
Page 15
Prodigy Eclipseä EH130 System
Condensing Section Assembly
(CP to ERC):
1. Remove cartons from compressor package and
condenser.
2. Remove top from both units.
3. Remove front panel from CP unit.
4. Locate legs, secured to ERC unit.
5. Locate fasteners, inside junction box of ERC
unit.
6. Assemble rear legs to ERC using fasteners from
prior step.
Locate
Fastener
Package
Connect
Power
Here
7. Locate wire package in CP unit. Remove short
wires and two wire nuts.
8. Use wire & wire nuts from step 7 to connect to
the wires inside the junction box of the condenser.
Return junction box cover to its original position.
9. Place front of ERC on back flange of CP unit.
10. Secure CP unit to ERC.
11. Attach leg brace between ERC unit and CP
unit.
12. Route wires from condenser through hole in
back of CP unit to the CP unit control box.
13 Pull ERC female refrigerant connections
forward to engage male connections on CP unit.
14. Rotate swivel nuts to tighten refrigerant
connections. Use a back up wrench to hold female
connection to prevent tearing of the diaphragms.
15. Connect wire to T1 and T2 of the contactor.
Use the two wire nuts to connect the other end to
the two black wires in the condenser junction box.
Connect
Fan Motor
Leads
CP Unit Contactor, Three Phase Shown
Rotate Swivel
Nuts to Connect
Condenser
System to
Compressor
Unit
16. Return tops to their original positions.
April 2008
Page 16
Prodigy Eclipseä EH130 System
Condensing Section Assembly
Alternate Assembly:
The CP unit may be connected to an approved
condenser coil in a central condenser rack. In
those cases, the CP unit must be connected to the
condenser coil using special kit RTE10.
Position the CP unit in its final spot. It must be
within 6 feet of the condenser coil connections.
Route tubing from kit RTE10 from the CP unit to
the condenser coil.
Approved
Central
Condenser
Unit
Scotsman
Condensing
Unit
All Assemblies:
Route interconnecting control wire through proper
hole in side of CP unit and plug into the connection
on the bottom of the control box.
Interconnecting
Control Wire Plug
Control Wire Connection in CP Unit
Route power conduit (liquid tight) and wires to the
hole in the side of the CP unit. Secure with the
proper type of connector.
Note: The power supply wires must be the correct
size and type per the National Electric Code.
Locate the nameplate on the CP unit for the
Voltage, Phase, Minimum Circuit Ampacity and
Maximum Fuse Size. Either fuses or HACR type
circuit breakers may be used.
Connect tubing per the Coupling Instructions in this
manual.
No wire connection is required between the CP
unit at the condenser.
Note: Approved condensers must maintain power
to their fan motor at all times.
Note: For local codes requiring a pressure relief
valve: Recover charge and connect valve to
receiver liquid outlet tubing.
Follow all Local, State and National Codes.
Connect
Power
Here
Connect
Fan Motor
Leads
CP Unit Contactor, Three Phase Shown
Connect power wires to the contactor, L1 and L2 if
single phase, L1, L2 and L3 if three phase. Note: If
there is a “wild leg” in the three phase power
supply place it on L3.
Connect electrical power to the CP unit.
Return front of CP unit to its original position.
April 2008
Page 17
Prodigy Eclipseä EH130 System
Ice making section:
Remove from carton.
Remove all panels.
Utility Connection Route:
Electrical: The unit is supplied with a power cord.
There is also an interconnecting control wire that
must be routed between the ice making head and
the CP unit.
Water Supply: The water supply can be routed
from the top or back.
Drain: The drain must be routed out the back.
Refrigeration Tubing: The tubing can be routed up
or towards the back.
Adapters:
In many cases an adapter kit will be required when
placing the head unit on a bin or dispenser. See
sales information for the correct kit. Place adapter
kit onto bin or dispenser top. If adapter does NOT
have gasket tape install tape such as Scotsman
part number 19-0503-04.
Attachment:
If the unit is a direct fit, place it on the bin. If the
unit is in a position that it need not be moved to
complete the installation, secure it to the bin with
the hardware provided with the head unit.
On some bins or dispensers it may be necessary
to drill small holes and use field supplied sheet
metal screws to secure the ice making head to that
bin, dispenser or adapter.
Side View of
Electrical Box in
Ice Making Head
Control
Wire
Connector
Ice Making Section Control Wire Connection
Control Wire
Plug the interconnecting control wire into the
harness at the back of the head unit’s electrical
box.
IMS Shown on Ice Dispenser
April 2008
Page 18
Prodigy Eclipseä EH130 System
Water and Drain
The ice making section requires an adequate
potable water supply and a gravity drain.
In some tight situations it will be necessary to
assemble the ice making section to the dispenser
or bin and install the water and drain connections
before placing the system in its installed position. A
loop of water supply tubing will allow movement of
the system.
In other tight situations the unit should have its
water and drain tubing connected and stubbed out
before placing on the dispenser or bin.
Water
Inlet
Refrigeration
Connections
Drain
Fitting
April 2008
Page 19
Prodigy Eclipseä EH130 System
Water and Drain
All models require connection to cold, potable
water. A hand actuated valve within site of the
machine is required. There is a single 3/8” FPT
inlet water connection, a 3/8” FPT to 3/8” male
flare adapter is supplied with the machine and can
be used if desired.
Water Filters
Install a new cartridge if the filters were used with a
prior machine.
All models require drain tubing to be attached to
them. There is a single ¾” FPT drain fitting in the
back of the cabinet.
Install new tubing when replacing a prior ice
machine, as the tubing will have been sized for the
old model and might not be correct for this one.
1. Connect water supply to water inlet fitting.
Note: This NSF listed model has a 1" anti-back
flow air gap between the potable water inlet tube
end and the highest possible reservoir water level,
no back flow device is required.
2. Connect drain tubing to drain fitting.
3. Route the drain tubing to building drain. Follow
local codes for drain air gap.
Use rigid drain tubes and route them separately –
do not Tee into the bin’s drain.
Vent the reservoir drain. A vertical vent at the back
of the drain, extended about 8 – 10” will allow the
gravity drain to empty and also keep any surges
during draining from discharging water.
Horizontal runs of drain tubing need a ¼” per fall
per foot of run for proper draining.
Follow all applicable codes.
April 2008
Page 20
Prodigy Eclipseä EH130 System
Ice Making Section Set Up
Rotate the ice making section as needed to access
the left side, where the refrigeration connections
will be made. Connect the suction line to the top
fitting. Connect the vapor line to the middle fitting.
Connect the liquid line to the bottom fitting.
See Coupling Connections on the next page for
detailed instructions.
After couplings are connected, add cork-tape type
insulation to exposed fittings to reduce
condensation potential.
Suction
Liquid
Add
insulation
Vapor
Refrigerant Lines, Shown Routed Out The Top
Suction
Vapor
Liquid
Refrigerant Lines, Shown Routed Out the Back
April 2008
Page 21
Prodigy Eclipseä EH130 System
Coupling Connections:
The couplings on the ends of the pre-charged line
sets are self-sealing when installed properly.
Follow these instructions carefully. These steps
must be performed by an EPA Certified Type II or
higher technician.
Initial Connections
1. Remove the protector caps and plugs. Wipe the
seats and threaded surfaces with a clean cloth to
remove any possible foreign matter.
4c. Continue tightening the swivel nut until it
bottoms out or a very definite increase in
resistance is felt (no threads should be showing).
Do NOT overtighten.
Tighten Swivel Nut
5. Use a marker or pen to mark a line on the
coupling nut and unit panel. Then tighten the
coupling nut an additional one-quarter turn. The
line will show the amount that the nut turns.
Clean and Lubricate Couplings
2. Thoroughly lubricate the threads, o-rings,
diaphragms and all internal coupling surfaces with
polyolester refrigerant oil.
3. Position the fittings on the correct connections
on the condenser and ice machine.
Final Connections:
4a. Begin to tighten the couplings together by
hand. Continue to turn the swivel nuts by hand
until it is certain that the threads are properly
engaged.
4b. Using two wrenches, one to rotate the swivel
nut and one to hold the tubing in place, tighten
each coupling.
It is CRITICAL that ONLY the NUT on the
pre-charged tube be turned, or the diaphragms will
be torn by the piercing knives and become loose in
the refrigeration system causing severe
operational problems.
Note: As the coupling is tightened, the diaphragms
in the quick connect couplings will begin to be
pierced. As that happens, there will be increased
resistance to tightening the swivel nut.
Rotate Swivel Nut ¼ Turn More
6. After all connections have been made check the
couplings for leaks.
7. Add cork tape to the swivel nut of the suction
line to insulate it. Be sure all exposed tubing of
the suction line is insulated.
Note: The system charge is contained in the
receiver tank of the ice machine. Only “holding"
charges are present in the “pre-charged" tubing or
the condenser.
April 2008
Page 22
Prodigy Eclipseä EH130 System
Condensing Unit Connections
Connect the suction line, the vapor line and the
liquid line to the matching fittings on the CP unit.
See Coupling Connections on the prior page for
detailed instructions.
Field
Supplied
Service
Disconnect
Assembled Condensing Unit
Power
Supply
Inlet
Control Wire
Vapor Line
Liquid Line
April 2008
Page 23
Suction Line
Prodigy Eclipseä EH130 System
Final Placement
After the utilities and refrigeration connections
have been made, secure the unit to the dispenser
or bin top.
Secure ice making section to dispenser or bin
adapter.
Use strap/clips to secure unit. On some bins or
dispensers it may be necessary to drill small holes
and use field supplied sheet metal screws to
secure the ice making head to that bin, dispenser
or adapter.
If the ice maker & bin or dispenser is not yet in its
final position gently move it there.
Note: The refrigerant lines above the machine
must be able to move freely while the machine is
being moved into position.
Final Check List Before Initial Start Up
1. Confirm that the ice making section is installed
indoors in a controlled environment.
2. Confirm that all packing materials have been
removed from all products.
3. Confirm that the ice making section is level.
4. Confirm that all the refrigerant connections
have been made and checked for leaks.
5. Confirm that the proper power supply has been
turned on to the condensing unit.
6. Confirm that cold, potable water has been
supplied to the ice making section and checked
for leaks.
7. Confirm that the water supply is adequate.
8. Confirm that there is adequate water pressure
and that any water filters have been checked to
confirm that the cartridges do not need
changing.
9. Confirm that the proper size drain tubing has
been installed and properly routed.
10. Confirm that the ice making section has been
connected to the proper power supply.
11. Confirm that the interconnecting wire has been
routed and connected between the ice making
section and the compressor package.
April 2008
Page 24
Controller Operation
Prodigy Eclipseä EH130 System
The controller has four indicator lights, a code
display, four push buttons, and eleven component
indicator lights.
Indicator Lights
Power - on when there is power to the controller
·
Status - on in ice making mode
·
Water - on and blinking when there is no water
·
De-scale & Sanitize - on when it is time to clean
·
the machine
Code Display
Displays status and diagnostic codes
·
Push Buttons
On
·
Off
·
Manual Harvest
·
Clean
·
Component indicator lights
Fan - not used on this model
·
Cycle Definitions:
Freeze: The refrigeration system is operating to
remove heat from the evaporators. The
compressor, fan motor, and water pump are on.
Harvest: The refrigeration system and water
system are operating to harvest the ice and rinse
the reservoir. The compressor is on for the full
cycle, the pump is on until the purge valve closes.
The inlet water valve opens and refills the
reservoir. The vapor and condenser by-pass valves
are open during the entire harvest cycle, as are the
harvest assist solenoids.
Water Pump - on when the pump is
·
·
Purge Valve - on when the purge valve is
·
Water Solenoid - on when the inlet water
solenoid valve is
·
Hot Gas - on when the vapor inlet valves and
harvest assist solenoids have power
·
Compressor - on when the compressor
contactor is energized
·
Ready to Harvest - on when the ice thickness
sensor has water touching it
·
Sump Empty - on when there is no water
touching the mid-length probe
·
Sump Full - on when water is touching the
shortest probe
·
SW2 - on when the curtain is open
·
SW1 - on when the curtain is open
Controller Lights and Push Buttons
Component Indicator Lights
April 2008
Page 25
Prodigy Eclipseä EH130 System
Initial Start Up
Pre Start
A soak-out period of four hours is optional for this
system. If desired, powering the compressor unit
for four hours prior to start up allows the crankcase
heater to warm up the oil in the compressor.
Start Up
1. Connect power to the condensing unit and move
its toggle switch to Run or On.
2. Open the water supply valve.
3. Remove front panel. Check machine for any
packing or wires rubbing moving parts. Note
location of control board in upper left corner of the
machine’s front.
4. Remove tape securing curtains to evaporators.
5. Switch on the electrical power to the EH130.
Observe that some of the control’s indicator lights
glow and its display shows O.
6. Open the water supply valve.
7. Push and release the ON button. The code
display will begin to blink F.
The purge valve opens, the water pump starts and
the inlet water valve opens to add water to the
reservoir. In a few seconds the purge valve closes
and the water pump stops. Water will flow into the
machine until the reservoir is full. The vapor valves
and harvest assist devices will activate, then the
compressor and water pump will start.
Note: Moving the curtain during the Freeze cycle
has no affect on control function, but will cause
water to flow into the cube chute.
When enough ice has frozen, the Ready for
Harvest indicator light will be on steady. After it’s
been on steady for a few seconds Harvest will
begin.
The display shows an H. The vapor valves in the
EH130 open, and the harvest assist mechanisms
are activated. In the CP the condenser bypass
valve opens and the receiver inlet valve closes. In
the EH130, the purge valve opens to drain some
water, when it does the inlet water valve opens to
refill the reservoir. After a few seconds the purge
valve closes but the inlet water valve continues to
fill the reservoir. Harvest continues until the ice is
released as a unit and forces that curtain to open.
When both curtains have opened, that signals the
controller that harvest is complete, and it returns
the unit to a freeze cycle.
9. Check the ice harvested for proper bridge
thickness. The ice bridge is factory set at 1/8 inch.
If needed, adjust bridge thickness. Do NOT make it
too thin.
10. Return the front panel to its normal position
and secure it to the machine.
11. Instruct the user in the operation of the
machine and its maintenance requirements.
Note: Because the condensing unit is external to
the ice making section, no visible signs of
operation will be noticeable until the water begins
to cool and frost forms on the evaporator tubing.
8. Go to the condensing unit and confirm that the
compressor and fan motor are operating. Warm air
will be discharged from the condenser.
Observe the Ready for Harvest indicator light. It
may blink early in the cycle, that is normal. The
control will ignore that signal for the first 6 minutes
of freeze.
During the Freeze cycle move the curtains and
observe that the SW1 or SW2 light on the
control board blinks On when the curtain
moves away from the evaporator and Off when
returned to its normal position.
April 2008
12. Fill out and mail the warranty registration form.
Page 26
Prodigy Eclipseä EH130 System
Ice Bridge and Water Purge Adjustments
Bridge Thickness - For the Service Tech Only
1. Push and hold Off till the machine stops.
2. Remove evaporator cover.
3. Remove curtain.
4. Use a hex wrench and rotate the bridge
thickness adjustment screw in 1/16 turn
increments CW to increase bridge thickness.
Rotate CCW to decrease bridge thickness.
Caution: Do not make the bridge too thin or the
machine will not harvest properly. Bridge thickness
adjustments are not covered by warranty.
5. Return curtain and evaporator cover to their
normal positions.
6. Push and release the On button. Check next
harvest of ice. Repeat steps 1-6 if needed.
Water Purge Setting
The water purge is factory set to the automatic
position, suitable for most water conditions. The
setting can be changed to one of 5 manual settings
or left on automatic.
1/8-3/16"
bridge
Too Big
Just Right
Ice Bridge Thickness Measurement
Too Small
Adjustment
Screw
Purge setting
Setting Water Type
1 Minimum - RO water or equivalent
2 Moderate - Low TDS, non RO
3 Standard - Use with typical water
4 Heavy - High TDS
5 Maximum - Very high TDS
A Automatic - Factory setting
Any with conductivity not less than 10
microSiemens/cm
To set:
1. Switch the machine OFF by holding the Off
button in until a number or the letter A shows on
the display.
2. Press and release the On button repeatedly until
the number on the display corresponds to the
desired setting.
Bridge Thickness Adjustment Mechanism
Note: Indentations may be deeper on medium cube
models
3. Press and release the Off switch again to return
to the normal control state.
April 2008
Page 27
Prodigy Eclipseä EH130 System
Controller Information
Machine Indicator Lights
Power
·
Status
·
Water
·
Clean
·
Code Display
Main codes - automatically displayed
F Freeze Cycle
F flashesFreeze Cycle is Pending
H Harvest Cycle
H flashesManual Harvest
b Bin is Full
C Clean Cycle
L Board Locked
d Test Mode
O Off
E Self Test Failed
1 flashes Max Freeze - Retrying
1 Max Freeze Time Shut Down
2 flashesMax Harvest - Retrying
2 Max Harvest Time Shut Down
3 Slow Water Fill
4 High Discharge Temp
5 Sump Temp Sensor Failure
7 Discharge Temp Sensor Failure
8 flashes Short Freeze - Retrying
8 Short Freeze - Thin ice
Setting Codes - requires push button sequence
for access
Water Purge Settings
A, 1, 2, 3, 4, 5
De-scale Interval Settings
6, 5, 3, 3
April 2008
Page 28
Prodigy Eclipseä EH130 System
Use and Operation
Once started, the ice machine will automatically
make ice until the bin or dispenser is full of ice.
When ice level drops, the ice machine will resume
making ice.
Caution: Do not place anything on top of the ice
machine, including the ice scoop. Debris and
moisture from objects on top of the machine can
work their way into the cabinet and cause serious
damage. Damage caused by foreign material is not
covered by warranty.
There are four indicator lights at the front of the
machine that provide information on the condition
of the machine.
Indicator Lights:
Power
·
Status
·
Water
·
De-scale & Sanitize
·
Indicator Lights & Their Meanings
Power Status Water De-Scale & Sanitize
Steady Green Normal Normal – bin full or making ice - -
Blinking Green Self Test
Failure
Blinking Red - Diagnostic shutdown or, if making ice,
Yellow - - - Time to de-scale and
Blinking Yellow - - - In Cleaning mode
Light off No power Switched off Normal Normal
All Blinking Unit remotely locked out – check with leasing company
If the Water light is on, the machine has sensed a
lack of water. Check the water supply to the
machine. The water could have been shut off or
the water filter cartridges might need to be
changed.
If the De-Scale light is on, the machine has
determined that it needs to be cleaned. Contact an
authorized Scotsman service agent and have the
machine cleaned, de-scaled and sanitized.
Switching on or off - -
Lack of
temperature sensor failure
Note: A Component Indicator Light switches ON to
indicate that the component is operating.
Note: There are two Curtain Switch lights, SW1 and
SW2. A curtain switch light is ON when a curtain is
either open or not present.
water
-
sanitize
April 2008
Page 29
Prodigy Eclipseä EH130 System
02-4294-01 Rev.A.
Adjust Ice Level
L
o
w
e
r
Bin
Full
Control Switches
There is front access to two switches – On and Off.
Status De-Scale Off
Power Water On
To switch the machine OFF, push and release the
Off button. The machine will shut off at the end of
the next cycle. To shut the machine off
immediately, push and hold the Off button for 3
seconds.
To switch the machine ON, push and release the
On button. The machine will go through a start up
process and then resume ice making.
Control Options
There are three optional, field installed controls
that can be added to this machine.
Adjustable ice level control, kit # KVS
When this option is present there is an adjustment
post and an additional indicator light to the right of
the four indicator lights mentioned above. The
ultrasonic ice level control allows the user to
control the point that the ice machine will stop
making ice before the bin or dispenser is full.
Reasons for this include:
Seasonal changes in ice used
·
Planning to sanitize the bin
·
Faster turnover for fresher ice
·
Certain dispenser applications where maximum
·
ice level is not desired
Use of control
VariSmart™ adjustable ice level control
·
·
Smar-tBoard™ advanced control board and
data logger
VariSmart Control Area
There are several positions the ice level can be set
to, including Off (knob and label indicators lined
up), where it fills the bin until the standard bin
control shuts the machine off. See the kit’s
instructions for complete details.
Rotate the adjustment post to the desired ice level.
The machine will fill up to that level and when it
shuts off the indicator light next to the adjustment
post will be On.
Note: Ice will build up in the bin or dispenser at an
angle, the distance set will be from the sensor to
the top of the ice. The sensor position is shown in
the cabinet layout diagrams.
The actual distance between the highest point of
the ice may be closer or further away than the
distance set, depending upon the angle of the ice.
April 2008
Page 30
Options
SmartBoard Advanced Feature Control™
See Instructions for Available Features
34
SEL
02-4293-01 Rev A.
ENTER
ESC
Prodigy Eclipseä EH130 System
Advanced Feature Board, kit #KSB
When this option is present there is an additional
display panel in the area below the main control
board. It is not visible when the front panel is on.
The Smart-Board’s features include:
Seven day programmable ice level setting when
·
used with the optional Ultrasonic ice level
control
Recording of machine operation, including cycle
·
time.
Calculation of average cycle time
·
Recall of malfunctions with the time they
·
occurred.
Ice
The cuber drops ice in large sections. That ice will
break up into random parts as it falls into the bin,
but some large sections may remain on top of the
ice in the bin. When removing ice, tap the groups
of ice with an ice scoop to separate them into
smaller units. In a dispenser, this ice will break up
into mostly individual cubes as the dispense
mechanism moves the ice.
The ice in the bin will slope down from the right to
the left. This is normal.
Noise
The ice machine will make little noise when it is in
ice making mode. The compressor and fan motor
are remote from the ice making head. The water
pump in the ice making head will produce some
sound. It is also normal to hear some cracking just
before the harvest cycle begins. In addition, during
the harvest cycle the harvest assist solenoid will
click twice as it pushes the ice out and returns to
its normal position. The ice harvests as a unit or
slab, which makes some noise when it impacts the
bin or dispenser. These noises are all normal for
this machine.
April 2008
Page 31
Prodigy Eclipseä EH130 System
System Operation:
This section is intended for the technician.
Understanding it is not necessary for the normal
operation and maintenance of this ice making
system.
Major Components:
Ice making section sub-system:
Controller,
·
Water Level Sensor,
·
Transformer,
·
Evaporators,
·
Expansion Valves,
·
Vapor Inlet Valves,
·
Water Pump,
·
Inlet Water Valve
·
Purge Valve.
·
Harvest Assist Solenoids
·
Compressor Package sub-system:
Freeze:
In the air cooled condensing unit sub-system
(compressor package and condenser) the
compressor is on, the condenser by-pass valve is
closed, the fan motor is rotating the fan blade.
Harvest:
During harvest the compressor and fan motor
continue to operate. The vapor inlet, condenser
bypass, receiver inlet and harvest assist solenoids
are energized.
Ice releases and falls into the bin or dispenser.
Compressor,
·
Contactor,
·
·
Condenser Bypass Valve,
·
Liquid Inlet Valve,
·
Receiver,
·
Accumulator,
·
CPR Valve,
·
Headmaster.
Condenser sub-system:
·
Coils
·
Fan Motor
April 2008
Page 32
Refrigeration Details:
Prodigy Eclipseä EH130 System
The compressor provides the force that circulates
refrigerant in the refrigeration system. During
freeze, when the vapor inlet and condenser by
pass valves are closed, discharge gas flows from
the compressor into the condenser, where its heat
is discharged into the air stream. Liquid refrigerant
flows out of the condenser and through the
normally open liquid line outlet valve on its way to
the receiver inlet. Under low ambient/low pressure
conditions, the headmaster valve closes the liquid
outlet of the condenser and opens a bypass route
to direct refrigerant gas to the receiver inlet until
discharge pressure builds back up to the
headmaster’s set point.
From the receiver liquid outlet, liquid
refrigerant flows into the liquid line
and into the ice making section. At
the ice making section, the
refrigerant flows into the expansion
valves where a pressure change
takes place. The liquid refrigerant
moves from the expansion valves
into a low-pressure area (the
evaporators) where it can rapidly
evaporate and absorb heat. Heat is
absorbed from the copper
evaporator tubing, attached copper,
pan, grid, and the water flowing
over the evaporators. The
CPR
Valve
low-pressure refrigerant gas then
flows into the suction line, which
carries it back to the condensing
unit, where it enters the
accumulator. In the accumulator
most of any liquid carried with the
suction gas is separated and only
vapor flows out of the accumulator
through the CPR valve and to the
compressor where the cycle
continues.
Suction Line
Manifold
combination, when entering the relatively cold
evaporators, condenses, transferring latent heat to
the evaporators, which warms them. Ice releases
and falls into the bin. The low-pressure refrigerant
then flows out of the evaporators and into the
suction line. The suction line brings the refrigerant,
now consisting of a vapor-liquid combination, to
the accumulator. From the accumulator the
vapor-liquid combination (now more vapor than
liquid) goes to the Crankcase Pressure Regulator
valve which limits the amount of dome pressure in
the compressor, where the cycle continues.
Discharge
Line
L
Accumulator
D
By-Pass Valve
Liquid Inlet
Valve (N.O.)
Receiver
S
L
V
TXV
Air Cooled
Condenser
Coil
Liquid
Line
Headmaster
During harvest discharge gas flows
through the open condenser by
pass valve into the vapor line.
Power is also applied to the coil of
the liquid inlet valve, closing it. At
the same time, in the ice making
section, the vapor inlet valve opens.
Discharge gas, combined with some
vapor from the receiver’s outlet,
then flows through the vapor line to
the evaporator inlets. The gas-vapor
Vapor Inlet Valve
Evaporator
April 2008
Page 33
Prodigy Eclipseä EH130 System
Technicians Only: Freeze Cycle Sequence of Operation
This sequence begins with a restart after the unit
has shut off with the bin full. Ice has been
consumed, causing the ice sensors to become
un-blocked.
1. The controller (four minutes has to have passed
since the machine shut off on bin full for the
machine to restart)
2. The purge valve is opened and the pump
started.
3. After the purge valve closes the inlet water valve
opens and fills the reservoir.
Note: If the water reservoir does not fill within the
time period expected the controller will shut off and
switch on the water indicator light. It will re-try to fill
the reservoir in 20 minutes. If successful the freeze
cycle will continue.
4. The compressor and fan motor start and the
freezing process begins.
Note: The controller is connected to two external
relays in the EH130, one for the CP's compressor
contactor and the other for the CP's solenoid
valves. A separate 24 volt transformer is in the CP
supplying power to the contacts of these two line
voltage relays through the interconnecting wire.
5. The controller will shut the water pump off for a
few seconds when the reservoir’s water
temperature reaches a pre-set point.
6. The freeze cycle continues until water makes
continuous contact with the ice thickness sensor.
That signals the controller to terminate the freeze
cycle and begin the harvest cycle. The Ready to
Harvest light will be ON.
.
April 2008
Page 34
Prodigy Eclipseä EH130 System
Technicians Only: Harvest Cycle Sequence of Operation
When harvest begins, the controller connects
power to the external relay for the CP's solenoids.
It also connects power to the vapor inlet solenoid
valve in the cabinet of the EH130.
The vapor inlet solenoid valve and the condenser
bypass valve open. The receiver inlet solenoid
valve closes. Vapor flows from the condensing unit
to the EH130 evaporator inlets.
The water pump and purge valve will be on for a
period of time during the first part of harvest to
purge the water reservoir of a portion of the water.
The inlet water solenoid valve opens to fill the
reservoir when the water level sensor indicates an
empty sump. It continues to fill when the pump and
purge valve have shut off and will stop filling when
the water level sensor senses a full sump.
Harvest will continue until both curtains have
opened. The curtain switch, attached to the edge
of each curtain, will sense the curtain opening.
If the curtains both close, harvest will terminate
and the freeze cycle will resume.
If one or both of the curtains remains open for 30
seconds, the machine will shut down.
April 2008
Page 35
Prodigy Eclipseä EH130 System
Control Safeties
Max freeze time – 45 minutes
When exceeded, the controller will attempt another
freeze cycle. If the condition is exceeded again the
next cycle, the control will again attempt another
freeze cycle. If the freeze cycle exceeds the
maximum time in 3 consecutive cycles, the
controller will shut the machine off and it must be
manually reset.
Min freeze time – 6 minutes
If the controller switches the machine into harvest
within 20 seconds of the minimum freeze time, the
controller will harvest for a preset time and does
not stop if the curtain switch opens. If this occurs
again in the next three cycles, the machine will
shut down and must be manually reset.
Max harvest time – 3.5 minutes
If the harvest cycle has continued for 3.5 minutes
without the curtain opening, the controller will shut
the machine off for 50 minutes and then restart. If
there is another the machine will shut the machine
off for another 50 minutes and then restart. If it fails
a third consecutive time the controller will shut the
machine down and must be manually reset.
Restarts
Power Interruption
The controller will automatically restart the ice
machine after adequate voltage has been restored.
H blinks on code display
·
Status indicator light blinks
·
Reservoir is drained and refilled
·
Default harvest is initiated. The curtain switch
·
does not have to open to terminate harvest,
harvest will continue until the default harvest
time expires. Default harvest time is 3 minutes.
The machine will then return to a normal freeze
cycle.
Water Interruption
The controller will attempt to fill the reservoir every
twenty minutes until it is successful.
·
Time between resets – 50 minutes
·
Number of automatic resets – 2
·
Max water fill time – 5 minutes. Machine will
attempt a restart every 20 minutes.
·
Max discharge temp – 250 degrees F.
·
Time interval between cleanings – 6 months
power on time - adjustable in one month
increments, can be set at 6, 5, 4 or 3 months of
power up time.
·
Manual harvest time – 3 minutes
·
Pump down interval – remote only. 12 hours.
Pump down is 30 seconds of compressor only
on time.
·
Minimum compressor off time – 4 minutes
·
Continuous Run Time Maximum Cycles - 25
April 2008
Page 36
Controller Operation
Prodigy Eclipseä EH130 System
Control Button Use (from standby)
Set purge level, 1-5 (1 is minimum, 5 is maximum)
or Automatic:
Hold off button in for 3 seconds. Release.
·
Press and release the On button to cycle
·
through and select one of the five purge
settings or to use the Automatic setting.
Recall diagnostic code:
Hold off button in for 3 seconds. Release.
·
Press and release the Harvest button to cycle
·
through each of the last 10 error codes from
most recent to oldest.
Clear diagnostic code:
Hold Clean and Harvest buttons in for 3
·
seconds to clear all prior codes.
Reset control:
Depress and release Off, then depress and
·
release On
Start Test Mode:
Change De-Scale Notification Interval
Like the others, this feature is accessible only from
standby (Status Light Off).
Press and hold harvest button for 3 seconds.
·
This will allow control to enter Time to Clean
·
Adjustment State.
Display current time to clean months on 7
·
segment display.
Pressing clean button repeatedly will cycle
·
through one of 4 possible settings:
6 months (4380 hours) (default)
5 months (3650 hrs)
4 months (2920 hrs)
3 months (2190 hrs)
Hold Off button in for 3 seconds. Release.
·
Hold Clean button in for 3 seconds. Release.
·
Lock / Unlock control:
·
Hold On button in for 3 seconds, keep holding
then press and release Off twice.
Empty reservoir:
·
Hold Clean button in for 3 seconds. Release.
Pump and purge valve will be ON for 30
seconds. Repeat as needed.
Test Mode:
·
Depress Off for 3 seconds, release. Then
depress Clean for 3 seconds.
·
The sump will fill the first 30 seconds of the test.
If the sump is full it will overflow into the bin. At
30 seconds the Water Inlet Valve will shut off
and the Water Pump will turn on. You will be
able to see and hear the water running over the
plates. After 10 seconds the Purge and Vapor
Inlet Valves will turn on. Water will be purging
from the machine. After 10 more seconds the
compressor will start. 5 seconds later the VIV
will close. The compressor will run for a total of
20 seconds. After which everything will turn off
for 5 seconds. After that time the VIV will open
and you’ll be able to hear the hissing as the
pressure is equalized. 10 seconds later the fan
will turn on (if air cooled). After 10 seconds all
will be off and the output test will be complete.
April 2008
Page 37
Prodigy Eclipseä EH130 System
Cleaning, Sanitation and Maintenance
This ice system requires three types of
maintenance:
Remove the build up of mineral scale from the ice machine’s water system and sensors.
•
Sanitize the ice machine’s water system and the ice storage bin or dispenser.
•
Clean the air cooled condenser.
•
It is the User’s responsibility to keep the ice machine and ice storage bin in a sanitary condition. Without
human intervention, sanitation will not be maintained. Ice machines also require occasional cleaning of
their water systems with a specifically designed chemical. This chemical dissolves mineral build up that
forms during the ice making process.
Sanitize the ice storage bin as frequently as local health codes require, and every time the ice machine is
cleaned and sanitized.
The ice machine’s water system should be cleaned and sanitized a minimum of twice per year.
1. Remove the front panel.
2. Remove the evaporator cover.
3. If the machine is operating, push and release
the Harvest button. When the machine
completes the Harvest cycle it will stop. If the
bin is full (b shows in display) push and release
the Off button.
4. Remove all ice from the storage bin or
dispenser.
5. Push and release the Clean button. The yellow
Clean light will blink and the display will show
C. The machine will drain the reservoir and
refill it. Go onto the next step when the
reservoir has filled.
6. Pour 24 ounces of Scotsman Clear 1 nickel
safe scale remover into the reservoir.
7. Allow the ice machine cleaner to circulate in
the water system for at least 10 minutes.
8. Push and release the Clean button again. The
yellow Clean light will be on continuously and
the machine will drain and refill the reservoir to
flush out the ice machine cleaner and residue.
9. Allow the drain and refill process to continue
for at least 20 minutes.
10. Push and release the Off button. The clean
cycle will stop and the display will show O.
Note: If unit has not been de-scaled for an
extended period of time and significant mineral
scale remains, repeat steps5-10.
11. Mix a cleaning solution of 1 oz of ice machine
cleaner to 12 ounces of water.
12. Remove water distributors from ice machine.
Inspect each distributor for restricted orifice
holes. Be sure all holes are full open.
13. Locate ice thickness sensor (under left
curtain). Squeeze mounting legs together to
release sensor. Wash the metal surfaces of the
sensor and the adjustment screw with ice
machine cleaner solution. Also wash the water
distributor and curtain with the ice machine
cleaner solution.
Scotsman Scale Remover
contains acids.
Acids may cause burns. If
concentrated cleaner comes in
contact with skin, flush with
water. If swallowed, do NOT
induce vomiting. Give large
amounts of water or Milk.
Call Physician immediately.
Keep out of the reach of
children.
April 2008
Curtain
Page 38
Prodigy Eclipseä EH130 System
Inspect Orifice Holes
Squeeze Tabs Together, Slide Out Until it Stops,
Then Lift to Remove
Remove Water Distributor
Inspect Water Distributor
20. Circulate the sanitizer solution for 10 minutes,
then push and release the Clean button.
21. Allow the water system to be flushed of
sanitizer for at least 20 minutes, then push and
release the Off button.
22. Return the evaporator cover and front panel to
their normal position and secure with the
original fasteners.
23. Push and release the On button to resume ice
making.
Other Maintenance
Moving Parts Hazard
Rotating fan blade can
cause cuts
Disconnect electrical
power before removing
condenser top or fan
guard.
14. Locate water level sensor. Squeeze catches
together and pull up to remove sensor. Wash
metal surfaces of sensor with ice machine
cleaner solution.
15. Mix a solution of locally approved sanitizer.
Note; A possible sanitizing solution may be made
by mixing 1 ounce of liquid household bleach with
2 gallons of warm (95-115
16. Thoroughly wash all surfaces of the ice
thickness sensor, water level sensor, curtain
and water distributor with the sanitizer solution.
17. Thoroughly wash all interior surfaces of the
freezing compartment, including evaporator
frames, back wall, evaporator cover and the
part of the top panel covering the freezing
compartment with the sanitizer solution.
18. Return water level sensor, ice thickness
sensor, water distributors and curtains to their
normal positions.
19. Push and hold the clean button to drain the
reservoir. Push and release the clean button
again and when the flush valve indicator light
goes out, immediately pour the remaining
cleaning solution into the reservoir.
o
F.) potable water.
The remote air cooled condenser coil must be
cleaned occasionally to keep the system operating
at high efficiency.
·
Remove any large debris from the outside of the
coil.
·
Vacuum accumulated dust.
·
Wash out the coils with water.
Caution: Do NOT use excessive water pressure as
that will bend the fins.
·
Straighten any damaged fins with a fin comb.
·
If the coils have become coated with grease, a
coil cleaner will have to be used to wash the
coils.
Disconnect power to the condensing unit and
remove the condenser top.
·
Inspect the fan blade to be sure it is not cracked
and is clean.
Return the condenser top to its original position
and reconnect the power supply.
April 2008
Page 39
Prodigy Eclipseä EH130 System
Service Diagnosis
Problem or Symptom Possible Cause Probable Correction
No ice No power to ice making section Restore power
No power to condensing unit Restore power
Head has power, but power light is off Check transformer
Unit manually switched off Push and release the on button, ask user
why it was shut off
Power to both sections, controller reset,
but condensing unit does not operate
No water to ice making section, water and
status lights blinking red
Ice making section has exceeded
maximum freeze time and controller has
shut down the system
Interconnecting control wire
disconnected, reconnect it
Low or high pressure cut outs open,
check system pressures
Restore water supply, check water filters,
reset controller
Check inlet water valve operation
Check water level sensor operation,
including harness between sensor and
controller.
Condenser coils may need cleaning
Check condenser fan blade and motor
Check for excessive air intake
temperatures at condenser coil
Check compressor contactor
Check compressor and starting
components
Check water pump
Check purge valve for leak through
Check vapor inlet valve for leak though
Ice making section has exceeded
maximum harvest time and shut down the
system
Bin full code is displayed but bin is not full Check curtains and switches
April 2008
Page 40
Check ice making section for lime scale
build up, clean as needed
Check condenser by pass valve
Check vapor inlet valves
Check headmaster
Check inlet water valve for leak through
Prodigy Eclipseä EH130 System
Service Diagnosis
Problem or Symptom Possible Cause Probable Correction
No ice No refrigeration, maximum harvest time
code is displayed
Slow ice release during harvest Cubes are too large Check ice thickness adjustment
Condenser by-pass valve does not open Check coil of valve
Ice is formed unevenly on
evaporator, thick at bottom
No ice harvested No ice released, vapor inlet valve does
Excess water and heat load Check purge valve for leak through
not open
Check compressor, refrigerant charge,
and liquid inlet valve. Note that if liquid
inlet valve is not open, compressor will
pump down and suction pressure will be
very low.
Check for proper harvest of all ice
Check power to valve during harvest
Check water inlet valve for leak through
Check coil for continuity, if open replace
coil
Check for voltage to coil during harvest,
if non, check at controller
Check low side pressure, if pressure
does not rise during harvest, and valve is
electrically OK, replace vapor inlet valve
April 2008
Page 41
Prodigy Eclipseä EH130 System
Service Diagnosis
Problem or Symptom Possible Cause Probable Correction
Low capacity Dirty condenser Clean condenser
Air temperature intake to condenser
very high
Water temperature intake to ice making
section very high
False bin full - bin full code is ON and
the bin is not full
Storage bin or dispenser not holding ice
properly
High volume of drinks dispensed, cold
plate melting ice
Vapor inlet valve leaks through slightly
during the freeze cycle
Curtain out of position and water is
cascading out of the reservoir
Re-orient condenser to avoid hot air
intake
Check for hot water supply to ice
machine due to mal-functioning or
non-existent hot water check valve at
dishwashing sink
Check for ice between curtain and
sump, maybe caused by mis-shaped ice
Check curtain and switch
Check drains for water flow from ice
machine (separate to correct) or
restriction
Suggest pre-cooler for water supply to
cold plate
Check valve body for similar
temperatures on inlet and outlet, the
outlet should be colder and frost
develops on the tubes to the
evaporators
Check curtain for flatness
Poor ice formation - very cloudy
and misshapen
Whistling noise at CP unit during
harvest
Exceeding maximum freeze time,
compressor unit trips on high discharge
temp
Dirty water system Clean the water distributors to remove
Low refrigerant charge. Add several pounds of refrigerant to
By pass and liquid inlet valve coils not
getting power
Check condenser bypass valve
built up mineral scale
check. If low on charge, locate leak.
Recover refrigerant, repair leak, replace
drier, evacuate to 300 microns and
weigh in the nameplate charge.
Check harness
April 2008
Page 42
Prodigy Eclipseä EH130 System
Operational Characteristics 600 lb system
Cycle Times @ Condenser Temp/Cabinet Temp/Water Temp in degrees F
70/70/50 90/90/70 120/110/100
Freeze (minutes) 9 to 11 11 to 13 18 to 20
Harvest (minutes) 1 to 1 and 1/2 1/2 to 1 1/2 to 1
System Pressures @ Condenser Temp/Cabinet Temp/Water Temp in degrees F.
70/70/50 90/90/70 120/110/100
Suction at Ice Making Section, end of Freeze 32 PSIG 33 PSIG 40 PSIG
Suction at Ice Making Section, Harvest 100 PSIG 115 PSIG 160 PSIG
Discharge at Condensing Unit: Freeze 240 PSIG 250 PSIG 325 PSIG
Headmaster maintains a minimum discharge
pressure during freeze of:
217 PSIG + 25, -15 PSIG
·
CPR Valve Setting: 55 - 60 PSIG.
Note: CPR allows a maximum low side pressure at
the CP unit’s compressor. Maximum only occurs
during harvest.
Refrigerant Charge
·
232 oz
Compressor Amps
·
Single Phase - 5 to 7
·
Three Phase -
Batch Weight
·
4.5 to 5 lb (small cube
·
4.75 to 5.25 lb (medium cube)
Discharge Pressure Cut Out Switch
·
Cuts Out at: 450 PSIG
·
Resets at: 350 PSIG
Compressor:
·
RS70C1E
Expansion Valves: 1
April 2008
Page 43
Prodigy Eclipseä EH130 System
Refrigeration System Service
Recovery
Recovery must be done from the condensing unit,
but requires the ice machine to be shut down.
1. At the ice making section, remove the front
panel.
2. Push and release the Harvest button. When the
machine shuts off, recover the refrigerant.
3. Remove compressor package covers.
4. Attach recovery system to low side (compressor
process port valve)
5. If the recovery system can recover liquid, attach
recovery system to high side (receiver liquid line
out valve)
Operate recovery system to remove refrigerant
from the system. No other points of attachment or
solenoid activation are required.
April 2008
Page 44
Loading...
