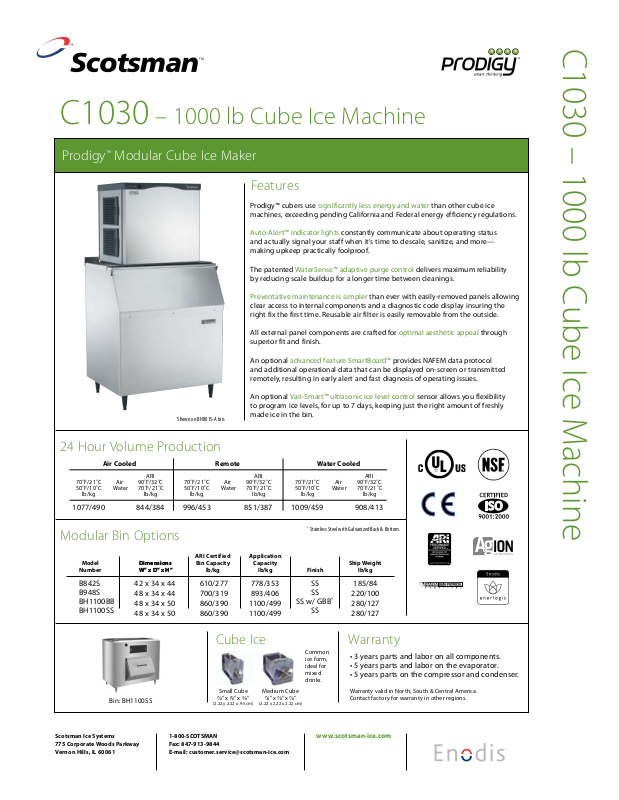

Scotsman Ice C1030 User Manual

C1030 – 1000 lb Cube Ice Machine

Prodigy™ Modular Cube Ice Maker

Features

Prodigy™ cubers use significantly less energy and water than other cube ice machines, exceeding pending California and Federal energy efficiency regulations.

Auto-Alert™ indicator lights constantly communicate about operating status

and actually signal your staff when it’s time to descale, sanitize, and more— making upkeep practically foolproof.

The patented WaterSense™ adaptive purge control delivers maximum reliability by reducing scale buildup for a longer time between cleanings.

Preventative maintenance is simpler than ever with easily-removed panels allowing

clear access to internal components and a diagnostic code display insuring the right fix the first time. Reusable air filter is easily removable from the outside.

All external panel components are crafted for optimal aesthetic appeal through superior fit and finish.

C1030 – 1000 lb Cube Ice Machine

Shown on BH801S-A bin.

24 Hour Volume Production

Air Cooled

ARI 70˚F/21˚C Air 90 ˚F/32˚C 50˚F/10˚C Water 7 0˚F/21˚C lb/kg lb/kg

1077/490 844/384

ARI 70˚F/21˚C Air 90 ˚F/32˚C 50˚F/10˚C Water 7 0˚F/21˚C lb/kg lb/kg

996/453 851/387

Modular Bin Options

Model

Number

B842S B948S BH1100BB BH1100SS

Dimensions

Dimensions W” x D” x H”

W” x D” x H”

42 x 34 x 44 48 x 34 x 44 48 x 34 x 50 48 x 34 x 50

Bin: BH1100SS

ARI Certi fied Bin Capacit y

lb/kg

610/277 700/319 860/390 860/390

An optional advanced feature Smar tBoard™ provides NAFEM data protocol and additional operational data that can be displayed on-screen or transmitted remotely, resulting in early alert and fast diagnosis of operating issues.

An optional Vari-Smart™ ultrasonic ice level control sensor allows you flexibility to program ice levels, for up to 7 days, keeping just the right amount of freshly made ice in the bin.

Remote

Application

778/353

893/406 1100/499 1100/499

Cube Ice

Small Cube

⁄” x ⁄” x ⁄”

(2.22 x 2.2 2 x .95 cm)

Capacity

lb/kg

Medium Cub e

⁄” x ⁄” x ⁄”

(2.22 x 2.2 2 x 2.22 cm)

Water Cooled

ARI 70˚F/21˚C Air 90 ˚F/32˚C 50˚F/10˚C Water 7 0˚F/21˚C lb/kg lb/kg

1009/459 908/413

Stainless Steel with G alvanized Back & Bottom.

Ship Weight

lb/kg

185/84 220/100 280/127 280/127

Finish

SS SS

SS w/ GBB

Warranty

Common ice form, ideal for mixed drinks.

• 3 years parts and labor on all components.

• 5 years parts and labor on the evaporator.

• 5 years parts on the compressor and condenser.

Warranty vali d in North, South & Central A merica. Contact fa ctory for warra nty in other reg ions.

Scotsman I ce Systems 775 Corporate Woods Parkway Vernon Hills, IL 60061

1-800-SCOTSMAN Fax: 847-913-9 844 E-mail: cu stomer.service@scotsman-ice.com

www.scotsman-ice.com

C1030 – 1000 lb Cube Ice Machine

(AC Units On ly)

30.00”

Exhaust Ai r

Remote Conden ser Liquid Lin e 3/8” Male Cplg.

Electrical Entrance

Remote Conden ser Discharge L ine 1/2” Male Cplg.

Intake

34.00” (86.4 cm) MAX.

Air

3/8” FPT Machine Water In

3/4” FPT Machine Drain

Installation Note: Allow 6 ” space at left, b ack and right side for vent ilation and u tility connec tions.

7.00” (17.8 cm)

The Smart Choice in Ice.

24.00” (61.0 cm)

29.00” (73.7 cm)

3/8” FPT Condenser Inlet WC Units Only

44.00” (111.8 cm)

3/8” FPT Condenser Outlet WC Units Only

6.00”

(15.2 cm)

(76.2 cm)

3/4” FPT

C1030 on B530S bin. 30” Prodigy plan view.

Bin Drain

Specifications

Model Num ber*

Cube Size: medium or sma ll

C1030MA-32A C1030MR-32A C1030MW-32A

C1030SA-32A

sm.med.

C1030SR-32A C1030SW-32A

* 208-230/ 60/3 Voltage - Sub stitute “-3” in place of “-32”, i.e. C1 030SA-3A.

Condenser

Unit

Air

Remote

Water

Air

Remote

Water

Basic Ele ctrical Volts/Hz/Phase

208-230/60/1 208-230/60/1 208-230/60/1

Max. Fuse Size or HACR Cir cuit Breaker (amp s)

20 20 15

Circuit

Wires

2 2 2

Min. Circu it

Ampacity

16.0

15.8

14.8

16.0

15.8

14.8

Ultrasonic Bin Level Sensor (Optional)

30.00” (76.2 cm)

Energy Consu mption kWh/100 lb (45.4 kg) 90˚F(32˚C)/ 70˚F(21˚C)

5.0

4.0

5.0

4.0

10.25” (26 cm)

3.25” (8.3 cm)

2.00” (5.1 cm)

19.05” (48.4 cm)

Ice Drop O pening

Water Usage

Gallons/100 lb (liters/45.4 kg)

Potable

90˚F(32˚C)/

70˚F(21˚C)

18.4/69.8

18.2/69.0

19.7/74.7

18.4/69.8

18.2/69.0

19.7/74.7

Condenser 90˚F(32˚C)/ 70˚F(21˚C)

153.0/580.1

24.00” (61 cm)

All Models

Dimensions (W x D x H): Unit:

30” x 24” x 29” (76.2 x 61.0 x 73.7 cm)

Shipping Carton:

33.5” x 27.5” x 34” (85.1 x 69.9 x 86.4 cm)

Shipping Weight: 235 lb / 107 kg BTUs per hour: 16,200

Operating Requirements

Minimum

Air Temperatures

Water Temperatures

Remote Cond. Temps

Water Pressures

Electrica l Voltage

Specificatio ns and desig n are subject to change w ithout notice.

Scotsman I ce Systems 775 Corporate Woods Parkway Vernon Hills, IL 60061

50°F (10°C) 40°F (4.4°C)

-20°F (-29°C) 20 PSIG (1.4 bar)

-5%

1-800-SCOTSMAN Fax: 847-913-9 844 E-mail: cu stomer.service@scotsman-ice.com

Accessories

Model Num ber Description

KVS KSB KSB-N ERC311-32A RTE10 RTE25 RTE40 RTE75

* Scotsman recommends al l ice machines have water fil tration. See Scotsman Sa nitation Matrix for details.

Maximum

100°F (38°C) 100°F (38°C) 120°F (49°C) 80 PSIG (5.5 bar) +10%

Vari-Smart™ Ice Level Control - Program ice bin levels to match ice n eeds. Smart-Board™ Advanced Control - Use addi tional operation al data for fast diagnosis. Smart-Board™ Advanced Control with Network - Network capable. Remote Condenser for C1030xR, 208-230/60/1 - Consult Remote Condenser Spec Sheet Line set, Precharged, R-404A, 10ft. Line set, Precharged, R-404A, 25ft. Line set, Precharged, R-404A, 40ft. Line set, Precharged, R-404A, 75ft.

www.scotsman-ice.com

for detail s.

SIS-SS-PRD- C1030 8-07
