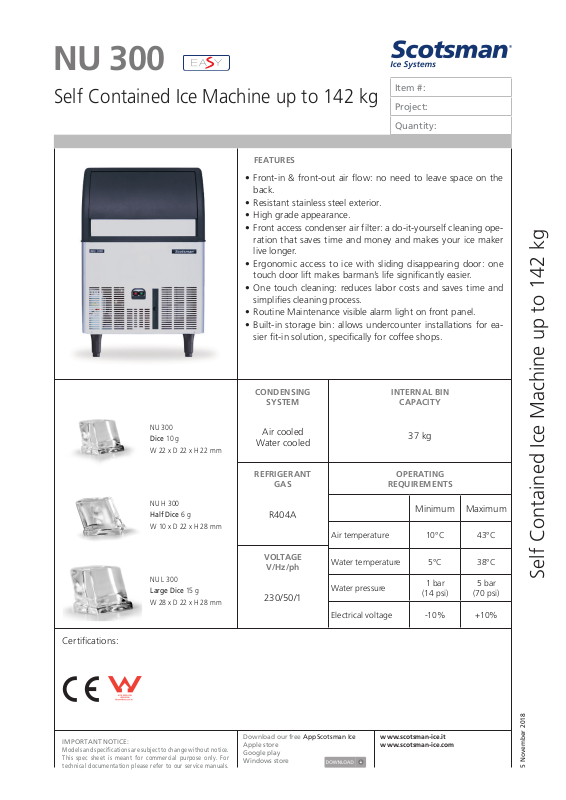

SCOTSMAN NU 300 AS, NU H 300 AS, NU L 300 AS, NU 300 WS, NU H 300 WS Datasheet
...
NU 300
Self Contained Ice Machine up to 142 kg
FEATURES
• Front-in & front-out air flow: no need to leave space on the
back.
• Resistant stainless steel exterior.
• High grade appearance.
• Front access condenser air filter: a do-it-yourself cleaning operation that saves time and money and makes your ice maker
live longer.
• Ergonomic access to ice with sliding disappearing door: one
touch door lift makes barman’s life significantly easier.
• One touch cleaning: reduces labor costs and saves time and
simplifies cleaning process.
• Routine Maintenance visible alarm light on front panel.
• Built-in storage bin: allows undercounter installations for easier fit-in solution, specifically for coffee shops.
Item #:
Project:
Quantity:
Certifications:
NU 300
Dice 10 g
W 22 x D 22 x H 22 mm
NU H 300
Half Dice 6 g
W 10 x D 22 x H 28 mm
NU L 300
Large Dice 15 g
W 28 x D 22 x H 28 mm
CONDENSING
SYSTEM
Air cooled
Water cooled
REFRIGERANT
GAS
R404A
VOLTAGE
V/Hz/ph
230/50/1
INTERNAL BIN
CAPACITY
37 kg
OPERATING
REQUIREMENTS
Minimum Maximum
Air temperature 10°C 43°C
Water temperature 5°C 38°C
Water pressure
Electrical voltage -10% +10%
1 bar
(14 psi)
5 bar
(70 psi)
Self Contained Ice Machine up to 142 kg
IMPORTANT NOTICE:
Models and specifications are subjec t to change without notice.
This spec sheet is meant for commercial purpose only. For
technical documentation please refer to our service manuals.
Download our free App Scotsman Ice
Apple store
Google play
Windows store
www.scotsman-ice.it
www.scotsman-ice.com
5 November 2018
NU 300
Item #:
Self Contained Ice Machine up to 142 kg
Project:
Quantity:
869
134
650
510
AIR FLOW
71
71
690
520
55
UNIT OF MEASUREMENT: mm
1. 25/32” OD - OVERFLOW DRAIN
2. 3/4” GAS - WATER INLET
3. 3/4” GAS - WATER OUTLET
(WATER COOLED UNIT ONLY)
4. 3/4” GAS - WATER INLET
(WATER COOLED UNIT ONLY)
5. CORD SET
1003
1
3
4
86
128
2 5
256
470
550
Compressor Circuit wires Max. fuse size
UNIT DATA
Size (W x D x H)
Net weight
SHIPPING DATA
Carton (W x D x H)
Weight
650 x 690 x 1003 mm
65 kg
730 x 770 x 1050 mm
70 kg
Version Voltage Btu/h W No. Ømm
NU 300 AS 230/50/1 6029 1767 3 1.5 16
NU H 300 AS 230/50/1 6029 1767 3 1.5 16
NU L 300 AS 230/50/1 6029 1767 3 1.5 16
NU 300 WS 230/50/1 6029 1767 3 1.5 16
NU H 300 WS 230/50/1 6029 1767 3 1.5 16
NU L 300 WS 230/50/1 6029 176 7 3 1.5 16
Self Contained Ice Machine up to 142 kg
24 h ice production kg
°C Amb. / °C Water
Version Condensation Voltage 10°C/10°C 21°C/10°C 32°C/21°C kWh/100 kg kWh/24h l/h W
NU 300 AS Air 230/50/1 142 135 100 17.6 17.6 6.2 950
NU H 300 AS Air 230/50/1 128 121 92 17.6 16.2 5.7 950
NU L 300 AS Air 230/50/1 142 130 93 17.6 16.4 5.8 950
NU 300 WS Water 230/50/1 13 5 130 115 12.1 13.9 89.8 950
NU H 300 WS Water 230/50/1 130 130 115 12.1 13.9 89.8 950
NU L 300 WS Water 230/50/1 142 130 100 12.1 12 .1 7 8 .1 950
(*) Data refer to 32°C Amb. / 21°C Water temperature conditions
Energy
consumption*
Water
usage*
2
A
Instant
power
Milano Madrid Chicago Dubai Singapore Shanghai Johannesburg
