RL Single System SERVICE PARTS
This parts list contains the service parts and wiring
diagrams for the following models:
FME1202RL
NME952RL
FM1202RL
NM952RL
FME1500RL
NME1250RL
Check the model number of the machine requiring
the parts to be sure that this is the correct parts list.
TABLE OF CONTENTS
Cabinet Assembly . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . Page 2
Water System . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . Page 3
Refrigeration System . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . Page 4
Evaporator for FM & FME type models . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . Page 5
Evaporator for NM & NME type models . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . Page 6
Gearmotor . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . Page 7
Control Box . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . Page 8
Wiring Diagrams . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . Page 9
November 2004
Page 1
RL Single System SERVICE PARTS
Cabinet
14
11
2
1
9
15
10
4
5
3
12
6
13
3
ITEM PART
NUMBER NUMBER DESCRIPTION
1 A35924-015 Back panel, gray
2 A33256-015 Top panel, gray
A33256-002 Top Panel, S.S.
3 A34038-015 Service panel, gray
A34038-002 Service Panel, S.S.
4 A33292-015 Right side panel, gray
A33292-002 Right Side Panel, S.S.
5 03-0271-00 Speed Clip (order 3)
6 15-0808-03 Emblem, grey
7 03-1419-22 Screw
7
8
ITEM PART
NUMBER NUMBER DESCRIPTION
8 A33255-015 Front panel, gray
A33255-002 Front Panel, S.S.
9 A34039-001 Control Box Support
10 A35890-001 Base
11 03-1531-01 Screw
12 02-0836-00 Catch
13 A32435-015 Left side panel, gray
A32435-002 Left Side Panel, S.S.
14 03-1404-12 Screw
15. A36078-001 Reservoir Bracket
November 2004
Page 2
RL Single System SERVICE PARTS
Water System
1
6
2
18
12, 13
3
4
5
14
15
14
7
19
8
9
10
11
ITEM PART
NUMBER NUMBER DESCRIPTION
1 03-1405-46 Cap Screw
2 A32890-020 Evaporator
3 02-0929-23 Water Seal
4 02-3266-20 Reservoir & valve
5 02-3266-21 Float valve
6 02-3266-03 Plunger/seat
7 A33101-022 Water Level Sensor
8 A32777-001 Retaining Ring for Seal
9 A37705-021 Drip Pan
10 13-0704-00 Gasket
11 13-0868-01 Water Shed
12 A27318-001 Water Inlet Fitting for copper
16-0835-01 Inlet fitting
16-1039-01 Male connector for plastic
March 2005
20
17
22
16
21
ITEM PART
NUMBER NUMBER DESCRIPTION
15 16-0162-00 Strainer - not used after 11/97
16 A36154-001 Evap. water inlet tube
17 02-1338-00 Hose clamp
18 13-0079-03 Res. overflow hose 33"
19 03-1639-03 Screw
20 A36078-002 Reservoir bracket
21 13-0840-01 Rubber cap
22 16-0670-02 Tee
Page 3
RL Single System SERVICE PARTS
Refrigeration System
3
1
6
2
4
8
7
5
ITEM PART
NUMBER NUMBER DESCRIPTION
1 02-3319-03 Dryer
2 A32859-001 EPR Valve, 952, 950, 1200 and 1202 series
A32859-002 EPR Valve, 1250 and 1500 series
3 12-2135-02 Solenoid Valve
4 11-0548-02 Ball Valve
5 11-0488-21 TXV for FME1200RL or NME950RL (R-404A)
11-0482-21 TXV for FME1500RL or NME1250RL (R-404A)
11-0477-20 TXV for FM1202RL or NM952RL (R-22)
6 11-0548-01 Shut Off Valve
7 A32890-020 Evaporator
8 16-0762-02 Sight Glass
June 2005
Page 4
RL Single System SERVICE PARTS
FM or FME Evaporator, Chute, Bin Controls
3
1
4
17
5
2
8
9
6
7
11
18
33
19
10
14
22
16
26
4
12
13
20
15
29
34
27
28
29
30
31
ITEM PART
NUMBER NUMBER DESCRIPTION
1. A34969-001 Bail clip
2. 02-3268-01 Drain tube holder
3. 02-2930-04 Ice Chute Cover
4. A32963-001 Insulation Top (half)
5. 02-2926-01 Ice Chute Body
6. A33102-001 Insulation Collar Inside
7. 02-2929-04 Ice Chute Lower
8. A37708-021 Bin Controls Assy.
(set of 2)
9. A32930-001 Chute Gasket
10. 03-1405-52 Hex Cap Screw
11. 02-3001-01 Ice Sweep
12. 13-0871-01 Water Shed
13. 02-2978-01 Lip Seal
14. 02-3128-20 Breaker Cover
15. 13-0617-54 O-Ring
16. 08-0660-01 Auger Stud, thrust Washer
17. A35419-020 Strap kit
18. A34559-020 Bearing
19. 02-2977-01 Lip Seal
20. 03-1405-27 Screw
8
24
21
25
23
32
21. 13-0617-52 O-Ring
22. 02-2916-01 Slotted Collar
23. 13-0617-45 O-Ring
24. 03-1544-08 Soc. Head Screw
25. A34505-020 Breaker (Divider)
(includes 18 & 19)
26. A38071-022 Auger
27. A32890-020 Evaporator
28. 03-1420-03 Cap Screw
29. A32962-001 Insulation Bot. (half)
30. 02-3837-01 Drip Pan
31. 13-0704-00 Drip Pan Gasket
32. 13-0868-01 Water Shed
33. 13-0617-49 O-Ring
34 03-1408-36 Washer
June 2005
Page 5
RL Single System SERVICE PARTS
NM or NME Evaporator
10
13
15
19
25
23
11
26
27
28
29
29
1
12
3
4
2
6a
5
6
7
8
14
16
18
4
21
24
9
ITEM PART
NUMBER NUMBER DESCRIPTION
1. A34969-001 Bail clip
2. 02-3268-01 Drain tube holder
3. 02-2930-04 Ice Chute Cover
4. A32963-001 Insulation Top (half)
5. 02-2926-01 Ice Chute Body
6. A33102-001 Insulation Collar Inside
6a A35419-020 Strap kit
7. 02-2929-04 Ice Chute Lower
8. A37708-021 Bin Controls Assy.
(set of 2)
9. A32930-001 Chute Gasket
10. 03-1405-52 Hex Cap Screw
11. 02-3001-01 Ice Sweep
12. 13-0871-01 Water Shed
13. 02-2978-01 Lip Seal
14. 02-3128-20 Breaker Cover
15. 13-0617-52 O-Ring
16. 08-0660-01 Auger Stud & washer
8
June 2005
Page 6
22
20
17
17. 13-0868-01 Water Shed
18. A34559-020 Bearing
19. 02-2977-01 Lip Seal
20. 13-0704-00 Drip Pan Gasket
21. 13-0617-54 O-Ring
22. 02-3827-01 Drip Pan
23. 13-0617-45 O-Ring
24. 03-1544-08 Soc. Head Screw
25. A32900-020 Breaker
(includes 18 & 19)
26. A38071-022 Auger
27. A32890-020 Evaporator
28. 03-1420-03 Cap Screw
29. A32962-001 Insulation Bot. (half)
RL Single System SERVICE PARTS
Gearmotor
3
1
13
2
*NOTE: GEARCASE
COVER INCLUDES
COVER, OUTPUT SHAFT,
KEY, OUTPUT GEAR,
BEARINGS, AND SEAL.
5
11
10
OIL
4
6
7
ITEM PART
NUMBER NUMBER DESCRIPTION
1. 12-2430-24 Start switch, Emerson
12-2430-44 Start switch, GE split phase
2. 12-2430-22 Drive Motor 208-230 v
8
12-2430-21 Drive motor 115 v (654/804)
3. 13-0868-01 Water Shed.
4. 12-2430-29 Bearing - Emerson
12-2430-49 Bearing, GE split phase
5. A32379-026 Bolt (6)
6. A32379-024 First Gear & Bearing
7. A32379-023 2nd Gear & Bearing
8. A32379-021 Gasket
9. A32379-020 Gear Case
10 A32379-027 Oil, 1 Container
11. A32379-022 Gearcase Cover*
12. A32379-029 Seal, Output
9
13. A33220-022 Complete Gearmotor
Assembly. 208-230 v.
A33220-021 115 volt gear motor
Assembly - complete
A33220-030 Gearcase kit, no motor
November 2003
Page 7
RL Single System SERVICE PARTS
Control Box
4
5
ITEM PART
NUMBER NUMBER DESCRIPTION
1 12-2285-22 Transformer
2 A37750-021 Circuit Board
3 12-2350-01 Stand off
4 12-0813-04 Terminal Strip
5 12-0426-01 Master Switch
Not Illustrated:
6 12-2340-01 Wire harness to transformer
7 A34055-001 Control Box Cover
1
2
3
January 1997
Page 8
RL Single System SERVICE PARTS
SEE NAMEPLATE F OR
SUPPLY VOLTAGE
AND MAX. F USE SIZE
Wiring Diagram
MASTER
SWITCH
17-2491-0 1
V
TRAN SFO RME R
BN
BN
PHOTO TRANS
SPOUT SWITCH
PHOTOTRANSISTO R
N.C.
N.O.
COM PRES SOR
RELAY
V
V
COM.
N.C.
WATER
SENSO R
NTC
THERM ISTOR
TERMI NAL STRI P
R
BK
COM.
N.O.
AUGER M OTOR
RELAY
4
3
2
1
L.E.D.
IR
LED
LIQUID LINE
BK
BK
SO L
ALL CONTROLS SHOWN IN
NORMAL ICE MAKING MODE
AUGER DRIVE MOTOR
CEN TRIF UGAL
SWITC HING
Y
BK
4
INTER NAL
1
OVERLOAD
2
USE COPPER CONDUCTORS ONLY
THIS UNIT MUST BE GROUNDED
January 1997
Page 9

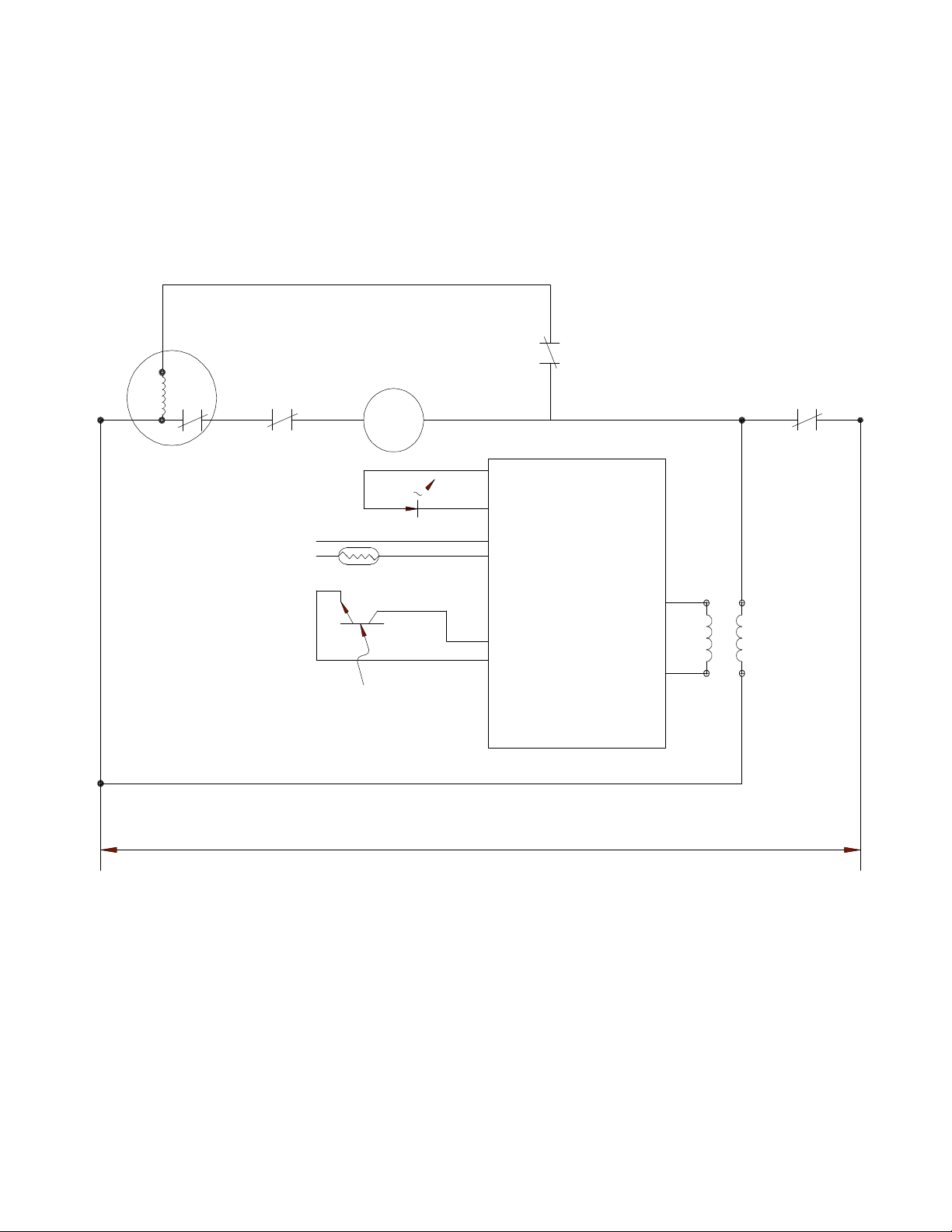

RL Single System SERVICE PARTS
Schematic Diagram
1
2
AUGER DRIVE
MOTOR
4
COM N.O.
NTC
THERMISTOR
COMP
RELAY
LIQUID LINE
SOL
LED
IR
PHOTOTRANSISTOR
COM
N.O.
PRINTED
CIRCUIT
ASSEMBLY
AUGER DRIVE
RELAY
LOAD
MASTER
SWITCH
LINE
L2
POWER SUPPLY
L1
January 1997
Page 10
