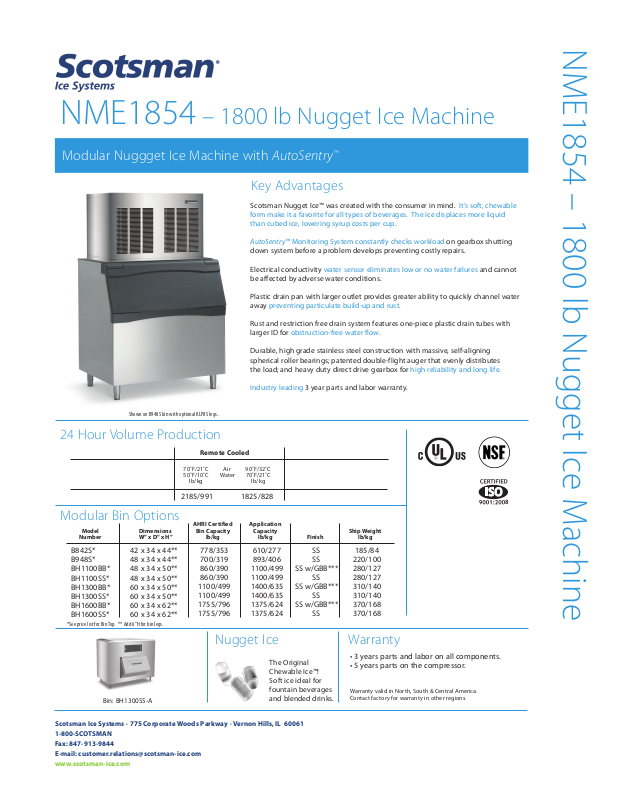

Scotsman NME1854 Specification

NME1854 – 1800 lb Nugget Ice Machine

Modular Nuggget Ice Machine with AutoSentry™

Key Advantages

Scotsman Nugget Ice™ was created with the consumer in mind. It’s soft, chewable

form make it a favorite for all types of beverages. The ice displaces more liquid than cubed ice, lowering syrup costs per cup.

AutoSentry™ Monitoring System constantly checks workload on gearbox shutting

down system before a problem develops preventing costly repairs.

Electrical conductivity water sensor eliminates low or no water failures and cannot be affected by adverse water conditions.

Plastic drain pan with larger outlet provides greater ability to quickly channel water away preventing particulate build-up and rust.

Rust and restriction free drain system features one-piece plastic drain tubes with larger ID for obstruction-free water flow.

NME1854 – 1800 lb Nugget Ice Machine

Shown on B948S bin wit h optional K LP8S legs..

24 Hour Volume Production

Remote Cooled

70˚F/21˚C Air 90 ˚F/32˚C 50˚F/10˚C Water 7 0˚F/21˚C lb/kg lb/kg

2185/991 1825/828

Modular Bin Options

Model

Number

B842S* B948S* BH1100BB* BH1100SS* BH1300BB* BH1300SS* BH1600BB* BH1600SS*

*See price list for B in Top. ** Add 6”H for bin legs.

Bin: BH1300SS-A

Dimensions W” x D” x H”

42 x 34 x 44** 48 x 34 x 44** 48 x 34 x 50** 48 x 34 x 50** 60 x 34 x 50** 60 x 34 x 50** 60 x 34 x 62** 60 x 34 x 62**

AHRI Cert ified

Bin Capacit y

lb/kg

778/353 700/319 860/390

860/390 1100/499 1100/499 1755/796 1755/796

Durable, high grade stainless steel construction with massive, self-aligning spherical roller bearings; patented double-flight auger that evenly distributes the load; and heavy duty direct drive gearbox for high reliability and long life.

Industry leading 3 year parts and labor warranty.

Application

Capacity

lb/kg

610/277

893/406 1100/499 1100/499 1400/635 1400/635 1375/624 1375/624

Nugget Ice

The Original Chewable Ice™! Soft ice ideal for fountain beverages and blended drinks.

Finish

SS SS

SS w/GBB***

Ship Weight

lb/kg

185/84 220/100 280/127 280/127 310/140 310/140 370/168 370/168

Warranty

• 3 years parts and labor on all components.

• 5 years parts on the compressor.

Warranty vali d in North, South & Central A merica. Contact fa ctory for warra nty in other reg ions.

Scotsman Ice Systems • 775 Corporate Woods Parkway • Vernon Hills, IL 60061 1-800-SCOTSMAN Fax: 847-913-9844 E-mail: customer.relations@scotsman-ice.com

www.scotsman-ice.com

Revit drawings available at www.scotsman-ice.com

6.00in/15.2cm MIN. UTILITY CONNECTIONS

PLAN VIEW

ICE CHUTE OPENING

18.28 in

46.4 cm

NME1854 – 1800 lb Nugget Ice Machine

REMOTE LIQUID LINE MALE COUPLING 3/8 in - 1.00 cm (2 PLCS)

15.53 in

39.4 cm

3.10 in

7.9 cm

3.10 in

7.9 cm

BACK VIEW

4.50 in 11.4 cm

20.84 in

52.9 cm

9.43 in

5.25 in

29.6 cm

13.3 cm

3.00 in

7.6 cm

17.80 in

45.2 cm

18.80 in

47.8 cm

21.66 in

55.0 cm

WATER INLE T 3/8in-1.0cm FLARE

DRAIN 3/4in-1.9cm F.P.T.

Specifications

Max. Fuse Size or HACR Cir cuit Breaker (amp s)

Model Num ber

Condenser

Unit

Basic Ele ctrical Volts/Hz/Phase

NME1854RS-32 Remote 208-230/60/1 30

5.31 in

13.5 cm

REMOTE DISCHARGE OUTLET MALE COUPLING 1/2 in - 1.3 cm (2 PLCS)

REMOTE CONDENSER JUNCTION BOX

ELECTRICAL INLET

6.20 in

15.7 cm

ACCESS PANEL BOTH ENDS

SIDE VIEW

Circuit

Wires

24.00in

61.0cm

Min. Circu it

Ampacity

27.00in

68.6cm

FRONT VIEW

Energy Consu mption kWh/100 lb (45.4 kg) 90˚F(32˚C)/ 70˚F(21˚C)

2.75 in

7.0 cm

34.84 in

88.5 cm

42.00 in

106.7 cm

Gallons/100 lb (liters/45.4 kg)

90˚F(32˚C)/

70˚F(21˚C)

Water Usage

Potable

13.84 in

35.2 cm

2 23.1 3.87 12.0/45.5 -

Condenser 90˚F(32˚C)/ 70˚F(21˚C)

All Models

Dimensions (W x D x H): Unit:

42” x 24” x 27” (106.7 x 61.0 x 68.6 cm)

Shipping Carton:

45.5” x 27.5” x 32” (115.6 x 69.85 x 81.3 cm)

Shipping Weight: 425 lb/193 kg

Accessories

Model Num ber Description

ERC302-32A

RTE10 RTE25 RTE40 RTE75

Remote Condenser for NME1854RS-32B, 208-230/60/1 - Consu lt Remote Conde nser Spec

Sheet for details.

Line set, Precharged, R-404A, 10ft. Line set, Precharged, R-404A, 25ft. Line set, Precharged, R-404A, 40ft. Line set, Precharged, R-404A, 75ft.

BTUs per hour: 15,800

* Scotsman recommends al l ice machines have water fil tration. See Scotsman Sa nitation Matrix for details.

Operating Requirements

Minimum Maximum

Air Temperatures

Water Temperatures

Remote Cond. Temps

Water Pressures

Electrica l Voltage

Specifications and design are subject to chan ge without notice.

Scotsman Ice Systems • 775 Corporate Woods Parkway • Vernon Hills, IL 60061 1-800-SCOTSMAN Fax: 847-913-9844 E-mail: customer.relations@scotsman-ice.com

www.scotsman-ice.com

50°F (10°C) 40°F (4.4°C)

-20°F (-29°C) 20 PSIG (1.4 bar)

-5%

100°F (38°C) 100°F (38°C) 120°F (49°C) 120 PSIG ( bar) +10%
