Scotsman NME1850 PARTS LIST

Download
Page 1
NME1850 & FME2400 SERVICE PARTS
This parts list contains the service pa rts and wiring diagrams for this model. Check the mod el number in question to be sure that it is applicab le to this parts list.
TABLE OF CONTENTS
Cabinet ...............................................................................2
Air Cooled Refrigeration.....................................................3
Water Cooled Refrigeration................................................4
Gearmotor...........................................................................6
NME Evaporator.................................................................7
FME Evaporator .................................................................8
Control Box .........................................................................9
Wiring Diagrams.................................................................10
Janu a ry 1 995
Page 1
Page 2
NME1850 & FME2400 SERVICE PARTS
Cabinet Assembly
10
15
2
12
1
14
3
4
9
5, 6
16
3
13
11
ITEM PART NUMBER NUMBER DESCRIPTION
1 A34286-001 Center Support 2 A32461-001 Top Panel, sandalwood
A32461-015 Top panel, gray A32461-002 Top Panel, S.S.
3 A34038-001 Service Panel, sandalwood
A34038-015 Service panel, gray A34038-002 Service Panel, S.S.
4 A33292-001 Right Side Panel, sndlwd
A33292-015 Right side panel, gray
A33292-002 Right Side Panel, S.S. 5 03-0271-00 Speed Clip 6 15-0711-01 Emblem, sandalwood
15-0808-03 Emblem, gray 7 03-1419-22 Screw
7
8
ITEM PART NUMBER NUMBER DESCRIPTION
8 A34294-001 Front Panel, sandalwood
A34294-015 Front panel, gray A34294-002 Front Panel, S.S.
9 02-2976-01 Air filter
03-1660-01 Clip for filter 10 03-1531-01 Screw 11 02-0836-00 Catch 12 A34287-001 Support 13 A32435-001 Left Side Panel, Sndlwd
A32435-015 Left side panel, gray
A32435-002 Left Side Panel, S.S.
14 03-1404-12 Screw
15 A36517-001 Rear Panel, sandalwood
A36517-015 Rear panel, gray
Item 15 for Water Cooled Painted Only
16. A36554-001 Base
June 2005
Page 2
Page 3
19
NME1850 & FME2400 SERVICE PARTS
Air Cooled Refrigeration
18
16
20
17
8
1
11
3
2
4
15
14
13
12
21
5, 6
7
10
9
11
ITEM PART NUMBER NUMBER DESCRIPTION
1 18-3815-01 Fan Blade 2 12-1576-02 Fan Motor 3 02-2378-01 Fan Bracket 4 03-1531-01 Screw 5 A32961-020 Insulation Kit (3 piece) 6 11-0488-21 Thermo Expansion Valve 7 A36496-001 Suction Line 8 A34285-001 Filler panel 9 16-0832-20 Access valve 9a 16-0832-02 Stem cap 9b 16-0832-03 Core cap 10 11-0485-21 Hi Pressure Cut Out 11 03-1645-01 Screw 12 18-2200-28 Grommet 13 18-2200-27 Sleeve
November 1998
ITEM PART NUMBER NUMBER DESCRIPTION
14 03-1407-07 Washer 15 03-1405-20 Cap Screw 16 02-3319-02 Dryer 17 A33231-001 Fan Shroud 18 18-8717-01 Condenser 19 A35613-001 Condenser Support 20 A32282-004 Drain fitting 21 18-8768-22 Compressor 208-230/60/1
Overload is internal 18-8768-24 Compressor 200-230/60/3 Overload is internal 18-8772-26 Compressor 230/50/1
18-8772-21 Overload Note: Replacement compressors include a new HFC dryer, and single phase 60 Hz replacments include the starting components.
Page 3
Page 4
NME1850 & FME2400 SERVICE PARTS
Water Cooled Refrigeration
2
1
11
6
16
15
17
14
3, 4
5
13
12
7
8
9
11
ITEM PART NUMBER NUMBER DESCRIPTION
1 18-8718-25 Condenser 2 03-1645-01 Screw 3 11-0488-21 Thermo Expansion Valve 4 A32961-020 Insulation Kit (3 piece) 5 A36496-001 Suction Line 6 02-3319-02 Dryer 7 03-1405-20 Cap Screw 8 03-1407-07 Washer 9 18-2300-27 Sleeve 10 18-2200-28 Grommmet 11 03-1645-01 Screw 12 16-0832-20 Access valve 12a 16-0832-02 Stem cap 12b 16-0832-03 Core cap
June 2005
Page 4
10
22
13 11-0485-21 Hi Pressure Cut Out 14 16-0401-02 Elbow 15 11-0478-01 Water Reg. Valve 16 A34341-001 Bracket 17 A31878-004 Drain Assembly 18 18-8768-22 Compressor 208-230/60/1
Overload is internal
18-8768-24 Compressor 200-230/60/3
Overload is internal
18-8772-26 Compressor 230/50/1
18-8772-21 Overload
Note: Replacement compressors include a new HFC dryer, and single phase 60 Hz replacments include the starting components.
Page 5
NME1850 & FME2400 SERVICE PARTS
Water System
1
6
5
2
18
12, 13
3
8
17
20
4
15
14
7
19
22
9
10
11
ITEM PART NUMBER NUMBER DESCRIPTION
1 03-1420-03 Cap Screw 2 A32890-020 Evaporator 3 02-0929-23 Water Seal 4 02-3266-20 Reservoir & valve 5 02-3266-21 Float valve 6 02-3266-03 Plunger/seat 7 A33101-022 Water Level Sensor 8 A32777-001 Retaining Ring for Seal 9 02-3837-01 Drip Pan 10 13-0704-00 Gasket 11 13-0868-01 Water Shed 12 A27318-001 Water Inlet Fitting - for copper
16-0835-01 Inlet fitting for plastic tubing
16-1039-01 Male connector 13 03-1394-01 Pal Nut 14 16-0791-01 Coupling union
June 2005
Page 5
16
21
ITEM PART NUMBER NUMBER DESCRIPTION
15 16-0162-00 Strainer - not used after 11/97 16 A36154-001 Evap. water inlet tube 17 02-1338-00 Hose clamp 18 13-0079-03 Res. overflow hose 19 03-1639-03 Screw 20 A36078-002 Reservoir bracket 21 13-0840-01 Rubber cap 22 16-0670-02 Tee
Page 6
NME1850 & FME2400 SERVICE PARTS
Gearmotor
1
3
2
10
*NOTE: GEARCASE
COVER INCLUDES
COVER, OUTPUT
SHAFT, KEY, OUTPUT
GEAR, BEARINGS
AND SEAL
4
11
5
6
7
12
14
13
ITEM PART NUMBER NUMBER DESCRIPTION
1 13-0868-01 Water Shed 2 A32379-029 Seal
8
3 no number End bell 4 A32379-026 Bolt (6) 5 A32379-022 Gearcase Cover* 6 A32379-024 1st Gear and Bearings 7 A32379-023 2nd Gear and Bearings 8 A32379-021 Gasket 9 A32379-020 Gearcase 10 12-2430-24 Start Switch, Emerson
9
12-2430-44 Start switch, GE split phase 11 12-2430-22 Drive Motor 208-230 12 12-2430-29 Rotor Bearing, Emerson
12-2430-49 Bearing, GE split phase 13 A32379-028 Seal, no longer used on
replacement gear reducers or covers 14 A32379-027 Oil, 1 Container 15 A33220-022 Complete Assembly
208-230 volt
16 A33220-030 Gearcase kit, no motor
June 2005
Page 6
Page 7
NME1850 & FME2400 SERVICE PARTS
NME Evaporator
10
1
12
3
16
4
13
14
15
11
26
2
6a
5
6
7
8
9
ITEM PART NUMBER NUMBER DESCRIPTION
1. A34969-001 Bail clip
2. 02-3268-01 Drain tube holder
3. 02-2930-04 Ice Chute Cover
4. A32963-001 Insulation Top (half)
5. 02-2926-01 Ice Chute Body
6. A33102-001 Insulation Collar Inside 6a A35419-020 Strap kit
7. 02-2929-04 Ice Chute Lower
8. A37708-021 Bin Controls Assy. (set of 2)
9. A32930-001 Chute Gasket
10. 03-1405-52 Hex Cap Screw
11. 02-3001-01 Ice Sweep
12. 13-0871-01 Water Shed
13. 02-2978-01 Lip Seal
14. 02-3128-20 Breaker Cover
15. 13-0617-52 O-Ring
16. 08-0660-01 Auger Stud & washer
18
4
19
21
24
8
25
29
23
17. 13-0868-01 Water Shed
18. A34559-020 Bearing
19. 02-2977-01 Lip Seal
20. 13-0704-00 Drip Pan Gasket
21. 13-0617-54 O-Ring
22. 02-3837-01 Drip Pan
23. 13-0617-45 O-Ring
24. 03-1544-08 Soc. Head Screw
25. A32900-020 Breaker (includes 18 & 19)
26. A38071-022 Auger
27. A32890-020 Evaporator
28. 03-1420-03 Cap Screw
29. A32962-001 Insulation Bot. (half)
27
28
29
22
20
17
June 2005
Page 7
Page 8
NME1850 & FME2400 SERVICE PARTS

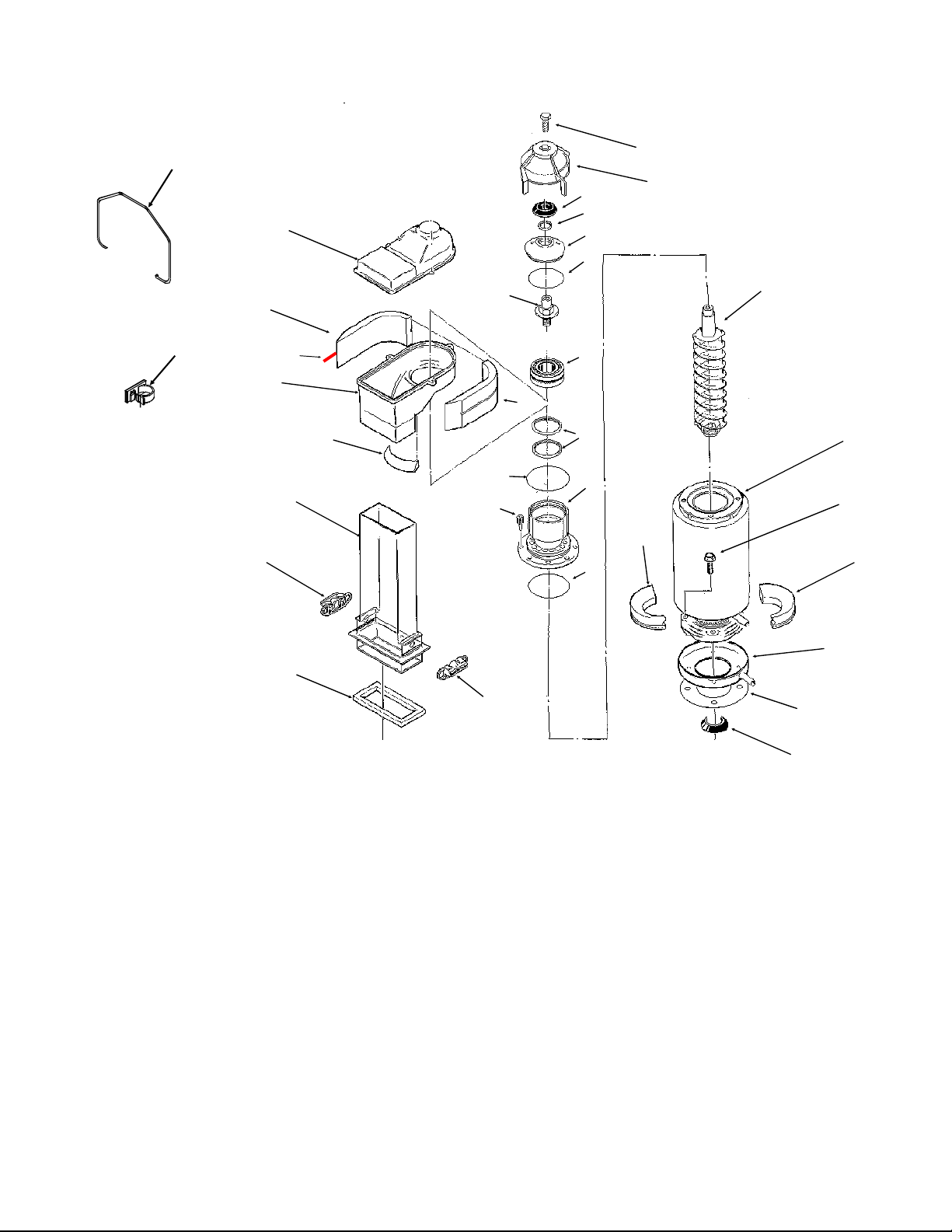

FME Evaporator
3
1
4
17
5
2
8
9
6
7
11
18
33
19
22
10
14
16
26
4
12 13
20
15
29
34
27
28
29
30
31
8
ITEM PART NUMBER NUMBER DESCRIPTION
1. A34969-001 Bail clip
2. 02-3268-01 Drain tube holder
3. 02-2930-04 Ice Chute Cover
4. A32963-001 Insulation Top (half)
5. 02-2926-01 Ice Chute Body
6. A33102-001 Insulation Collar Inside
7. 02-2929-04 Ice Chute Lower
8. A37708-021 Bin Controls Assy. (set of 2)
9. A32930-001 Chute Gasket
10. 03-1405-52 Hex Cap Screw
11. 02-3001-01 Ice Sweep
12. 13-0871-01 Water Shed
13. 02-2978-01 Lip Seal
14. 02-3128-20 Breaker Cover
15. 13-0617-54 O-Ring
16. 08-0660-01 Auger Stud, thrust Washer
17. A35419-020 Strap kit
18. A34559-020 Bearing
19. 02-2977-01 Lip Seal
20. 03-1405-27 Screw
24
21
25
23
32
21. 13-0617-52 O-Ring
22. 02-2916-01 Slotted Collar
23. 13-0617-45 O-Ring
24. 03-1544-08 Soc. Head Screw
25. A34505-020 Breaker (Divider) (includes 18 & 19)
26. A38071-022 Auger
27. A32890-020 Evaporator
28. 03-1420-03 Cap Screw
29. A32962-001 Insulation Bot. (half)
30. 02-3837-01 Drip Pan
31. 13-0704-00 Drip Pan Gasket
32. 13-0868-01 Water Shed
33. 13-0617-49 O-Ring
34 03-1408-36 Washer
June 2005
Page 8
Page 9
10
NME1850 & FME2400 SERVICE PARTS
Control Box
8
9
2
4
1
5
3
11
12
ITEM PART NUMBER NUMBER DESCRIPTION
1 18-1901-54 Start Capacitor, 60 Hz
18-1901-53 Start capacitor, 50 Hz 18-2200-38 Start Capacitor Cap.
2. 18-2200-39 Start Capacitor Bracket 03-1638-04 Screw 03-1417-15 Lockwasher
3. A32872-001 Run Cap Bracket 03-1652-02 Bolt 03-0255-04 Wing Nut
4. 03-1638-03 Screw
5. 18-1902-45 Run Capacitor, 60 Hz 18-1902-53 Run capacitor, 50 Hz
6. 12-2469-02 Single Phase Contactor 12-0739-02 Three Phase Contactor
6
7
ITEM PART NUMBER NUMBER DESCRIPTION
7 A37750-021 Circuit Board
8. 12-0426-01 Master Switch
9. 11-0447-20 Low Pressure Control 10 18-1903-33 Potential Relay 60 Hz
18-1903-29 Potential relay, 50 Hz
11. 12-2285-22 Transformer 12 no number Control Box
NOT ILLUSTRATED
13. 12-2340-01 4 Pin Plug Assy (Transformer to Circuit Board)
14 A34055-001 Control Box Cover
November 2003
Page 9
Page 10
NME1850 & FME2400 SERVICE PARTS
AIR AND WATER COOLED, 208-230/60/1
Janu a ry 1 995
Page 10
Page 11
AIR AND WATER COOLED, 208-230/60/1
NME1850 & FME2400 SERVICE PARTS
Janu a ry 1 995
Page 11
Page 12
NME1850 & FME2400 SERVICE PARTS
AIR AND WATER COOLED, 208-230/60/3
Janu a ry 1 995
Page 12
Page 13
NME1850 & FME2400 SERVICE PARTS
AIR AND WATER COOLED,
208-230/60/3
Janu a ry 1 995
Page 13
