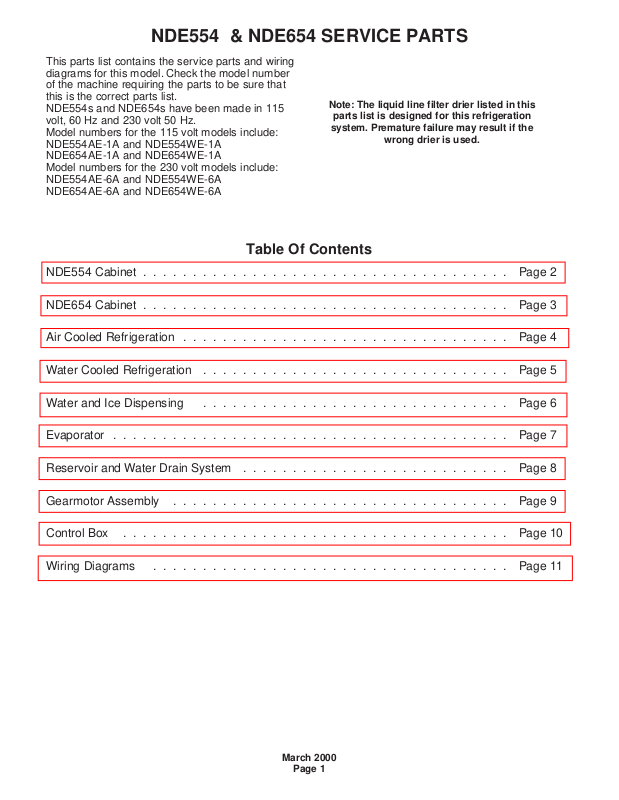

Scotsman NDE554, NDE654 Part Manual
NDE554 & NDE654 SERVICE PARTS
This parts list contains the service parts and wiring
diagrams for this model. Check the model number
of the machine requiring the parts to be sure that
this is the correct parts list.
NDE554s and NDE654s have been made in 115
volt, 60 Hz and 230 volt 50 Hz.
Model numbers for the 115 volt models include:
NDE554AE-1A and NDE554WE-1A
NDE654AE-1A and NDE654WE-1A
Model numbers for the 230 volt models include:
NDE554AE-6A and NDE554WE-6A
NDE654AE-6A and NDE654WE-6A
Table Of Contents
NDE554 Cabinet . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . Page 2
NDE654 Cabinet . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . Page 3
Note: The liquid line filter drier listed in this
parts list is designed for this refrigeration
system. Premature failure may result if the
wrong drier is used.
Air Cooled Refrigeration . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . Page 4
Water Cooled Refrigeration . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . Page 5

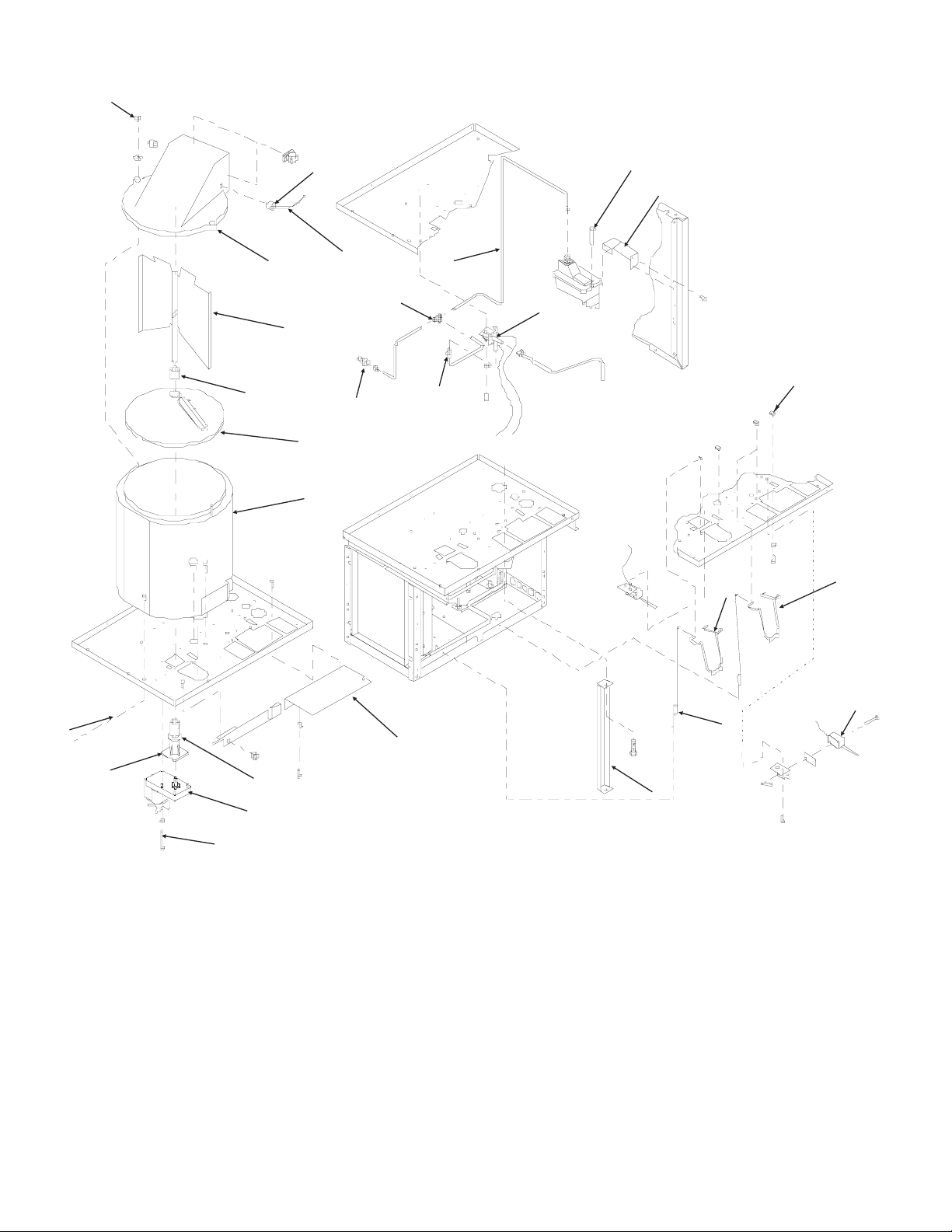

Water and Ice Dispensing . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . Page 6

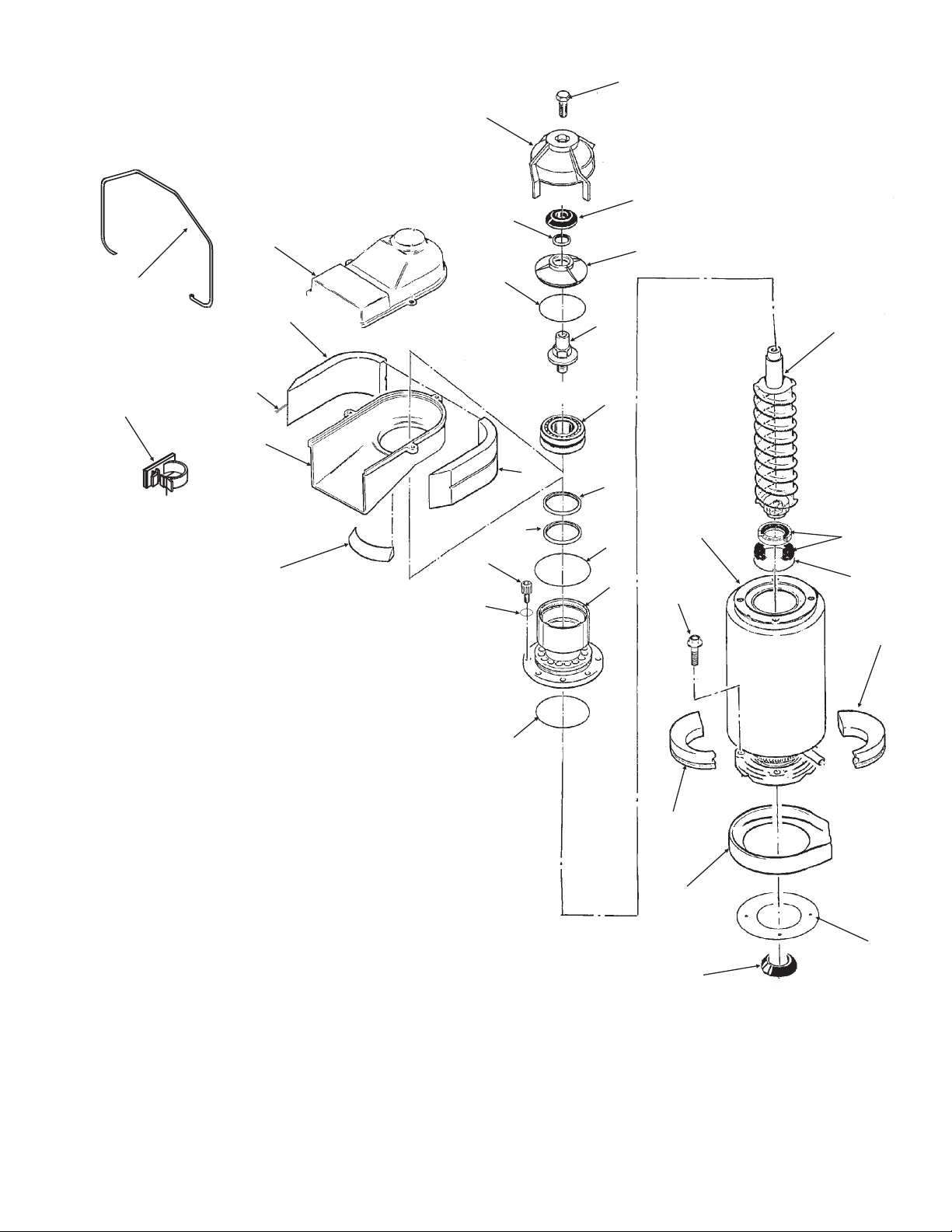

Evaporator . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . Page 7

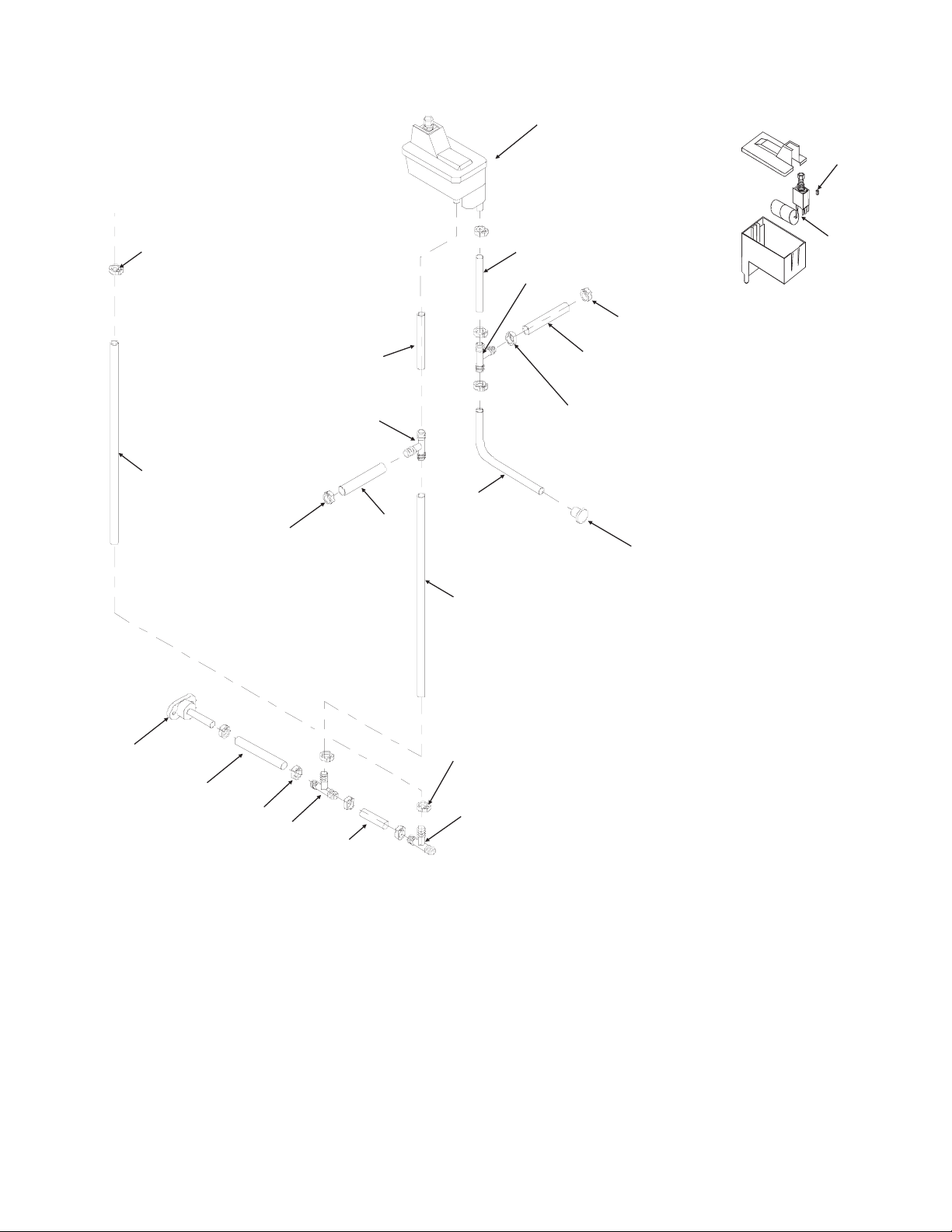

Reservoir and Water Drain System . . . . . . . . . . . . . . . . . . . . . . . . . . . Page 8
Gearmotor Assembly . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . Page 9

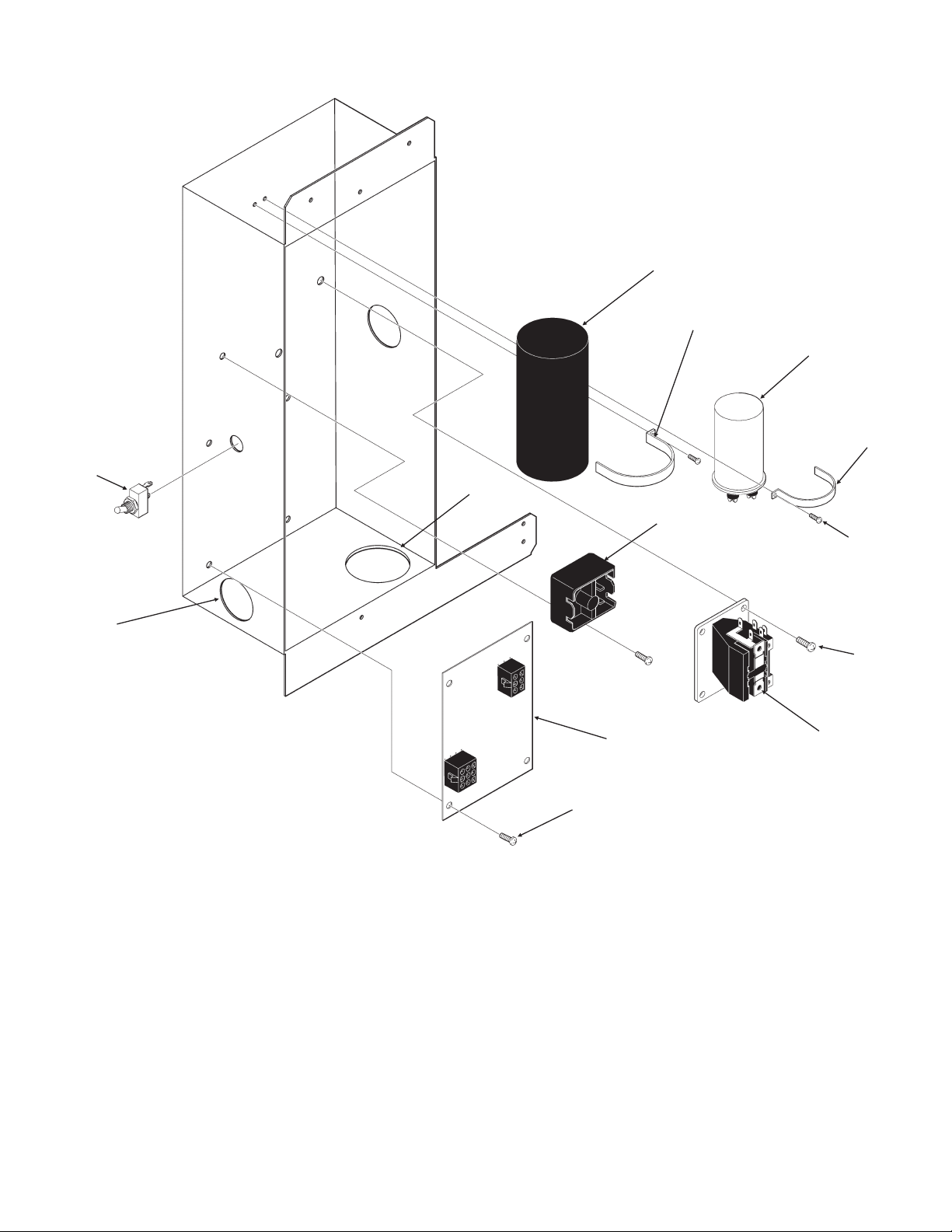

Control Box . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . Page 10

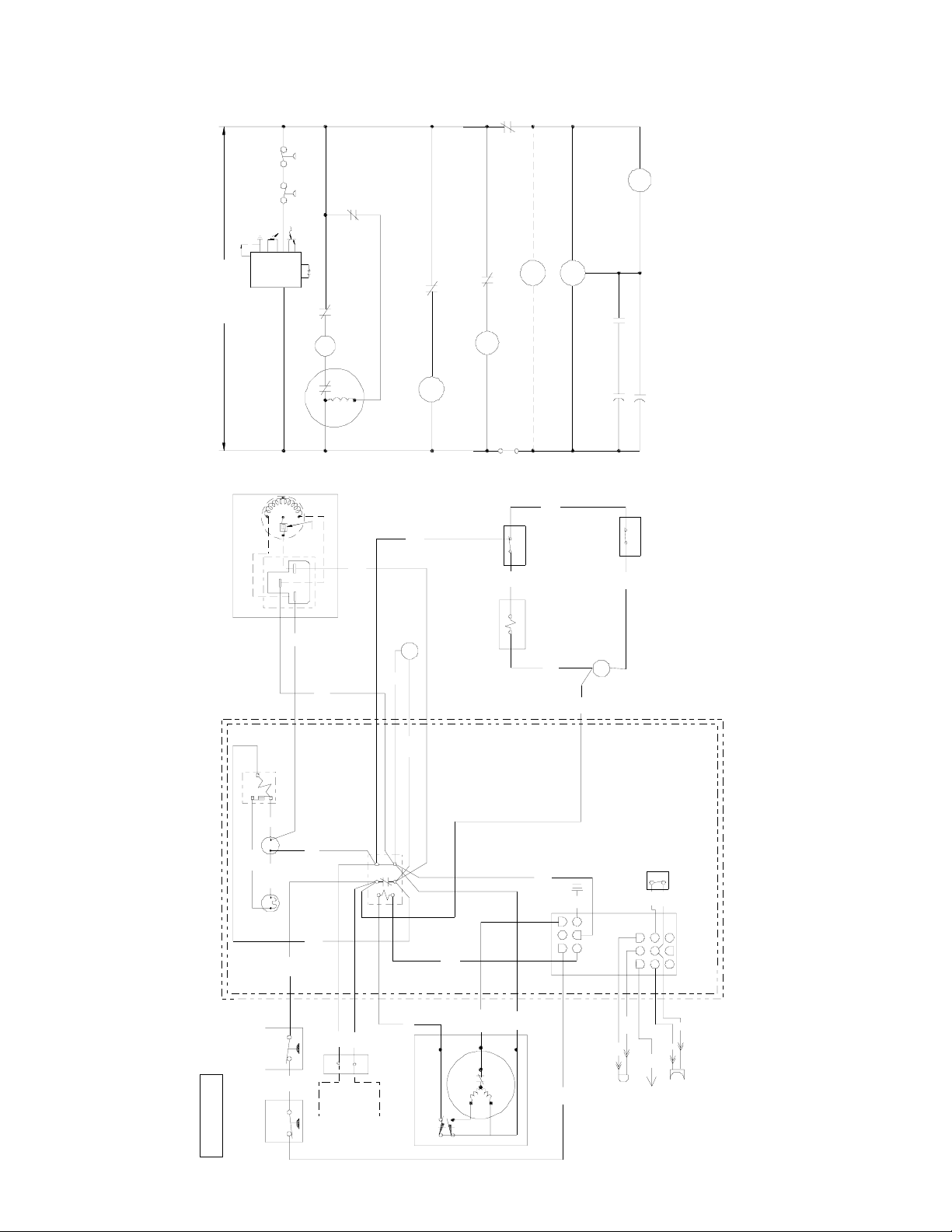

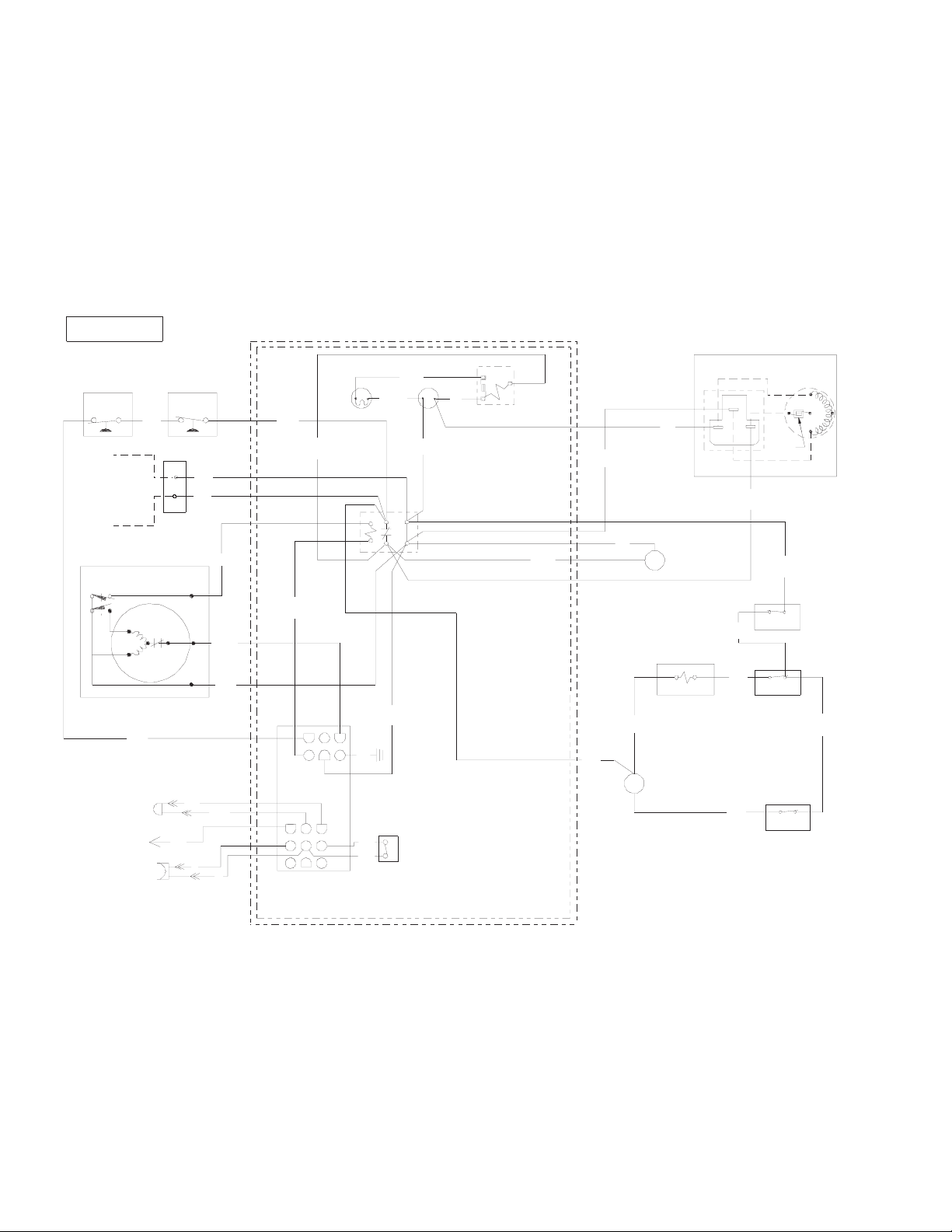

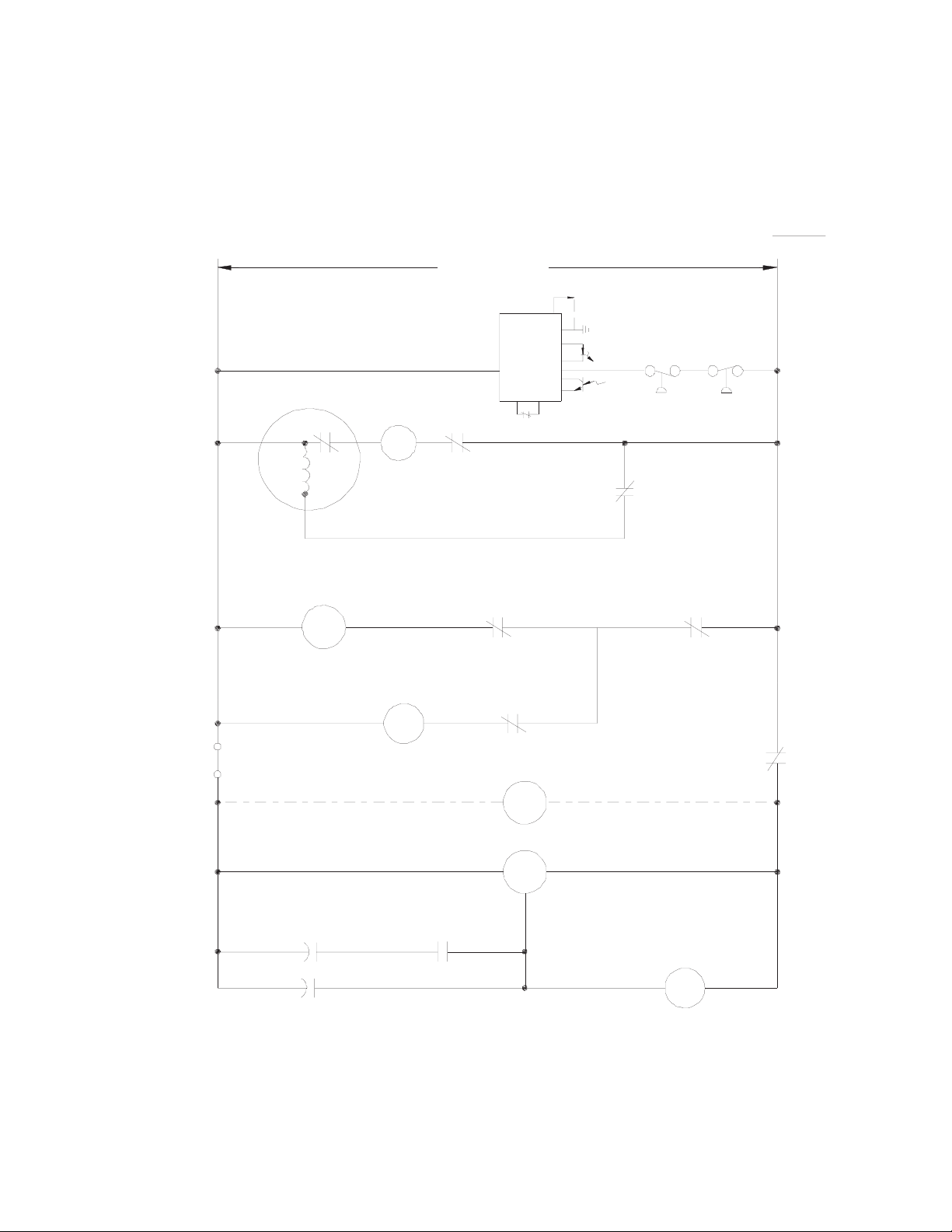

Wiring Diagrams . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . Page 11
March 2000
Page 1
NDE554 & NDE654 SERVICE PARTS
NDE554 Cabinet
1
12
23
3
4
8
11
2
5
7
9
10
6
16
13
21
6
18
22
ITEM PART
NUMBER NUMBER DESCRIPTION
1 A32954-002 Back Panel, stainless
2 A32948-002 Top Panel, stainless
3 03-1419-16 Panel screw
4 A32938-015 Hanger Brace - gray
5 A32947-004 Rt. side panel, stainless
6 A33113-002 Service panel, stainless
7 A32939-015 Front brace
8 A32940-015 Support angle
9 A32949-015 Gearmotor Support
10 A32953-002 Rt. side lower, stainless
17
18
19
20
15
ITEM PART
NUMBER NUMBER DESCRIPTION
11 A32956-015 Upper plate assembly gray
12 A32947-002 Left side panel, ss
13 A34393-001 Up front panel, stainless
14 A33198-001 Control panel assembly
14a 15-0672-01 Ice & Water Decal
15 A32944-001 Lower front panel
16 A34917-015 RH sink support
17 A34917-015 LH sink support
18 03-1405-17 Screw
19 02-2951-01 Grill
20 02-2944-02 Sink, gray
21 15-0711-02 Emblem
22 A32958-001 Lower frame assy
23 A32952-002 Lt side lower, stainless
14
3
March 2000
Page 2
NDE554 & NDE654 SERVICE PARTS
NDE654 Cabinet
1
12
23
3
4
8
11
2
5
7
9
10
6
16
13
21
6
22
18
ITEM PART
NUMBER NUMBER DESCRIPTION
1 A33112-002 Back Panel, stainless
2 A32948-002 Top Panel, stainless
3 03-1419-16 Panel screw
4 A32938-015 Hanger Brace gray
5 A33109-004 Rt. side panel, stainless
6 A33113-002 Service panel, stainless
7 A32939-015 Front Brace gray
8 A32940-015 Support angle gray
9 A33107-015 Gearmotor Support gray
10 A32953-002 Rt. side lower, stainless
17
18
19
20
15
ITEM PART
NUMBER NUMBER DESCRIPTION
11 A32956-015 Upper plate assembly
12 A33109-002 Left side panel, ss
13 A34394-001 Up front panel, stainless
14 A33198-001 Control panel assembly
14a 15-0672-01 Ice & Water Decal
15 A32944-001 Lower front panel
16 A34917-015 RH sink support
17 A34917-015 LH sink support
18 03-1405-17 Screw - Hex cap
19 02-2951-01 Grill
20 02-2944-02 Sink, gray
21 15-0711-02 Emblem
22 A32958-001 Lower frame assy
23 A32952-002 Lt side lower, stainless
14
3
March 2000
Page 3
NDE554 & NDE654 SERVICE PARTS
Air Cooled Refrigeration
ITEM PART
NUMBER NUMBER DESCRIPTION
1 A32961-020 Insulation Kit (3 piece)
2 11-0488-21 Thermo Expansion Valve
3 11-0501-22 Hi Press. Cut Out
4 16-0832-20 Access valve
16-0832-02 Stem cap
16-0832-20 Access valve
5 no number Suction line
6 18-8720-21 Compressor, 115v, 60 Hz
18-5700-50 Overload for 115v comp.
18-8720-26 Compressor, 230v, 50 Hz
18-5700-55 Overload for 230v comp.
7 03-1406-10 Hex nut
8 02-3319-02 Dryer
9 18-2200-27 Mounting Sleeve
10 18-2200-28 Mounting Grommet
11 18-8736-02 Fan Motor, 115v 60 Hz
18-8736-03 Fan motor, 230v, 50 Hz
12 02-3359-01 Fan motor bracket;
mounts to condenser shroud.
13 11-0502-21 Low Pressure Cont.
14 18-8738-01 Fan Blade
15 A33110-015 Fan Shroud gray
16 18-8847-01 Condenser
17 03-1645-01 Screw
2
1
5
16
17
15
14
11
12
3
6
7
13
4
10
8
9
April 2004
Page 4
