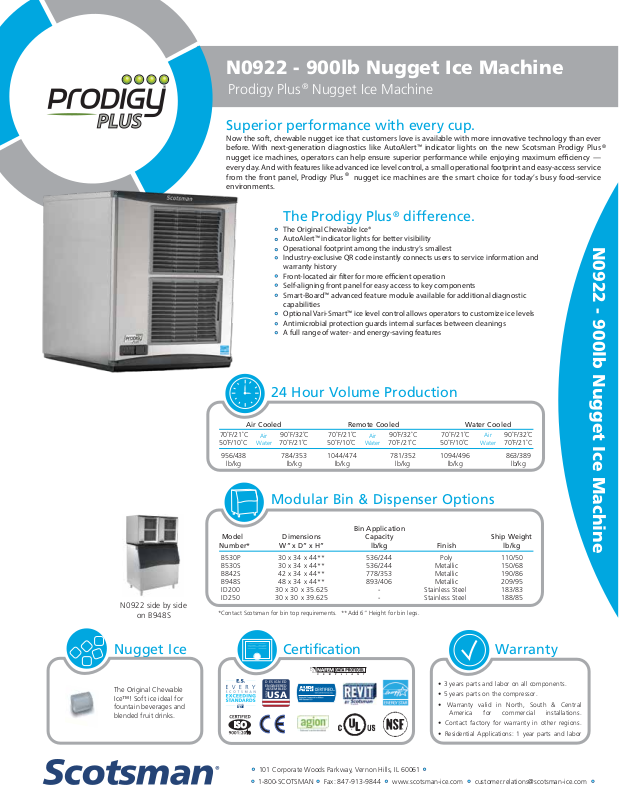

Scotsman N0922W32 Specifications

N0922 - 900lb Nugget Ice Machine

DESIGNED
ENGINEERED
ASSEMBLED

USA

IN THE

Prodigy Plus Nugget Ice Machine

Superior performance with every cup.

Now the soft, chewable nugget ice that customers love is available with more innovative technology than ever
before. With next-generation diagnostics like AutoAlert™ indicator lights on the new Scotsman Prodigy Plus
nugget ice machines, operators can help ensure superior performance while enjoying maximum eciency —
every day. And with features like advanced ice level control, a small operational footprint and easy-access service
from the front panel, Prodigy Plus nugget ice machines are the smart choice for today’s busy food-service
environments.

®

®

®

The Prodigy Plus difference.

®

The Original Chewable Ice®
AutoAlert™ indicator lights for better visibility
Operational footprint among the industry’s smallest
Industry-exclusive QR code instantly connects users to service information and
warranty history
Front-located air lter for more ecient operation
Self-aligning front panel for easy access to key components
Smart-Board™ advanced feature module available for additional diagnostic
capabilities
Optional Vari-Smart™ ice level control allows operators to customize ice levels
Antimicrobial protection guards internal surfaces between cleanings
A full range of water- and energy-saving features

24 Hour Volume Production

Air Cooled Water Cooled

70˚F/21˚C

50˚F/10˚C

956/438

lb/kg

Air

Water

90˚F/32˚C

70˚F/21˚C

784/353

lb/kg

Remote Cooled

70˚F/21˚C

50˚F/10˚C

1044/474

lb/kg

Air

Water

90˚F/32˚C

70˚F/21˚C

781/352

lb/kg

70˚F/21˚C

50˚F/10˚C

1094/496

lb/kg

Modular Bin & Dispenser Options

Air

Water

90˚F/32˚C

70˚F/21˚C

863/389

lb/kg

N0922 - 900lb Nugget Ice Machine

N0922 side by side

on B948S

Nugget Ice

The Original Chewable
Ice™! Soft ice ideal for
fountain beverages and
blended fruit drinks.

Bin Application

Model

Number*

B530P 30 x 34 x 44** 536/244 Poly 110/50
B530S 30 x 34 x 44** 536/244 Metallic 150/68
B842S 42 x 34 x 44** 778/353 Metallic 190/86
B948S 48 x 34 x 44** 893/406 Metallic 209/95
ID200 30 x 30 x 35.625 - Stainless Steel 183/83
ID250 30 x 30 x 39.625 - Stainless Steel 188/85

*Contact Scotsman for bin top requirements. **Add 6” Height for bin legs.

Dimensions

W” x D” x H”

Capacity

lb/kg Finish

Certification

• 3 years parts and labor on all components.

2018

DOE

15

101 Corporate Woods Parkway, Vernon Hills, IL 60061

1-800-SCOTSMAN Fax: [phone] [e-mail]

• 5 years parts on the compressor.

• Warranty valid in North, South & Central
America for commercial installations.

• Contact factory for warranty in other regions.

• Residential Applications: 1 year parts and labor

Ship Weight

lb/kg

Warranty

N0922 - 900lb Nugget Ice Machine

Prodigy Plus Nugget Ice Machine

®

3/8" FLARE
MACHINE
WATER
INLET

47.2

18.59

3/8" FLARE
MACHINE
WATER
INLET

47.3

18.64

3/4" FPT
DRAIN

34

13.39

13.39

.88 DIA.
ELECTRICAL
ACCESS

3/8" FPT
CONDENSER
WATER INLET

39.2

34

6.8

2.67

4

1.59

6.8

2.67

3.9

1.53

45.8

18.05

WATER COOLED

5.5

BACK VIEW

2.17

3/4" FPT
DRAIN

AIR COOLED
BACK VIEW

50.3

19.80

.88 DIA.
ELECTRICAL
ACCESS

15.44

8.6

3.37

1/2" FPT
CONDENSER
DRAIN

EXHAUST
AIR

.88 DIA.
ELECTRICAL
ACCESS

3/8" FLARE
MACHINE
WATER
INLET

47.1

18.55

34

13.39

LEFT SIDE VIEW

REMOTE COND.
LIQUID LINE
3/8"

6.7

2.63

5.5

2.17

24.00

4

1.59

18.8

7.39

27.8

10.93

61

REMOTE COND.
DISCHARGE LINE
1/2"

3/4" FPT
DRAIN

REMOTE COOLED
BACK VIEW

2.3
.91

[68.6]

27.00

55.5

21.84

INTAKE
AIR

24.00

24.00
REF.

REF.

55.9

55.9

22.00

22.00

REF.

REF.

31.8

31.8

12.50

12.50

ULTRA SONIC
BIN LEVEL
SENSOR
OPTIONAL

61

61

41.9

41.9

16.50

16.50

22.70

55.9

22.00

57.7

PLAN VIEW

ICE DROP
OPENING

16.5

16.5

6.48

6.48

2.92

2.92

10.9

10.9

4.30

4.30

LOUVER AND
REMOVABLE FILTER
A/C UNITS ONLY

7.4

7.4

7.1

7.1

2.81

2.81

FRONT VIEW

Specifications

Model

Number

N0922A-32
N0922R-32

Condenser

Unit

Air

Remote

Basic Electrical
Volts/Hz/Phase

208-230/60/1
208-230/60/1

N0922W-32 Water 208-230/60/1 15 2 12.0 3.09 12.0/45.5 125/473.9

All Models

Dimensions (W x D x H):

Unit: Individual

N0922 - 900lb Nugget Ice Machine

Shipping Carton:

Shipping Weight:

210 lb / 95 kg

Refrigerant: R-404A

22.9” x 24” x 27”
(58.2 x 61.0 x 68.6 cm)

Side by Side

45.8” x 24” x 27”
(116.3 x 61.0 x 68.6 cm)

25.5” x 27.5” x 32.5”
(64.8 x 69.9 x 82.6 cm)

BTUs per hour:

10,500

Max. Fuse Size
or HACR Circuit
Breaker (amps)

15
15

Model Number Description

KVS
KSBU
KSBU-N
ERC311-32
BRTE10
BRTE25

BRTE40
BRTE75
KPAS

Scotsman recommends all ice machines have water filtration. See Scotsman water filter specification sheet for details.

Air Temperatures
Water Temperatures
Remote Cond. Temps
Water Pressures
Electrical Voltage

Specifications and design are subject to change without notice.

Circuit

Wires

Min. Circuit

Ampacity

2
2

Accessories

Operating Requirements

Energy Consumption
kWh/100 lb (45.4 kg)
90˚F(32˚C)/70˚F(21˚C)

13.2

13.0

3.65

3.82

Vari-Smart™ Ice Level Control ­Smart-Board™ Advanced Control ­Smart-Board™ Advanced Control with Network -

Gallons/100 lb (liters/45.4 kg)

Potable Condenser

90˚F(32˚C)/70˚F(21˚C)

12.0/45.5

12.0/45.5

Program ice bin l evels to match ice needs.

Use additional operational da ta for fast diag nosis.

-

-

Network capable.

Remote condenser for N0922R, 208-230V/60/1
Line set, 10ft, brazing required.
Line set, 25ft, brazing required.

Line set, 40ft, brazing required.
Line set, 75ft, brazing required.
Prodigy Advanced Sustainability Kit - Includes KVS and KSBU - N

Water Usage

Minimum

50°F (10°C)
40°F (4.4°C)

-20°F (-29°C)
20 PSIG (1.4 bar)

-5%

Maximum

100°F (38°C)
100°F (38°C)
120°F (49°C)
80 PSIG (5.5 bar)
+10%

Energy

Star

®

101 Corporate Woods Parkway, Vernon Hills, IL 60061

1-800-SCOTSMAN Fax: [phone] [e-mail]

SIS-SS-PP-N0922 02-18© 2018 Scotsman Ice Systems.
