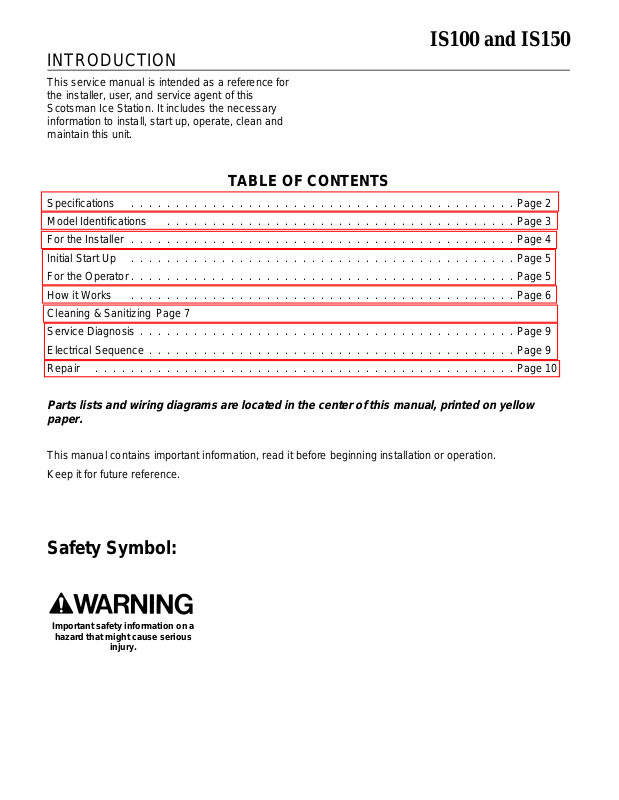

Scotsman IS150 User Manual
IS100 and IS150
INTRODUCTION
This service manual is intended as a reference for
the installer, user, and service agent of this
Scotsman Ice Station. It includes the necessary
information to install, start up, operate, clean and
maintain this unit.
TABLE OF CONTENTS
Specifications . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . Page 2
Model Identifications . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . Page 3
For the Installer . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . Page 4
Initial Start Up . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . Page 5
For the Operator . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . Page 5
How it Works . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . Page 6
Cleaning & Sanitizing Page 7
Service Diagnosis . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . Page 9
Electrical Sequence . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . Page 9
Repair . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . Page 10
Parts lists and wiring diagrams are located in the center of this manual, printed on yellow
paper.
This manual contains important information, read it before beginning installation or operation.
Keep it for future reference.
Safety Symbol:
Important safety information on a
hazard that might cause serious
injury.
IS100 and IS150
SPECIFICATIONS
The term "Ice Station" means a machine that
stores manually filled ice in an insulated, sanitary
container; upon demand it dispenses that ice into a
cup or glass.
NOTE: This ice stand is designed to dispense
cubed or Nugget ice only. Flaked ice will not
work.
ELECTRICAL POWER CORD - 6 FT.
BACK VIEW
DRAIN
One 5⁄8" I.D. TUBE and
One 3⁄4" I.D. Tube
Base
Model
IS100-1B 22"w x 30"d x 34"h 110 lbs. 115/60/1 2 amps 6’ with plug
IS150-1B 30"w x 30"d x 34"h 150 lbs. 115/60/1 2 amps 6’ with plug
Rotor motor is 1/10 H.P.
Options: Lighted upper front panel. 4" leg kit. Push button actuation (factory installed).
Scotsman Ice Systems are designed and manufactured with the highest regard for safety and performance.
They meet or exceed the standards of U.L., N.S.F., and C.S.A.
Scotsman assumes no liability or responsibility of any kind for products manufactured by Scotsman that
have been altered in any way, including the use of any parts and/or other components not specifically
approved by Scotsman.
Scotsman reserves the right to make design changes and/or improvements at any time. Specifications and
designs are subject to change without notice.
Dimensions Storage
Capacity
Basic Electrical Amperage Power Cord
October 1993
Page 2
IS100 and IS150
DISPENSER MODEL IDENTIFICATION
The complete model number of the dispenser describes many of its options:
IS 100 E -L F -1
Type Bin Cabinet Activation Display Voltage Series
Capacity Finish Method Type
In this example, the IS100E-LF-1A is an Ice Station with 100 lb. storage; it’s painted; uses levers for
dispensing; does have a lighted display; is 115 volt; and is the first series.
TYPE: IS = Ice Station. BIN CAPACITY: 100 = 100 lb. 150 = 150 lb. CABINET FINISH: E = Painted S =
Stainless. ACTIVATION METHOD: B = Push Button for ice L = Push Lever for ice. DISPLAY TYPE: F =
Lighted front panel N = No light. VOLTAGE: -1 = 115/60/1. SERIES: Design changes in alphabetical
sequence. Other variations may include brand identification.

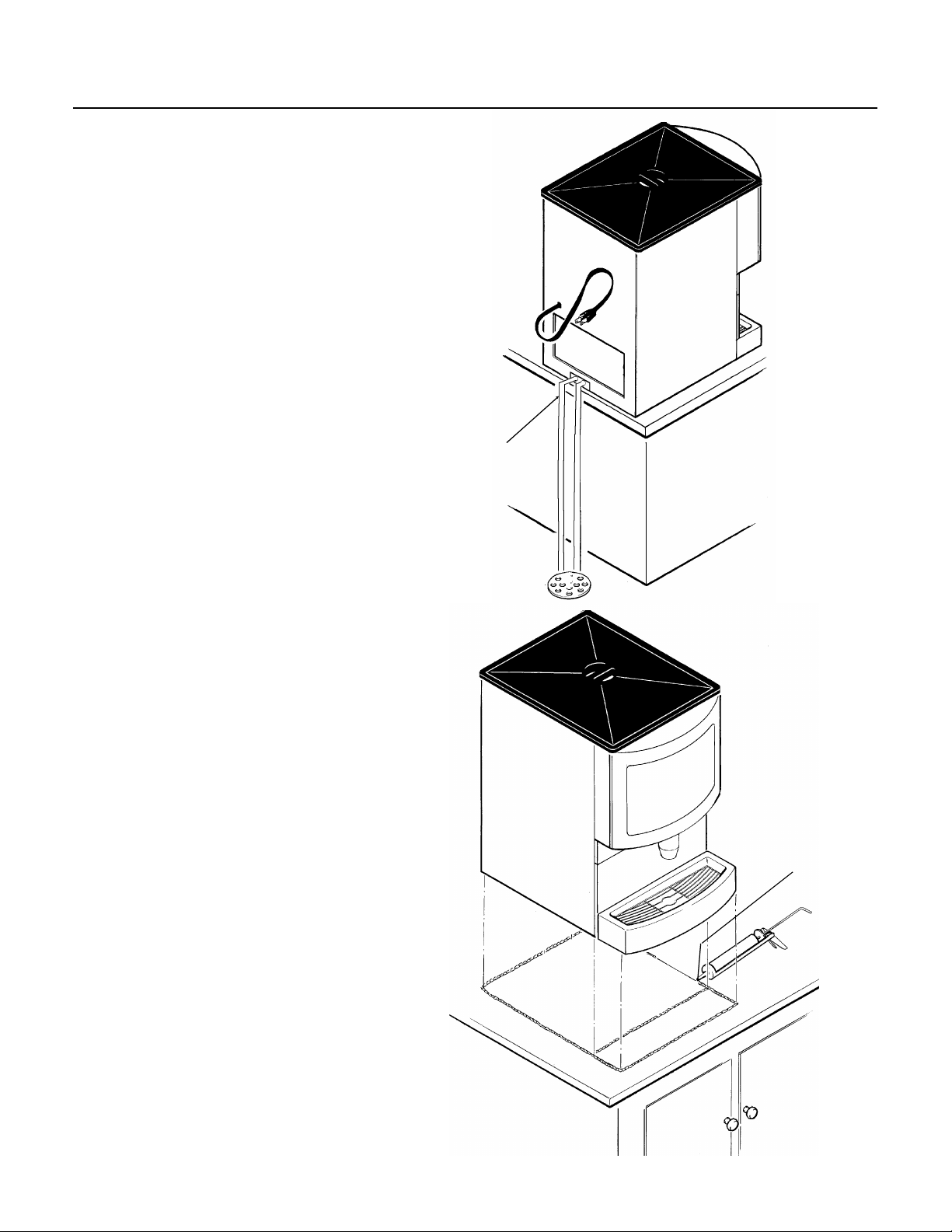

FOR THE INSTALLER: Installation of Loose Shipped Parts
A
Sink:
1. Remove splash panel from unit.
2. Slip a worm drive clamp over the drain tube as
shown.
3. Hold the drip tray up at an angle of about 30
o
Slide the drain fitting into the drain tube.
DRAIN
TUBE
DRAIN
FITTING
SINK
Ice Lever*, Ice chute, and Fluorescent Tube*
1. Slide out the
ice chute
mounting panel.
.
2. Insert the ice
lever into the
LEVER
slot as shown.
3. Swing the
lever through
the slot from
right to left and
let it hang freely.
SLOT
4. Twist the
fluorescent tube into the sockets.
5. Replace the ice chute mounting panel.
6. Insert the ice
chute into the
panel and twist
ICE CHUTE
MOUNTING
PANEL
clockwise 1/3
turn.
SPLASH
PANEL
MOUNTING
TABS
4. Tighten the worm-drive clamp.
5. Hang the drip tray onto the mounting tabs at the
base of the unit. Replace the splash panel.
October 1993
7. Attach the
upper front
cover by
pushing the
strikes on the
cover into the
catches on the
unit.
ICE CHUTE
* Optional depending upon unit configuration.
Page 3
