Scotsman ID250, ID200, ID150 User Manual

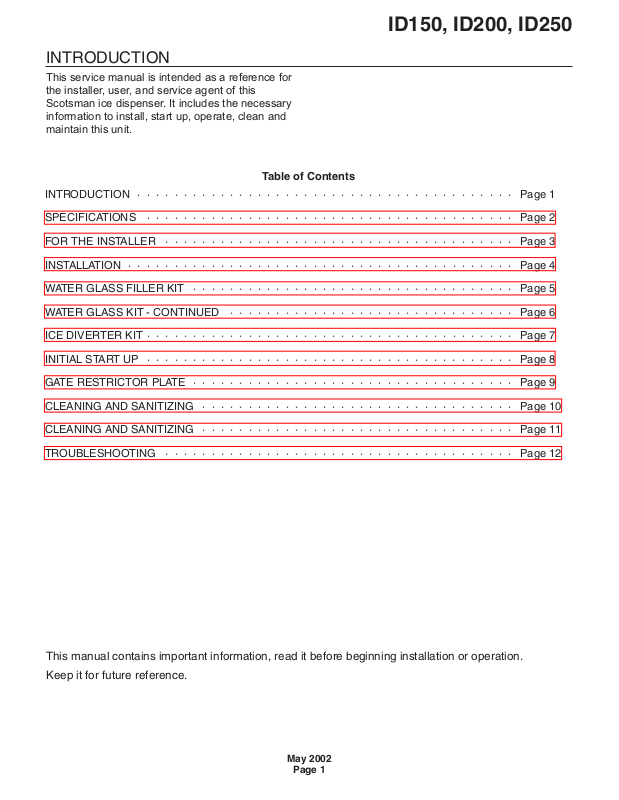

INTRODUCTION
This service manual is intended as a reference for the installer, user, and service agent of this Scotsman ice dispenser. It includes the necessary information to install, start up, operate, clean and maintain this unit.
Table of Contents
INTRODUCTION · · · · · · · · · · · · · · · · · · · · · · · · · · · · · · · · · · · · · · · · · Page 1
SPECIFICATIONS · · · · · · · · · · · · · · · · · · · · · · · · · · · · · · · · · · · · · · · · Page 2
FOR THE INSTALLER · · · · · · · · · · · · · · · · · · · · · · · · · · · · · · · · · · · · · · Page 3
INSTALLATION · · · · · · · · · · · · · · · · · · · · · · · · · · · · · · · · · · · · · · · · · · Page 4

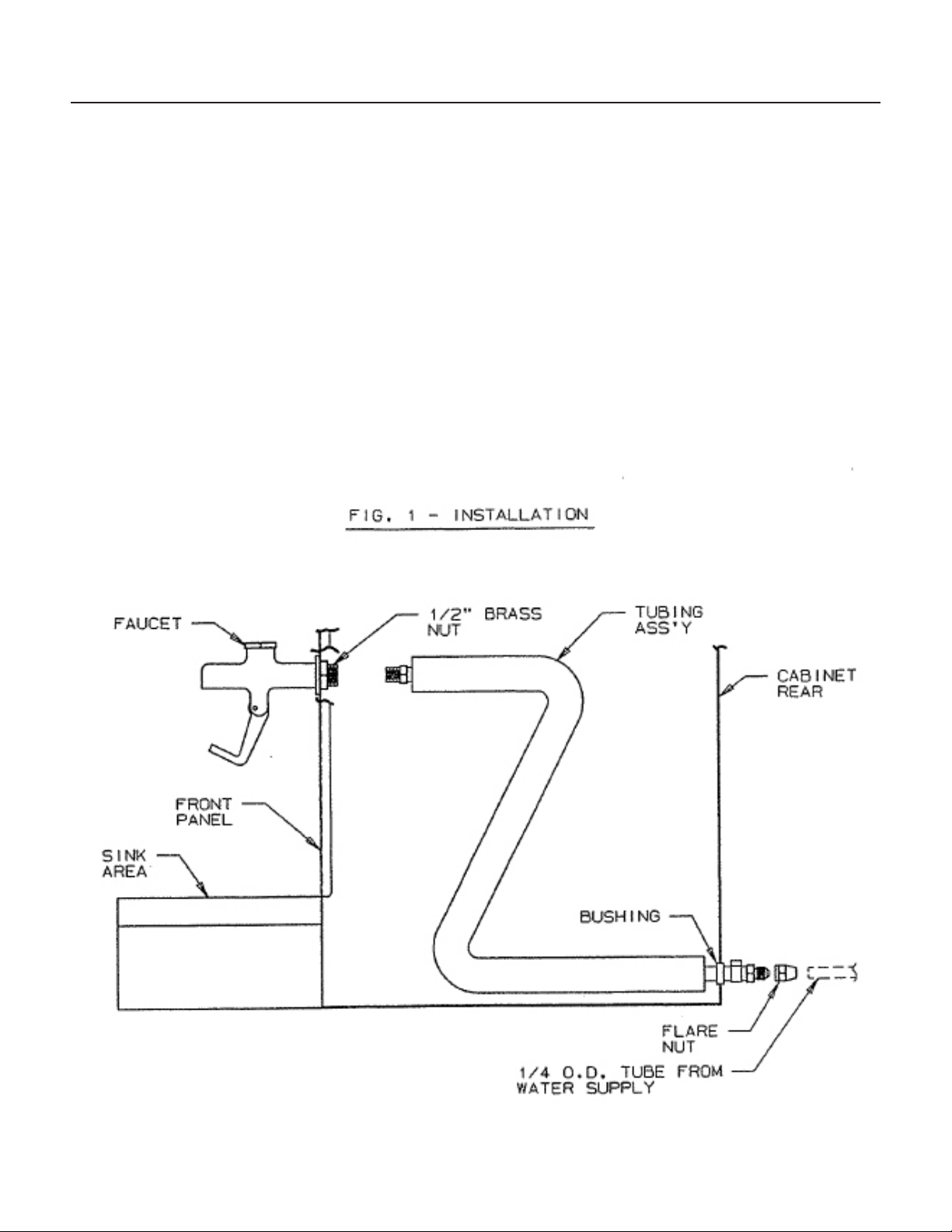

WATER GLASS FILLER KIT · · · · · · · · · · · · · · · · · · · · · · · · · · · · · · · · · · · Page 5

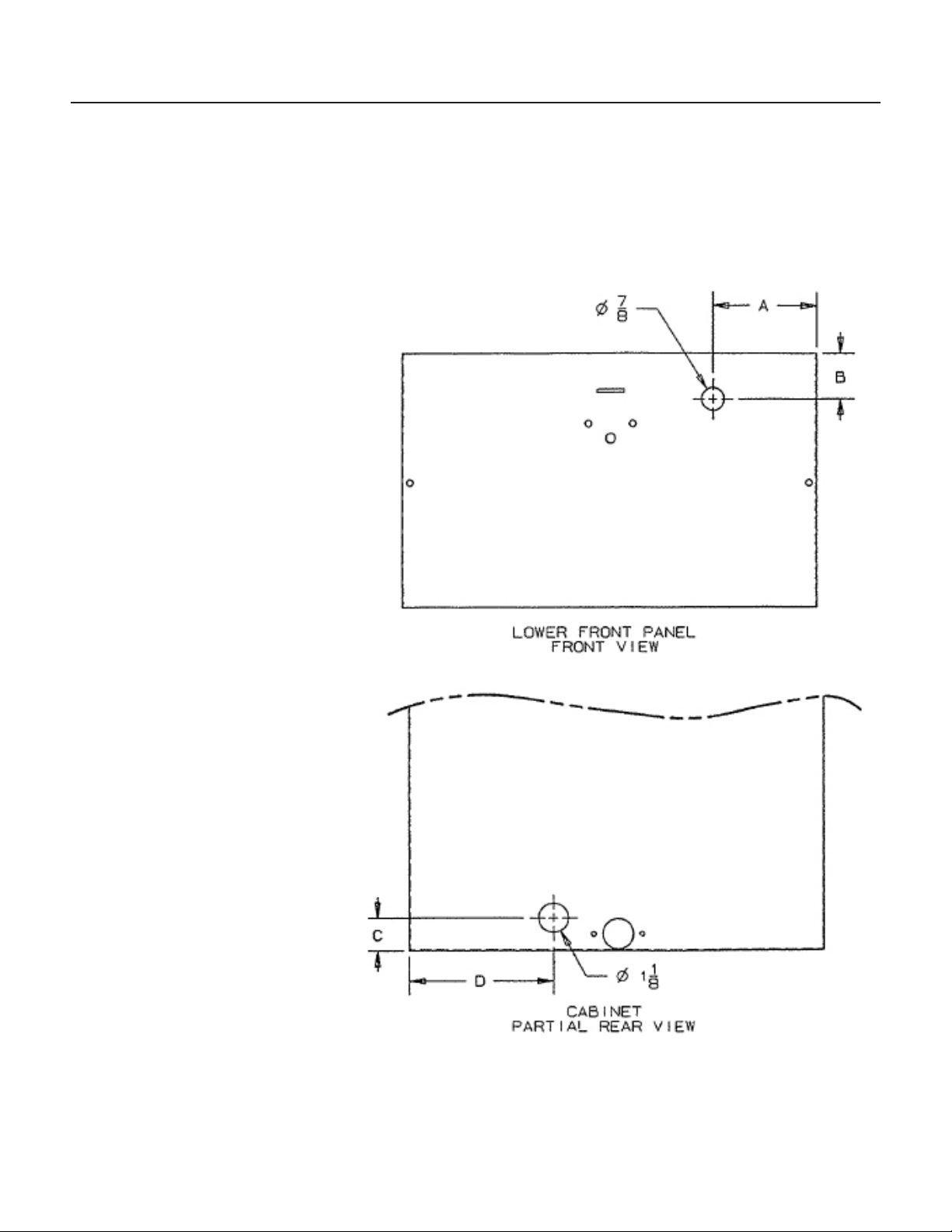

WATER GLASS KIT - CONTINUED · · · · · · · · · · · · · · · · · · · · · · · · · · · · · · · Page 6
ICE DIVERTER KIT · · · · · · · · · · · · · · · · · · · · · · · · · · · · · · · · · · · · · · · · Page 7
INITIAL START UP · · · · · · · · · · · · · · · · · · · · · · · · · · · · · · · · · · · · · · · · Page 8

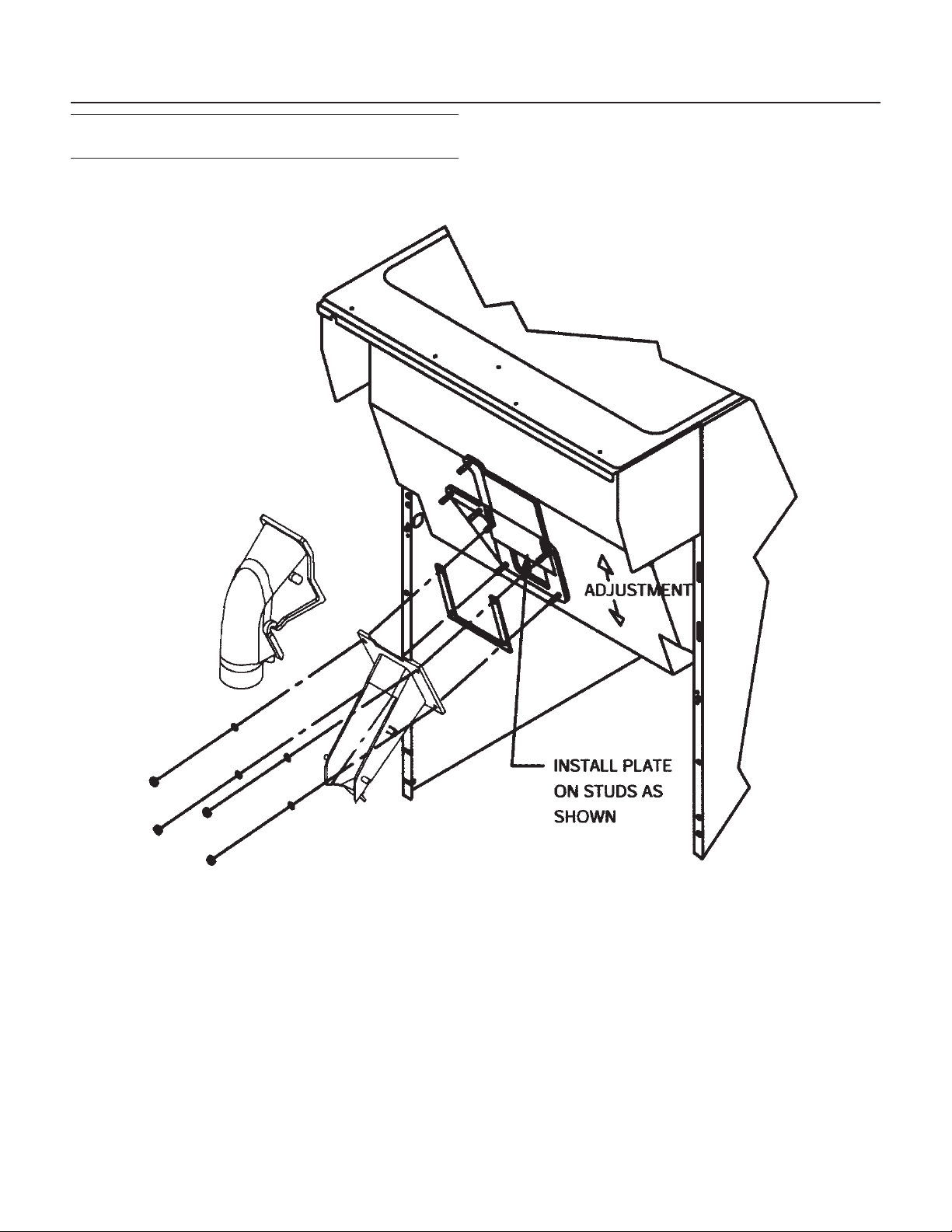

GATE RESTRICTOR PLATE · · · · · · · · · · · · · · · · · · · · · · · · · · · · · · · · · · · Page 9
CLEANING AND SANITIZING · · · · · · · · · · · · · · · · · · · · · · · · · · · · · · · · · · Page 10
CLEANING AND SANITIZING · · · · · · · · · · · · · · · · · · · · · · · · · · · · · · · · · · Page 11
TROUBLESHOOTING · · · · · · · · · · · · · · · · · · · · · · · · · · · · · · · · · · · · · · Page 12
This manual contains important information, read it before beginning installation or operation.
Keep it for future reference.
May 2002
Page 1
SPECIFICATIONS
The ID ice dispenser is a machine that stores manually filled ice in an insulated, sanitary container; upon demand it dispenses that ice into a cup or glass.
NOTE: This ice stand is designed to dispense cubed ice only. Flaked ice will not work.
Scotsman reserves the right to make design changes and/or improvements at any time.
Specifications and designs are subject to change without notice.
Model Dimensions
w” x d” x h”
ID150B-1A 22 x 30 x 35 5/8 115/60/1 150 lb 3.0 10” Lever
ID200B-1A 30 x 30 x 35 5/8 115/60/1 200 lb 3.5 10” Lever
ID250B-1A 30 x 30 x 39 5/8 115/60/1 250 lb 3.5 10” Lever
Note: Dispenser height includes cover (1 5/8”).
Options: Water glass filler kit (KWGFID). Diverter kit for Scotsman Nugget Ice (KNUGDIV)
Adapters: Adapters are required for placing an ice machine onto the top of this dispenser. See sales
literature for adapter information.
Basic
Electrical
Hopper
Capacity
May 2002
Page 2
Amps Cup
Clearance
Dispense
Actuation
Method
FOR THE INSTALLER
This ice dispenser has been specifically designed to provide protection against personal injury and eliminates contamination of ice. To ensure continued protection and sanitation, observe the following:
ALWAYS: disconnect power to the dispenser
·
before servicing or cleaning.
NEVER: place hands inside of hopper or gate
·
area without disconnecting power to the dispenser.
Agitator rotation occurs automatically when
·
dispenser is energized!
ALWAYS: be sure the removable lid is properly
·
installed to prevent unauthorized access to the hopper interior and possible contamination of the ice.
ALWAYS: be sure the upper and lower front
·
panels are securely fastened.
ALWAYS: keep area around the dispenser
·
clean of ice cubes. CAUTION: Dispenser cannot be used with
·
crushed or flaked ice.
Use of bagged ice, which has frozen into large chunks, can void warranty.
DESCRIPTION
Designed to be manually filled with ice from any remote ice-making source, these dispensers will dispense cubes (up to 1-1/4” in size), cubelets and hard-chipped or cracked ice.

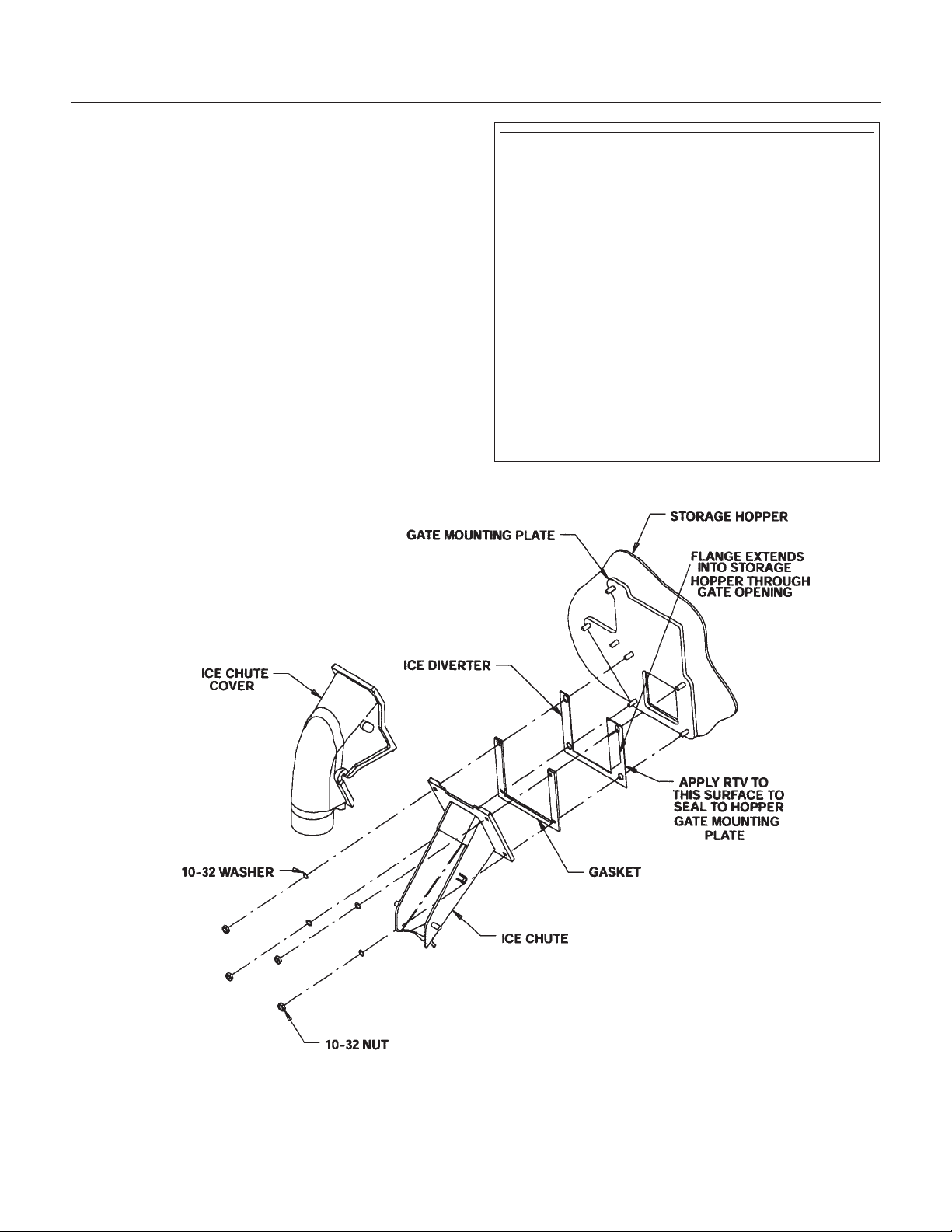

IMPORTANT: For dispensing compressed or extruded style ice, an Ice Diverter Kit must be installed on the dispensers (see ICE DIVERTER KIT (KNUGDIV) in INSTALLATION INSTRUCTIONS section of this manual. The Ice Diverter Kit is part of the KBT46 adapter.
The dispenser agitator is not designed to be an ice crusher. Use of large chunks of ice which “jam up” inside the hopper will cause failure of the agitator motor and damage to the hopper. If bagged ice is used, it must be carefully and completely broken into small, cube-sized pieces before filling into the dispenser hopper.
May 2002
Page 3
INSTALLATION
1. Locate the ice dispenser on the counter. Allow vertical clearance above unit for the removal of the cover, and for pouring ice into the hopper.
2. Plan the unit drain. A 1” I.D. drain tube is required for draining. Routing is either thru the back or base. Sufficient fittings are included with the unit to install in most cases.
3. In order to comply with National Sanitation Foundation (NSF) requirements, this unit must be either elevated above the counter top sufficiently to provide space for cleaning under the unit or sealed to the counter top.
Elevating the unit may be accomplished by using the legs. They will screw into threaded holes in the base of the unit.
Note: Before installing legs the plastic plugs must be removed.
IMPORTANT:
It is the responsibility of the Installer to ensure that the water supply to the dispensing equipment is
provided with protection against backflow by an air gap as defined in ANSI/ASME A112.1.2-1979; or an approved vacuum breaker or other such method as proved effective by test.
Water pipe connections and fixtures directly connected to a potable water supply shall be sized, installed, and maintained according to Federal, State, and Local Codes.
Drip Tray Assembly
DRIP TRAY DRAIN ASSEMBLY (see illustration below): Route the drain tube to an open drain with the end of the tube above the “flood” level of the drain. Use the tubing, fittings, clamps, and insulation provided with the Dispenser to assemble the drain. The completed drain line must pitch continuously downward and contain no “traps” or improper drainage will result.
NOTE: This equipment must be installed with adequate backflow protection to comply with federal, state, and local codes.
May 2002
Page 4
