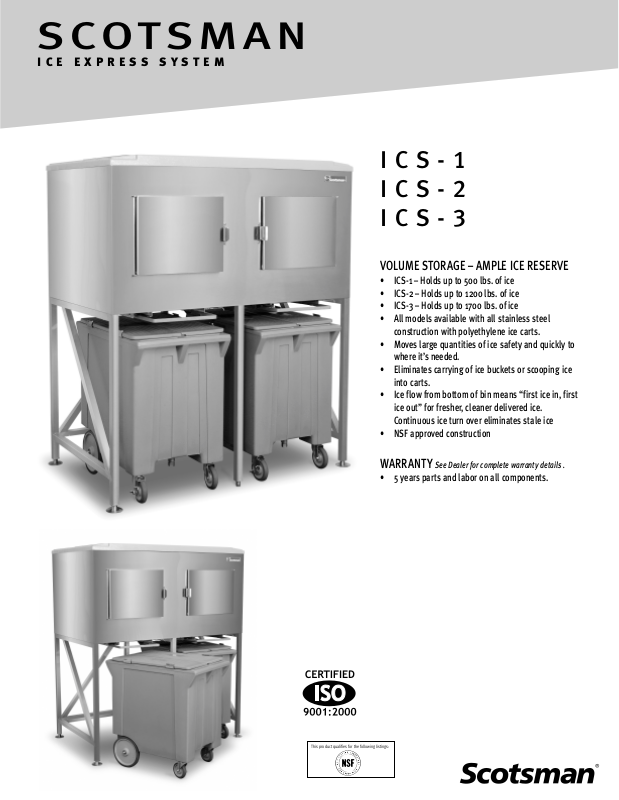

Scotsman ICS-1, ICS-2, ICS-3 General Manual
SCOTSMAN
ICE EXPRESS SYSTEM
PRELIMINARY
ICS-1
ICS-2
ICS-3
VOLUME STORAGE – AMPLE ICE RESERVE
•
ICS-1 – Holds up to 500 lbs. of ice
•
ICS-2 – Holds up to 1200 lbs. of ice
•
ICS-3 – Holds up to 1700 lbs. of ice
•
All models available with all stainless steel
construction with polyethylene ice carts.
•
Moves large quantities of ice safety and quickly to
where it’s needed.
•
Eliminates carrying of ice buckets or scooping ice
into carts.
•
Ice flow from bottom of bin means “first ice in, first
ice out” for fresher, cleaner delivered ice.
Continuous ice turn over eliminates stale ice
•
NSF approved construction
WARRANTY See Dealer for complete warranty details .
•
This product qualifies for the following listings:
5 years parts and labor on all components.
SIDE VIEW SIDE VIEW
TOP VIEW
FRONT VIEW
FRONT VIEW
TOP VIEW
FRONT VIEW
SIDE VIEW
36 in
(91.44 cm)
60 in
(152.41 cm)
30 in
(76.20 cm)
65 in
(165.10 cm)
30 in
(76.20 cm)
36 in
(91.44 cm)
36 in
(91.44 cm)
36 in
(91.44 cm)
36 in
(91.44 cm)
TOP VIEW
90 in
(228.0 cm)
36 in
(91.44 cm)
15.6975 in
(39.87 cm)
31 in
(78.74 cm)
21 in
(53.34 cm)
92 in
(233.68 cm)
71 in
(180.34 cm)
71 in
(180.34 cm)
ICS-1
ICS-2
ICS-3
ICS-3 SL
ONLY
ICS-3 SL
ONLY
ICS-2 SL
ONLY
ICS-2 SL
ONLY
19.6975 in
(50.03 cm)
19.6975 in
(50.03 cm)
101 in
(256.54 cm)
Bin Specifications
NOTE: Bin tops cut to match ice machine.
Specify ice machine model when order is placed.
Drain requires a 1" drain fitting
NOTE::Allow 6” minimum space at back for ice machine ventilation
and utility connections.
*SS - All Stainless Steel
SSCCOOTTSSMMAANN MMOODDUULLAARR BBIINN
Model Dimensions Capacity Weight
Certified & rated in accordance
with ARI standard 820-95
Application Ship
Number Description w/legs lb. /kg. Finish* lb. /kg.
ICS-1 Ice Cart & Storage System - Single Bay 30" x 36" x 65" 500/227 SS 400/181
ICS-2 Ice Cart & Storage System - Twin Bay 60" x 36" x 71" 1200/544 SS 840/381
ICS-2-SL Ice Cart & Storage System -
Twin Bay with Expansion Sleeve 60" x 36" x 92" 1700/771 SS 1000/453
ICS-3 Ice Cart & Storage System - Triple Bay 90" x 36" x 71" 1800/817 SS 1200/454
ICS-3-SL Ice Cart & Storage System -
Triple Bay with Expansion Sleeve 90" x 36" x 101" 2900/1315 SS 1470/667
Dimensions Capacity** Weight
Application Ship
Options Description W”x D x H” lb. /kg. lb. /kg.
ICS-SS Replacement Cart - Stainless Steel 24" x 30" x 38" 250/113 125/57
ICS-CP Replacement Cart - Polyethylene 22" x 30" x 38" 250/113 100/45
ICS-TOTE Ice-Totes-Set of 6 Fits in Cart N/A 25/11
**ARI storage capacity for bins is based on 80% of total volume in cubic feet x 30 lb./ft.3 average density of ice.
Application capacity for bins is based on 90% of total volume in cubic feet x 34 lb./ft.3 average density of ice.
YOU’LL VALUE THE DIFFERENCE.
Scotsman’s ice machines and bins are not designed for outdoor installations. Scotsman remote condensers
are designed for outdoor installations.
Machine requires voltage indicated on rating name plate. Failures caused by improper voltage are not considered
factory defects. Extended periods of operation at temperatures exceeding limitations constitutes misuse under the
terms of Scotsman Manufacturer’s Limited Warranty, resulting in a loss of warranty coverage. Specifications and
design are subject to change without notice.
TM
775 Corporate Woods Parkway • Vernon Hills, IL 60061 • 1-800-SCOTSMAN • Fax: (847) 913-9844
Visit our website at: www.scotsman-ice.com • E-mail: customer.service@scotsman-ice.com
SB-ICS 10M 2-04
