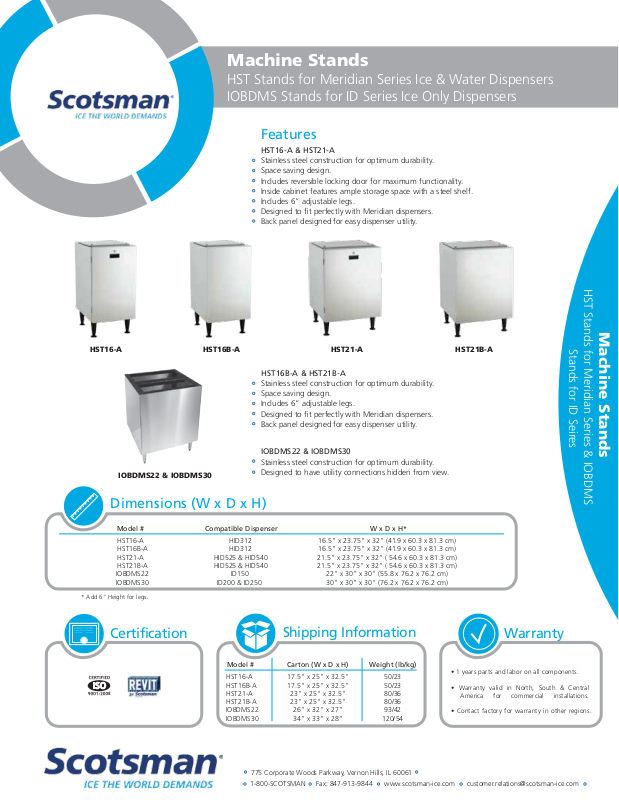

Scotsman HST16BA Specifications
Machine Stands
HST Stands for Meridian Series Ice & Water Dispensers
IOBDMS Stands for ID Series Ice Only Dispensers
Features
HST16-A & HST21-A
Stainless steel construction for optimum durability.
Space saving design.
Includes reversible locking door for maximum functionality.
Inside cabinet features ample storage space with a steel shelf.
Includes 6” adjustable legs.
Designed to fit perfectly with Meridian dispensers.
Back panel designed for easy dispenser utility.
HST21-AHST16-A HST21B-AHST16B-A
HST Stands for Meridian Series & IOBDMS
Machine Stands
Stands for ID Seires
IOBDMS22 & IOBDMS30
Dimensions (W x D x H)
Model #
HST16-A
HST16B-A
HST21-A
HST21B-A
IOBDMS22
IOBDMS30
* Add 6” Height for legs.
Certification
8
HST16B-A & HST21B-A
Stainless steel construction for optimum durability.
Space saving design.
Includes 6” adjustable legs.
Designed to fit perfectly with Meridian dispensers.
Back panel designed for easy dispenser utility.
IOBDMS22 & IOBDMS30
Stainless steel construction for optimum durability.
Designed to have utility connections hidden from view.
Compatible Dispenser
HID312
HID312
HID525 & HID540
HID525 & HID540
ID150
ID200 & ID250
16.5” x 23.75” x 32” (41.9 x 60.3 x 81.3 cm)
16.5” x 23.75” x 32” (41.9 x 60.3 x 81.3 cm)
21.5” x 23.75” x 32” ( 54.6 x 60.3 x 81.3 cm)
21.5” x 23.75” x 32” ( 54.6 x 60.3 x 81.3 cm)
22” x 30” x 30” (55.8 x 76.2 x 76.2 cm)
30” x 30” x 30” (76.2 x 76.2 x 76.2 cm)
Shipping Information
Model # Carton (W x D x H) Weight (lb/kg)
HST16-A
HST16B-A
HST21-A
HST21B-A
IOBDMS22
IOBDMS30
17.5” x 25” x 32.5”
17.5” x 25” x 32.5”
23” x 25” x 32.5”
23” x 25” x 32.5”
26” x 32” x 27”
34” x 33” x 28”
W x D x H*
50/23
50/23
80/36
80/36
93/42
120/54
Warranty
• 1 years parts and labor on all components.
• Warranty valid in North, South & Central
America for commercial installations.
• Contact factor y for warranty in other regions.
775 Corporate Woods Parkway, Vernon Hills, IL 60061
1-800-SCOTSMAN Fax: 847-913-9844 customer.relations@scotsman-ice.comwww.scotsman-ice.com
HST16
23.75
Machine Stands
HST Stands for Meridian Series Ice & Water Dispensers
IOBDMS Stands for ID Series Ice Only Dispensers
12.50
UTILITY
CHASE
2.00
UTILITY
CHASE
.29 HINGE
26.00
6.00
ADJUSTABLE
TO 7.00
Stands for ID Seires
HST21
Machine Stands
HST Stands for Meridian Series & IOBDMS
23.75
15.75 3.86
16.50
C
L
13.20
16.50
13.20
.38
HID MOUNTING
BRACKET
26.00
C
L
6.00
ADJUSTABLE
TO 7.00
FRONT: HST16-A FRONT: HST16B-A
17.50
UTILITY
CHASE
2.00
UTILITY
CHASE
.38
HID MOUNTING
BRACKET
21.50
.29 HINGE
26.00
6.00
ADJUSTABLE
TO 7.00
FRONT: HST21-A FRONT: HST21B-A
775 Corporate Woods Parkway, Vernon Hills, IL 60061
1-800-SCOTSMAN Fax: 847-913-9844 customer.relations@scotsman-ice.comwww.scotsman-ice.com
C
L
18.20
.38
HID MOUNTING
BRACKET
ADJUSTABLE
26.00
6.00
TO 7.00
15.75 3.86
21.50
C
L
18.20
.38
HID MOUNTING
BRACKET
SIS-SS-MS-HSTIOB 12-15© 2015 Scotsman Ice Systems.
