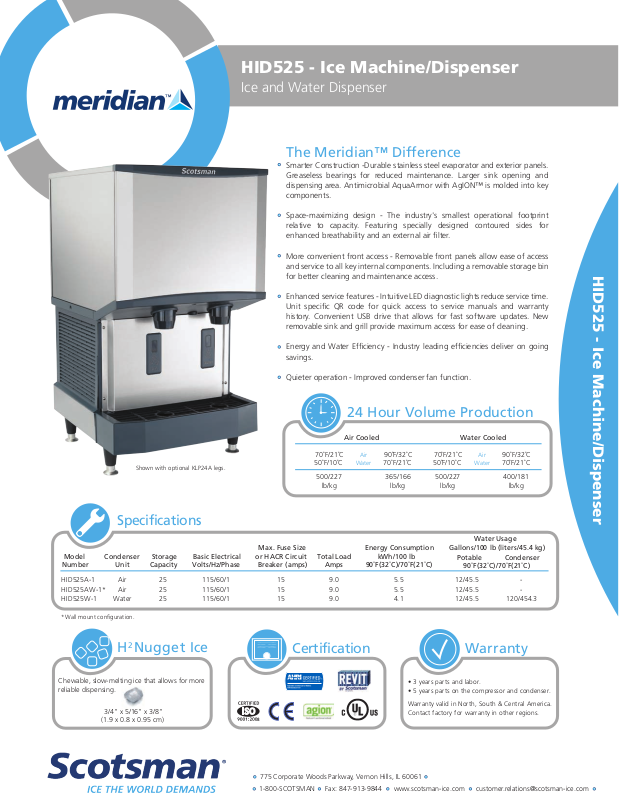

Scotsman HID525 Specification

HID525 - Ice Machine/Dispenser

™

Ice and Water Dispenser

The Meridian™ Difference

Smarter Construction -Durable stainless steel evaporator and exterior panels.
Greaseless bearings for reduced maintenance. Larger sink opening and
dispensing area. Antimicrobial AquaArmor with AgION™ is molded into key
components.

Space-maximizing design - The industry's smallest operational footprint
relative to capacity. Featuring specially designed contoured sides for
enhanced breathability and an external air filter.

More convenient front access - Removable front panels allow ease of access
and service to all key internal components. Including a removable storage bin
for better cleaning and maintenance access.

Enhanced service features - Intuitive LED diagnostic lights reduce service time.
Unit specific QR code for quick access to service manuals and warranty
history. Convenient USB drive that allows for fast software updates. New
removable sink and grill provide maximum access for ease of cleaning.

Energy and Water Efficiency - Industry leading efficiencies deliver on going
savings.

Quieter operation - Improved condenser fan function.

HID525 - Ice Machine/Dispenser

24 Hour Volume Production

Shown with optional KLP24A legs.

70˚F/21˚C

50˚F/10˚C

500/227

lb/kg

Air Cooled

Air

Water

90˚F/32˚C

70˚F/21˚C

365/166

lb/kg

70˚F/21˚C

50˚F/10˚C

500/227

lb/kg

Water Cooled

Air

Water

90˚F/32˚C

70˚F/21˚C

400/181

Specifications

Model

Number

HID525A-1
HID525AW-1* Air 25 9.0115/60/1 15 5.5 12/45.5 ­HID525W-1

*Wall mount configuration.

Condenser

Unit

Air

Water

H

Chewable, slow-melting ice that allows for more
reliable dispensing.

3/4” x 5/16” x 3/8”

(1.9 x 0.8 x 0.95 cm)

Storage

Capacity

25

25

2

Nugget Ice

Basic Electrical
Volts/Hz/Phase

115/60/1

115/60/1

Max. Fuse Size

or HACR Circuit

Breaker (amps)

15

15

8

Total Load

Amps

9.0

9.0

Certification

Energy Consumption

kWh/100 lb

90˚F(32˚C)/70˚F(21˚C)

5.5

4.1

• 3 years parts and labor.

• 5 years parts on the compressor and condenser.

Warranty valid in North, South & Central America.
Contact factory for warranty in other regions.

Water Usage

Gallons/100 lb (liters/45.4 kg)

Potable Condenser

90˚F(32˚C)/70˚F(21˚C)

12/45.5

12/45.5

120/454.3

Warranty

lb/kg

-

775 Corporate Woods Parkway, Vernon Hills, IL 60061

1-800-SCOTSMAN Fax: [phone] [e-mail]

HID525 - Ice Machine/Dispenser

Ice and Water Dispenser

Without Wall Mount: HID525A & HID525W

[ ]

54

21.25

AIR FLOW

REMOVABLE

AIR FILTER

ICE CHUTE

WATER CHUTE

[ ]

47.3

18.62

[ ]

54.2

[ ]

10.2

4.00

OPTION LEGS

ADJUSTABLE

21.36

FRONT VIEW

With Wall Mount: HID525AW

59.1

[ ]

23.25

WALL MOUNT

BRACKET

[ ]

54

21.25

AIR FLOW

Installation Note: Allow 6” space at left, back and right side for ventilation and utility connections.

[ ]

61.9

24.38

[ ]

88.6

34.88

[ ]

27.9

[ ]

11.00

[ ]

7.7

3.02

0.3
.12

[ ]

36.8

14.50

[ ]

59.7

23.50

RIGHT SIDE VIEW

10.2

[ ]

4.00

[ ]

5.1

2.01

UTILITY

CHASE

9.7

[ ]

3.80

UTILITY

CHASE

[ ]

3

1.17

POWER

CORD

[ ]

17.8

7.00

3/4" FPT

DRAIN

[ ]

12.5

4.94

5.1

[ ]

2.00

[ ]

18.9

7.45

BACK VIEW

All models include 7.5’ power cord with NEMA 5-15P plug

[ ]

61.9

24.38

[ ]

40.6

16.00

1/2 FPT

CONDENSER

DRAIN
(WC ONLY)

4.6

1.80

3/8 FPT

CONDENSER

WATER INLET

(WC ONLY)

3/8" FLARE

WATER INLET

AIR FLOW

REMOVABLE

AIR FILTER

ICE CHUTE

WATER CHUTE

[ ]

53.3

21.00

FRONT VIEW

AIR FLOW

HID525 - Ice Machine/Dispenser

All Models

Dimensions (W x D x H):

Unit:

HID525A-1:
HID525AW-1:
HID525W-1: 21.25” x 24.38” x 35”

Shipping Carton:

HID525A-1:
HID525AW-1:

21.25” x 24.38” x 35”

23.25” x 24.38” x 35”

24.25 x 27.13 x 41.5

24.25 x 27.13 x 41.5

HID525W-1: 24.25 x 27.13 x 41.5

Shipping Weight: HID525A-1: 208 lb / 95 kg

HID525AW-1: 213 lb / 97 kg
HID525W-1: 208 lb / 95 kg

BTUs per hour: HID525A-1: 6,800

HID525AW-1: 6,800

Refrigerant: R-404A

Model Number Description

KLP24A
HST21-A

Scotsman recommends all ice machines have water filtration. See Scotsman water filter specification sheet for details.

Air Temperatures
Water Temperatures

Potable Water Pressures
Electrical Voltage

[ ]

88.6

34.88

[ ]

14.95

38

[ ]

2.5

1.00

[ ]

3.02

OFFSET

FROM

WALL

7.7

[ ]

44

17.33

RIGHT SIDE VIEW

5.1

2.01

UTILITY

CHASE

Accessories

4” Adjustable legs, box of 4, plastic with metallic foot.
Machine stand for HID525 and HID540, with locking reversible door and shelf.
Machine stand for HID525 and HID540, basic version.HST21B-A

Operating Requirements

Minimum

50°F (10°C)
40°F (4.4°C)

20 PSIG (1.4 bar)

-10%

[ ]

0.8
.312

(6) WALL

MOUNT HOLES

[ ]

14

5.50

[ ]

14

5.50

[ ]

16.9

6.66

POWER

CORD

[ ]

9.7

3.80

UTILITY

CHASE

Maximum

100°F (38°C)
100°F (38°C)

80 PSIG (5.5 bar)
+10%

[ ]

17.9

7.05

3/4" FPT

DRAIN

BACK VIEW

[ ]

2.05

5.2

3/8" FLARE

775 Corporate Woods Parkway, Vernon Hills, IL 60061

1-800-SCOTSMAN Fax: [phone] [e-mail]

Specifications and design are subject to change without notice.

SIS-SS-MRD-HID525 03-15© 2015 Scotsman Ice Systems.
