INTRODUCING
MODULAR FLAKE & NUGGET
EASY TO SERVICE, CLEAN AND OPERATE. MAXIMUM RELIABILITY.
Modular Flake & Nugget
More Reliable Than Ever:
FS, NH, NS models now available
The new Modular Flake & Nugget Ice
Machines build upon the reliability of the
Prodigy Plus® family, with the introduction of
sealed, maintenance-free bearings. Operators
will now also have more flexibility when
NEW!
choosing between softer, Original Chewable
Nugget Ice and harder, H
2
Nugget Ice.
New Product Release Information
Replacement Cross Reference: Flake Ice
New Model Replaces:
FS0522A-1 F0522A-1
FS0522W-1 F0522W-1
FS0822A-1 F0822A-1
FS0822R-1 F0822R-1
FS0822W-1 F0822W-1
FS0822W-32 F0822W-32
FS1222A-3 F1222A-3
FS1222A-32 F1222A-32
New Model
(continued)
FS1222A-6 F1222A-6
FS1222L-1 F1222L-1
FS1222R-3 F1222R-3
FS1222R-32 F1222R-32
FS1222W-32 F1222W-32
FS1522A-32 F1522A-32
FS1522L-1 F1522L-1
FS1522R-32 NEW
Replaces:
(continued)
New Product Release Information
Replacement Cross Reference: Soft Nugget Ice
New Model Replaces:
NS0422A-1 N0422A-1
NS0422W-1 N0422W-1
NS0622A-1 N0622A-1
NS0622A-32 N0622A-32
NS0622A-6 N0622A-6
NS0622R-1 N0622R-1
NS0622W-1 N0622W-1
NS0922A-1 NEW
NS0922A-32 N0922A-32
NS0922A-6 N0922A-6
New Model
(continued)
NS0922L-1 N0922L-1
NS0922R-1 NEW
NS0922R-32 N0922R-32
NS0922W-3 NEW
NS0922W-32 N0922W-32
NS1322A-32 N1322A-32
NS1322L-1 N1322L-1
NS1322R-32 N1322R-32
NS1322W-3 N1322W-3
NS1322W-32 N1322W-32
*N1322A-6 has been discontinued
Replaces:
(continued)
New Product Release Information
Replacement Cross Reference: Hard Nugget Ice
New Model Replaces:
NH0422A-1 NEW
NH0422W-1 NEW
NH0622A-1 NEW
NH0622A-32 NEW
NH0622R-1 NEW
NH0622W-1 NEW
NH0922A-1 NEW
NH0922A-32 NEW
NH0922L-1 NEW
NH0922R-1 NEW
New Model
(continued)
NH0922R-32 NEW
NH0922W-32 NEW
NH1322A-32 NEW
NH1322L-1 NEW
NH1322R-32 NEW
NH1322W-3 NEW
NH1322W-32 NEW
Replaces:
(continued)
About The Ice: Nugget
Increased Profitability
• Consumer preferred
‒ Up to 80% of customers prefer with soft drinks
• Lower cost by ⅓ per 100 lb. of ice
‒ Uses 40% less water (vs. cube)
‒ Uses 15% less energy (vs. cube)
• Lower beverage costs
‒ 9% to 20% higher displacement, which results
in using less syrup/beverage
Scotsman’s Nugget Ice:
Soft
Easy to chew
Rapid cooling
Slow-melting
Absorbs the flavor of beverages
About The Ice: Nugget
Diverse Applications
Food Service
• Carbonated and Non-Carbonated
‒ Soda, Teas, and Juices
• Blended Drinks
‒ Smoothies, Margaritas, etc.
• Chilled
‒ Wine and Champagne
• Food Preparation
Presentation & Preservation
• Merchandizing & Display
‒ Longer lasting and upscale appeal
• Holding
‒ Temperature transition
• Hydration
‒ Maintain texture, color and weight
Healthcare & Therapeutic
• Swelling
‒ Moldable for ice packs
• Hydration
‒ Soft and easy to chew
• Physical Therapy
‒ Recovery, cold compresses and ice baths
About The Ice: Nugget
Two Types Available
• Softer - Original Chewable Nugget Ice
(NS Models)
‒ Smallest, softest and most chewable nugget ice
‒ Same Original Chewable Ice® that Scotsman
introduced in 1981
‒ Ideal for traditional ice bin applications
However, can also be dispensed
Ice Hardness Rating: 74%*
Nugget Dimensions: ⁷⁄₁₆” x ⁵⁄₁₆” x ³⁄₈”
• Harder - H2Nugget Ice
(NH Models)
‒ Slightly harder, slower melting nugget ice
‒ First introduced with HID Meridian™
Ice & Water Dispensers
‒ Ideal for dispensing applications
Can also be used with ice bin setup
Ice Hardness Rating: 85%*
Nugget Dimensions: ³⁄₄” x ⁵⁄₁₆” x ³⁄₈”
*Approximation, values may vary by model
About The Ice: Flake
Presentation & Preservation
Flake Ice is a Smart Choice for:
Blended cocktails
Salad bars
Produce, seafood, and meat displays
Therapeutic use in healthcare facilities
About The Ice: Comparison Chart
Flake Ice
[FS Models]
Ice Hardness* N/A 74% (Softer) 85% (Harder)
Ice Dimensions Compressed ⁷⁄₁₆” x ⁵⁄₁₆” x ³⁄₈” ³⁄₄” x ⁵⁄₁₆” x ³⁄₈”
Description Soft, moldable flake ice
First Introduced 1952 The Original Chewable Ice® (1981)
Ideal Configuration Traditional ice bin applications Traditional ice bin applications Dispensing applications
Alternate Configuration N/A
Seafood, meat, produce displays
Salad bars
Ice Applications
Blended drinks
Healthcare & therapeutic
Laboratories
Original Chewable Nugget Ice
[NS Models]
Smallest, softest and most
chewable nugget ice
Dispensing applications with
additional kits/adapters
Carbonated and non-carbonated beverages
Blended drinks
Food displays
Dispensing
Healthcare & therapeutic
H2Nugget Ice
[NH Models]
Slightly harder, slower melting
nugget ice
HID Meridian™ Ice & Water
Dispensers (2015)
Traditional ice bin applications for
those that may want slower melting
nugget ice
Sealed, Maintenance-Free
Bearings
*Approximation, values may vary by model
Yes Yes Yes
The Prodigy Plus® Difference
+ One-touch cleaning
reduces labor costs and
saves time
+ Front-located air filter for
more efficient operation
+ AutoAlert™ indicator
lights for better visibility
Optional Vari-Smart™ ice
level control allows operators
to customize ice levels
Sealed refrigeration system
minimizes outside airborne
contamination
+ Self-aligning front panel for
easy access to key components
+ Sealed, maintenance-free
bearings for reduced maintenance
and maximum reliability
Smart-Board™ advanced feature
module available for additional
diagnostic capabilities
+ Industry-exclusive QR code
instantly connects users to
service information
Antimicrobial protection guards
internal surfaces between cleanings
Inherently more water and energy
efficient than cube machines
Operational footprint among
the industry’s smallest
Flake & Nugget: Superior Reliability
Maintenance-Free Bearing
The Problem: Components used to create
compressed ice require maintenance for routine
checks, specifically with wearable parts like
bearings or bushings
Innovation: All FS/NS/NH models feature
proprietary, maintenance-free bearings,
fully sealed with a high-tech polymer
that lubricates and eliminates the
need for greasing
• Scotsman’s exclusive technology has
no wearable parts or grease, which
reduces preventative maintenance
and ensures long-lasting performance
Eliminates the use of industry
standard ball bearings/bushings,
which require time consuming
maintenance or replacement
Flake & Nugget: Superior Reliability
Heavy-Duty Stainless-Steel
Components
• Scotsman Nugget and Flake
modular units feature:
– An extremely reliable
stainless-steel evaporator
– Durable stainless-steel auger
Ensures maximum durability and
reliability for a long machine life
Ease of Use: Instant Visibility
AutoAlert™ Indicator Lights
• Innovative LED indicator lights
keep operators informed of unit’s
status
• Signals staff when it’s time to
descale, sanitize and more
• Relocated to the lower left corner
of the panel for better visibility
• Each of the 4 lights labeled with an
easy-to-identify icon
Instantly diagnose issues when
warning lights appear
Ease of Use: QR Code
Quick Response (QR) code
• Every Prodigy Plus® unit features a QR code
that connects customers to vital unit specific
information
• Helps reduce downtime and frequency of
service calls
• Convenient front panel location eliminates
need to remove unit’s front cover
• Optional bezel cover available to prevent
Parts lists, cleaning
instructions, manuals and
tampering or unauthorized access
• QR code leads to a warranty registration page,
auto-populated with the corresponding serial
number
warranty history are all
available
Ease of Use: QR Code
Quick Response (QR) code
• Operators and service technicians can use their smart phone to
scan the QR code to access instant warranty and technical
information specific to that model
• The product serial number will automatically populate the page
SCAN WITH YOUR SMART PHONE
Scanning Tip:
Some recent phone updates allow you to use your
phone’s built-in camera app to scan QR Code
Ease of Use: Quick Internal Access
Self-Aligning Front Panel
• Easy maintenance with Prodigy Plus®
begins with the redesigned front panel
• More durable and robust, it features
captured screws located within reach
along the bottom of the panel
• Panel provides fast access to key
components, including the diagnostics
control board
Ease of Use: Intuitive Controls
Auto-Alert™ Control Board
• Instant and intuitive notifications
• Power, Status, No Water, Time to Clean
• Easy to see across the room
• Minimize downtime, reduce service calls
• LED code for easy diagnosis
• Self Test mode for easy diagnosis
Ease of Use: Intuitive Controls
Vari-Smart™ Ice Level Control
• Optional ultrasonic ice level control
sensor (KVS) allows operators to
manually adjust ice levels
• Keeps just the right amount of
freshly made ice in the bin
• Helps save water and energy
Also provides faster ice turnover or
• Connects to existing controller
• Ideal for dispensing applications,
seasonal changes in ice needs, or if
you’re planning to sanitize the bin
for operating your machine in
lower-cost energy periods
Ease of Use: Intuitive Controls
Smart-Board™ Advanced Feature Module
• Optional advanced feature provides NAFEM
data protocol on screen for early alert and fast
diagnosis of operating issues
• Allows for programming bin levels, checking
cleaning history and runtime, and more
• Technicians can download data directly through
the USB port, or use the serial number to check
performance via a dedicated website
• Scotsman can retrofit existing field units with
this exclusive technology
Flake & Nugget: Enhanced Sanitation
Built-In Antimicrobial Protection
• Prodigy Plus® units are always designed
to ensure customer safety, especially
between cleanings
• Sealed refrigeration system minimizes
outside airborne contamination
• Scotsman products feature AquaArmor
with AgION™, a silver-based
antimicrobial compound molded directly
into key components
AgION™
Antimicrobial
Moisture
Bacteria
Silver ion
release
• Helps inhibit the growth of undesirable
microbes, bacteria, mold and algae
Flake & Nugget: Front Breathability
Smaller Operational Footprint
• Air cooled units are front breathing which require
minimal side clearance for more flexible placement
• Allows machine to be placed directly beside walls and
other equipment, maximizing valuable kitchen space
Many Prodigy Plus® models feature the smallest
operational footprints in the industry
Front-Located Air Filter
• Ensures proper clearance and breathability for
maximum energy efficiency
• Easily rinsed and reused, and dishwasher safe
• Better visibility keeps regular cleaning top-of-mind for
operators
Flake & Nugget: Superior Reliability
Standing Behind Our Quality
Scotsman provides a 3-year parts and labor warranty
on all components, and 5-year parts warranty on the
compressor
• 3-year parts and labor warranty on all
components
• 5-year parts warranty on compressor
• Warranty valid in North, South &
Central America for commercial
installations
• Residential applications:
– 1-year parts and labor

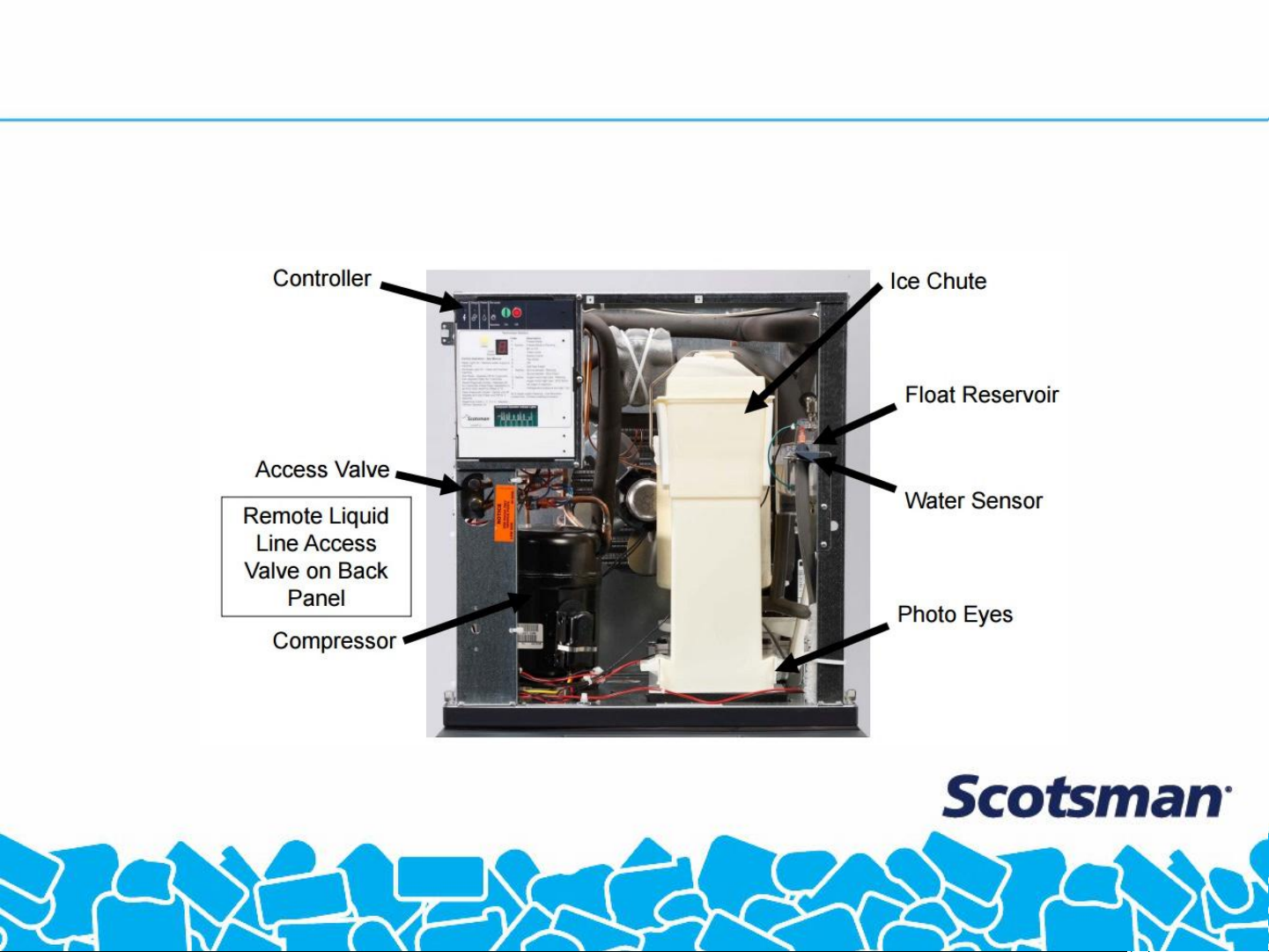

Flake & Nugget: Machine Overview
Key Components
It’s the Complete Package
It’s the Complete Package
It’s All About Customer Satisfaction
Scotsman’s cube, flake and nugget ice machines are designed
with one goal in mind: Total customer satisfaction
Loading...
