Scotsman ERC680-32A Installation Manual
Prodigy Eclipseä 1200, 1400, 1800, 2000
Introduction:
This manual covers the assembly, installation, start
up, operation and maintenance of the 1200, 1400,
1800 and 2000 remote low side cuber systems.
Table of Contents
Configuration·················· Page 2
Technical Specifications ············ Page 3
Model Number Locations ··········· Page 4
Cabinet Drawings, Ice Making System ···· Page 5
Cabinet Drawings, Compressor Package and
Condensers ··················Page 6
Proper Combinations: ············· Page 7
Create the System ··············· Page 8
System Examples ··············· Page 9
System Examples ··············· Page 10
Place Remote System ············· Page 11
System Location ················ Page 12
Route Tubing·················· Page 13
Ice Making Section··············· Page 14
Compressor Package ············· Page 15
Condensing Section Assembly ········ Page 16
Condensing Section Assembly ········ Page 17
Ice making section: ·············· Page 18
Water and Drain ················ Page 19
Water and Drain ················ Page 20
Ice Making Section Set Up ·········· Page 21
Coupling Connections:············· Page 22
Condensing Unit Connections ········· Page 23
Initial Start Up ·················Page 26
Ice Bridge and Water Purge Adjustments · · · Page 27
Controller Information ············· Page 28
Use and Operation··············· Page 29
Control Switches ················Page 30
Options····················· Page 31
System Operation: ··············· Page 32
Refrigeration Details: ············· Page 33
Technicians Only: Freeze Cycle Sequence of Operation
Page 34
Technicians Only: Harvest Cycle Sequence of
Operation ··················· Page 35
Control Safeties
Controller Operation ·············· Page 37
Cleaning, Sanitation and Maintenance ···· Page 38
Service Diagnosis ··············· Page 40
Service Diagnosis ··············· Page 41
Service Diagnosis ··············· Page 42
Operational Characteristics 1200 lb system · · Page 43
Operational Characteristics 1400 lb system · · Page 44
Operational Characteristics 1800 lb system · · Page 45
Operational Characteristics 2000 lb system · · Page 46
Refrigeration System Service ········· Page 47
················ Page 36
Final Placement ················ Page 24
Controller Operation ·············· Page 25
Keep this manual for future reference.
August 2008
Note this symbol when it appears. It
indicates a potential hazard.
Page 1
Prodigy Eclipseä 1200, 1400, 1800, 2000
Configuration
A remote low side cuber system includes several
sub systems: an ice making section, a remote
compressor package, and a remote air cooled
condenser. Additionally, there are several models
of each sub-system and this manual covers all of
them.
The ice making sections are designed for use
indoors in a controlled environment. The remote
compressor packages and condensers are
designed to operate outdoors. Each sub-system
has limits for power, water and temperature.
Operational Limitations:
Minimum Maximum
o
Air Temp (IMS) 50
Air Temp (CU) -20
Water Temp 40
Water Pressure 20 psi 80 psi
Voltage (IMS) 104 126
Voltage (CU) 198 253
F 100oF.
o
F. 120oF.
o
F. 100oF.
IMS = Ice Making Section, CU= Condensing Unit
System Information
Do Not operate the machine in conditions beyond
these limitations. Doing so will void the warranty.
Scotsman ice systems are designed and
manufactured with the highest regard for safety
and performance. They meet or exceed the
standards of UL and NSF.
Scotsman assumes no liability of responsibility of
any kind for products manufactured by Scotsman
that have been altered in any way, including the
use of any part and/or other components not
specifically approved by Scotsman.
Scotsman reserves the right to make design
changes and/or improvements at any time.
Specifications and design are subject to change
without notice.
Warranty
Refer to the warranty coverage in effect when the
equipment was sold. Warranty statements are
included with each product.
Systems:
Each sub-system is a separate entity that carries
its own model and serial number. They must be
combined to create a remote cuber low side
system.
Prodigy
Eclipse
System Size
1200 C1200CP-32A 208-230/60/1 ERC1086-32A 208-230/60/1 EH330SL-1A or
1200 C1200CP-3A 208-230/60/3
1400 C1410CP-32A 208-230/60/1
1400 C1410CP-3A 208-230/60/3
1800 C1800CP-32A 208-230/60/1 ERC2086-32A 208-230/60/1
1800 C1800CP-3A 208-230/60/3
2000 C2000CP-32A 208-230/60/1
2000 C2000CP-3A 208-230/60/3
Compressor Package Condenser
Model Electrical Model Electrical Model Electrical
Condensing Unit (CU) Ice Making Section (IMS)
EH330ML-1A
ERC1086 -32A 208-230/60/1
EH430SL-1A
or
EH430ML-1A
Notes: Voltage Codes are at the
end of the model number. Codes
read Voltage/Hertz/Phase. Those
related to these products include:
-1 = 115/60/1
-3 = 208-230/60/3
-32 = 208-230/60/1
Pre-charged tubing kits are required to interconnect the IMS to the
CP.
·
20 foot: 3RTE20-EH, 35 foot: 3RTE35-EH,
·
50 foot: 3RTE50-EH, 75 foot: 3RTE75-EH
Interconnecting 24 volt control wire ships with the CP unit.
Two circuit condenser ER2C1316-32 may be used with C1410CP.
115/60/1
115/60/1
August 2008
Page 2
Prodigy Eclipseä 1200, 1400, 1800, 2000
Technical Specifications
Ice Making Section (IMS)
Model Voltage Cube Size Minimum Circuit
Ampacity
EH330SL-1A 115/60/1 Small 3 15 30”w x 24”d x 23”h
EH330ML-1A 115/60/1 Medium 3 15 30”w x 24”d x 23”h
EH430SL-1A 115/60/1 Small 3 15 30”w x 24”d x 29”h 160
EH430ML-1A 115/60/1 Medium 3 15 30”w x 24”d x 29”h 160
Max Fuse Size Cabinet Size Weight (lb)
Compressor Package (CP)
Model Voltage Contains
Headmaster
?
C1200CP-32A 208-230/60/1 Yes 17.9 30 17 lb 29 ¾”wx18”dx34½”h 180
C1200CP-3A 208-230/60/3 Yes 14.2 20 17 lb same 180
C1410CP-32A 208-230/60/1 Yes 16.45 30 17 lb same 180
C1410CP-3A 208-230/60/3 Yes 12.58 20 17 lb same 180
C1800CP-32A 208-230/60/1 Yes 31.4 50 18 lb same 204
C1800CP-3A 208-230/60/3 Yes 19.0 30 18 lb same 204
C2000CP-32A 208-230/60/1 Yes 30.88 50 18 lb same 215
Minimum
Circuit
Ampacity
Max
Fuse
Size
Refrigerant
Charge
(R-404A)*
Cabinet Size Weight
(lb)
C2000CP-3A 208-230/60/3 Yes 21.0 30 18 lb same 215
* Includes entire system charge.
Condenser
Model Voltage Contains
Headmaster?
ERC1086-32A 208-230/60/1 No 1 1.25 15 29 ¾”w x 28 5/8”d x 38 ½”h 95
ERC2086-32A 208-230/60/1 No 1 1.25 15 29 ½” x 37 ¾”dx38½”h 95
* * ERC condenser fan motor is powered from CP
Number
of
Circuits
Minimum
Circuit
Ampacity**
·
L = Remote Low Side
Max
Fuse
Size**
Cabinet Size, with legs Weight
(lb)
unit and the ERC’s ampacity is included in CP unit
·
numbers.
-1=Electrical code. -1=115 volts. -32=208-230
single phase. -3=208-230 three phase. -6=230
Model Number Description
Example:
·
EH330SL-1A
50 Hz
·
A=Series revision code. A=first series
Note: In some areas of this manual model
·
EH= Eclipse head
·
3= Relative Size of Prodigy Eclipse head
·
30= nominal width of cabinet.
·
S= Cube size. S=small or half dice cube.
numbers may include only the first five characters
of the model number, meaning that the cube size,
condenser type and voltage differences are not
critical to the information listed there.
M=medium or full dice cube
August 2008
Page 3
Prodigy Eclipseä 1200, 1400, 1800, 2000
Model Number Locations
Ice Making Section
The dataplate on the back of the ice machine
contains the model number, serial number and
electrical data.
A second plate, located behind the front panel at
the lower front, also lists the model and serial
numbers.
Compressor Package
The dataplate on the right side of the
compressor package contains the model
number, serial number, electrical data and
system refrigerant charge.
A second plate, located behind the front
panel in front of the compressor, also lists
the model number, serial number and
refrigerant charge.
Condenser
The dataplate lists the condenser’s
electrical information plus the model and
serial numbers.
On the condenser it is located on the side
opposite the refrigeration connections.
Dataplate
location for
ERC1086
Dataplate
location for
CP Unit
Dataplate
location for
Ice Making
Section
August 2008
Page 4
Prodigy Eclipseä 1200, 1400, 1800, 2000
30.00"
76.2 cm
24.00"
61.0 cm
ICE DROP OPENING
9.00"
22.9 cm
9.63"
24.5 cm
MINIMUM
BIN T OP OPENING
15.75" (40.0cm)
2.00"
5.1 cm
18.30"
46.5 cm
PLAN VIEW
Cabinet Drawings, Ice Making System
Note: If dispenser is against the wall, drop zone
will be located 1.5" further forward than is shown
here.
August 2008
Page 5
Prodigy Eclipseä 1200, 1400, 1800, 2000
BACK VIEW
FRONT VIEW
RIGHT SIDE VIEW
1/2" COOL VAPOR LINE
0.88 ELECTRICAL INLET
3/4" SUCTION LINE
INTERFACE HARNESS
ACCESS HOLE
3/8" CONDENSER LIQUID LINE (OUT)
1/2" CONDENSER DISCHARGE LINE (IN)
CONDENSER FAN WIRE ROUTING
ERC680 or ERC1086:
This Side Attaches to
C600CP, C800CP
or C1410CP
ER2C6810:
Both Sides Attach to
C600CP, C800CP
or C1410CP
27.90
28.53
35.72
2.75
Liquid Line
Discharge
Line
29.50
38.47
33.19
6.68
22.51
29.19
ER2C6810 - 36.52
9/16” Mounting Hole
9/16” Mounting Hole
23.5”
1.5”
1.5”
3/8" LIQUID LINE
15”
1.5”
1.5”
Cabinet Drawings, Compressor Package and Condensers
August 2008
Page 6
Prodigy Eclipseä 1200, 1400, 1800, 2000
Proper Combinations:
The three sub systems are designed to be
connected together in certain combinations to
meet the user’s needs:
Eclipse 1200 System
EH330, C1200CP, ERC1086
·
Eclipse 1400 System:
EH430, C1410CP, ERC1086
·
Eclipse 1800 System:
EH430, C1800CP, ERC2086
·
Eclipse 2000 System:
EH430, C2000CP, ERC2086
·
ERC coils may be substituted for by an approved
UL listed central condenser coil & fan (coil must be
without headmaster - headmaster is part of CP).
ERC1086 condenser coil internal volume target is
165 cubic inches, BHTU target is 42,000 BTUH.
ERC2086 condenser coil internal volume target is
209 cubic inches, BTUH target is 48,000 BTUH
Note: The ice making section cannot be stacked
vertically.
Compressor Package (includes interconnecting
·
control system wire)
Remote condenser or approved rack coil
·
w/tubing kit
20’, 35’, 50’ or 75’ triple line set (liquid, vapor
·
and suction)
Bin or dispenser adapter
·
Special Considerations
The ice making section’s footprint is 30” wide by
24” deep. The refrigeration connections can be
made out the top panel or out the back. The
electrical power cord and the water inlet line can
also be routed through either of those areas. The
drain may be routed out the back or to the left side.
Water
Pure water does not exist. All water supplies
contain some amounts of impurities, although
potable water is, by definition, fit for human
consumption. Because the contents of the water to
an ice machine directly impact its performance,
consideration should be given to improving the
water’s quality.
Accessories such as bin adapters and tubing kits
are required to complete the installation.
Dispenser Adapter Kits:
·
Scotsman ID200 or ID250: KBT44
Bin Adapter Kits:
·
B842: KBT29
·
B948: KBT22
Tubing Kits:
·
20 foot: 3RTE20-EH
·
35 foot: 3RTE35-EH
·
50 foot: 3RTE50-EH
·
75 foot: 3RTE75-EH
·
Suction Line Trap: KSLT075
·
Interconnecting Tubing to Approved Rack
Condenser Coil: RTE10
·
Line end kit: KTE6-EH
There are two ways water can contain impurities:
in suspension or in solution. Suspended solids can
be filtered out of the water. In solution or dissolved
solids must be diluted or treated. Water filters are
recommended to remove the suspended solids.
Some filters or filter systems have treatment
chemicals in them for treating the suspended
solids.
This ice machine has an adjustment for the
amount of water rinsed or purged. Water use
adjustments are customer convenience
adjustments; they are not factory defects and are
not covered by warranty.
Items required for installation:
·
Ice making section
August 2008
Page 7
Prodigy Eclipseä 1200, 1400, 1800, 2000
Create the System
Plan the installation. The system consists of four
parts: the ice making section, the compressor
package, the interconnecting tubing and the
remote condenser. Of these, the biggest variable is
the interconnecting tubing.
Tubing: The tubing consists of three pre-charged,
insulated and sealed soft copper tubes. They each
contain a small holding charge of R-404A. One
tube, the liquid line, is 3/8” OD. The vapor tube is
½” OD and the suction tube is ¾” OD. A site
inspection will determine what length of tubing is
required for the installation.
Excess tubing must be either shortened at the job
site (recovering the holding charge, purging with
nitrogen when brazing and evacuating to 50
microns) or coiled up inside the building.
Installations with greater than 20 feet of vertical lift
between ice machine and the compressor require
a suction line trap. The suction line requires careful
handling and large radius bends to prevent kinking.
Roof mounting: To make installation easier the
compressor and condenser are designed to be
assembled together on the roof. Some
installations will require the use of a hoist to lift the
components to the roof.
Interconnecting wires: An interconnecting wire
harness is included with the CP unit. One end
plugs into the ice making section and the other into
the compressor package. The system will NOT
operate without this harness.
Exposed tubing: Minimize the amount of tubing
exposed outdoors.
Confirm Component Availability:
EH330
C1200CP with ERC1086
·
EH430
C1410CP with ERC1086 or
·
C1800CP with ERC2086 or
·
C2000CP with ERC2086
·
ERC required unless connecting to an approved
·
condenser coil.
Note: Only these condensers may be used. They
do NOT contain a headmaster valve. That valve is
in the Compressor Package. Do NOT use any
other Scotsman condenser. Do NOT use these
condensers on any other Scotsman remote
product.
Pad mounting: The compressor and condenser
may be located below the ice making section, up to
a limit of 15 feet.
Distance from unit: Limited to the length of the
available pre-charged tubing.
Elevation: CP unit limited to 35 feet above the ice
making section.
Compressor package: Electrical power must be
supplied to the compressor package. The remote
condenser fan motor takes its power from the
compressor package.
Ice making section location and attachment:
The 115/60 Hz ice making section is cord
connected and requires an outlet within 6 feet of
the installation.
·
Interconnecting tubing kit
Note: Check tubing integrity before assembly by
attaching a refrigeration compound gauge onto
one of each tube’s schrader valves. If there is
pressure, the tube is OK, if not it should be
checked for damage and leaks.
·
Bin or dispenser adapter
August 2008
Page 8
System Examples
Prodigy Eclipseä 1200, 1400, 1800, 2000
The Eclipse system can be installed on a bin or
dispenser. The CP unit can be installed on either a
single circuit condenser or onto a coil in a separate
rack condenser.
Separate coils must be:
Scotsman approved
·
The correct size and capacity
·
New or not have been part of a system that
·
used mineral oil.
System on Ice Storage Bin
System on Ice Dispenser
August 2008
Page 9
Prodigy Eclipseä 1200, 1400, 1800, 2000
System Examples
A variation of the typical system set up is one that
uses a non-Scotsman condenser. In that case the
CP unit is NOT bolted to the condenser and a
RTE10 line set is used to connect the refrigeration
system to the condenser’s coil.
IMS on Bin, CP Unit Connected to Approved Central
Condenser Coil
August 2008
Page 10
Prodigy Eclipseä 1200, 1400, 1800, 2000
Place Remote System
Roof preparation
Most installations of this system will place the
compressor package and condenser on the roof of
a building. The roof must be physically stout
enough to accept the load of the equipment and
the roofing material must be prepared to prevent
water leaks.
Follow local codes for the placement and
attachment of the equipment.
Location
The air cooled condensing unit assembly requires
unobstructed air flow to operate efficiently. A four
foot space between each intake side and a wall or
other cabinet is recommended. Provide at least 2
feet of space above the air cooled condenser for
proper air flow.
Do not place where the air cooled condenser will
pick up hot discharged air from an air conditioner
or other refrigeration system condensing unit.
Space must also be reserved for service on the
compressor package.
Roof Piercing:
The roof (or wall) must have a passage large
enough for the three pre-charged, pre-bent tubes
and the control wire to pass through. The minimum
recommended size is 4” ID. In most areas the
power supply may also pass through the same
passage. If there isn’t a passage one must be
created. In most cases this must be done by a
licensed and bonded roofer in order to maintain the
roof’s integrity.
Suggestions:
Hoist the compressor package and condenser to
the roof in separate loads.
Note: In most cases a mechanical lift, boom truck
or crane will be required to hoist the condensing
unit components.
Assemble the compressor package to the
condenser and mount both to either roof rails or
pressure treated4x4s.
Orient the assembled unit so that the unit’s mounts
are parallel to the pitch of the roof to allow water to
drain freely.
Do NOT place the unit directly onto roof rock.
August 2008
Page 11
Prodigy Eclipseä 1200, 1400, 1800, 2000
22.87"
17.15"
40.35"
System Location
Limitations:
Distance: Limited to the maximum length of a
single pre-charged tubing kit, 75 feet.
Condensing Unit Elevation over Ice Making
Section: 35 feet.
Note: Elevations greater
than 20 feet require
installation of a suction line
trap at the 20 foot mark.
Ice Making Section
Elevation over Condensing
Unit: 15 feet.
S-Trap
Limit of Line Set
Max Length -
Condensing
Unit Located
Above Ice
Machine
Line Routing:
Allowed: One rise after a drop.
·
Allowed: One drop after a rise.
·
Not Allowed: More than one rise after a drop
·
Not Allowed: More than one drop after a rise.
·
Max Rise:
35 Feet
Max Drop:
15 Feet
Condensing
Unit Located
Below Ice
Machine
Condensing Unit Distance Schematic
August 2008
Page 12
Route Tubing
Prodigy Eclipseä 1200, 1400, 1800, 2000
Scotsman’s pre-charged tubing kits are pre-bent to
fit the connection path at the ice making section.
If the tubing is to be routed out the back, use
·
the straight ends.
Suction
Vapor
Liquid
If the tubing is to be routed out the back and
·
then up, use the ends with the single 90
degree bends.
Suction
Select the correct end to send to the roof.
The method or technique used to route the tube is
left to the installer. However, in many cases it is
easier to position the tubing inside the building
first, then feed the outside portion through the
tubing passage (pitch pot). Installation of tubing will
be easier if the suction line is run first, followed by
the liquid and vapor lines. Use of two persons is
suggested to prevent kinking of the tubing, long
runs may require three people.
Allow enough tubing to make large radius bends
·
from the roof passage to the compressor unit.
Do NOT leave excess tubing on the roof.
If a trap must be installed, the suction line
·
tubing must be cut apart to install it.
Identify the ice machine end of the tubing. Each
·
tube has one end formed to route through the
hole in the unit’s top.
Tape the ends of the vapor and liquid line tubes
·
together along with the interconnecting wire.
Extend the end of the interconnecting wire
about 2 feet beyond the end of the precharged
tubes and then tape it back onto the tubes.
·
Route the three tubes and the wire from the
roof, or other entrance, to the ice making
section’s planned position. Avoid uncoiling and
recoiling the tubing, as that can lead to kinks.
Vapor
Liquid
Note: Units mounted against the wall require
refrigerant connections out the top, water supply in
from the top, and power supply routed through the
top.
·
Support long runs of tubing with hangers.
·
Repair any tears in the tubing insulation,
especially those on the suction line that are
inside the building.
Shortening Tubing
The precharged tubing kits are available in a
variety of lengths, they should only be shortened if
absolutely necessary.
To Shorten Tubes:
1. Recover the 3 ounce R-404A holding charge
from each tube.
2. Cut out the required length of tubing, do not cut
the tubing right at the quick connects.
3. Attach nitrogen bottle to one quick connect and
a hose with a depressor to the other end, purge
nitrogen through each tube while brazing.
4. Remove nitrogen, evacuate to 200 microns.
Note: If tubes are connected to the IMS, evacuate
the vapor & suction lines to get the entire system.
August 2008
Page 13
Prodigy Eclipseä 1200, 1400, 1800, 2000
Ice Making Section
Major Components:
TXVs - one feeding each evaporator
Vapor Valves - one for each evaporator
Water Pump - one for both evaporators
Harvest Assist Solenoids - one for each
evaporator
Water Level Sensor - signals reservoir water level
to the controller
Controller - operates both the ice machine section
and the compressor unit.
Drain or Dump Valve - opens to allow pump to
drain the reservoir
Water Inlet Valve - solenoid valve that opens to fill
the reservoir
Liquid, Vapor and Suction Connections - where
the pre-charged tubing kits connect to.
August 2008
Page 14
Prodigy Eclipseä 1200, 1400, 1800, 2000
Compressor Package
Compressor packages are similar in layout, they
only differ in compressor and charge.
Major Components:
CPR Valve - limits refrigeration pressures
inside the dome of the compressor.
Condenser By Pass Valve - opens during
harvest to allow discharge gas to flow to the
vapor line.
Headmaster - maintains a minimum
discharge pressure during freeze
Liquid Inlet Valve - Normally Open, closes
during harvest.
Receiver - stores liquid refrigerant for
freeze and provides vapor for harvest
Suction Access Valve - provides a place to
attach a refrigeration manifold for diagnostics
and recovery.
Condenser By
Pass Valve
24 volt comm line
Liquid from
Power
Routing Hole
Vapor Line
Connection
Routing Hole
Suction Line
Connection
Liquid Line
Connection

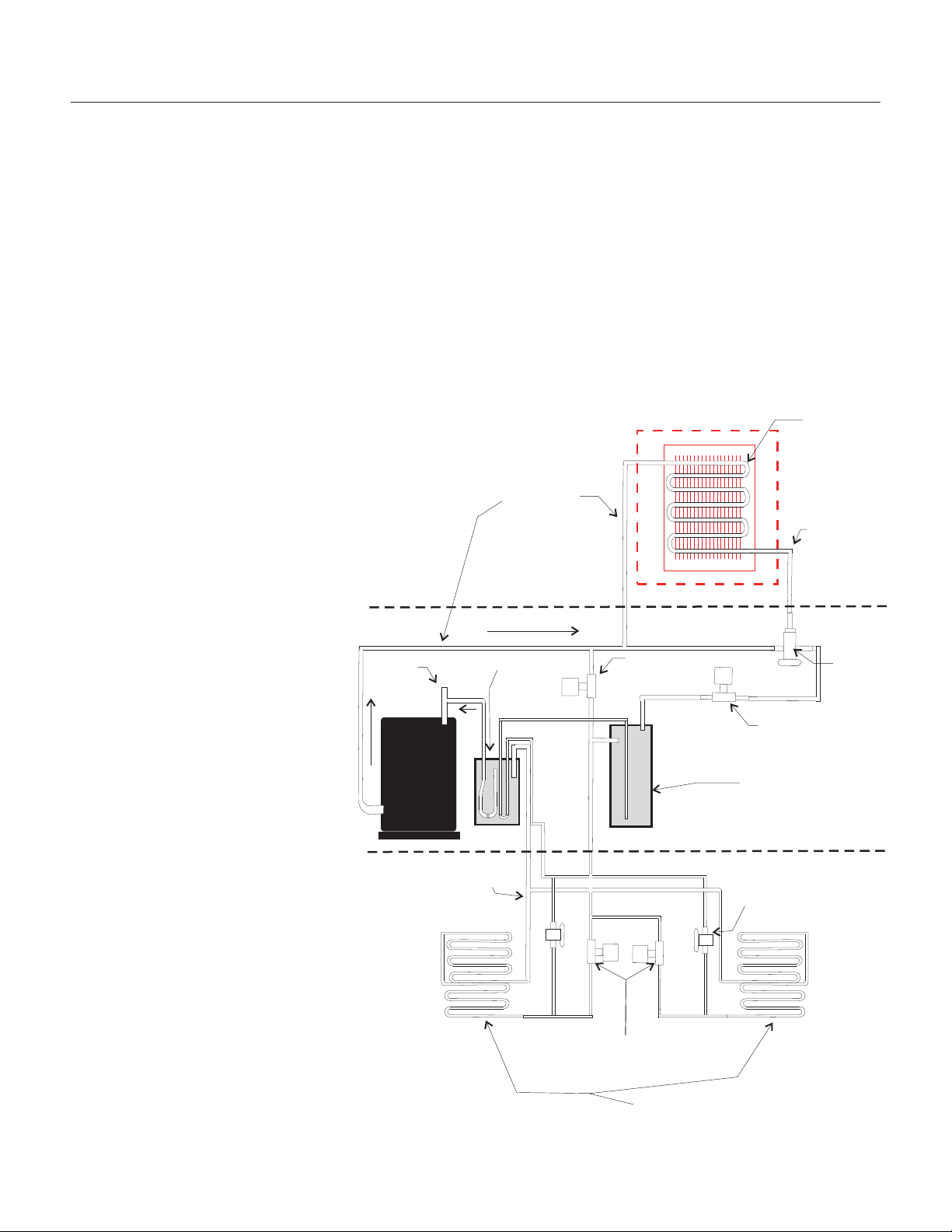

CP Unit Refrigeration Connection ID
Cond.
Discharge to
Cond.
Condenser
Wire Routing
Hole
Headmaster
Suction
Access
Valve
CPR Valve
Pressure
Cut Out
Liquid
Access
Valve
Liquid Inlet
Valve
Receiver
Hi
CP Component Location
August 2008
Page 15
Loading...
