Prodigy Eclipse ECC, EH330 and EH430 C or D Service Parts
This part list contains the service parts for the
Eclipse 1200, 1400, and 1800 systems. D series
models began early 2015
The models that are covered include:
EH330 C & D
EH430 C & D
ECC1200
ECC1400
ECC1800
Contents
EH330 C Cabinet....................................................................................................................................... 2
EH430 C Cabinet....................................................................................................................................... 3
EH330 D Cabinet....................................................................................................................................... 4
EH430 D Cabinet....................................................................................................................................... 5
EH330 EH430 C or D Interior Parts............................................................................................................ 6
EH330 and EH430 C or D Refrigeration..................................................................................................... 7
Head voltage is independent of the condensing unit
voltage.
Voltage codes:
-1 = 115/60/1
-3 = 208-230/60/3
-6 = 230/50/1
-32 = 208-230/60/1
EH330 C or D Evaporator Compartment .................................................................................................... 8
EH430 C or D Evaporator Compartment .................................................................................................... 9
EH330 or EH430 C or D Electrical ............................................................................................................. 10
ECC Cabinet and Fan ................................................................................................................................ 11
ECC Refrigeration Components ................................................................................................................. 12
ECC Compressors...................................................................................................................................... 13

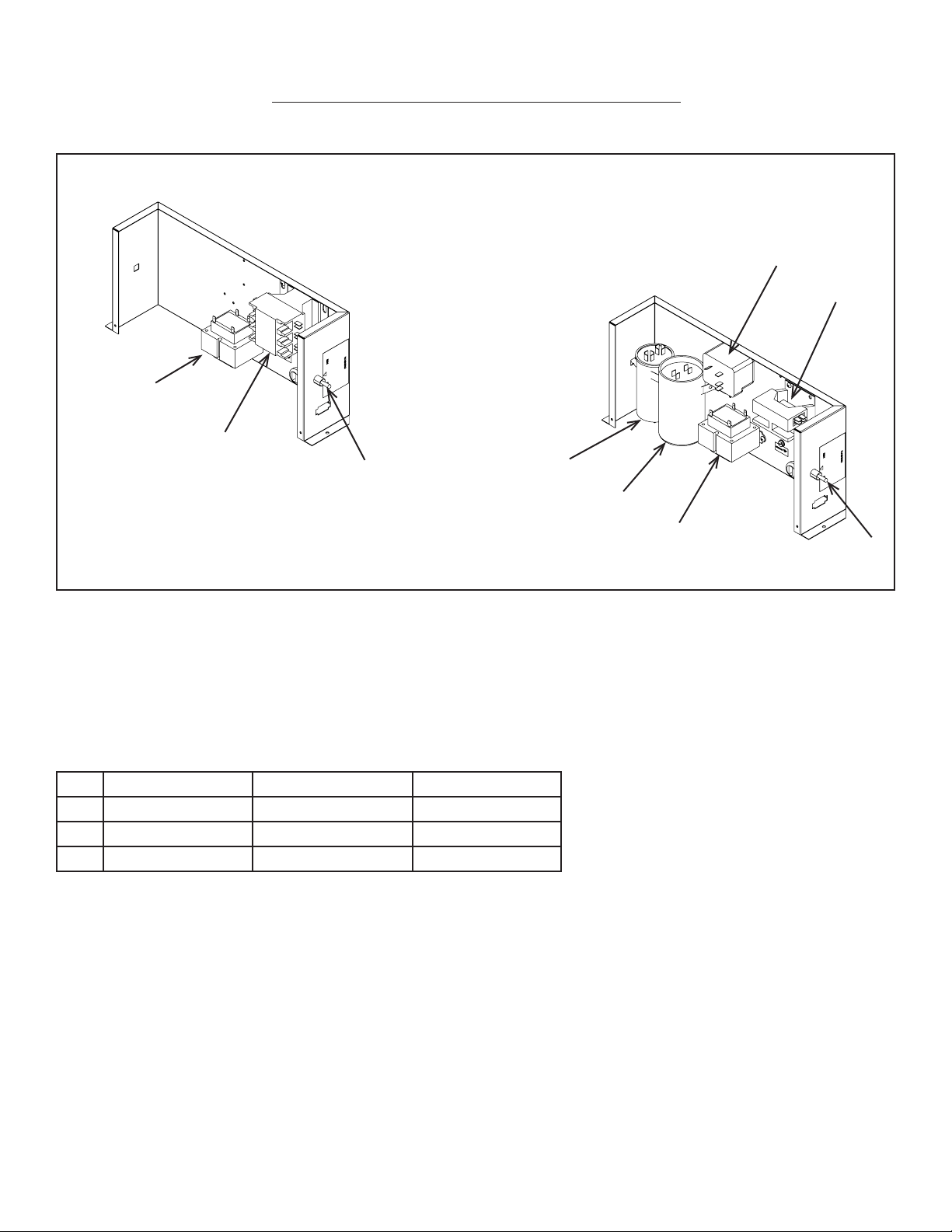

ECC1200, ECC1410 and ECC1800 Control Box ....................................................................................... 14
EH330 C or EH430 C Schematic Diagram ................................................................................................. 15
EH330 C or EH430 C Wiring DIagram ....................................................................................................... 16
EH330 D or EH430 D Schematic Diagram ................................................................................................ 17
EH330 D or EH430 D Wiring DIagram ....................................................................................................... 18
ECC1200 and ECC1410 Single Phase Wiring Diagram ............................................................................ 19
ECC1200 and ECC1410 Single Phase Schematic Diagram ...................................................................... 20
ECC1200, ECC1410 and ECC1800 Three Phase Wiring Diagram ........................................................... 21
ECC1200, ECC1410 and ECC1800 Three Phase Schematic Diagram ..................................................... 22
May 2015
Page 1
Prodigy Eclipse ECC, EH330 and EH430 C or D Service Parts
EH330 C Cabinet
1b
11
1
13
1a
14
10
8
3
15
8a
6a
2a
2
9
12
5
7
6
14
Item Part
Number Number Description
1 A39579-022 Top panel
2 02-4504-01 Evaporator cover
2a 03-0727-05 Screw
3 03-3804-01 Screw receptacle
4 A39578-022 Front panel assembly,
includes trim strip and labels.
4a 02-4216-01 Top gusset
5 03-1735-03 Screw, front panel
6 02-4284-01 Bezel, full window
6a 02-4284-02 Bezel, partial window**
4
7 02-4214-02 Trim strip
8 A39581-021 Right side panel assy
8a 02-4215-01 Receptacle
9 A39571-001 Panel clip
10 03-1405-15 Screw
11 A30911-015 Machine straps
12 16-0355-00 Inletwatertting,are**
13 A39580-022 Left side panel
14 03-1404-12 Screw
15 13-0943-01 Gasket tape
** Optional
May 2015
Page 2
Prodigy Eclipse ECC, EH330 and EH430 C or D Service Parts
EH430 C Cabinet
1b
13
1a
14
1
8
3
9
15
2
8a
6a
2a
11
10
12
5
7
6
14
Item Part
Number Number Description
1 A39579-022 Top panel, w/trim strips
2 02-4504-01 Evaporator cover
2a 03-0727-05 Screw
3 03-3804-01 Screw receptacle
4 A39578-023 Front panel assembly,
includes trim strip and labels.
4a 02-4216-01 Top gusset
5 03-1735-03 Screw, front panel
6 02-4284-01 Bezel, full window
6a 02-4284-02 Bezel, partial window*
4
7 02-4214-02 Trim strip
8 A39581-022 Right side panel assy
8a 02-4215-01 Receptacle
9 A39571-001 Panel clip
10 03-1405-15 Screw
11 A30911-015 Machine straps
12 16-0355-00 Inletwatertting,are*
13 A39580-024 Left side panel
14 03-1404-12 Screw
15 13-0943-01 Gasket
* Optional
May 2015
Page 3
Prodigy Eclipse ECC, EH330 and EH430 C or D Service Parts
EH330 D Cabinet
2
12
1
10
14
11
18
11
7
4
10
10
14
11
9
3
15
5 6
12
16
17
Item Part
Number Number Description
1 A40310-021 Left side panel assy
2 A40309-021 Top Panel
3 02-4819-01 Trim Strip Top
4 02-4504-01 Inner Front Panel
5 03-0727-05 Thumbscrew
6 A40308-033 Front panel assembly,
includes trim strip and labels.
7 A40311-021 Right side panel assy
8 02-4820-01 Trim Strip Bottom 30”
9 02-4821-02 Bezel With Standard Door
9A 02-4822-02 Bezel With Secure Door**
10 03-1404-10 Screw #8 X 1/2
8
13
11 03-3836-02 Screw #8 X 3/8
12 02-4824-01 Spacer .25 Id X .38 Od
13 03-1735-03 Screw, Front Panel
14 02-4823-21 *Panel mount kit, left
14a 02-4823-22 *Panel mount kit, right
*Includes both screw receptacles
15 A30911-015 Machine straps
16 16-0355-00 Inletwatertting,are**
17 03-1405-15 Screw
18 11-0622-21 Light & switch panel D
** Optional
April 2016
Page 4
Prodigy Eclipse ECC, EH330 and EH430 C or D Service Parts
EH430 D Cabinet
2
12
1
10
14
11
18
11
7
4
10
10
14
11
9
3
15
5 6
12
16
17
Item Part
Number Number Description
1 A40310-022 Left side panel assy
2 A40309-021 Top Panel
3 02-4819-01 Trim Strip Top
4 02-4504-01 Inner Front Panel
5 03-0727-05 Thumbscrew
6 A40308-034 Front panel assembly,
includes trim strip and labels.
7 A40311-022 Right side panel assy
8 02-4820-01 Trim Strip Bottom 30”
9 02-4821-02 Bezel With Standard Door
9A 02-4822-02 Bezel With Secure Door**
10 03-1404-10 Screw #8 X 1/2
8
13
11 03-3836-02 Screw #8 X 3/8
12 02-4824-01 Spacer .25 Id X .38 Od
13 03-1735-03 Screw, Front Panel
14 02-4823-21 *Panel mount kit, left
14a 02-4823-22 *Panel mount kit, right
*Includes both screw receptacles
15 A30911-015 Machine straps
16 16-0355-00 Inletwatertting,are**
17 03-1405-15 Screw
18 11-0622-21 Light & switch panel D
** Optional
April 2016
Page 5
Prodigy Eclipse ECC, EH330 and EH430 C or D Service Parts
EH330 EH430 C or D Interior Parts
1
19
3
18
2
5
6
9
15
16
13
14
17
Item Part
Number Number Description
1 12-2922-01 Inlet water sol valve
2 13-0674-02 Tubing, order 2 (ft)
3 12-3060-21 Harvest assist
4 11-0572-21 Temp sensor set
5 02-4175-01 Sump cover, rt
10
7
8
4
3
11
13 02-4177-01 Pump bracket
14 A38863-001 Tube
15 11-0564-01 Purge valve
16 A38863-002 Tube, out
17 02-3692-21 Draintting
18 A38804-001 Brace
19 A38796-001 Chase
6 12-2928-01 WLS harness
7 02-4182-01 Water pump hose, EH430
02-4505-01 Water pump hose, EH330
8 02-4646-01 WLS cover
9 12-2920-21 Water pump
10 A39030-021 Water level sensor
11 02-4649-01 Sump cover
12
May 2015
Page 6
Prodigy Eclipse ECC, EH330 and EH430 C or D Service Parts
EH330 and EH430 C or D Refrigeration
1
3
2
2
1
Item Part
Number Number Description
1 11-0493-03 Vapor valve
2 16-1130-01 TXV - EH430
16-1142-01 TXV - EH330
19-0599-06 Insulation for TXV\
3 16-1137-01 Access valve seat
16-1140-01 Access valve cap
16-1139-01 Access valve core
May 2015
Page 7
Prodigy Eclipse ECC, EH330 and EH430 C or D Service Parts
EH330 C or D Evaporator Compartment
9
10
8L
1
2
3
6
4
7
5
2a
3a
Item Part
Number Number Description
1 02-4065-01 Water distributor cover
2 02-4064-01 Water distributor, left
2a 02-4064-02 Water distributor, right
3 02-4205-01 Mounting bracket, left
3a 02-4205-02 Mounting bracket, right
4 see table Evaporator
small cube medium cube
Right A38627-023 A38627-024
Left A38627-021 A38627-022
5 A39480-001 Back wall
6 A39031-021 Ice thickness sensor
7
8R
7 02-4100-32 Curtain
8L 11-0563-06 Curtain switch, left
8R 11-0563-03 Curtain switch, right
9 13-0943-01 Gasket tape
10 03-3868-01 Screw
May 2015
Page 8
Prodigy Eclipse ECC, EH330 and EH430 C or D Service Parts
EH430 C or D Evaporator Compartment
9
10
8L
1
2
3
6
4
7
5
2a
3a
Item Part
Number Number Description
1 02-4065-01 Water distributor cover
2 02-4064-01 Water distributor, left
2a 02-4064-02 Water distributor, right
3 02-4205-01 Mounting bracket, left
3a 02-4205-02 Mounting bracket, right
4 see table Evaporator
small cube medium cube
Right A38628-023 A38628-024
Left A38628-021 A38628-022
5 A38677-001 Back wall
6 A39031-021 Ice thickness sensor
7
8R
7 02-4611-21 Curtain
8L 11-0563-06 Curtain switch, left
8R 11-0563-03 Curtain switch, right
9 13-0943-01 Gasket tape
10 03-3868-01 Screw
November 2013
May 2015
Page 9
Prodigy Eclipse ECC, EH330 and EH430 C or D Service Parts

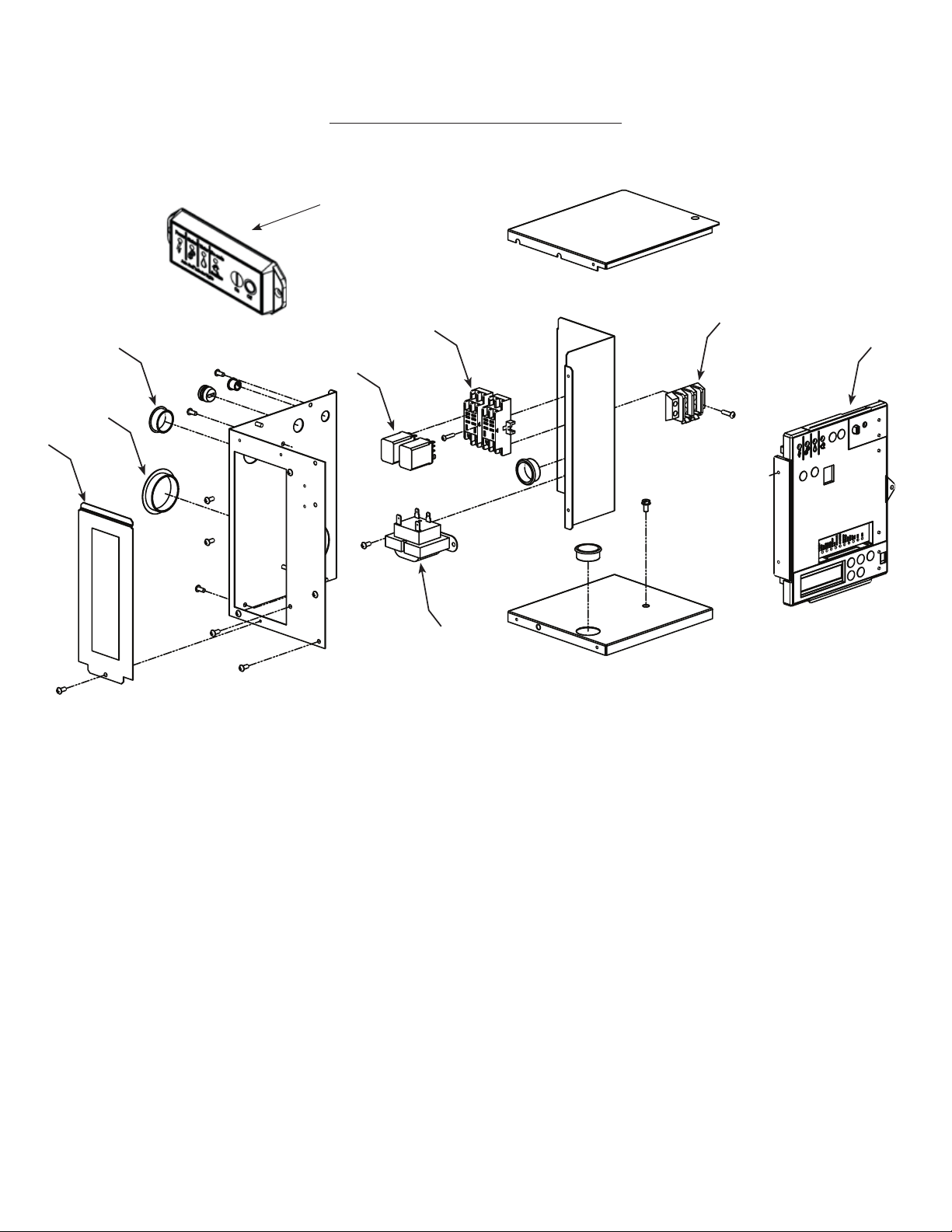

EH330 or EH430 C or D Electrical
9
4
7
8
6
5
3
1
2
Item Part
Number Number Description
1 12-2780-01 Terminal strip
2 11-0621-21 Servicecontroller,tsall
2a 11-0550-28 Service controller, thru C
3 12-2924-01 Transformer
4 12-2949-02 Relay base
5 A39287-001 Cover
6 12-1213-15 Snap bushing
7 12-1213-11 Snap bushing
8 12-2949-01 Relay
9 11-0622-21 Light & switch panel D
Not Illustrated:
10 12-2954-01 Low voltage harness - to
interconnecting wire
11 12-2943-01 High voltage harness (has
large plug)
12 12-2940-01 Control power harness
13 12-1638-19 Power cord
May 2015
Page 10
Prodigy Eclipse ECC, EH330 and EH430 C or D Service Parts
ECC Cabinet and Fan
2
1
1
12
13
13a
1
17
13c
1
16
13b
17
14
1
3
4
5
6
7
1
6
Item Part
Number Number Description
1 03-1645-01 Screw
2 02-3575-01 Fan guard, 1200, 1410
02-3770-01 Fan guard, 1800
3 A39744-001 Top panel, 1200, 1410
A39744-002 Top panel, 1800
4 18-8816-01 Fan blade, 1200, 1410
5 18-8820-01 Fan blade, 1800
6 A40100-001 Cover
7 12-2640-01 Terminal strip, 50 Hz only
8 A37128-001 Box cover
9 A40091-001 Chase cover
10 A40094-001 Valve cover
15
April 2017
Page 11
10
11 A40106-001 Lower cover
12
12-2651-03 Fan motor, 1200, 1410
12-2717-02 Fan motor, 1800
13
03-1405-08 Hex bolt
13a 03-1407-06 Flat washer
13b 03-1410-03 Lock washer
13c 03-1406-08 Nut
14 A37948-001 Bracket
15 A40093-001 Bracket
16 A39749-001 Motor bracket
17 A37282-001 Support
11
8
1
9
1
1
Prodigy Eclipse ECC, EH330 and EH430 C or D Service Parts
ECC Refrigeration Components
12
2
1
11
3
11
14
4
Compressor
See Page 10
13
10
5
Item Part
Number Number Description
1 18-8945-22 Coil
2
3
4
5
6
7
8
9
10
16-1096-21 CPR valve
11-0546-01 Liquid line inlet valve
11-0422-22 Head master valve
16-1085-03 Receiver
16-1208-03 Ball valve 3/4
16-1208-02 Ball valve 1/2
16-1208-01 Ball valve 3/8
02-3319-02 Dryer
16-1157-01 Accumulator, 1200, 1410
6
9
7
8
11 16-1137-01 Access valve seat
16-1139-01 Access valve core
16-1140-01 Access valve cap
12 11-0501-02 High pressure cut out switch
13 11-0507-03 Bypass valve
14 16-1029-01 Check valve
16-1122-01 Accumulator, 1800
October
Page 12
2017
Prodigy Eclipse ECC, EH330 and EH430 C or D Service Parts
ECC Compressors
Compressor - see table below
Model Phase Hz Part Number
ECC1200-32 single 60 18-8750-22
ECC1410-32 single 60 18-8965-21
ECC1410-3 three 60 18-8965-22
ECC1800-3 three 60 18-8930-25
Single phase 60 Hz compressors include starting components.
All include a drier.
All have internal overloads
18-3043-03 Crankcase heater for 18-8730-25 and 18-8750-22
Mounting parts for compressors:
18-2300-27 Mounting grommet
18-2300-26 Sleeve
03-1406-07 Washer
03-1405-20 Cap screw
Parts shipped in condensing unit:
12-2865-01 75’ Interconnecting harness
May 2015
Page 13
Prodigy Eclipse ECC, EH330 and EH430 C or D Service Parts
ECC1200, ECC1410 and ECC1800 Control Box
4
3
2
7
1
6
5
Three Phase Control Box
Item Part
Number Number Description
1 12-2637-01 Toggle switch
2 12-2836-02 Transformer, 60 Hz models 230 volt to 24 volt
3 12-2469-01 Single phase contactor
ECC1200-32 ECC1410-32
4 Comp. Relay 18-1903- 18-1903-72
5 Start Capacitor 18-1901- 18-1901-59
6 Run Capacitor 18-1902- 18-1902-69
7 12-2533-01 Contactor, 3 phase
Single Phase Control Box
2
1
May 2015
Page 14
Prodigy Eclipse ECC, EH330 and EH430 C or D Service Parts
EH330 C or EH430 C Schematic Diagram
L1
TRANSFORMER
LINE
12V
HOT GAS
VALVE 2
HOT GAS
VALVE 1
CONTACTOR
RELAY
HGV
RELAY
HARVEST ASSIST
MOTOR 2
HARVEST ASSIST
MOTOR 1
L2
TO COMPRESSOR
SECTION
WATER
LEVEL
SENSOR
DUMP
VALVE
DISCHARGE
TEMP.
WATER
PUMP
ELECTRONIC CONTROL
SUMP
TEMP.
ICE
THICKNESS
PROBE
CURTAIN
SWITCH 1
WATER VALVE
CURTAIN
SWITCH 2
May 2015
Page 15
Prodigy Eclipse ECC, EH330 and EH430 C or D Service Parts
EH330 C or EH430 C Wiring DIagram
USE COPPER CONDUCTORS ONLY
17-3406-01
WATER
SOLENOID SOLENOID
MOT
PUMP
BN/W
W
HOT GAS
BN/W
HOT GAS
HARV ASSIST
W
MOTOR
M
BN/W
SOLENOID
BN/W
HARV ASSIST
W
M
MOTOR
WATER
LEVEL
SENSOR
ICE
THICKNESS
PROBE
SUMP TEMP.
SENSOR
DISCHARGE
TEMP.
SENSOR
DUMP
VALVE
R
W
R/W
W
TO COMPRESSOR
SECTION
SEE NAMEPLATE FOR
PROPER VOLTAGE REQUIREMENTS
AND MAXIMUM FUSE SIZE
BU
W
V
V
8
5
1
4
W
HGV
RELAY
13
BN/W
R
BK
W
BK
ELECTRONIC
CONTROL
123 4
J10
3
1
2
J9
4321
J1
8
7654321
J6
J2
J7
21J821
BK
O
14
9
12
8
5
1
4
BN
COMPRESSOR
RELAY
W
W
Y
1314
9
12
W
BK
TERMINAL
BLOCK
L1
N
Y
V
LOAD
LINE
TRANSFORMER
W
BK
GN/Y
EARTH GROUND
GN/Y
INLET
POWER
CORD
THIS UNIT MUST
BE GROUNDED.
CURTAIN
SWITCH 1
CURTAIN
SWITCH 2
CAUTION:
1 DASHED LINES INDICATE FIELD WIRING WHICH MUST BE
INSTALLED IN ACCORDANCE WITH THE NATIONAL ELECTRICAL
CODE AND ALL STATE AND LOCAL CODES.
MORE THAN ONE DISCONNECT MEANS MAY BE
REQUIRED TO DISCONNECT ALL POWER TO THIS UNIT.
May 2015
Page 16
Prodigy Eclipse ECC, EH330 and EH430 C or D Service Parts
EH330 D or EH430 D Schematic Diagram
May 2015
Page 17
Prodigy Eclipse ECC, EH330 and EH430 C or D Service Parts
EH330 D or EH430 D Wiring DIagram
May 2015
Page 18
Prodigy Eclipse ECC, EH330 and EH430 C or D Service Parts
ECC1200 and ECC1410 Single Phase Wiring Diagram
May 2015
Page 19
Prodigy Eclipse ECC, EH330 and EH430 C or D Service Parts
ECC1200 and ECC1410 Single Phase Schematic Diagram
May 2015
Page 20
Prodigy Eclipse ECC, EH330 and EH430 C or D Service Parts
ECC1200, ECC1410 and ECC1800 Three Phase Wiring Diagram
May 2015
Page 21
Prodigy Eclipse ECC, EH330 and EH430 C or D Service Parts
ECC1200, ECC1410 and ECC1800 Three Phase Schematic Diagram
May 2015
Page 22
Loading...
