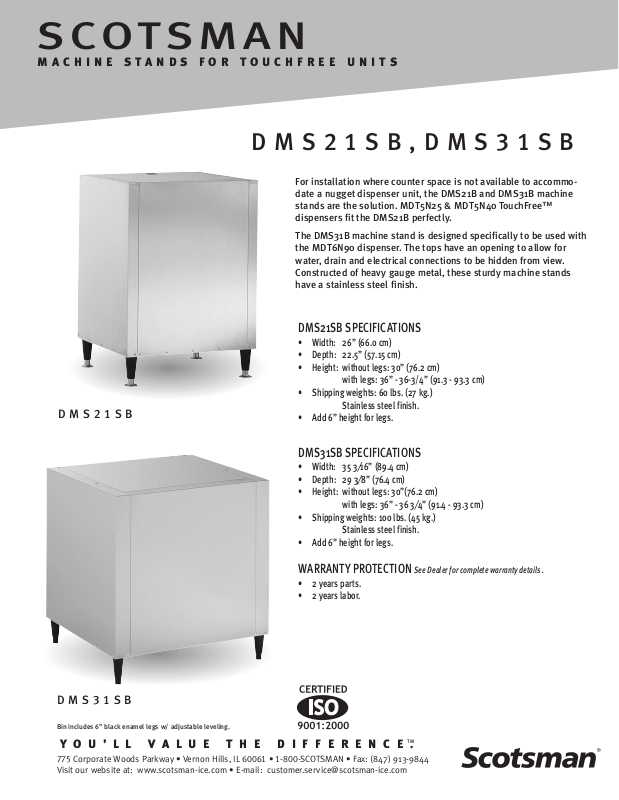

Scotsman DMS21SB, DMS31SB User Manual

MACHINE STANDS FOR TOUCHFREE UNITS

DMS21SB,DMS31SB

SCOTSMAN

DMS21SB SPECIFICATIONS

•Width: 26” (66.0 cm)

• Depth: 22.5” (57.15 cm)

• Height: without legs: 30” (76.2 cm)
with legs: 36” - 36-3/4” (91.3 - 93.3 cm)

• Shipping weights: 60 lbs. (27 kg.)
Stainless steel finish.

• Add 6” height for legs.

DMS31SB SPECIFICATIONS

•Width: 35 3⁄16” (89.4 cm)

• Depth: 29 3⁄8” (76.4 cm)

• Height: without legs: 30”(76.2 cm)
with legs: 36” - 36 3⁄4” (91.4 - 93.3 cm)

• Shipping weights: 100 lbs. (45 kg.)
Stainless steel finish.

• Add 6” height for legs.

WARRANTY PROTECTION See Dealer for complete warranty details .

•2 years parts.

•2 years labor.

For installation where counter space is not available to accommo­date a nugget dispenser unit, the DMS21B and DMS31B machine
stands are the solution. MDT5N25 & MDT5N40 TouchFree™
dispensers fit the DMS21B perfectly.

The DMS31B machine stand is designed specifically to be used with
the MDT6N90 dispenser. The tops have an opening to allow for
water, drain and electrical connections to be hidden from view.
Constructed of heavy gauge metal, these sturdy machine stands
have a stainless steel finish.

DMS21SB

DMS31SB

Bin includes 6” black enamel legs w/ adjustable leveling.
