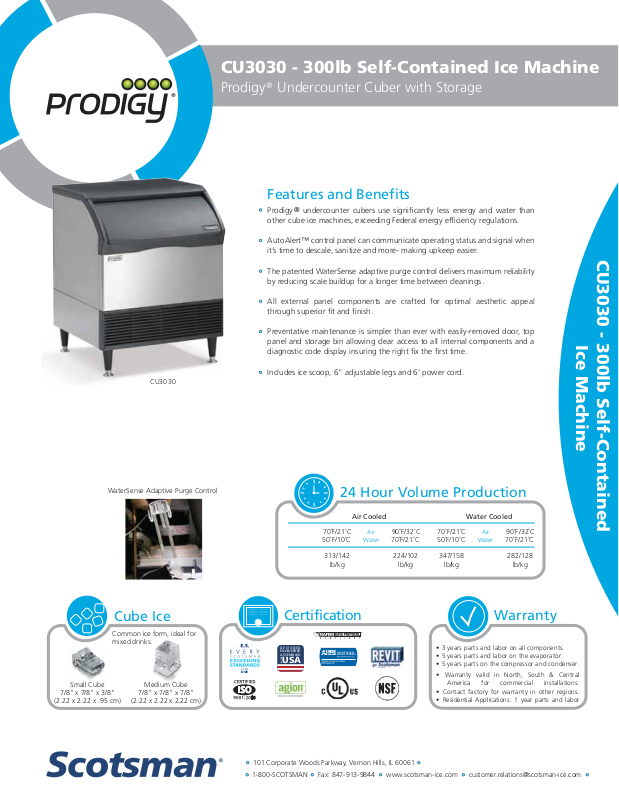

Page 1
CU3030 - 300lb Self-Contained Ice Machine
DESIGNED
ENGINEERED
ASSEMBLED
USA
IN THE
®
Prodigy Undercounter Cuber with Storage
®
Features and Benefits
®
Prodigy undercounter cubers use significantly less energy and water than
other cube ice machines, exceeding Federal energy efficiency regulations.
AutoAlert™ control panel can communicate operating status and signal when
it’s time to descale, sanitize and more- making upkeep easier.
The patented WaterSense adaptive purge control delivers maximum reliability
by reducing scale buildup for a longer time between cleanings.
All external panel components are crafted for optimal aesthetic appeal
through superior fit and finish.
Preventative maintenance is simpler than ever with easily-removed door, top
panel and storage bin allowing clear access to all internal components and a
diagnostic code display insuring the right fix the first time.
CU3030 - 300lb Self-Contained
Ice Machine
WaterSense Adaptive Purge Control
Cube Ice
Common ice form, ideal for
mixed drinks.
Small Cube
7/8” x 7/8” x 3/8”
(2.22 x 2.22 x .95 cm)
CU3030
Medium Cube
7/8” x 7/8” x 7/8”
(2.22 x 2.22 x 2.22 cm)
Includes ice scoop, 6” adjustable legs and 6’ power cord.
24 Hour Volume Production
Air Cooled
70˚F/21˚C
50˚F/10˚C
313/142
lb/kg lb/kg lb/kg lb/kg
Air
Water
90˚F/32˚C
70˚F/21˚C
224/102
Certification
2018
DOE
15
Water Cooled
70˚F/21˚C
50˚F/10˚C
347/158
Air
Water
90˚F/32˚C
70˚F/21˚C
282/128
Warranty
• 3 years parts and labor on all components.
• 5 years parts and labor on the evaporator.
• 5 years parts on the compressor and condenser.
• Warranty valid in North, South & Central
America for commercial installations.
• Contact factory for warranty in other regions.
• Residential Applications: 1 year parts and labor
101 Corporate Woods Parkway, Vernon Hills, IL 60061
Page 2
CU3030 - 300lb Self-Contained Ice Machine
Prodigy Undercounter Cuber with Storage
®
3/8” Flare
Machine
Water Inlet
1/2” FPT
Condenser
Drain
WC Units Onl y
3/8” FPT
Condenser
Inlet
WC Units Only
3/4” FPT
Machine
Drain
Specifications
Model Number*
Cube Size: medium or small
CU3030MA-1
Ice Machine
CU3030MA-32 Air 208-230/60/1 15 2 Cord 7.35 18.0/68.2 -110/50
sm.med.
CU3030SA-1
CU3030SA-32 Air 208-230/60/1 15 2 Cord 7.35 18.0/68.2 -110/50
CU3030SW-1
Condenser
Installation Note: Allow 6” at back for utility connections
(13.5)
5.30
(98.4)
38.74
(75.3)
29.65
Air In Air Out
[75.2]
29.6
Electrical
Entrance
Max. Fuse Size
Unit
Air
Air
Water 115/60/1 15 2 Cord 5.22 18.0/68.2 150/586
Storage
lb/kg
110/50
110/50
110/50
Basic Electrical
Volts/Hz/Phase
115/60/1
115/60/1
or HACR Circuit
Breaker (amps)
15
15
Circuit
Wires
2
2
Min. Circuit
Ampacity
Cord
Cord
(65.9)
25.95
FRONT VIEW
Energy Consumption
kWh/100 lb (45.4 kg)
90˚F(32˚C)/70˚F(21˚C)
7.35
7.35
(15.2)
6.00
Water Usage
Gallons/100 lb (liters/45.4 kg)
Potable Condenser
90˚F(32˚C)/70˚F(21˚C)
18.0/68.2
18.0/68.2
-
-
All Models
CU3030 - 300lb Self-Contained
Dimensions (W x D x H):
Unit:
Shipping Carton:
30” x 30” x 33”
(76.2 x 76.2 x 83.8 cm)
33” x 33” x 39.5”
(83.8 x 83.8 x 100.3 cm)
Shipping Weight: 230 lb / 104 kg
BTUs per hour: 5,200
Refrigerant: R-404A
101 Corporate Woods Parkway, Vernon Hills, IL 60061
Model Number Description
Scotsman recommends all ice machines have water filtration. See Scotsman water filter specification sheet for details.
Air Temperatures
Water Temperatures
Remote Cond. Temps -20°F (-29°C) 120°F (49°C)
Water Pressures
Electrical Voltage
Specifications and design are subject to change without notice.
Accessories
Kit 6 inch leg SSKLP8S
Kit Prodigy undercounter floor mount 30 inch for CU3030 (add .5” to height)KPUFM30
Operating Requirements
Minimum
50°F (10°C)
40°F (4.4°C)
20 PSIG (1.4 bar)
-5%
Maximum
100°F (38°C)
100°F (38°C)
80 PSIG (5.5 bar)
+10%
SIS-SS-PRD-CU30 02-18© 2018 Scotsman Ice Systems.
