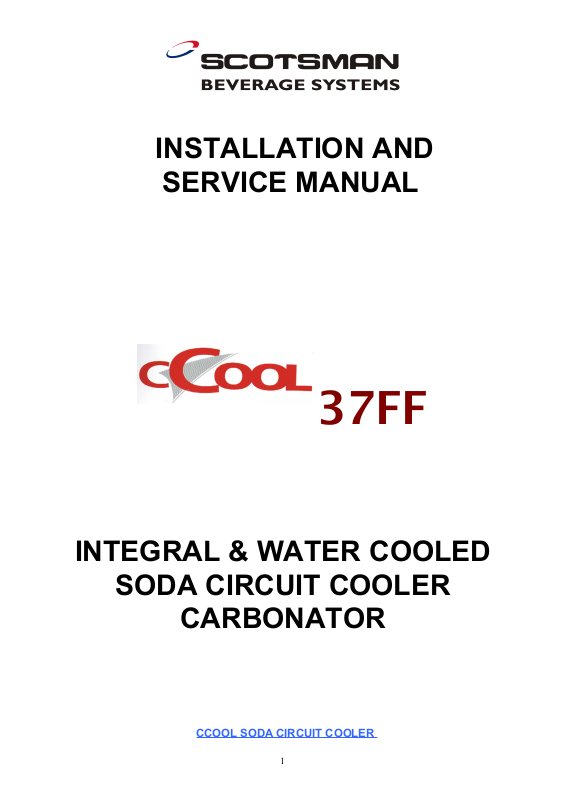

Scotsman cCool 37FF Installation Instructions Manual

INSTALLATION AND

SERVICE MANUAL

37FF

INTEGRAL & WATER COOLED

SODA CIRCUIT COOLER

CARBONATOR

CCOOL SODA CIRCUIT COOLER

1

INSTALLATION INSTRUCTIONS FOR

INTEGRAL & WATER COOLED UNITS

NOTE: The unit should be installed and serviced by a suitably trained person.

NOTE: Sealed plugs may be fitted to new units.

1. Unpack the unit from its transportation packing and visually check for any signs of damage.

2. Site the unit in a convenient location in the cellar or room on a level surface where it is to be
located and make sure that a mains electricity supply is within 2 meters and in an area allowing
free circulation of air. The unit should be fitted to the following electrical supply

CCOOL 37 ----- 240v AC 30 amp isolator box installed with a suitable 30 amp circuit
breaker or fuse link.

3. If the unit is a water cooled version, the glycol module and heat dumps must be installed and
connected as detailed in the GLYCOL MODULE AND HEAT DUMP INSTALLATION
INSTRUCTIONS of this manual , before commissioning the complete system.

4. Connect the dispense head to the unit using suitable fittings and python, referring to the
connection diagram on the lid of the cooler and those supplied with the dispense head.

5. Remove the top cover and connect a mains water supply of 50psi / 60psi to the water pump inlet

labelled ‘WATER IN’, at the rear of the unit.

6. Connect all products to unit as labelled.

7. Connect CO2 gas supply (80psi - 90psi) to the cooler using the bulkhead fitting labelled ‘CO2 IN’

8. Fill the water bath with fresh clean COLD water until the overflow level is reached.

9. Connect unit to the mains electricity supply (do not turn on yet).

10. Turn on the CO2 supply and vent the carbonator bowl using the relief valve located on the top.

Additionally operate the dispense valve until the air in the python system is purged.

11. Turn on the mains water supply.

12. Check for obvious leaks and rectify before proceeding any further.

13. Ensure that the soda recirculation pump is disconnected / switched off.(See switch panel

operation on page 2)

14. Switch on the unit at the mains power supply and allow ice bank to build, the dispense system to
prime and fill with carbonated water and the cooling system to prime. If the carbonator overtime
indicator comes on at any time during this process, reset by operating the carb reset switch.
(see switch panel operation on page 2)

15. If the unit is a water cooled version , ensure that the glycol lines prime correctly and that the
glycol module is topped up to the correct level.

16. Prime dispense head by operating the valves and ensure all pockets of CO2 are removed from
system.

17. Reconnect / switch on the soda pump.

18. Operate dispense valves until syrup is dispensed from valves.

19. Refit the top cover to the base unit.

2

20. The dispense head can now be brixed and the system will be ready to use.

CCOOL 37FF SWITCH PANEL OPERATION

ELECTRICAL SWITCHES

CARBONATOR RESET --- This switch resets the carbonator fill pump(s) if they have timed out or are

over temperature due to a fault condition.

REFRIGERATION ON/OFF------- This switch isolates the refrigeration system

SODA ON/OFF----------------- This switch isolates the dual soda recirc pumps

CARB PUMP ON/OFF--------- This switch isolates the dual carbonator pumps

HEAT DUMP AND GLYCOL MODULE INSTALLATION - WATER COOLED UNITS

HEAT DUMP - GENERAL GUIDELINES

1. It is important that the heat dump is sited correctly to enable it to work efficiently. The guidelines

below should be adhered to wherever possible.

2. Ensure the unit is sited on an outside wall (preferably non south facing) in the correct orientation

out of direct sunlight.

3. Ensure there are no other heat sources, i.e. a condensing unit or another heat dump, in the

immediate vicinity, where hot air may be re-circulating.

4. Use the recommended tubing (15mm O/D, 10mm I/D Special EVA) to connect the base unit to

the heat dump. Do not use PVC braided tube, as this is not compatible with glycol and will
degrade over a period of time.

∅ MAINS ELECTRICAL SUPPLY SWITCH
∅ REFRIGERATION SWITCH
∅ CARBONATOR PUMP SWITCH
∅ SODA RECIRC PUMP SWITCH

3

5. Do not exceed the recommended distance and lift from the base unit to the heat dump of 9M

Lift, 40M Run.

6. The heat dump must be connected using a minimum of 1.5mm two core cable. If a smaller

cable is used, a voltage drop will occur which may cause the fan motor to run at a reduced
speed.

7. If the unit is to be installed inside a building or room, ensure that there is adequate ventilation

within the room to enable the heat to be dissipated effectively. Temperatures within the room
should not exceed 40 o C

8. Do not kink the flow and return tubes which would restrict the coolant flow.

9. Do not insulate the flow and return lines.

10. The flow and return lines must not be strapped together, as heat transfer between the two will

effect the system performance.

11. Ensure that the heat exchanger matrix of the heat dump is kept clean and free from

obstructions. It is recommended that it should be cleaned with a soft brush at regular intervals.

12. To enable the heat dump to be mounted on a flat surface, a floor standing mounting kit is

available as an option. (Order part number 09-0203-01)

GLYCOL MODULE INSTALLATION INSTRUCTIONS

1. Site the glycol pump module within 2 meters of the base unit and using suitable wall fixings,
secure the module to a wall.

2. Connect the glycol module’s power supply to the 240V power outlet socket on the base unit.
(DO NOT SWITCH ON YET)

3. Using Cobracol tubing, connect the ‘COOLANT FLOW’ from the glycol module to the
‘COOLANT IN’ on the base unit.

4. Again using Cobracol tubing connect the ‘COOLANT OUT’ from the base unit to the ‘FLOW’ on
the first heat dump. Connect the ‘RETURN’ on heat dump to the ‘FLOW’ on the second heat
dump. Connect the ‘RETURN’ of the second heat dump to the ‘COOLANT RETURN’ on the
glycol module to complete the circuit.

5. Finally, connect the 1.5mm twin wire coming from the heat dumps to the 24v outlet sockets on

the glycol module using the two pin plug supplied with the glycol module. It does not matter
which way the wires are connected as they are not polarised.

6. Ensure the lines are correct and secured neatly and free from kinks.

7. Fill the glycol module reservoir tank with a quantity of coolant mixed 30% glycol to 70%
water, ensuring a quantity remains for topping up the system when priming.
The following table should be used as a guideline for the volume of coolant for varying
installations.

NOTE: Maximum Lift = 9M Maximum Run = 40M

DISTANCE FROM BASE UNIT

TO HEAT DUMP

APPROX. VOLUME OF

GLYCOL

APPROX. VOLUME OF

WATER

5 METERS 4.25 LITRES 8.25 LITRES
15 METERS 4.5 LITRES 9.0 LITRES
20 METERS 4.75 LITRES 9.25 LITRES
30 METERS 5.0 LITRES 10.0 LITRES
40 METERS 5.4 LITRES 10.6 LITRES

8. Upon switching the unit on, the pump in the glycol module will start together with the heat dump
fans.
As the system primes, the level will drop in the coolant header tank. Keep topping
this up until the system is full, there are no air locks and that coolant is returning freely into
the header tank. If the system trips out on the pressure switch whilst priming, this will have to
be reset before the system can start again.

WATER COOLED UNIT - EQUIPMENT CONNECTION SCHEMATIC

24v Supply

GLYCOL
MODULE

4

240v Mains Supply

BASE UNIT

WARNING

All water cooled units are fitted with a MANUAL RESET pressure switch to protect the system.

If a fault occurs it is likely to be one of the following:-

1. Low water \ glycol level , Coolant leak, Blockage within cooling system .

2. Component failure:- Heat dump fan motor, Water pump, 24v Transformer, wiring fault.

If the fault persists, it should be rectified before further operation.

HEAT DUMP INSTALLATION INSTRUCTIONS

NOTE: The unit should be installed and serviced by a suitably trained person.

Unpack the unit from its transportation packaging and visually inspect for signs of damage.Site the
dump in a convenient location, preferably in a non-heat sensitive and shaded areaon the outside of
the building. If it cannot be installed outside, ensure that the area is free from other heat sources and
is adequately ventilated to prevent heat build up from the hot exhaust air from the heat dump.
In either situation the heat dump should be sited to allow free circulation of air.
The maximum recommended height of the heat dump above the cooler is 10 meters.

Fitting

Remove the wall mounting bracket from the assembly, (mounted on lift off hinges).
Slacken the two fixing screws securing the cover/fan assembly to the condenser matrix ,
swing the cover open and lift off the assembly.

HEAT
DUMPS

240v Supply

= Coolant Flow

5

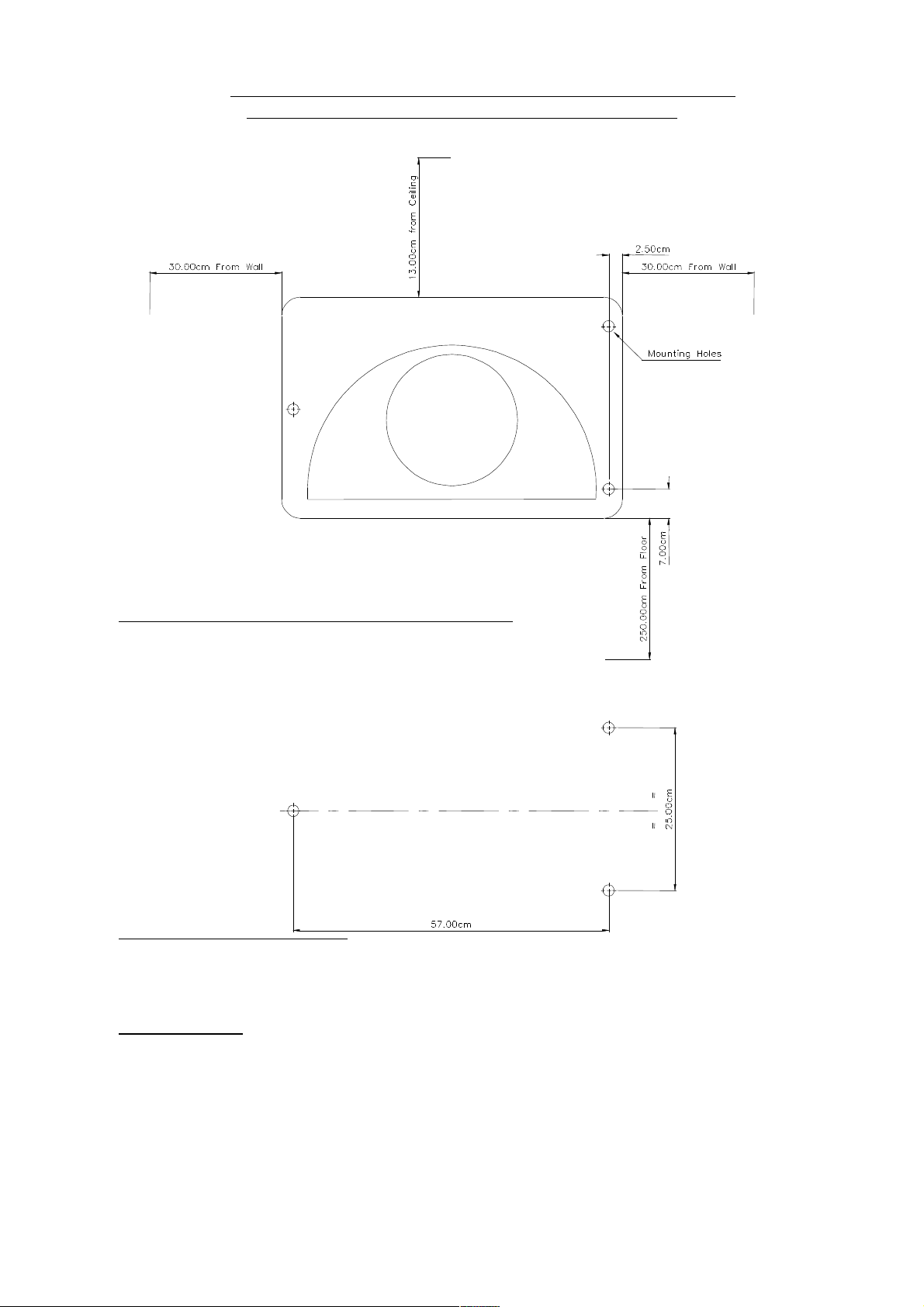

With reference to the attached drawing drill the surface onto which the heat dump is to be fitted at
the stated mounting hole centers ensuring that adequate clearance is allowed around the heat dump
to allow future access for cleaning.

Note - the wall mounting bracket can be used as a guide for marking its hole centers . Ensure that
the wall mounting bracket is mounted squarely to ensure level movement of the condenser matrix
when fitted.

Either mark the position of the third mounting screw at the time of marking the wall mounting bracket
position, or after fitting the wall mounting bracket hang the condenser matrix on, close against the
mounting surface and mark the fixing position.

Note - the third fixing screw will pass through the hole in the condenser matrix. The retaining clamp
is fitted over the screw which can then be tightened to retain the condenser matrix.

Connect the flow and return pipework from the glycol module and base unit to the fittings on the heat
dump labeled “FLOW” and “RETURN” and secure the pipes to the mounting surface so that the
weight of the pipes is not being carried on the heat dump fittings.
Note - Do not kink the pipework as this will restrict coolant flow.

Do not insulate the pipework. (Pipework mounted on an exterior surface may be insulated if
it is felt that due to extreme conditions freezing may occur).
Do not strap the flow and return pipes together as heat transfer between the two will effect
the systems performance.

Route a twin core 24 volt supply cable (1.5mm csa) through the lower guide tube and then through
the strain relief grommet positioned below the two way terminal block on the condenser matrix.

Note - The wires are not polarised and may be fitted either way round.

Ensure that the amount of cable entering through the main cover is not excessive and cannot
become entangled in the fan blade. Tighten the strain relief grommet to support the cable . This
should not be the only means of support for the cable, therefore fix back to the mounting surface at
regular intervals along the cable length.

6

After the condenser matrix is fully fitted to the mounting surface, hang the cover/fan assembly onto
its hinges.
With the cover/fan assembly open, connect the wires from the fan to the terminal block .
Note - Ensure that the wiring from the fan is routed through the plastic clip provided to prevent the
possibility of the wires becoming entangled in the fan blade.

Connect the wiring and the Pipework to the cooler following the instructions supplied with the cooler.

Recommended materials for heat dump to cooler connections.

Pipework - 15mm OD x 10mm ID COBRACOL tubing.
Cable - 1.5 mm sq., 2 core white PVC covered (no earth)
Insulation tubing - 3/8" or 1/2" ID

Use of the equipment.

This unit is intended for use in conjunction with cooling units manufactured by Scotsman
Beverage Systems Ltd.
It is designed to be connected at the end of the water/glycol recirculation lines as a means
of removing heat from the cooling system.
There are NO other recommended uses for this unit.

DISMANTLING DECOMMISSIONING PROCEDURE

a. Isolate the unit from the Base cooler or Glycol module electricity supply.
b. Disconnect the recirculating coolant inlet and Outlet pipes.

ADJUSTMENTS MAINTENANCE REQUIREMENTS

7

It is not recommended that the end user makes any adjustments or carries out any maintenance
other than :

a. Check the mains lead and plug visually for condition.
b. Check the unit and its pipework for any evidence of leaks visually.
c. It there is any accidental spillage of liquid onto the unit isolate the Base Coolers

mains electricity supply before cleaning up / removing the spillage.

NOTE: THERE ARE NO USER SERVICEABLE PARTS.

CORRECT SAFE HANDLING

Handling of this unit offers no specific hazard.
Unit weight 9 kgs (20 lbs) dry.

METHODS OF CLEANING

NOTE: DO NOT USE A WATER OR STEAM HOSE TO CLEAN THE UNIT WHILST STILL

INSTALLED.

NOTE: IT IS IMPORTANT THAT ALL THE VENTS AND GRILLS ARE KEPT CLEAR (Including
Condenser grills where applicable).

NOTE: PERSONAL PROTECTIVE EQUIPMENT SHOULD ALWAYS BE USED.

Twice Annually: By a competent Service Maintenance Engineer:

a. Isolate the unit from the Base Cooler electricity supply.
b. Open the unit to access both sides of the condenser matrix and remove any extraneous debris

from the unit or its casing preferably using a vacuum cleaner or brush.

c. Check unit for electrical safety

POWER ISOLATION METHOD

a. Switch off the socket that the base cooler unit is installed into.
b. Remove the plug from the socket.

Prevention of Freezing / Action required if Freezing occurs.

It is recommended that all exterior Pipework to the unit is insulated to prevent freezing. In
the event of freezing up occurring, the following action is recommended :

a. Isolate the unit from Base Coolers Electricity Supply.
b. Apply gentle warmth to the general area of the unit and its Pipework, taking care not

to scorch / burn the insulation tubing surrounding the pipes.
c. Check for obvious leaks.
d. Reconnect the base cooler mains electricity supply.
e. Observe the unit running for a short time watching out for leaks, strange noises or any form of
malfunction. If no problems are observed, the normal operation of the unit may be resumed.

Max / Min Ambient temperatures (recommended)

Minimum -5° C. (nb. 30% glycol / water mix)
Maximum 40° C

WARNING : THIS UNIT CAN CONTRIBUTE TO THE AMBIENT TEMPERATURE.

WARNING: THIS UNIT IS UNSUITABLE FOR USE BY UNSUPERVISED
CHILDREN, INFIRM OR AGED PERSONS.

8

MINIMUM DISTANCES FOR MOUNTING THE HEAT DUMP

FROM VERTICAL AND HORIZONTAL SURFACES

WAYS THE EQUIPMENT SHOULD NOT BE USED

These units are intended for use as cooling and recirculation units for syrups and
carbonated water to provide the correct conditioning for serving draught soft drinks and as
such should only be used for that purpose. There are NO other recommended uses for
this equipment.

The carbonator is an integral part of the unit and it should be noted that the carbonation
process involves the use of high pressures and an potentially noxious gas and as such
due care should be taken when handling, installing and maintaining the equipment with
particular regard to these hazards.

Carbon Dioxide leaks are potentially fatal if concentrations rise to dangerous levels, in
view of this installation should be regularly checked for integrity and the general area of
installation properly ventilated at all times.

CORRECT SAFE HANDLING

The weight of this unit is such that other than moving it across flat ground ( which is
facilitated by integral castors/wheels) , a mechanical lifting device should be used.

UNIT WEIGHTS

Ccool 37FF -----------158kg (DRY) 268kg (OPERATING)
GLYCOL MODULE ------ 9.0kg (DRY)
HEAT DUMP -------------- 9.0kg (DRY)

WARNING: ONLY LIFT THIS EQUIPMENT IN ITS DRY STATE

WARNING: THIS EQUIPMENT MUST BE EARTHED

9

IMPORTANT

The Wires in this Mains Lead are Coloured in accordance with the following Code:
Green and Yellow ----- Earth.
Blue ------------------------Neutral.
Brown --------------------- Live

As the Colours of the Wires in the Mains Lead of this Appliance may not correspond with the
Coloured Markings identifying the Terminals in the Plug to be fitted proceed as follows:

a) The Wire which is coloured Green and Yellow MUST be connected to the terminal in the Plug that
is marked with the letter ‚E™ or by the earth symbol, coloured Green or Green and yellow.

b) The Wire which is coloured Blue MUST be connected to the Terminal in the Plug that is marked
with the letter ‚N™ or coloured Black.
c) The Wire which is coloured Brown MUST be connected to the Terminal in the Plug that is marked
with the letter ‚L™ or coloured Red.

Dismantling / Decommissioning Procedure.

1. Isolate the unit from Mains Electricity Supply and the mains water supply.

2. Drain off all post mix products including the syrup and carbonated water (Clean syrup lines as
recommended by the syrup supplier)

3. Turn the CO2 off and disconnect all lines associated with the regulator, also vent pressure from
lines by purging the product valves as required.

4. Disconnect all post mix pipework and remove dispense head equipment, including the python.
and remove as recommended by the equipment owner.

5. Siphon or pump out water from the waterbath to a suitable drainage point.

6. Allow ice bank to melt (the careful use of hot water may be used to accelerate this process).
Remove any remaining water from melting the ice.

7. Drain all the glycol \ water from water cooled units into a suitable container and dispose of it in
accordance with the instructions given by the dispense equipment owner.

WARNING: FAILURE TO REMOVE ALL ICE / WATER COULD RESULT IN

SUBSTANTIAL AMOUNTS OF WATER BEING RELEASED FROM
THE UNIT WHICH MAY BE DETRIMENTAL TO THE UNIT AND/OR
ITS SURROUNDINGS AND INCREASE THE MAXIMUM WEIGHT
OF THE UNIT.

Adjustment / Maintenance Requirements.

It is not recommended that the End User makes any adjustments or carries out any Maintenance
other than:
a) Check the mains lead and plug Visually for condition.
b) Check the unit and its Pipework for evidence of leaks visually, including the heat dump.
c) Check that the condenser grill and vents are not choked or obscured, including the heat dump.
d) If there is any spillage of liquid onto the unit, isolate the power supply before cleaning up.
e) Make any necessary adjustments as recommended by the syrup supplier.

NOTE: THERE ARE NO USER SERVICEABLE PARTS

10

METHODS OF CLEANING

NOTE: Persons performing Cleansing /Sanitizing operations MUST be competent and fully

trained in safe methods of use of Cleansing / Sanitizing Agents and their applications.

NOTE: PERSONAL PROTECTIVE EQUIPMENT SHOULD ALWAYS BE USED.

NOTE: DO NOT USE A WATER OR STEAM HOSE TO CLEAN THE UNIT

WHILST STILL INSTALLED.

NOTE: IT IS IMPORTANT THAT ALL THE VENTS AND GRILLS ARE KEPT

CLEAR (inc.: Condenser grills where applicable)

TWICE ANNUALLY : By a competent Service \ Maintenance Engineer

a) Isolate unit from Mains Electricity Supply.
b) Clean sanitize the units cooling coils and product lines using Proprietary Cleanser / Sanitiser of

the Alkaline Hypochlorite type in accordance with the Manufacturers recommendations. Or

follow the direct cleaning recommendations laid down by the syrup supplier.

ANNUALLY: By a Competent Service / Maintenance Engineer.

a) Isolate unit from Mains Electricity Supply.
b) Remove any extraneous debris from the unit or its casing preferably using a Vacuum cleaner or

brush, including the heat dump.
c) Check unit for electrical safety.

INSTRUCTIONS FOR SAFE USE OF CARBON DIOXIDE

See Carbon Dioxide warning notice at rear of booklet.

POWER ISOLATION METHOD

The unit is wired directly in to the mains electrical supply via an isolator box. The recommended
isolation method is as follows –

a) Switch the isolator box to the position marked off.

b) Remove the fuse ( preventing the unit from being inadvertently switched on).

PREVENTION OF FREEZING / ACTION REQUIRED IF FREEZING OCCURS.

It is recommended that the unit is sited In such a way as not to expose it to temperatures likely to
cause freezing i.e. below 0 deg C. If the Unit is to be sited in an unheated area then it would be wise
to insulate all Pipework and provide some form of Emergency Heating which should be controlled by
a Frost Stat. and sited in the close proximity to the Unit.

It should be noted that heat dumps may require to be sited where freezing may occur which is why a
30% glycol \ water mixture is used as a coolant. Failure to adhere to this recommendation could
result in damaging consequences. The concentration of the coolant should not be compromised,
and in the event of spillage, the lost volume should be replenished with the correct mixture.

In the event of Freezing Up occurring the following action is recommended:-

1. 1.Isolate the unit from Mains Electricity Supply.

11

2. 2.Disconnect the heat dump power cable.

3. Isolate Product Supply from unit.

4. Vent pressure lines by opening dispense tap.

5. Isolate from heat dump (Coolant lines) using service valve.

6. Apply gentle warmth to the general area of the unit and its Pipework.

7. Check for obvious leaks.

8. Turn water supply on whilst continually watching for leaks.

9. Reconnect product supply.

10. Reconnect Mains Electricity supply and heat dump supply.

11. Observe unit running for a short period watching out for Leaks, Strange noises or any other form

of malfunction, if no problems are observed then normal operation of the unit may be resumed.

MAX. / MIN. AMBIENT TEMPERATURES.

COOLER UNIT - Minimum +10 ° C HEAT DUMP UNIT – Minimum –5°C

- Maximum +40 ° C - Maximum +40°C

MAX. / MIN. WATER PRESSURES

Minimum ----- 50 PSI (3.4 BAR)
Maximum ---- 60 PSI (4.1 BAR)

MAX. / MIN. CO2 PRESSURES

Minimum ----- 80 PSI (5.4 BAR)
Maximum ---- 90 PSI (6.1 BAR)

WARNING: THIS EQUIPMENT CAN CONTRIBUTE TO THE AMBIENT

TEMPERATURE.

WARNING: THIS UNIT IS UNSUITABLE FOR USE BY UNSUPERVISED

CHILDREN, AGED OR INFIRM PERSONS.

WARNING: PUMP PRESSURE TO CARBONATOR BOWL

13.2 BAR (200PSI).

12

CARBON DIOXIDE IS

DANGEROUS

WARNING

1. ALWAYS connect the CO2 or gas cylinder

to a REDUCING VALVE.

2. NEVER try to connect cylinder directly

to product container.

3. NEVER interconnect soft drinks, CO2 or

gas cylinder equipment with

other equipment.

4. ALWAYS secure cylinder upright whilst in

use.

5. ALWAYS keep cylinder away from heat.

6. NEVER drop or throw cylinders.

7. NEVER try to unscrew fittings from

containers.

8. ALWAYS ventilate area after CO2 leakage.

This information should be displayed in a position adjacent to the CO2 supply cylinder at all time

13

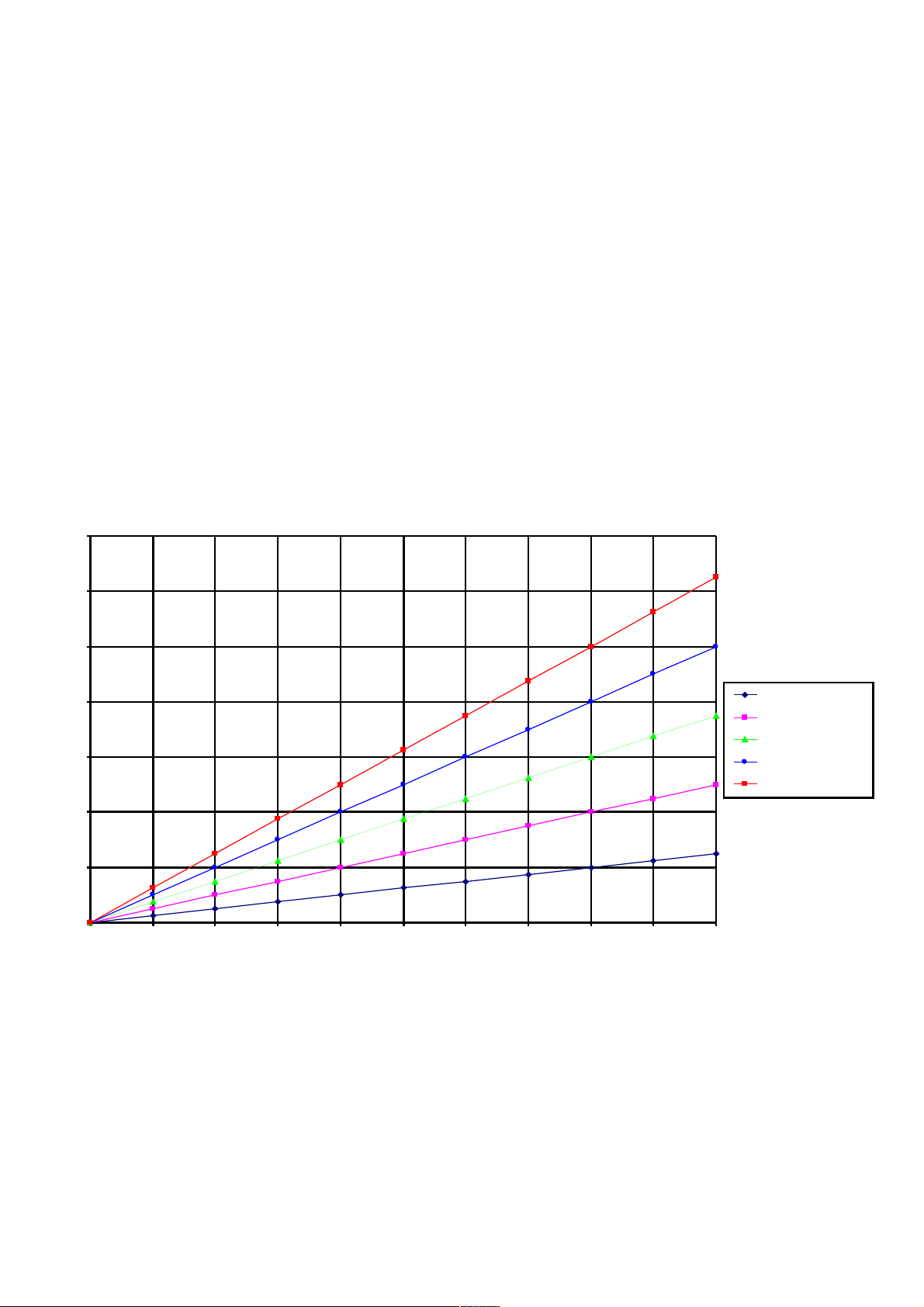

ICE BANK CAPACITY - A GUIDE

0

5

10

15

20

25

30

35

0 10 20 30 40 50 60 70 80 90 100

PRODUCT THROUGHPUT ( LITRES )

ICE BANK WT ( KG's )

DELTA T - 5 DEG C

DELTA T - 10 DEG C

DELTA T - 15 DEG C

DELTA T - 20 DEG C

DELTA T - 25 DEG C

14

FAULT DIAGNOSIS FLOW CHART

SODA RECIRCULATION PUMP

Is the Soda

recirc Pump

Running

Is the Soda recirc

Pump electrical

connector plugged

into it's mating

socket.

Has the Soda Pump

been switched off

Switch pump on at

the switch on the

front panel

Are the Pump

isolation valves open

(Where fitted)

Is there flow of Soda

water around the

Python and at the

dispense head.

Disconnect the

pump head from the

motor and switch

back on

System is working

correctly

Check the Python lines

are clear from blockages

there are no kinks and

the coils within the bath

are not frozen

Clear Blockage,

unkink or replace

damaged pipe

De-ice coils and

rectify over -icing

problem

(Thermostat fault )

Open Isolation

Valves

Check for air locks

within the soda

recirc lines. Bleed
out at the dispense
head and re-prime.

Yes

No

No

Connect Soda Pump

to it's mating

connector

No

Yes

No

Yes

No

Does the motor run

Faulty pump motor.

Change motor.

No

Yes

No

Yes

Yes

Is there flow of Soda

water around the

Python and at the

dispense head.

System is working

correctly

Yes

Faulty pump head.

Change pump.

No

Yes

15

FAULT DIAGNOSIS FLOW CHART

AGITATOR MOTOR

System operating correctly

Plug the connector into

it's mating socket

Is the Agitator Motor

electrical connector

plugged into it's mating socket

Is the Agitator Motor

running

Can the Agitators shaft be

rotated by hand

Is the unit switched on

Agitator motor seized

Agitator motor electrical fault

Change the Motor

Switch the unit on

Change the Motor

No

No

Yes

No

Yes

Yes

No

Yes

16

FAULT DIAGNOSIS FLOW CHART

ICE BANK CONTROL

Is the

compressor

running

Is there a
power supply
to the control

board

Is the icebank

probe connected

Is there an

icebank

Are the coils frozen

into the ice and\or the

compressor does not

switch off

No

Internal wiring

fault

No

Disconnect

the probe

Is the ice probe
sensor covered

with ice

Does the

compressor

stop running

Reconnect

icebank probe

System OK

Replace PCB

board

Yes

No

No

Yes

Yes

No

Replace

Icebank probe

Yes

Yes

Short out the

probe contacts

Yes

Does the

Compressor

start

Probe contacts

need cleaning

or water in bath too pure.

Yes

Replace

Icebank probe

No

No Yes

17

FAULT DIAGNOSIS FLOW CHART

REFRIGERATION SYSTEM

IS

COMPRESSOR

RUNNING

Change

capacitor and

start relay

End

Faulty

compressor

No

Resite unit

Leave unit to

recover

Is the python length

excessive or exposed

to high temperatures

Check for

refrigerant

leaks

Re route

python and

resite unit

closer to

dispense point

Is there 240

volts at the

compressor

Follow

thermostat

fault guide

No

Yes

Has the unit

got an ice

bank

Is the Condense r
blocked or airflow

restricted

Is the

condenser fan

running

Faulty fan

motor or

wiring

connection

No

Yes

Is the unit sited in

an excessive

ambient

temperature

(40°C+)

Clean

condenser ,

ensure good

airflow

Yes

No

Yes

Has the unit been

subjected to heavy

product draw.

Is the

compressor

running

No

Yes

Yes

Repair

refrigerant

leak

Yes

Yes

Change

Compressor

Has the unit

got a full ice

bank

No

Unit cut out on

thermostat

Yes

AIR COOLED

UNITS

WATER

COOLED

UNITS

Has the unit

got an ice

bank

Yes

Are the coils frozen in

and\or the compressor

will not switch off

Yes

Faulty

thermostat

Yes

Are the coils frozen in

and\or the compressor

will not switch off

Yes

Faulty

thermostat

No

Yes

Is the Heat

Dump fan

running

Follow heat dump

fault guide

No

Is the glycol coolant

level correct and
is it recirculating

adequately

Yes

Follow Glycol

Module fault guide

No

Yes

No

No

No

Yes

No

Is the system fault

light on.

(WATER COOLED

ONLY)

No

No

Yes

18

FAULT DIAGNOSIS FLOW CHART

HEAT DUMP (WATER COOLED UNITS)

Is heat dump

fan running

Check for 24v
supply at the
socket on the
glycol module

Check for 24v

output at

transformer in

glycol module

Check for 240V on

input to

transformer

Internal wiring

fault between

transformer

and socket

Replace fan

motor

Clean radiator

matrix

Is the heat dump

sited in full sunlight or

near other heat
sources without

adequate ventilation

Re site heat

dump

Is the

condenser

matrix blocked

with debris

Is there 24V at
the heat dump

No

Yes

NO

Broken wire

betweenglycol

module and

heat dump

Yes

No

Yes

Replace

transformer

Yes

Internal wiring fault

or power supply

problem from base

unit

No

Yes

Yes

No

Yes

Is the glycol
recirculating

adequately

Refer to

Glycol Pump

fault guide

No

No

19

FAULT DIAGNOSIS FLOW CHART

GLYCOL MODULE (WATER COOLED UNITS)

IS THE

GLYCOL

PUMP

OPERATING

Check for 240v

supply at

connection

Plug pump into

connector

Top up to

maximum level

and check for

leaks

Faulty pump

motor

Internal wiring

fault or faulty
electrical feed
from base unit

Open shut off

valves

System O.K

Possible air lock in

system. Bleed air

lock out of system

and re-prime.

Is the heat dump

sited more than 12m

lift away from the

glycol module

Is the pump

plugged into its

mating connector

No

No

Yes

Yes

Is the glycol level

in the header tank

between Max and

Min marks

No

Yes

No

Is the glycol mixture

recirculating

adequately

Yes

Are the shut off

valves open on the

connections to the

pump

No

No

Yes

Yes

Ensure tubing is the correct
type (Cobracol) and ensure

pipes are not secured

together and are away from

heat sources.

Are the glycol lines

connecting the heat

dump blocked,

collapsed or restricted

in any way.

Clear blockage or

restriction

Yes

No

Is the glycol mixture

recirculating

adequately

System O.KYes

Faulty pump

No

No

Re-site heat dump

closer to glycol

module.

Yes

20

TECHNICAL DATA

FAULT DIAGNOSIS FLOW CHART

PRODUCT TOO WARM

IS THE COOLER

SWITCHED ON

Switch Cooler on

See Soda Recirculation

pump fault finding chart

Is the soda recirculation

pump working

Has the unit got an ice

bank

Allow the cooler to produce

a full ice bank before

dispensing product

Is the Agitator motor

running

See Agitator Motor fault

finding chart.

Has the propellor come off

the agitator shaft

No Yes

Yes

No

See refrigeration fault

finding chart.

No

No

Check the length and condition of the Python and the
installation in general. If the python insulation is damaged or
considered too thin for the installation it will need to be
replaced.
Check that the python does not exceed the run as statedin the
manual for the particular cooler. If it does the base unit must
be sited closer to the dispense head(s)
Check there are no external heat loads between the base unit
and the dispense head.(Python run in warm areas\ducting)
Check that the mains water temperature is not excesively high
and that the product is not stored in a high ambient area.

Replace propellorYes

Yes

Check for recirculation at

the dispense head (cold

pipes, condensation etc...)

Yes

Possible air lock in soda

recirc lines. Bleed out at the

dispense head, reprime.

No

Yes

No

21

Ccool 37FF

Mains supply 230 V / 50 Hz

Amps 17 amps

Watts 2620 watts

Refrigerant 1450g R134a

Water bath 110 litres

Ice weight 55 kg

Width 1060mm

Height 915 mm

Depth 720 mm

Weight (dry) 158 kg

22

Item
No.

Part Number Description

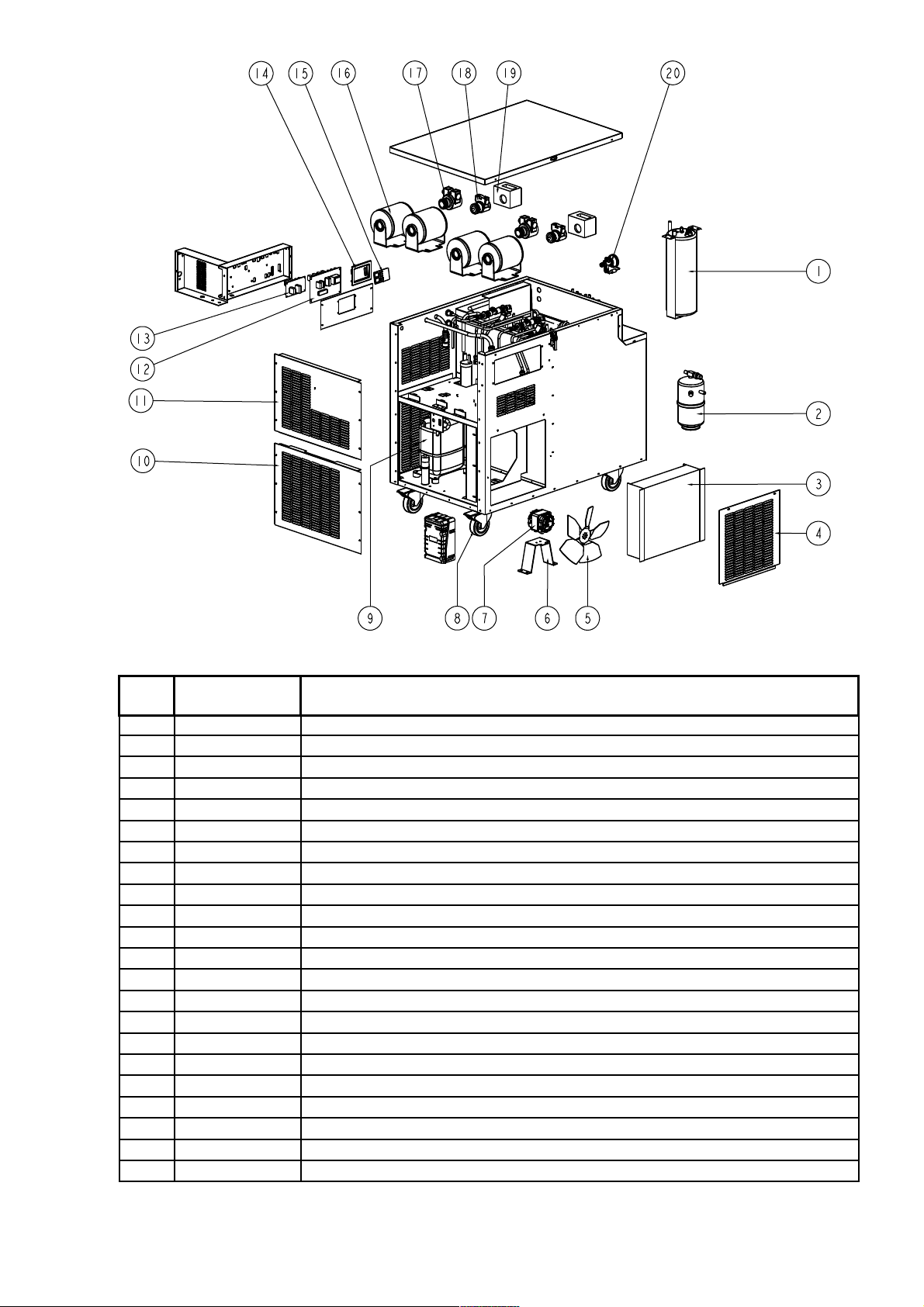

1 CB45950 CARBONATOR BOWL (6.2 LITRE)
2 OP74412 RECEIVER LR/CR-160
3 CN73348 CONDENSER COIL CU/AL
4 MM45387 FRONT GRILL
5 OP73504 SOLAR AIR IMPELLOR INTEGRAL (OP71769 – WATER COOLED)
6 PI46363 FAN MOTOR BRACKET (OP71740 - WATER COOLED)
7 MO72343 FAN MOTOR (MO46690 – WATER COOLED)
8 OP72975 BRAKED CASTOR
9 CM46450 32cc COMPRESSOR (Ccool 37 & Optima 1000) CM47168 (Optima 1500)
10 MM45034 REFRIGERATION END PANEL
11 MM45035 PUMP END PANEL
12 PI44199 MOTHERBOARD GLOBAL RANGE
13 PI45926 SLAVE BOARD
14 PI44142 MEMBRANE SWITCH HOUSING
15 PI44143 TOUCH PAD
16 MO74685 1/3 GE CARBONATOR MOTOR
17 PU70172-01 BRASS PROCON PUMP
18 PU70885-01 PROCON PUMP STAINLESS 300 LR
19 OP71436 PUMP INSULATION
20 OP73381 068-3348 TEV VALVE FOR 134A
21 MO72448 AGITATOR MOTOR (NOT SHOWN)
22 OP73646 PLATE HEAT EXCHANGER - WATER COOLED ONLY (NOT SHOWN)

23

Item
No.

Part Number Description

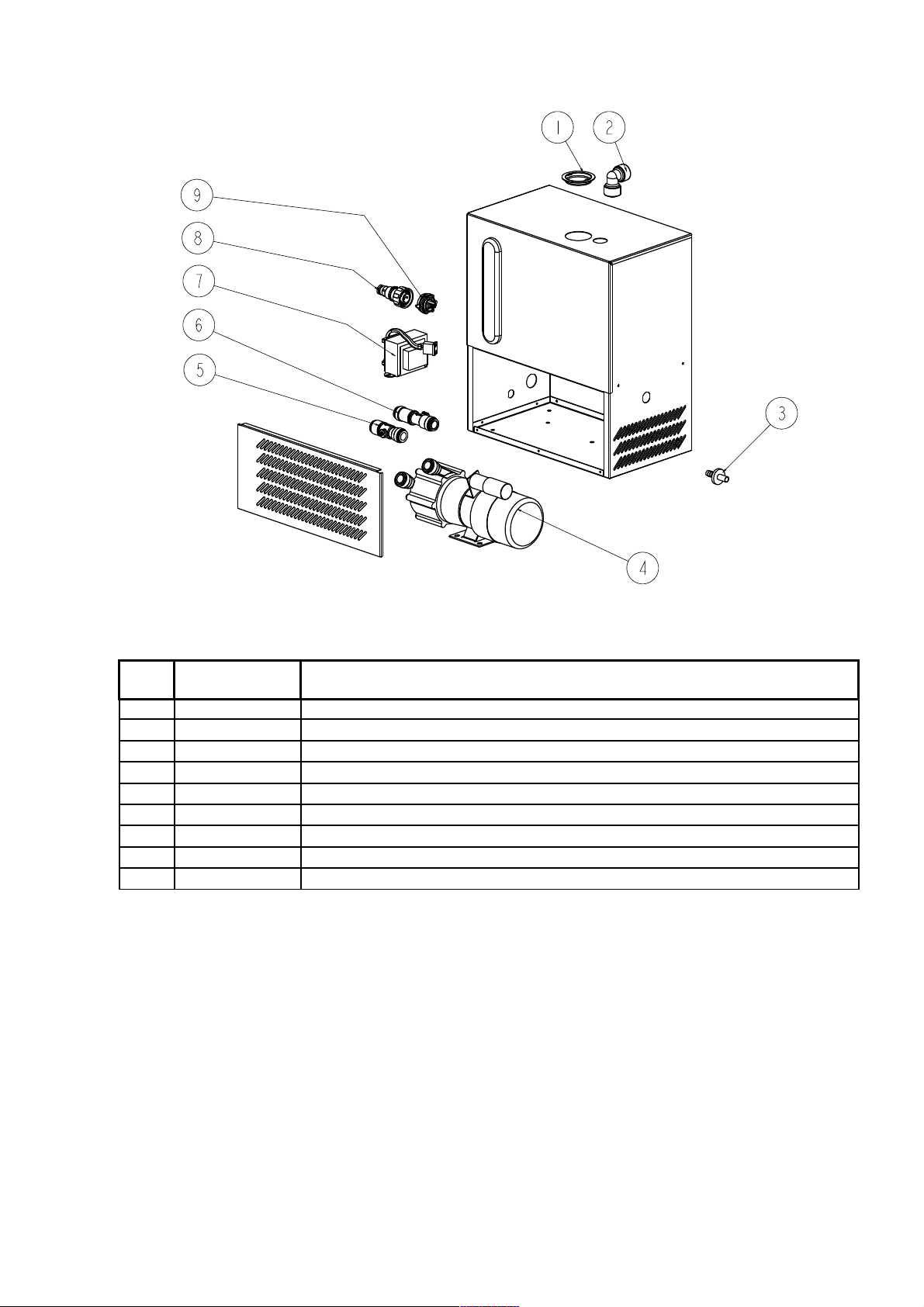

1 OP73718 FILLER PLUG
2 OP72094 15mm ACORN ELBOW
3 OP73630 BRASS TAIL
4 PU73602 3 STAGE MAG. DRIVE PUMP
5 OP73168 SHUT OFF VALVE
6 OP73326 CHECK VALVE
7 OP74396 TRANSFORMER
8 OP73829 SEALED PLUG – 2 WAY
9 OP73828 SEALED SOCKET – 2 WAY

24

Item
No.

Part Number Description

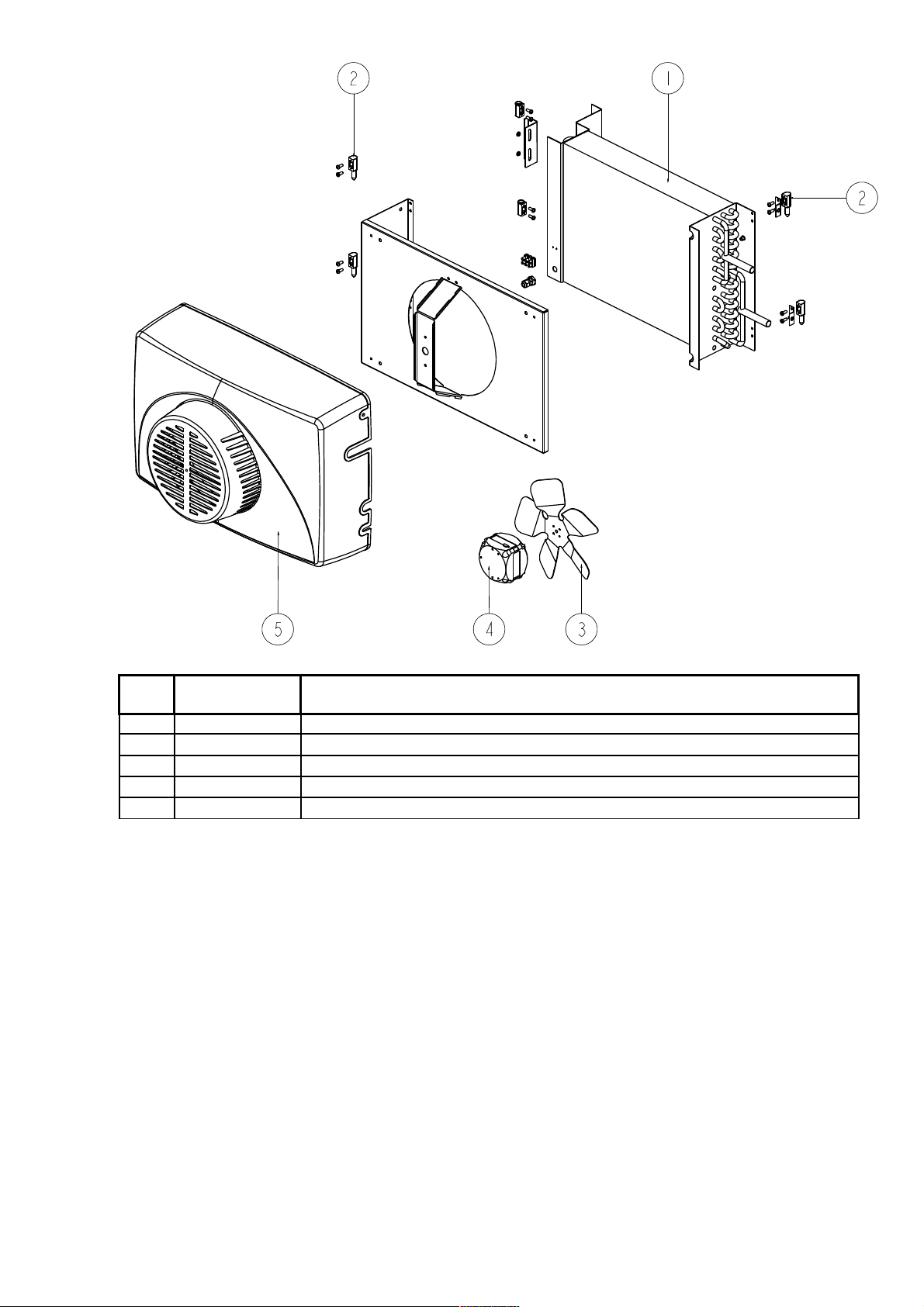

1 CN42674 3 ROW HEAT DUMP COIL
2 PI42728 IN-LINE HINGE
3 OP71769 10" SUCKER FAN BLADE
4 MO46688 25 WATT Q-MOTOR - EBM
5 PI45861 HEAT DUMP COWL VISION

25

SCOTSMAN BEVERAGE SYSTEMS LTD
CHANCEL WAY
HALESOWEN INDUSTRIAL PARK
HALESOWEN

WEST MIDLANDS

B62 8SE

ENGLAND

Tel: [phone]

Fax:[phone]

MANUAL REF: WDE INS 90 …….. ISSUE 1

DATE …………….. 09\10\01

26
