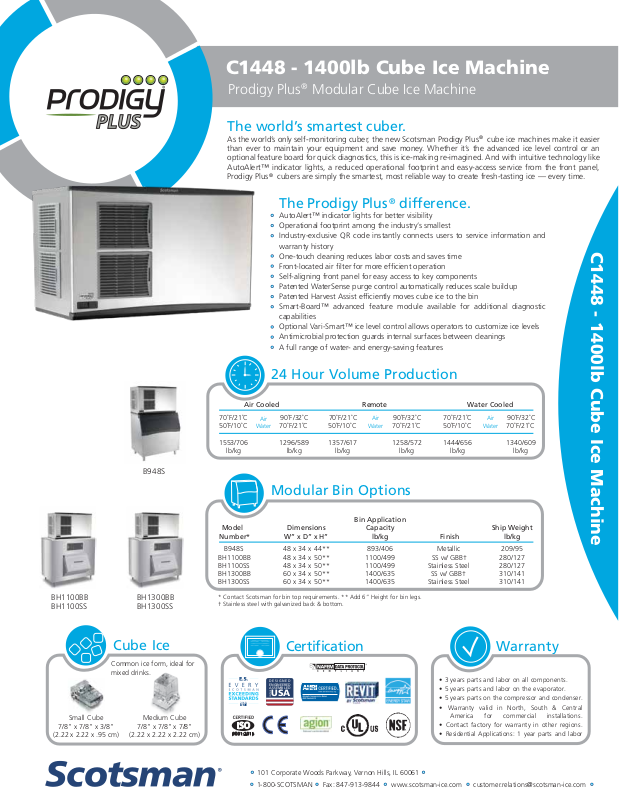

Scotsman C1448MW3, C1448SW3 Specifications

C1448 - 1400lb Cube Ice Machine

DESIGNED ENGINEERED ASSEMBLED

USA

IN THE

9001:2015

Prodigy Plus Modular Cube Ice Machine

B948S

The world’s smartest cuber.

As the world’s only self-monitoring cuber, the new Scotsman Prodigy Plus cube ice machines make it easier than ever to maintain your equipment and save money. Whether it’s the advanced ice level control or an optional feature board for quick diagnostics, this is ice-making re-imagined. And with intuitive technology like AutoAlert™ indicator lights, a reduced operational footprint and easy-access service from the front panel, Prodigy Plus cubers are simply the smartest, most reliable way to create fresh-tasting ice — every time.

The Prodigy Plus difference.

AutoAlert™ indicator lights for better visibility Operational footprint among the industry’s smallest Industry-exclusive QR code instantly connects users to service information and warranty history One-touch cleaning reduces labor costs and saves time Front-located air ﬁlter for more efﬁcient operation Self-aligning front panel for easy access to key components Patented WaterSense purge control automatically reduces scale buildup Patented Harvest Assist efﬁciently moves cube ice to the bin Smart-Board™ advanced feature module available for additional diagnostic capabilities Optional Vari-Smart™ ice level control allows operators to customize ice levels Antimicrobial protection guards internal surfaces between cleanings A full range of water- and energy-saving features

24 Hour Volume Production

Air Cooled Water Cooled

70˚F/21˚C

50˚F/10˚C

1553/706

lb/kg

Air

Water

90˚F/32˚C

70˚F/21˚C

1296/589

lb/kg

70˚F/21˚C

50˚F/10˚C

1357/617

lb/kg

Remote

Air

Water

90˚F/32˚C

70˚F/21˚C

1258/572

lb/kg

70˚F/21˚C

50˚F/10˚C

1444/656

lb/kg

Air

Water

90˚F/32˚C

70˚F/21˚C

1340/609

lb/kg

C1448 - 1400lb Cube Ice Machine

BH1100BB BH1300BB BH1100SS

BH1300SS

Cube Ice

Common ice form, ideal for mixed drinks.

Small Cube

7/8” x 7/8” x 3/8”

(2.22 x 2.22 x .95 cm)

Medium Cube

7/8” x 7/8” x 7/8”

(2.22 x 2.22 x 2.22 cm)

Modular Bin Options

Bin Application

Model

Number*

B948S 48 x 34 x 44** 893/406 Metallic 209/95 BH1100BB 48 x 34 x 50** 1100/499 SS w/ GBB† 280/127 BH1100SS 48 x 34 x 50** 1100/499 Stainless Steel 280/127 BH1300BB 60 x 34 x 50** 1400/635 SS w/ GBB† 310/141 BH1300SS 60 x 34 x 50** 1400/635 Stainless Steel 310/141

* Contact Scotsman for bin top requirements. ** Add 6” Height for bin legs. † Stainless steel with galvanized back & bottom.

Dimensions

W” x D” x H”

Capacity

lb/kg Finish

Certification

• 3 years parts and labor on all components.

• 5 years parts and labor on the evaporator.

2018

DOE

101 Corporate Woods Parkway, Vernon Hills, IL 60061

1-800-SCOTSMAN Fax: 847-913-9844 customer.relations@scotsman-ice.comwww.scotsman-ice.com

• 5 years parts on the compressor and condenser.

• Warranty valid in North, South & Central America for commercial installations.

• Contact factory for warranty in other regions.

• Residential Applications: 1 year parts and labor

Ship Weight

lb/kg

Warranty

C1448 - 1400lb Cube Ice Machine

Prodigy Plus Modular Cube Ice Machine

45.7

18.00

3/8" FPT

WATER

INLET

EXHAUST AIR

18.00

45.7

.88 DIA

ELECTRICAL

ACCESS

3/4" FPT

DRAIN

117.2

46.15

WATER COOLED BACK VIEW

3/4" FPT

DRAIN

7.5

2.96

3/8" FPT

WATER

INLET

117.2

46.15

AIR COOLED

BACK VIEW

61.4

24.18

63.3

24.91

63.3

24.91

11.7

4.61

14.3

5.64

.88 DIA

ELECTRICAL

ACCESS

61.4

24.18

3/8" FPT

CONDENSER

WATER INLET

52.1

20.53

55.9

22.03

6.8

2.68

1/2" FPT

CONDENSER DRAIN

20.59

52.3

3/8" FPT

WATER

INLET

18.00

7.5

2.96

.88" DIA

ELECTRICAL

ACCESS (2)

45.7

INTAKE AIR

3/8” REMOTE CONDENSER LIQUID LINE

117.2

46.15

61.4

24.18

3/4" FPT

7.5

DRAIN

2.96

REMOTE COOLED

BACK VIEW

REFRIGERATION

1.27

AND ELECTRICAL CHASE

24.00

LEFT SIDE VIEW

24.91

11.83

63.3

21.1

8.31

2.3 .92

15.5

6.11

62.5

24.61

52.3

22.84

20.59

INTAKE AIR

73.7

29.00

2.4 .93

LOUVER AND

REMOVABLE FILTER

AC UNITS ONLY

1/2” REMOTE CONDENSER DISCHARGE LINE

18.30

57.8

22.75

MINIMUM BIN

TOP OPENING

24.5

9.63

46.5

ICE DROP OPENING

48.00

REF.

PLAN VIEW

123.7

48.70

121.9

48.00

FRONT VIEW

Specifications

Water Usage

Model Number*

Cube Size: medium or small

C1448MA-32 C1448MA-3 Air 208-230/60/3 30 3 13.6 4.25 18.0/68.3 C1448MR-32 C1448MR-3 Remote 208-230/60/3 30 3 12.9 4.34 18.0/68.3 C1448MW-32 Water 208-230/60/1 30 2 16.0 3.70 18.0/68.3 100.0/379.5 C1448MW-3 Water 208-230/60/3 30 3 11.9 3.70 18.0/68.3 100.0/379.5

C1448SA-32 C1448SA-3

sm.med.

C1448SR-32 C1448SR-3 C1448SW-32 C1448SW-3

Condenser

Unit

Remote

Remote Remote 208-230/60/3 30 3 12.9 4.34 18.0/68.3 -

Water 208-230/60/1 30 2 16.0 3.70 18.0/68.3 100.0/379.5 Water 208-230/60/3 30 3 11.9 3.70 18.0/68.3 100.0/379.5

Basic Electrical Volts/Hz/Phase

Air

208-230/60/1

Air Air 208-230/60/3 30 3 13.6 4.25 18.0/68.3 -

208-230/60/1

or HACR Circuit Breaker (amps)

Circuit

Wires

Min. Circuit

Ampacity

17.7

17.0

17.7

17.0

Max. Fuse Size

Energy Consumption kWh/100 lb (45.4 kg) 90˚F(32˚C)/70˚F(21˚C)

4.25

4.34

4.25

4.34

Gallons/100 lb (liters/45.4 kg)

Potable Condenser

90˚F(32˚C)/70˚F(21˚C)

18.0/68.3

5.1

2.00

22.9

9.00

24.00

REF.

Energy

Star

All Models Accessories

C1448 - 1400lb Cube Ice Machine

Dimensions (W x D x H):

Unit:

Shipping Carton:

Shipping Weight:

345 lb / 157 kg

Refrigerant: R-404A

1-800-SCOTSMAN Fax: 847-913-9844 customer.relations@scotsman-ice.comwww.scotsman-ice.com

48” x 24” x 29” (121.9 x 61.0 x 73.7 cm)

52” x 27” x 35” (132.1 x 68.6 x 88.9 cm)

BTUs per hour:

20,000

101 Corporate Woods Parkway, Vernon Hills, IL 60061

Model Number Description

KVS KSBU KSBU-N

BRTE10 BRTE25 BRTE40 BRTE75 KPAS

Scotsman recommends all ice machines have water ﬁltration. See Scotsman water ﬁlter speciﬁcation sheet for details.

Air Temperatures Water Temperatures Remote Cond. Temps Water Pressures Electrical Voltage

Speciﬁcations and design are subject to change without notice.

Vari-Smart™ Ice Level Control Smart-Board™ Advanced Control Smart-Board™ Advanced Control with Network Remote condenser for C1448xR, 208-230/60/1 -ERC311-32 10ft (3.0 m) line set, brazing required 25ft (7.6 m) line set, brazing required 40ft (12.2 m) line set, brazing required 75ft (22.9 m) line set, brazing required Prodigy Advanced Sustainability Kit - Includes KVS and KSBU - N

Program ice bin l evels to match ice needs.

Use additional operational da ta for fast diag nosis.

Network capable.

Consult remote condenser spec sheet for details

Operating Requirements

Minimum

50°F (10°C) 40°F (4.4°C)

-20°F (-29°C) 20 PSIG (1.4 bar)

-5%

Maximum

100°F (38°C) 100°F (38°C) 120°F (49°C) 80 PSIG (5.5 bar) +10%
