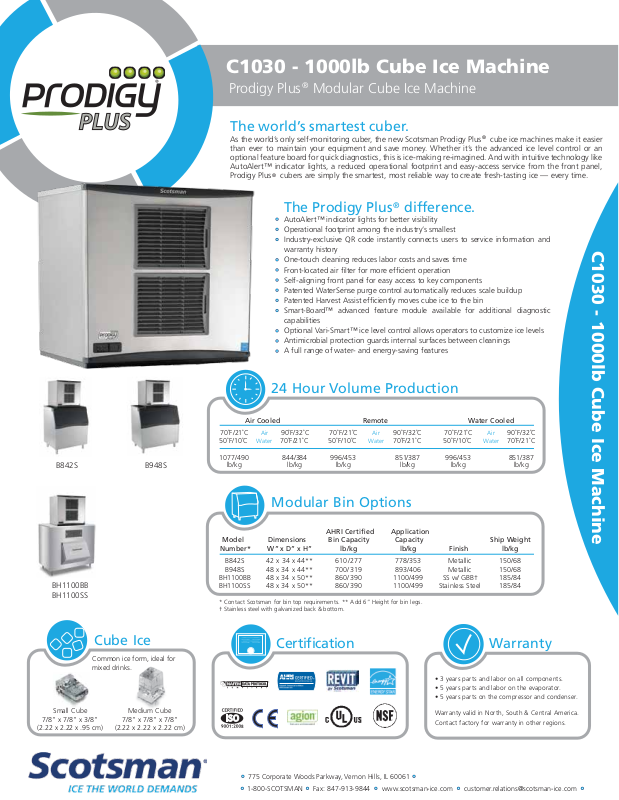

Scotsman C1030 Specification
C1030 - 1000lb Cube Ice Machine
®
Prodigy Plus Modular Cube Ice Machine
®
PLUS
The world’s smartest cuber.
As the world’s only self-monitoring cuber, the new Scotsman Prodigy Plus cube ice machines make it easier
than ever to maintain your equipment and save money. Whether it’s the advanced ice level control or an
optional feature board for quick diagnostics, this is ice-making re-imagined. And with intuitive technology like
AutoAlert™ indicator lights, a reduced operational footprint and easy-access service from the front panel,
Prodigy Plus cubers are simply the smartest, most reliable way to create fresh-tasting ice — every time.
®
The Prodigy Plus difference.
AutoAlert™ indicator lights for better visibility
Operational footprint among the industry’s smallest
Industry-exclusive QR code instantly connects users to service information and
warranty history
One-touch cleaning reduces labor costs and saves time
Front-located air filter for more efficient operation
Self-aligning front panel for easy access to key components
Patented WaterSense purge control automatically reduces scale buildup
Patented Harvest Assist efficiently moves cube ice to the bin
Smart-Board™ advanced feature module available for additional diagnostic
capabilities
Optional Vari-Smart™ ice level control allows operators to customize ice levels
Antimicrobial protection guards internal surfaces between cleanings
A full range of water- and energy-saving features
®
®
C1030 - 1000lb Cube Ice Machine
24 Hour Volume Production
B842S
BH1100BB
BH1100SS
Cube Ice
Common ice form, ideal for
mixed drinks.
Small Cube
7/8” x 7/8” x 3/8”
(2.22 x 2.22 x .95 cm)
B948S
Medium Cube
7/8” x 7/8” x 7/8”
(2.22 x 2.22 x 2.22 cm)
Air Cooled Water Cooled
70˚F/21˚C
50˚F/10˚C
1077/490
lb/kg
Air
Water
90˚F/32˚C
70˚F/21˚C
844/384
lb/kg
70˚F/21˚C
50˚F/10˚C
996/453
lb/kg
Remote
Air
Water
90˚F/32˚C
70˚F/21˚C
851/387
lb/kg
70˚F/21˚C
50˚F/10˚C
996/453
lb/kg
Air
Water
90˚F/32˚C
70˚F/21˚C
851/387
Modular Bin Options
AHRI Certified
Model
Number*
B842S 42 x 34 x 44** 610/277 778/353 Metallic 150/68
B948S 48 x 34 x 44** 700/319 893/406 Metallic 150/68
BH1100BB 48 x 34 x 50** 860/390 1100/499 SS w/ GBB† 185/84
BH1100SS 48 x 34 x 50** 860/390 1100/499 Stainless Steel 185/84
* Contact Scotsman for bin top requirements. ** Add 6” Height for bin legs.
† Stainless steel with galvanized back & bottom.
Dimensions
W” x D” x H”
Bin Capacity
lb/kg
Certification
8
Application
Capacity
lb/kg Finish
• 3 years parts and labor on all components.
• 5 years parts and labor on the evaporator.
• 5 years parts on the compressor and condenser.
Warranty valid in North, South & Central America.
Contact factory for warranty in other regions.
Ship Weight
lb/kg
Warranty
lb/kg
775 Corporate Woods Parkway, Vernon Hills, IL 60061
1-800-SCOTSMAN Fax: 847-913-9844 customer.relations@scotsman-ice.comwww.scotsman-ice.com
C1030 - 1000lb Cube Ice Machine
Prodigy Plus Modular Cube Ice Machine
®
43.5
17.14
3/8" FPT
CONDENSER
WATER INLET
12.4
4.87
1/2" FPT
CONDENSER
DRAIN
WATER COOLED
BACK VIEW
EXHAUST
AIR
11.7
4.62
3.7
1.48
15.4
6.07
AIR COOLED
BACK VIEW
5.6
2.22
3/8" FPT
WATER
INLET
5.4
2.12
3/8" FPT
WATER
INLET
13.47
34.2
.88" DIA
ELECTRICAL
ACCESS
20.59
7.8
3.07
3/4" FPT
DRAIN
REMOTE CONDENSER
DISCHARGE LINE
1/2 MALE CPLG.
REMOTE CONDENSER
LIQUID LINE
3/8 MALE CPLG.
52.3
4.4
1.73
62.9
24.76
4.3
1.70
.88" DIA
ELECTRICAL
ACCESS
3/4" FPT
DRAIN
3.7
1.48
34.1
13.44
7.8
3.06
61.1
24.06
20.56
52.2
REMOTE COOLED
BACK VIEW
3/8" FPT
WATER
INLET
LEFT SIDE VIEW
17.35
44.1
24.00
35.1
13.81
5.3
2.10
61
5.6
.88" DIA
2.20
ELECTRICAL
ACCESS (2)
15.5
6.11
52.3
20.59
34.2
13.47
7.8
3.8
1.48
3.07
3/4" FPT
DRAIN
INTAKE
AIR
73.7
29.00
FRONT VIEW
ULTRASONIC
BIN LEVEL
SENSOR
(OPTIONAL)
17.8
7.00
30.00
PLAN VIEW
77.99
30.70
76.2
30.00
REF.
LOUVERS AND
REMOVABLE FILTERS
AC UNITS ONLY
26
10.25
ICE DROP OPENING
Specifications
Water Usage
Model Number
Cube Size: medium or small
C1030MA-32
C1030MR-32
Condenser
Unit
Air
Remote
Basic Electrical
Volts/Hz/Phase
208-230/60/1
208-230/60/1
Max. Fuse Size
or HACR Circuit
Breaker (amps)
20
20
Circuit
Wires
2
2
Min. Circuit
Ampacity
16.0
15.8
Energy Consumption
kWh/100 lb (45.4 kg)
90˚F(32˚C)/70˚F(21˚C)
5.0
5.0
C1030MW-32 Water 208-230/60/1 15 2 14.8 4.4 19.7/74.7 153.0/580.1
C1030SA-32
sm.med.
C1030SR-32
C1030SW-32
C1030SR-3
Air
Remote
Water 208-230/60/1 15 2 14.8 4.4 19.7/74.7 153.0/580.1
Remote 208-230/60/3 15 3 10.8 5.0 18.2/69.0 -
208-230/60/1
208-230/60/1
20
20
2
16.0
2
15.8
5.0
5.0
Gallons/100 lb (liters/45.4 kg)
Potable Condenser
90˚F(32˚C)/70˚F(21˚C)
18.4/69.8
18.2/69.0
18.4/69.8
18.2/69.0
2.00
48.4
19.05
-
-
-
-
8.3
3.25
5.1
5.1
2.00
24.00
REF.
Energy
®
Star
All Models Accessories
C1030 - 1000lb Cube Ice Machine
Dimensions (W x D x H):
Unit:
30” x 24” x 29”
(76.2 x 61.0 x 73.7 cm)
Shipping Carton:
Shipping Weight:
235 lb / 107 kg
33.5” x 27.5” x 34”
(85.1 x 69.9 x 86.4 cm)
BTUs per hour:
16,200
Refrigerant: R-404A
775 Corporate Woods Parkway, Vernon Hills, IL 60061
1-800-SCOTSMAN Fax: 847-913-9844 customer.relations@scotsman-ice.comwww.scotsman-ice.com
Model Number Description
KVS
KSBU
KSBU-N
KPAS
Scotsman recommends all ice machines have water filtration. See Scotsman water filter specification sheet for details.
Air Temperatures
Water Temperatures
Remote Cond. Temps
Water Pressures
Electrical Voltage
Specifications and design are subject to change without notice.
Vari-Smart™ Ice Level Control Smart-Board™ Advanced Control Smart-Board™ Advanced Control with Network Remote condenser for C1030xR, 208-230/60/1 -ERC311-32
Line set, precharged, R-404A, 10ft.RTE10
Line set, precharged, R-404A, 25ft.RTE25
Program ice bin l evels to match i ce needs.
Use additional operational da ta for fast diagnosis.
Network capable.
Consult remote condenser spec sheet for details
Line set, precharged, R-404A, 40ft.RTE40
Line set, precharged, R-404A, 75ft.RTE75
Prodigy Advanced Sustainability Kit - Includes KVS and KSBU - N
Operating Requirements
Minimum
50°F (10°C)
40°F (4.4°C)
-20°F (-29°C)
20 PSIG (1.4 bar)
-5%
Maximum
100°F (38°C)
100°F (38°C)
120°F (49°C)
80 PSIG (5.5 bar)
+10%
