Installation and User’s Manual for
Modular Cuber
Prodigy Plus D Series Models C0322, C0522,
C0722, C0330, C0530, C0630, C0830 and C1030
C0322 through C1030 D Series
Air and Water Cooled User Manual
Introduction
The design of this modular cuber is the result of years
of experience and testing. Standard features include
front accessible indicator lights and on-off switches
that provide the user with fast access to critical
information and easy operational control.
Keep this manual for future reference.
Contents
Installation: Product Specications . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . Page 2
Model Number Description . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . Page 3
Product Description & Electrical Requirements . . . . . . . . . . . . . . . . . . . . . . . . . . . . Page 4
C0322 and C0522 Cabinet Layout . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . Page 5
C0722 Cabinet Layout . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . Page 6
C0330, C0530, C0630 Cabinet Layout . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . Page 7
C0830 and C1030 Cabinet Layout . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . Page 8
Water . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . Page 9

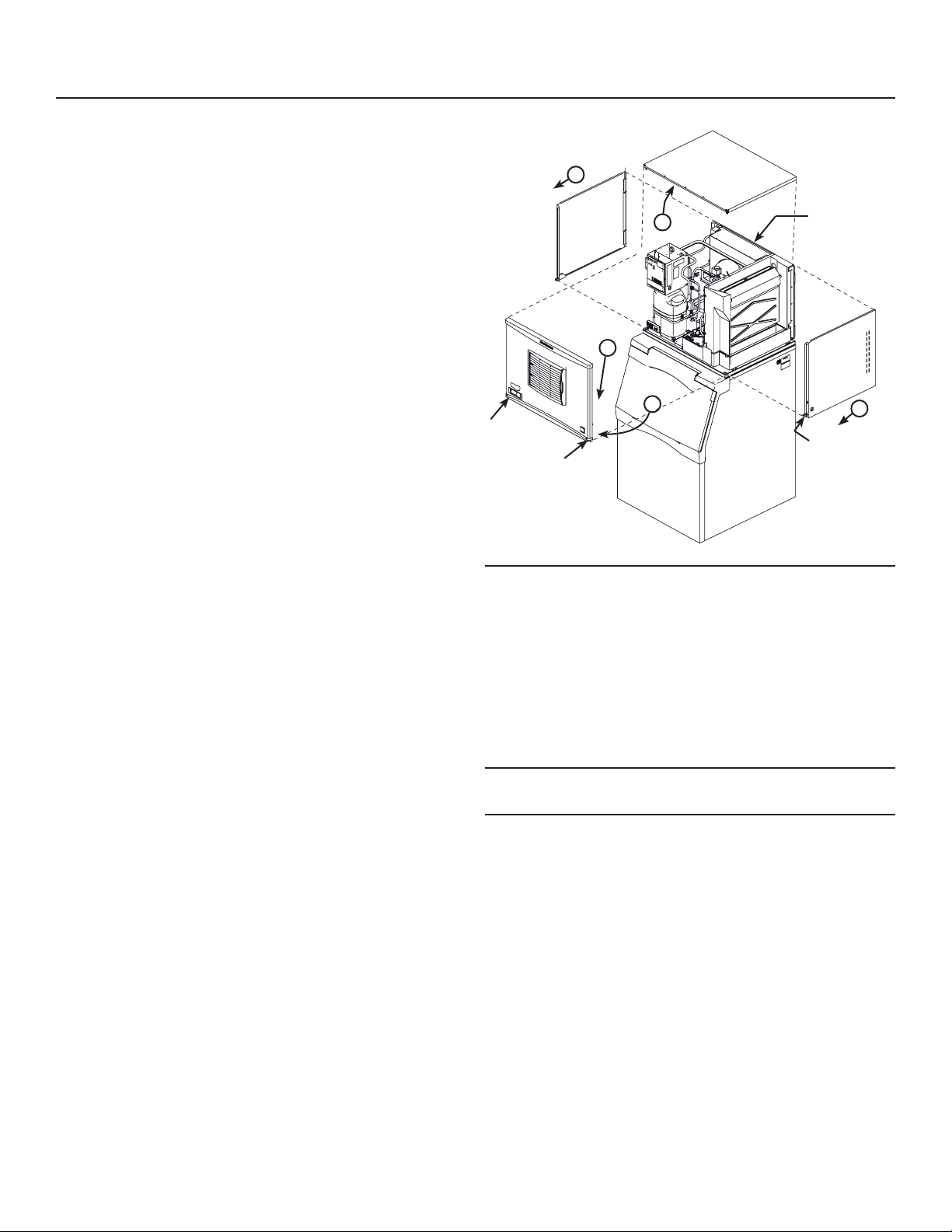

Panel Removal . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . Page 10
This installation and user manual is divided into
three main sections: Installation, which provides
the trade person with the information needed to
set up and install this product; Use and Operation,
which provides the user with the information to use
the product; and Maintenance, which provides the
user with the information needed keep it operating
efciently.

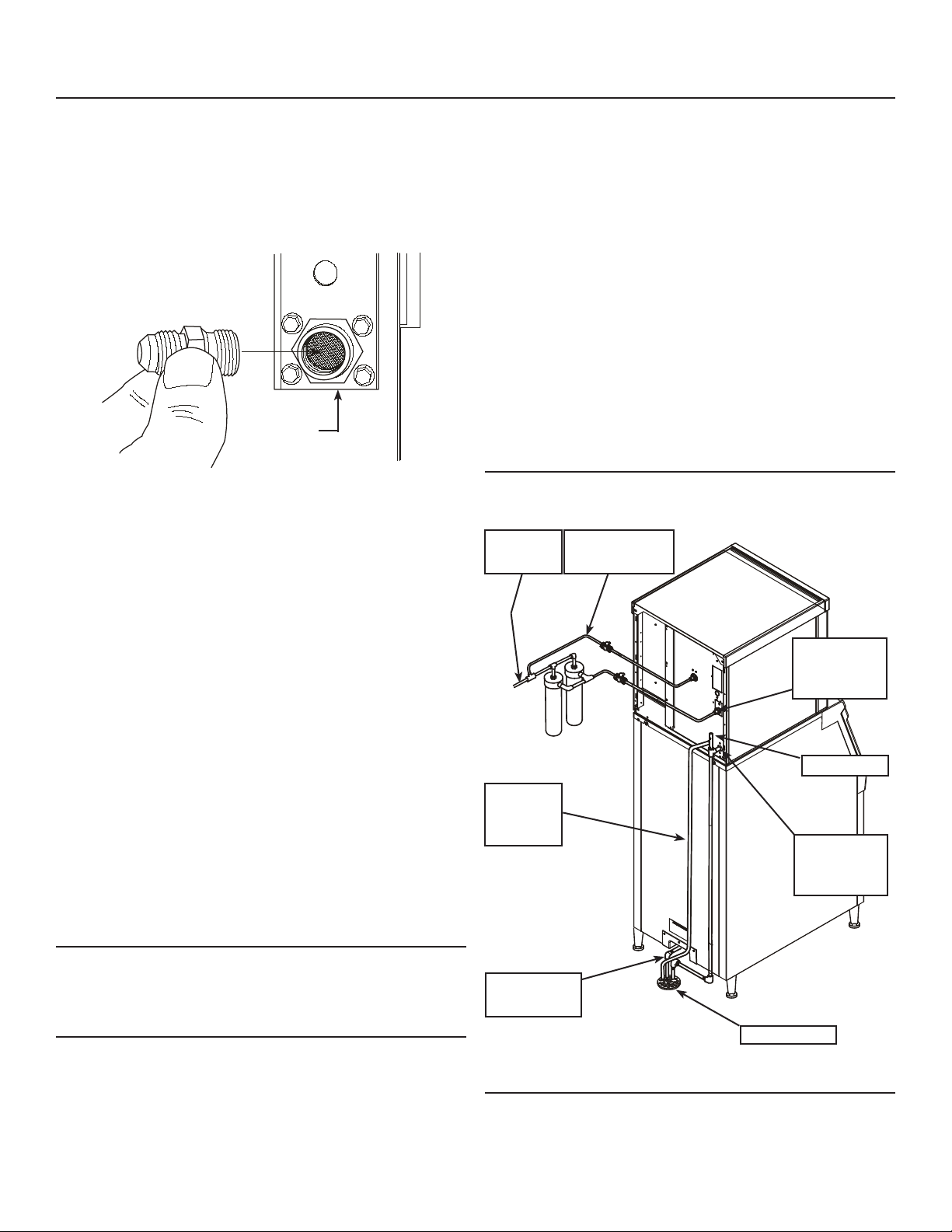

Plumbing Requirements . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . Page 11
Electrical . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . Page 12
Final Check List . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . Page 13
Initial Start Up . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . Page 14

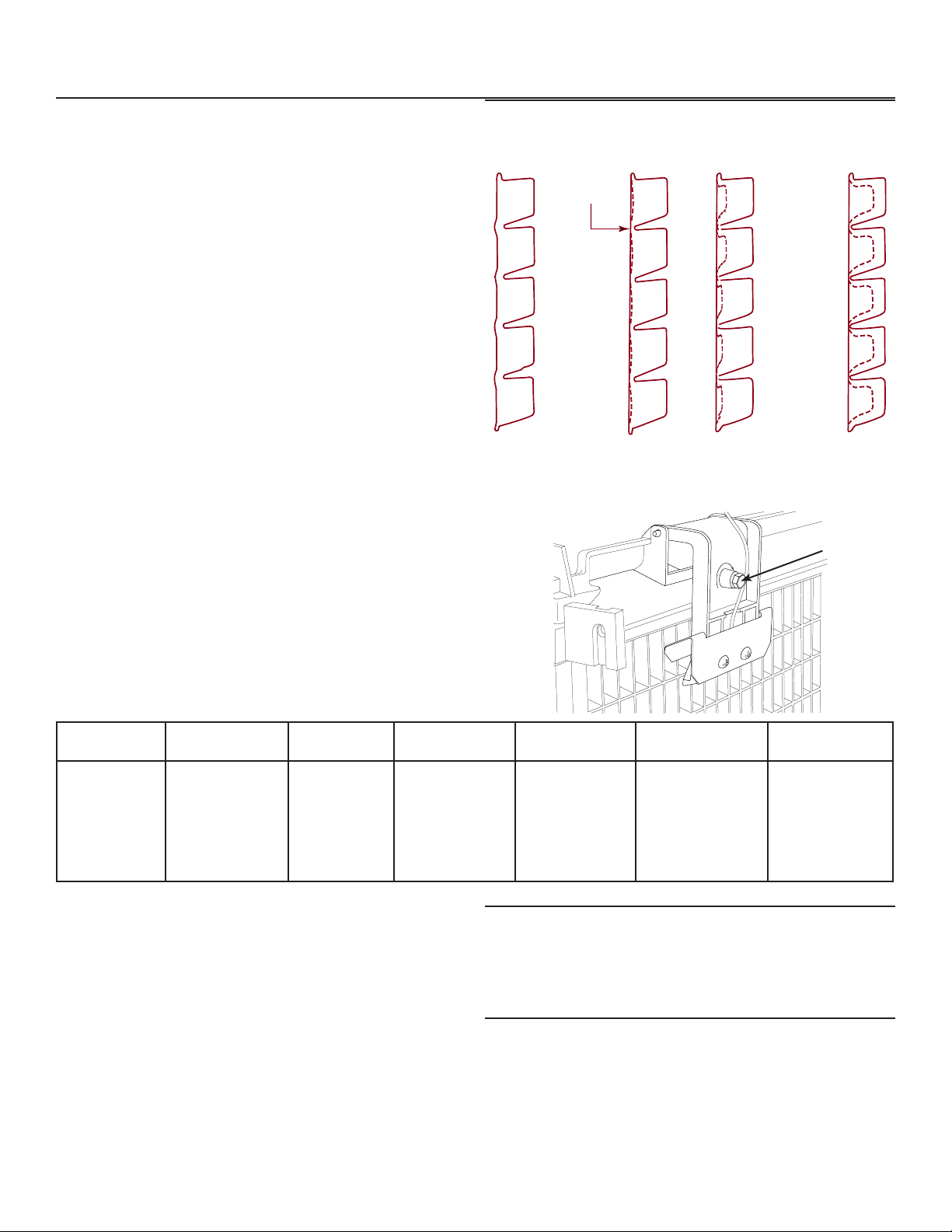

Adjustments . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . Page 15
Use and Operation . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . Page 16

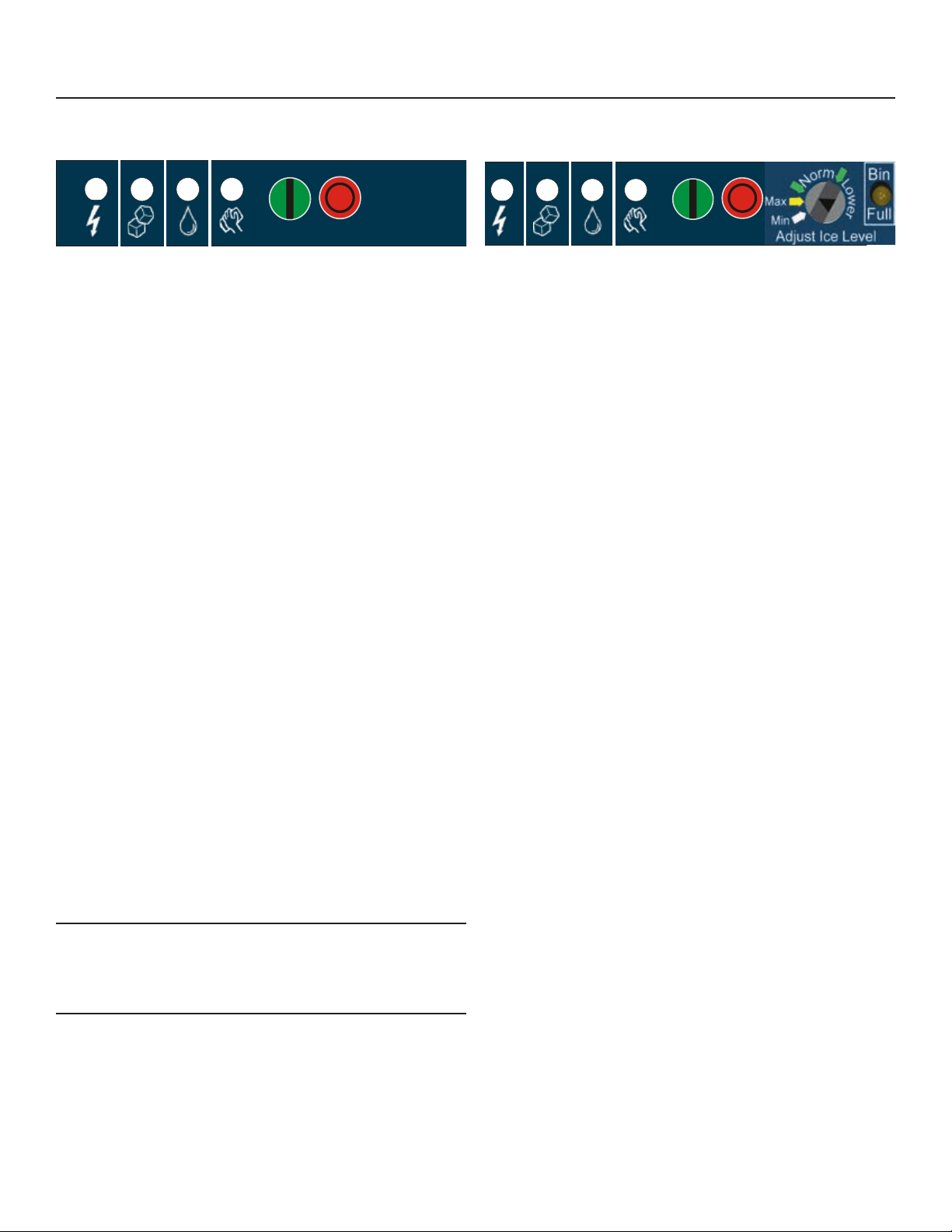

Control Switches. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . Page 17

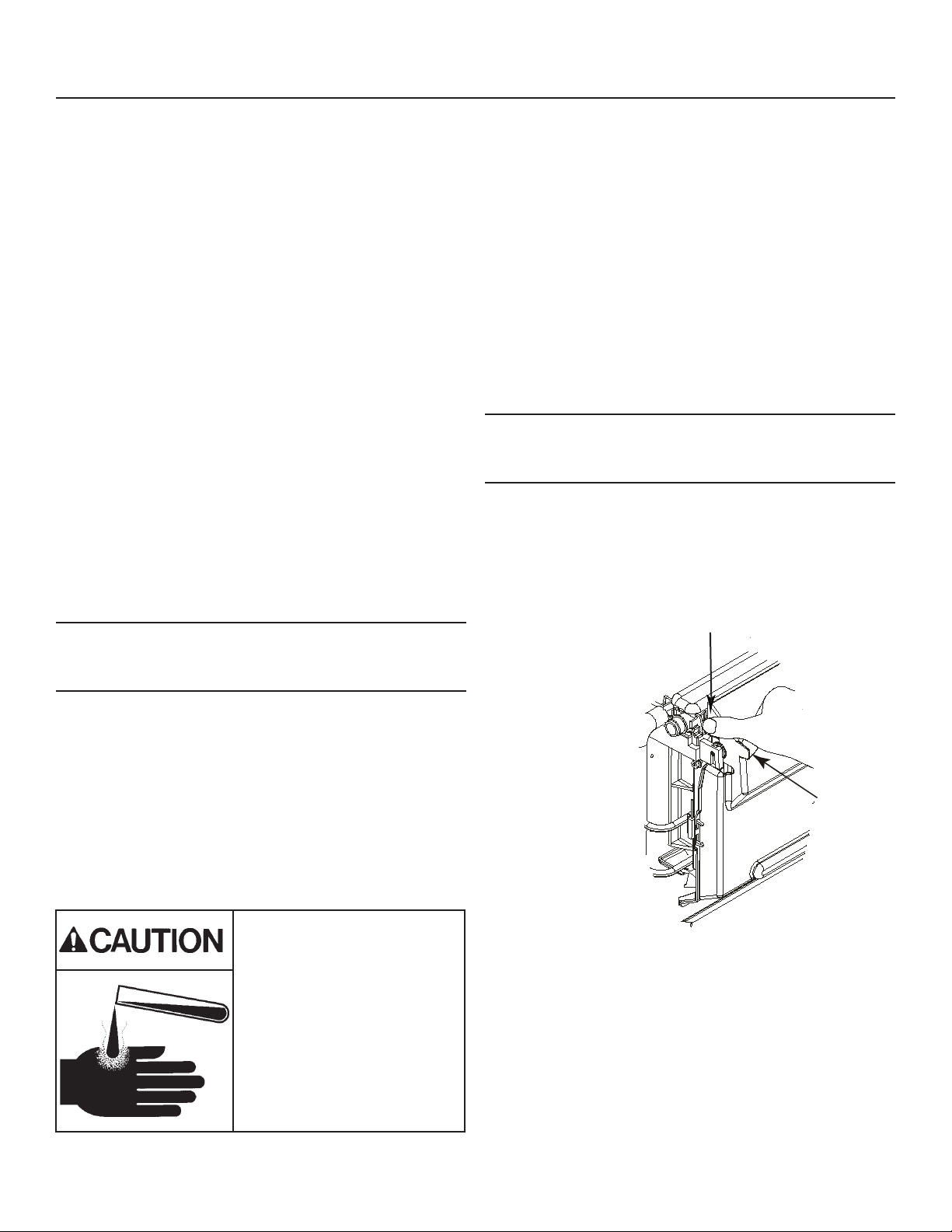

Cleaning, Sanitation and Maintenance . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . Page 18

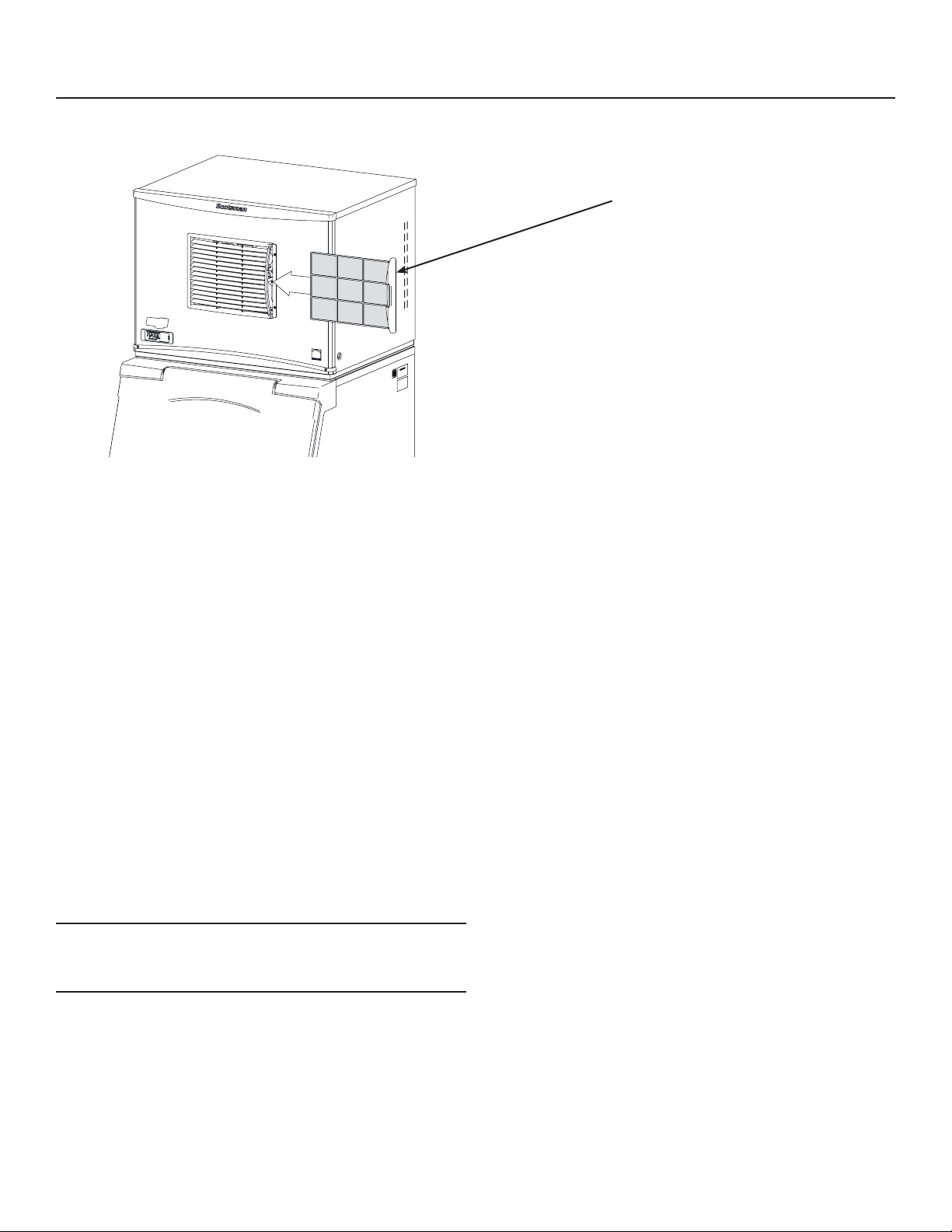

Air cooled condenser lter . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . Page 20
What to do before calling for service . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . Page 21
Note any Caution or Warning symbols when they
appear on the product or in this manual. They indicate
potential hazards.
December 2014
Page 1
C0322 through C1030 D Series
Air and Water Cooled User Manual
Installation: Product Specications
Location Limitations:
The product is designed to be installed indoors, in a
controlled environment. Air cooled models discharge
very warm air into the room out the back. Space must
be allowed at the sides and back for air discharge.
Water cooled models discharge warm water into the
building’s drain.
Space needs to be provided on both sides and above
for service access.
Space Limitations
Note: Although the machine will function, ice capacity
of air cooled machines will be signicantly reduced
with minimal clearance at the sides, back and top.
Some space is recommended for service and
maintenance purposes on all models. 6" of space
at the sides and back are required for adequate
operation. To get the most capacity, locate the
machine away from heat producing appliances and
heating ducts, and allow 12-18 inches of space at
the sides and top for good air ow.
Airow is in the front, out the back. Attach a bafe kit
to the back when an air cooled unit is installed with
minimal side and top clearance. See the next page for
kit numbers.
Environmental Limitations
Minimum Maximum
Air temperature 50
Water temperature 40
o
F. 100oF.
o
F. 100oF.
Water pressure 20 psi 80 psi
Power supply – acceptable voltage ranges
Minimum Maximum
115 volt model 104 volts 126 volts
230 volt model 198 volts 253 volts
Warranty Information
The warranty statement for this product is provided
separately from this manual. Refer to it for applicable
coverage. In general warranty covers defects
in material or workmanship. It does not cover
maintenance, corrections to installations, or situations
when the machine is operated in circumstances that
exceed the limitations printed above.
Product Information
The product is a modular cuber. That type of machine
is designed to be placed on an ice storage bin or
an ice dispenser. Many installations only require the
matching bin, but some also require an adapter to
be placed between the bin and the cuber or between
the dispenser and the cuber. This product cannot be
stacked. See the chart for application information.
Air Flow
December 2014
Page 2
C0322 through C1030 D Series
Air and Water Cooled User Manual
Model Number Description
Example:
• C0322SA-1D
• C= cuber
• 03= nominal ice capacity in 100s of pounds
• 22= nominal width of cabinet
• S= Cube size. S=small or half dice cube.
M=medium or full dice cube
• A=Condenser type. A=air cooled. W=water cooled
• -1=115 60 Hz, -32=208-230 60 Hz, -3= 208-230 3
phase 60 Hz
• D=Series revision code.
Note: Listed model numbers typically include only the
rst ve characters of the model number.
Options:
There are several eld-installed options that can be
installed at initial start up or later. They include:
• KVS, Vari-Smart Adjustable ice level system.
• KSB, SmartBoard Advanced feature board.
Some installations require bin or dispenser adapters.
Hotel Dispensers
The HD22 and HD30 are compatible with this ice
machine, no adapters are needed. Some typical
combinations include:
• HD22 – use with C0322 or C0522
• HD30 – use with C0330 or C0530
Ice and Beverage Dispensers – Adapter
information
Model ID150 ID200 or ID250
C0322, C0522,
KBT42 KBT43
C0722
C0530, C0630,
Does not t KBT44
C0830, C1030
Other Bins & Applications:
Note the drop zone and ultrasonic sensor locations in
the illustrations on the next pages. A bin or dispenser
top must accommodate their locations.
See sales literature for additional applications and
specialized kits.
Standard Bin Applications - Adapter information.
Model B222
B322
C0322,
C0522,
C0722
C0530,
C0630,
C0830,
C1030
Direct t KBT27 Not
Does not tDirect t KBT28 KBT22
B530P,
B330P,
B530S,
B842S B948S
Not
available
available
Scotsman ice systems are designed and
manufactured with the highest regard for safety and
performance.
Scotsman assumes no liability of responsibility of
any kind for products manufactured by Scotsman
that have been altered in any way, including the use
of any part and/or other components not specically
approved by Scotsman.
Scotsman reserves the right to make design changes
and/or improvements at any time. Specications and
design are subject to change without notice.
August 2016
Page 3
C0322 through C1030 D Series
Air and Water Cooled User Manual
Product Description & Electrical Requirements
Dimensions w" x d" x h" Model Series Electrical
volts/Hz/
phase
C0322SA-1 D 115/60/1 Air 12.7 15
C0322SW-1 D 115/60/1 Water 11.9 15
C0322MA-32 D 208-230/60/1 Air 6.1 15
22.6** x 24 x 23
30.6** x 24 x 23
22.6** x 24 x 29 C0722SA-32 D 208-230/60/1 Air 10 15
30.6** x 24 x 29
C0522SA-1 D 115/60/1 Air 13.8 15
C0522SW-1 D 115/60/1 Water 12.2 15
C0522SA-32 D 208-230/60/1 Air 7.6 15
C0322MA-32 D 208-230/60/1 Air 6.1 15
C0322SW-32 D 208-230/60/1 Water 5.6 15
C0330SA-1 D 115/60/1 Air 12.7 15
C0330SW-1 D 115/60/1 Water 11.9 15
C0330MA-32 D 208-230/60/1 Air 6.1 15
C0530SA-1 D 115/60/1 Air 15.2 20
C0530SW-1 D 115/60/1 Water 13.5 15
C0530SA-32 D 208-230/60/1 Air 7.8 15
C0530MA-32 D 208-230/60/1 Air 7.8 15
C0630SA-32 D 208-230/60/1 Air 18.2 20
C0630SW-32 D 208-230/60/1 Water 17 20
C0830SA-32 D 208-230/60/1 Air 10.2 15
C0830SW-32 D 208-230/60/1 Water 9 15
C0830SA-3 D 208-230/60/3 Air 8.4 15
C1030SA-32 D 208-230/60/1 Air 16 20
C1030SW-32 D 208-230/60/1 Water 14.8 15
Condenser Minimum
Circuit
Ampacity
Maximum
Fuse Size*
* Or HACR type circuit breakers.
** Maximum width at top panel.
December 2014
Page 4
C0322 through C1030 D Series
15.28
38.8
CONDENSER
WATER INLET
CONDENSER
Air and Water Cooled User Manual

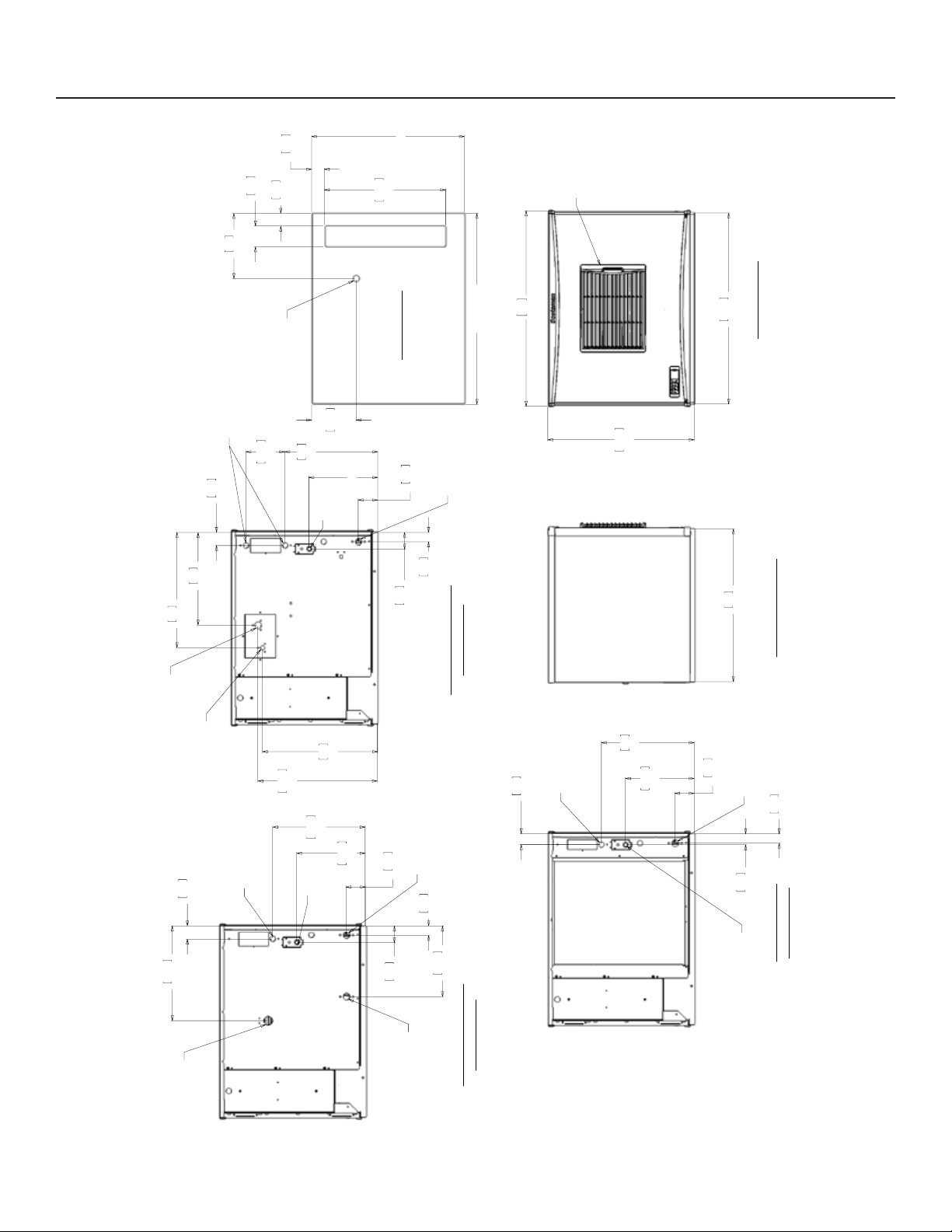

C0322 and C0522 Cabinet Layout
5.1
2.00
48.4
19.05
5.1
2.00
ULTRASONIC
BIN LEVEL
SENSOR
(OPTIONAL)
5.1
.88" DIA
2.02
7.00
17.8
15.5
ELECTRICAL
ACCESS (2)
6.11
REF.
24.00
37
14.56
27.4
3/8" FPT
WATER
8.3
3.25
ICE DROP OPENING
26
10.79
INLET
10.25
7.7
3.04
REF.
22.00
PLAN VIEW
3/4" FPT
DRAIN
3.6
1.43
57.6
22.67
LOUVER AND
REMOVABLE FILTER
AC UNITS ONLY
58.4
23.00
24.5
9.65
55.9
22.00
FRONT VIEW
7.58
19.2
28.2
11.12
REMOTE CONDENSER
DISCHARGE LINE
1/2 MALE CPLG.
REMOTE CONDENSER
LIQUID LINE
3/8 MALE CPLG.
5.1
2.02
19
7.47
.88" DIA
ELECTRICAL
ACCESS
50.1
19.71
37
48.3
19.00
14.55
27.4
3/8" FPT
WATER
INLET
10.78
7.7
3/4" FPT
DRAIN
4.3
4.3
1.69
BACK VIEW
REMOTE COOLED
3.03
3.6
1.43
9.5
1.68
3.73
63.7
25.09
61
24.00
LEFT SIDE VIEW
37
14.56
27.4
.88" DIA
ELECTRICAL
ACCESS
4.1
1.60
10.79
7.7
3/8" FPT
WATER
INLET
3.04
3/4" FPT
4.1
1.62
DRAIN
3.6
1.43
BACK VIEW
AIR COOLED
3/8" FPT
BACK VIEW
WATER COOLED
1/2" FPT
DRAIN
December 2014
Page 5
C0322 through C1030 D Series
AIR COOLED
.88" DIA.
ACCESS
Air and Water Cooled User Manual

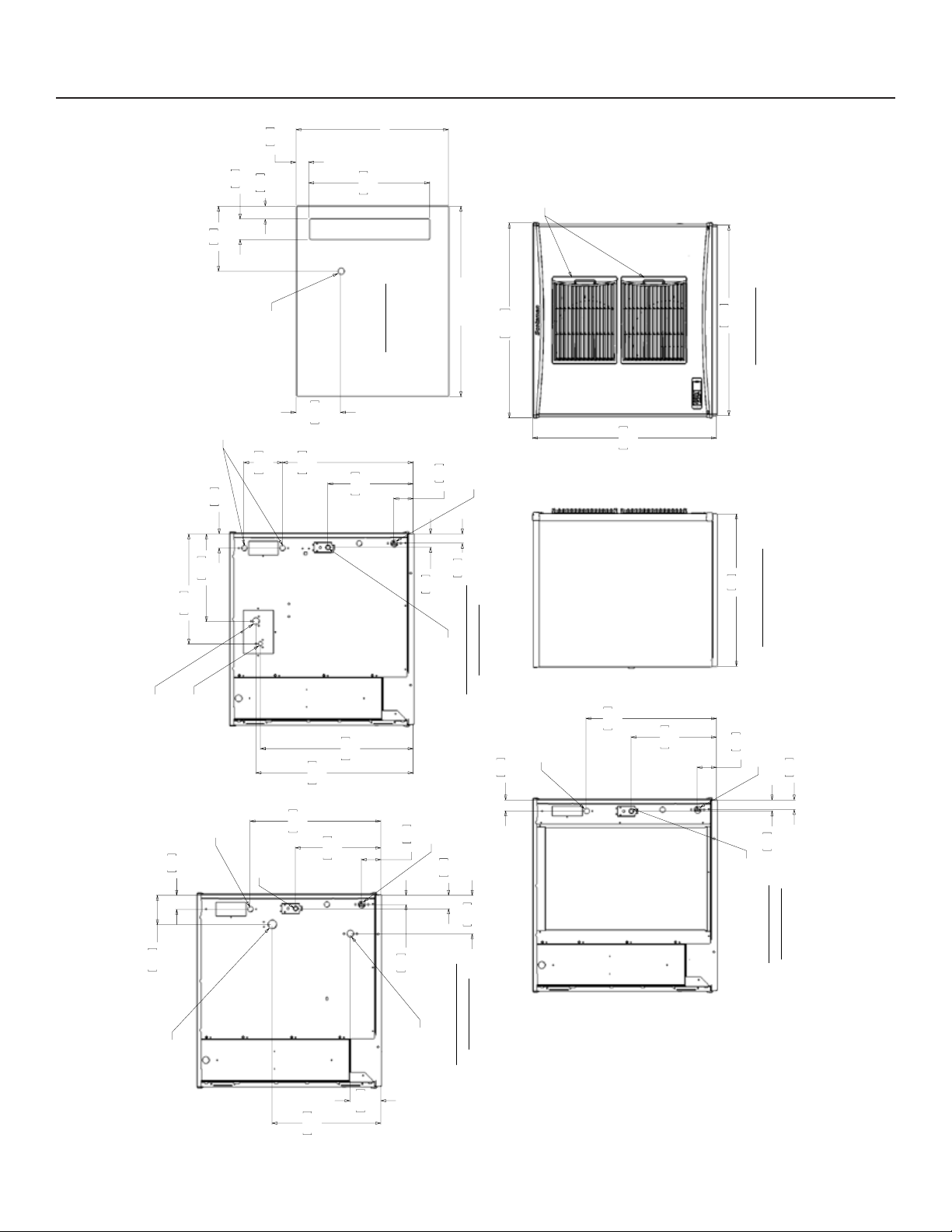

C0722 Cabinet Layout
8.3
5.1
2.00
48.4
19.05
ICE DROP OPENING
3.25
5.1
2.00
26
10.25
22.00 REF.
PLAN VIEW
57.7
22.70
LOUVERS AND
REMOVABLE FILTERS
(2) AC UNITS ONLY
55.9
22.00
FRONT VIEW
17.8
7.00
24.00
REF.
ULTRASONIC
BIN LEVEL
SENSOR
(OPTIONAL)
63.7
25.09
63.1
24.83
73.7
29.00
42.7
16.83
5.75
7.8
3.08
61
24.00
LEFT SIDE VIEW
3/4" FPT
DRAIN
4.2
1.64
20.2
7.94
ELECTRICAL
December 2014
Page 6
4.3
3/8" FPT
WATER
1.71
BACK VIEW
INLET
